RJ45 Keystone STP, Cat.6A, 500MHz, components certified
RJ45 Keystone STP, Cat.6A, 500MHz, component certified
Varenummer:
E-20070
EAN Nr.:
4049759022242
Produktinformation til RJ45 Keystone STP, Cat.6A, 500MHz, component certified

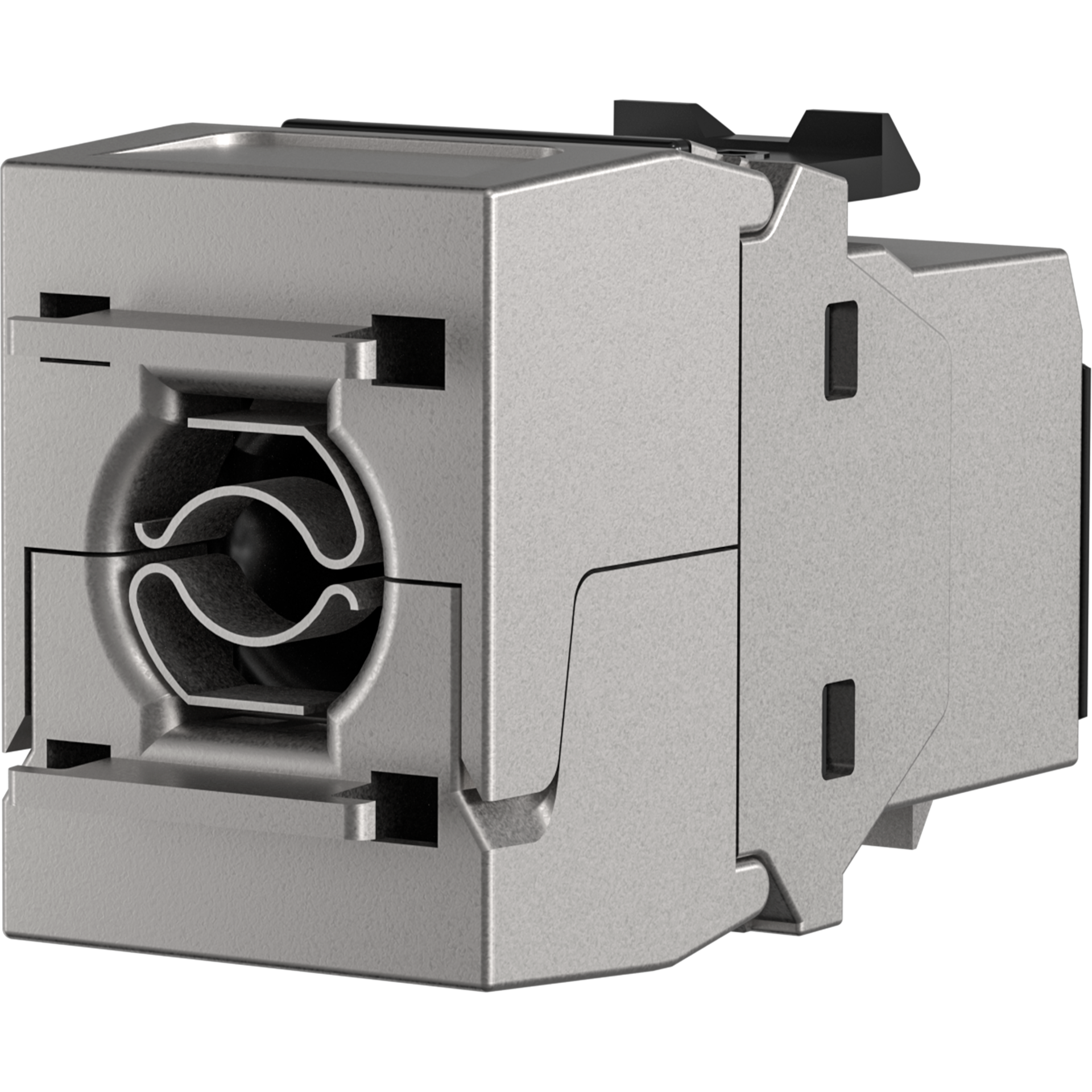

The RJ45 keystone module provides a combination of excellent transmission qualities and an easy tool-free assembly. The high quality of the RJ45 keystone module ensures very good qualities for 10 Gigabit Ethernet applications. No special tools are needed for the assembly. The assembly is easy and handy to execute. With the RJ45 keystone module you receive a fully shielded module, which will provide good service for a long time in your network installation.
Specifications:
Cat.6A components certified according to ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7-51

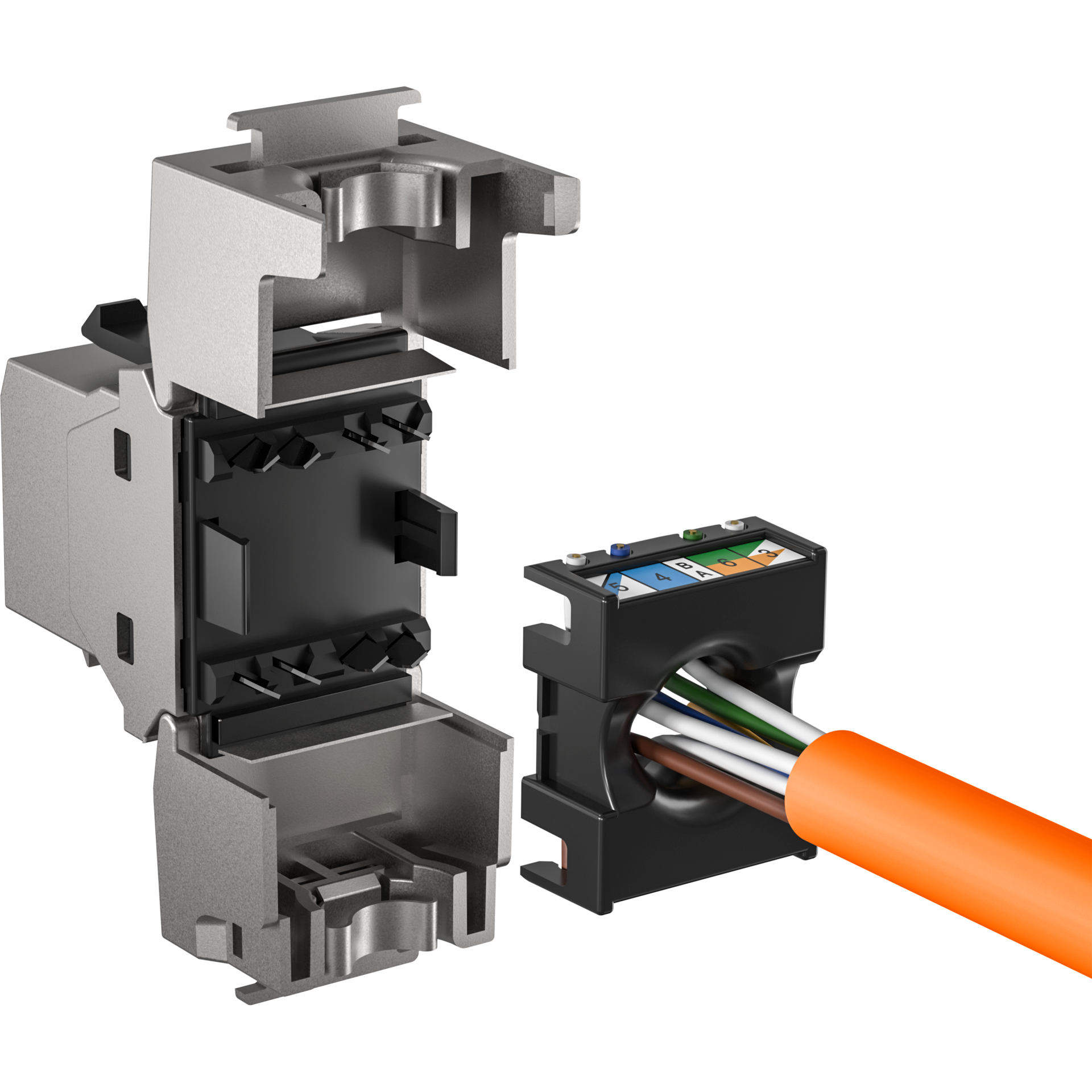

Compact cable presorter for AWG 26/1 .. AWG 22/1 and AWG26/7 .. AWG24/7
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Scope of delivery:

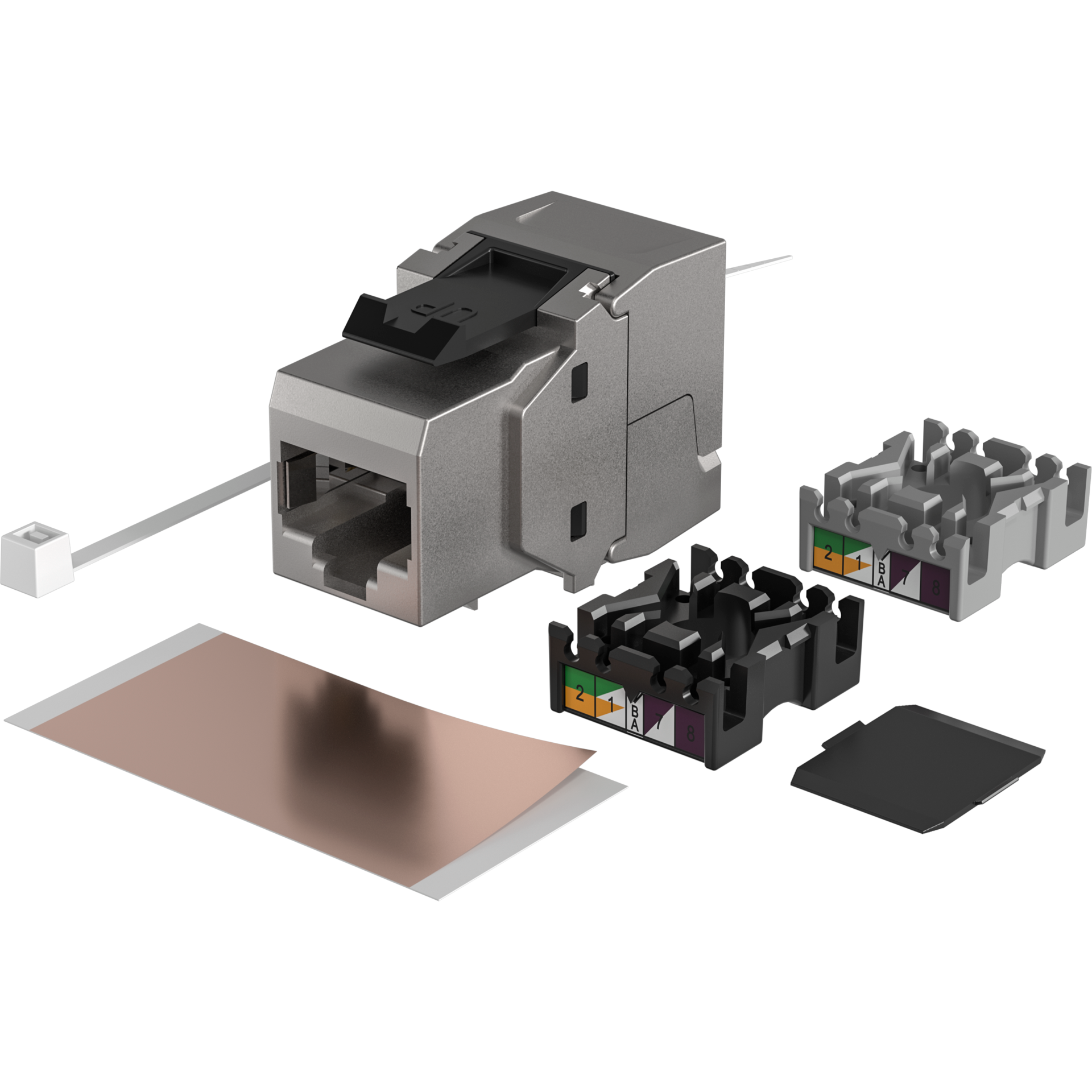

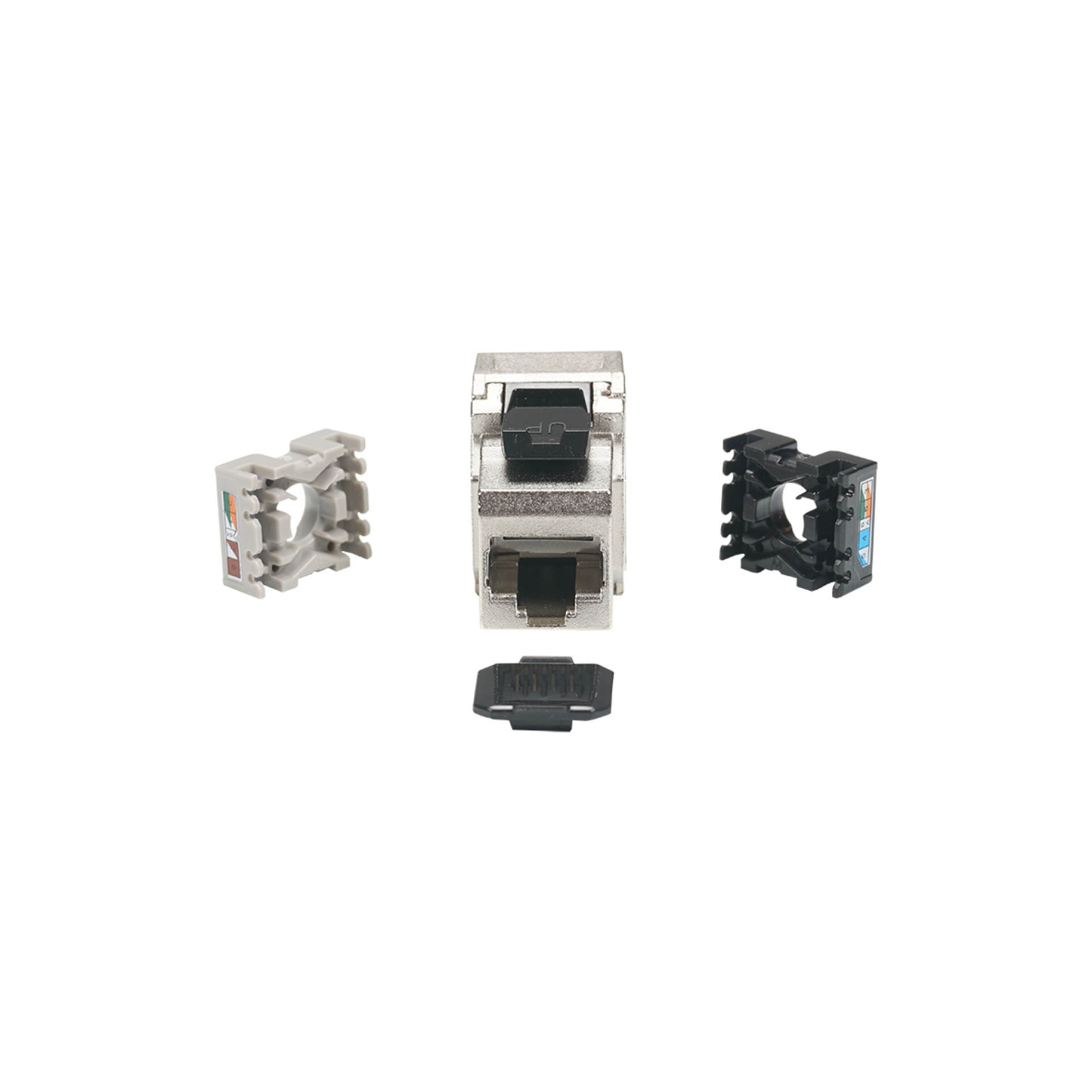

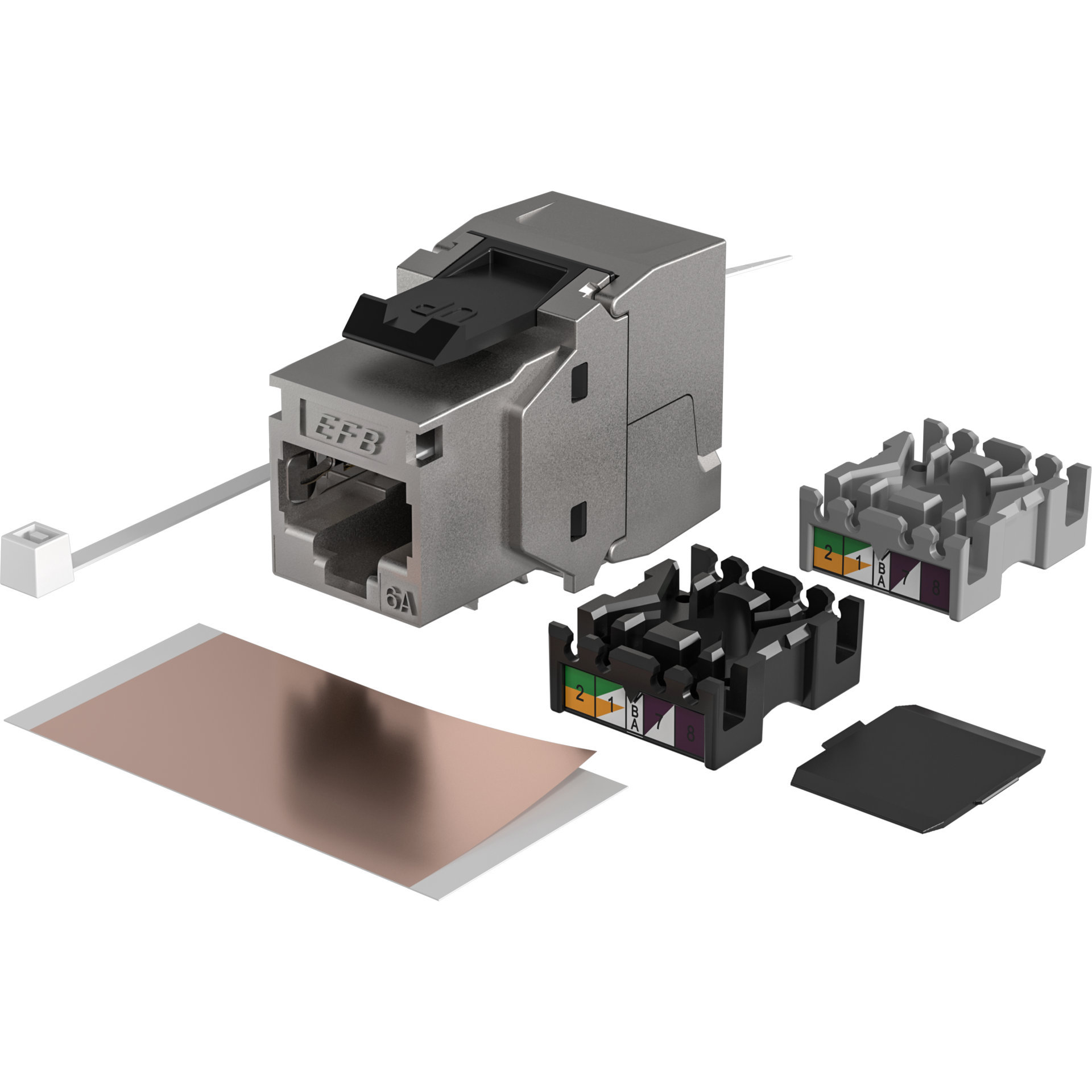

1 x RJ45 keystone, Cable coder (Black: AWG22/1-AWG26/1; Grey: AWG24/7-AWG26/7),1 x copper foil, 1 x cable tie, dust cover, mounting instruction
Specifications:
Cat.6A components certified according to ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7-51
Compact cable presorter for AWG 26/1 .. AWG 22/1 and AWG26/7 .. AWG24/7
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Scope of delivery:
1 x RJ45 keystone, Cable coder (Black: AWG22/1-AWG26/1; Grey: AWG24/7-AWG26/7),1 x copper foil, 1 x cable tie, dust cover, mounting instruction
Tekniske egenskaber
| 4PPOE Zertifiziert: | Ja |
|---|---|
| 360° Schirmkontaktierung: | Ja |
| AWG-Bereich: | 26 – 22 |
| AWG-Bereich für Litzenleiter: | 26 – 24 |
| Anschlussart: | Schneidklemme IDC |
| Ausführung: | Buchse |
| Für UAE geeignet: | Nein |
| Geeignet für Flachkabel: | Nein |
| Geeignet für Litzenleiter: | Ja |
| Geeignet für Massivleiter: | Ja |
| Geeignet für Rundkabel: | Ja |
| Gehäuse Material: | Zinkdruckguss |
| Geschirmt: | Ja |
| Isolationswiderstand: | ≥ 500 MΩ |

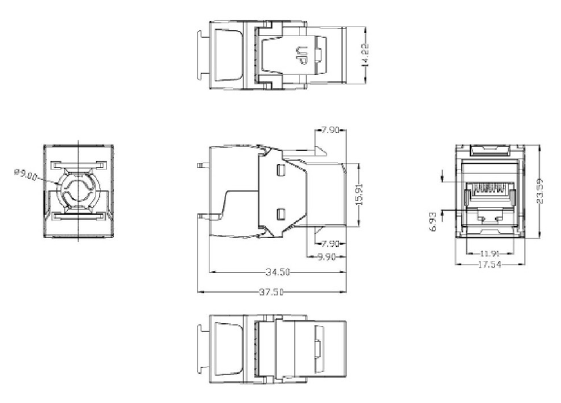

| Kabeldurchmesser: | 9.0 mm |
| Kategorie: | 6A (IEC) |
| Konform zu UL94: | V-0 |
| Kontaktbeschichtung: | 50 µ" |
| Kontaktwiderstand: | ≤ 20 mΩ |
| Prüfspannung Dieelektrikum: | 1000 V AC 60Hz |
| Spezialwerkzeug notwendig: | Nein |
| Staubschutzkappe: | Ja |
| Steckverbindertyp: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | 2 A |
| Temperaturbereich: | -40 – 66 °C |
