Keystone distributor housing 8-Port for DIN rail and wall mounting 8 port
Keystone distributor housing 8-Port for DIN rail and wall mounting, plastic
Varenummer:
ET-25186.2
EAN Nr.:
4049759297695
Produktinformation til Keystone distributor housing 8-Port for DIN rail and wall mounting, plastic
The distribution box is suitable for mounting on a TH35 DIN rail for use in sub-distribution boards, switching/network cabinets or for wall mounting. Due to the modular, tiltable module outlets, the housing is flexible and facilitates cable routing as required for the specific application. In addition, the enclosure has a grounding connection that shielded keystones can thus be connected.
Specifications:
- For DIN rail mounting on a 35mm DIN rail (TH35).
- Material: plastic and metal
- Color: black

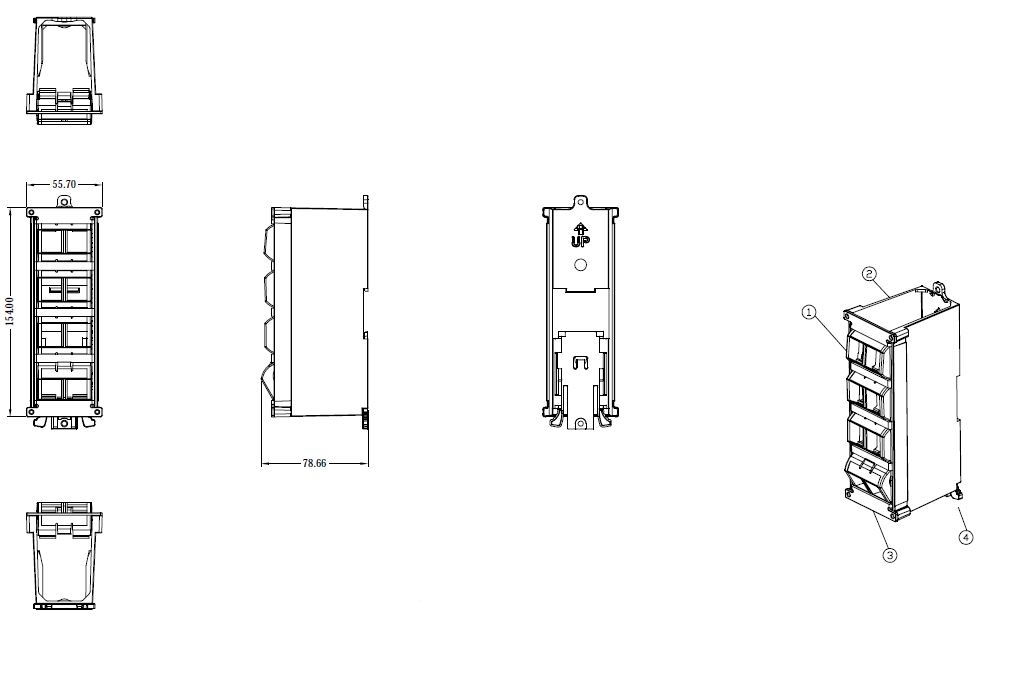

- Dimensions: 55.70 x 154.00 x 78.66 mm
- Suitable for mounting up to 8 Keystone modules
- Output: Angled and straight
Included: 1x 8-port housing, 1x ground wire
Specifications:
- For DIN rail mounting on a 35mm DIN rail (TH35).
- Material: plastic and metal
- Color: black
- Dimensions: 55.70 x 154.00 x 78.66 mm
- Suitable for mounting up to 8 Keystone modules
- Output: Angled and straight
Included: 1x 8-port housing, 1x ground wire
Tekniske egenskaber
| Abmessungen (WxHxD): | 55.70 x 154.00 x 78.66 mm |
|---|---|
| Color: | black |
| Fit for: | 1 module (keystone format) |
| Material: | Plastic |
| Material: | Metal |
| Tackable: | False |
| Type of DIN-rail adapter: | Straight |
| Type of fastening: | DIN-Rail 35 mm |
| With earthing spring: | True |
| With labeling field: | False |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
