RJ45 Keystone Slimline/ Shortbody Cat.6A
EFB-Elektronik

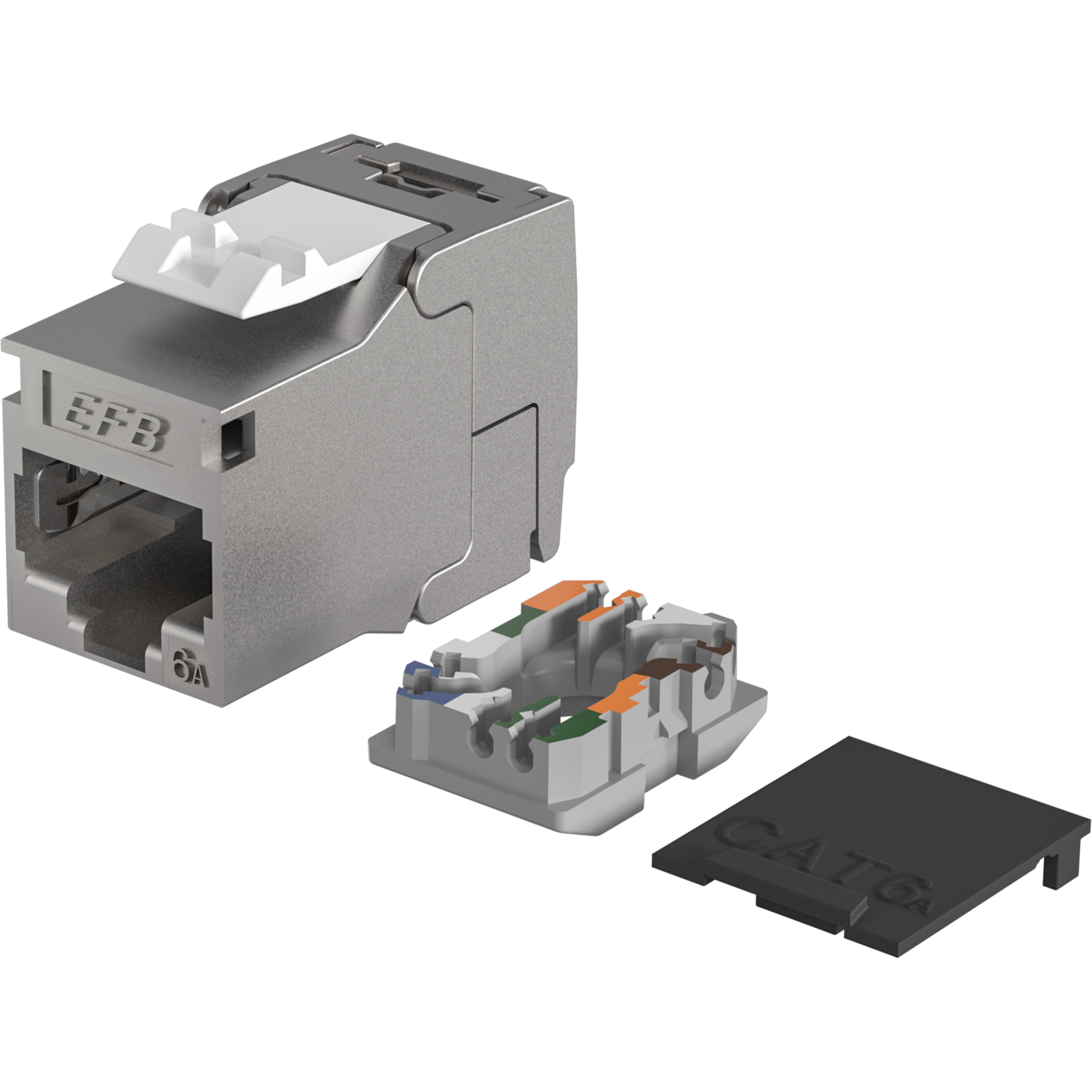

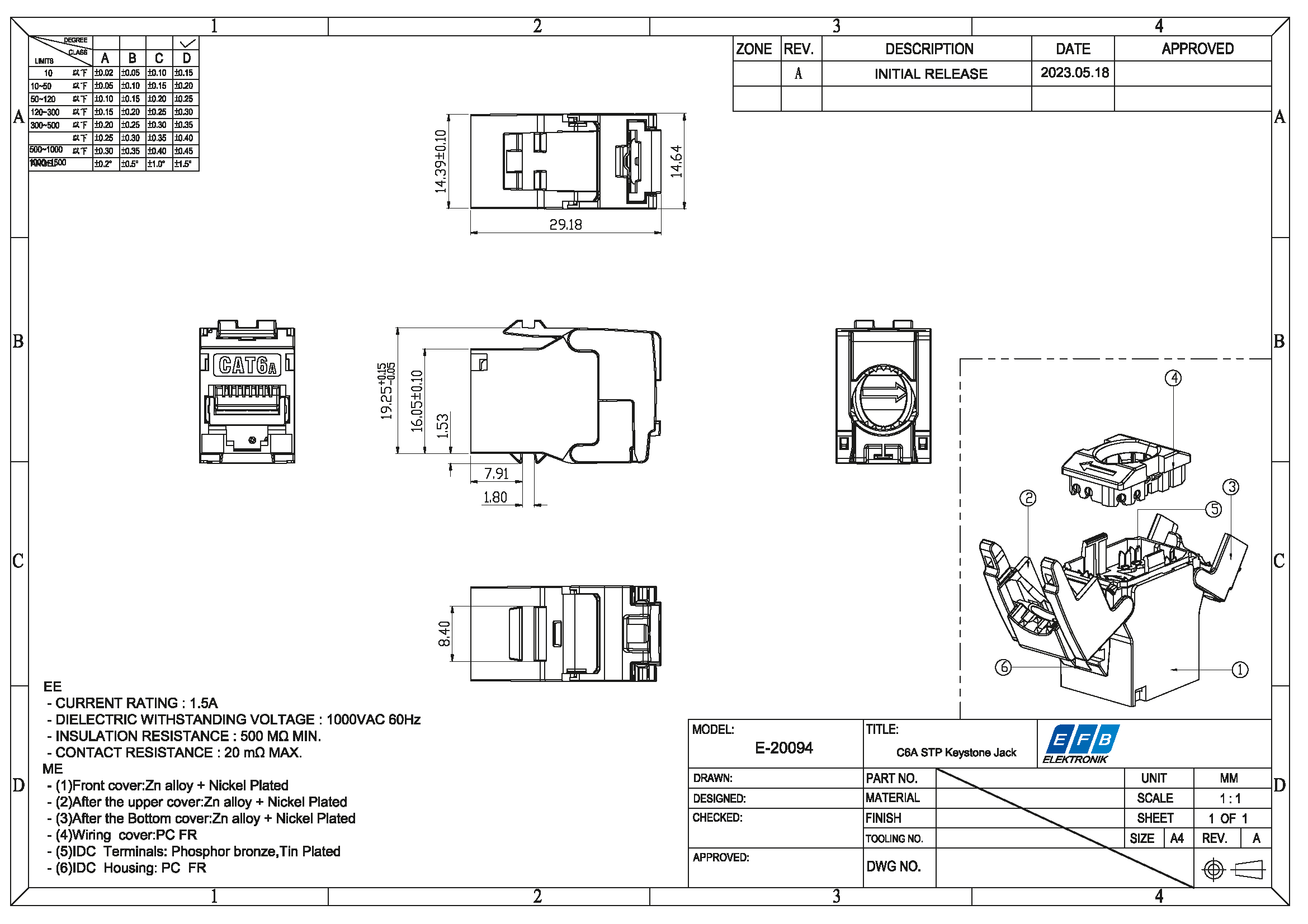

RJ45 Keystone Slimline/Shortbody Cat.6A Component certified silver
Varenummer:
E-20094
EAN nr.:
4049759296094
Produktinformation til RJ45 Keystone Slimline/Shortbody Cat.6A Component certified silver
The E-20094 Cat.6A Keystone module combines very high system reserves with a slimline/shortbody housing. The slimline/shortbody housing allows installation in UAE frames and, thanks to the short design, easier installation in underfloor systems and flat data sockets. The high quality standard of the Cat.6A Keystone module ensures very good transmission properties for 10 Gigabit applications, even over a long period of time. Tool-free assembly is very quick and easy; no special tools are required. With the Cat.6A Keystone Module you receive a fully shielded RJ45 module that guarantees long-term and reliable 10 GBit/s Ethernet services in your network installation.
Get helpful installation instructions in our short explanatory video on YouTube - watch now.
Features:
Get helpful installation instructions in our short explanatory video on YouTube - watch now.
Features:
- Extremely slim “Slimline” design enables installation in UAE carrier rings, design compatible
- Very short design of only 29, 2mm for easier installation in ducts and flat boxes
- Flexible installation with installation cables or patch cables possible thanks to compact cable pre-sorters for contacting IDC strips AWG27/7..AWG26/7 and AWG24/1..AWG22/1
- Pair management according to TIA/EIA 568 A/B color codes (color code printed on the cable pre-sorter)
- Suitable for all distribution panels, underfloor systems and support rings with Keystone Breakout
- Slidable shield contact adapts to a wide range of cable diameters (5 - 8,5mm)
Scope of delivery:
1 x RJ45 module
1 x cable pre-sorter for installation cable AWG24/ 1 - 22/1 (white)
1 x cable pre-sorter for patch cables AWG27/7..26/7 (gray)
1 x dust cap
1 x quick guide
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 27 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| For UAE suitable: | True |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Separate earthing flag: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
Tekniske egenskaber
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 27 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| For UAE suitable: | True |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Separate earthing flag: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
Produktinformation til RJ45 Keystone Slimline/Shortbody Cat.6A Component certified silver
The E-20094 Cat.6A Keystone module combines very high system reserves with a slimline/shortbody housing. The slimline/shortbody housing allows installation in UAE frames and, thanks to the short design, easier installation in underfloor systems and flat data sockets. The high quality standard of the Cat.6A Keystone module ensures very good transmission properties for 10 Gigabit applications, even over a long period of time. Tool-free assembly is very quick and easy; no special tools are required. With the Cat.6A Keystone Module you receive a fully shielded RJ45 module that guarantees long-term and reliable 10 GBit/s Ethernet services in your network installation.
Get helpful installation instructions in our short explanatory video on YouTube - watch now.
Features:
Get helpful installation instructions in our short explanatory video on YouTube - watch now.
Features:
- Extremely slim “Slimline” design enables installation in UAE carrier rings, design compatible
- Very short design of only 29, 2mm for easier installation in ducts and flat boxes
- Flexible installation with installation cables or patch cables possible thanks to compact cable pre-sorters for contacting IDC strips AWG27/7..AWG26/7 and AWG24/1..AWG22/1
- Pair management according to TIA/EIA 568 A/B color codes (color code printed on the cable pre-sorter)
- Suitable for all distribution panels, underfloor systems and support rings with Keystone Breakout
- Slidable shield contact adapts to a wide range of cable diameters (5 - 8,5mm)
Scope of delivery:
1 x RJ45 module
1 x cable pre-sorter for installation cable AWG24/ 1 - 22/1 (white)
1 x cable pre-sorter for patch cables AWG27/7..26/7 (gray)
1 x dust cap
1 x quick guide
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 27 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| For UAE suitable: | True |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Separate earthing flag: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 27 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| For UAE suitable: | True |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Separate earthing flag: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
Spring produktgalleriet over
main product
Art. nr. ET-25186.2
Keystone distributor housing 8-Port for DIN rail and wall mounting, plastic
Assembly:
Unloaded
Number of ports:
8
max. assembly:
8
Art. nr. ET-25186.V3
Keystone holder 1-Port, for DIN Rail in subdistribution, plastic
Assembly:
Unloaded
Number of ports:
1
max. assembly:
1
Spring produktgalleriet over
accessory
%
Art. nr. 37586.1SW

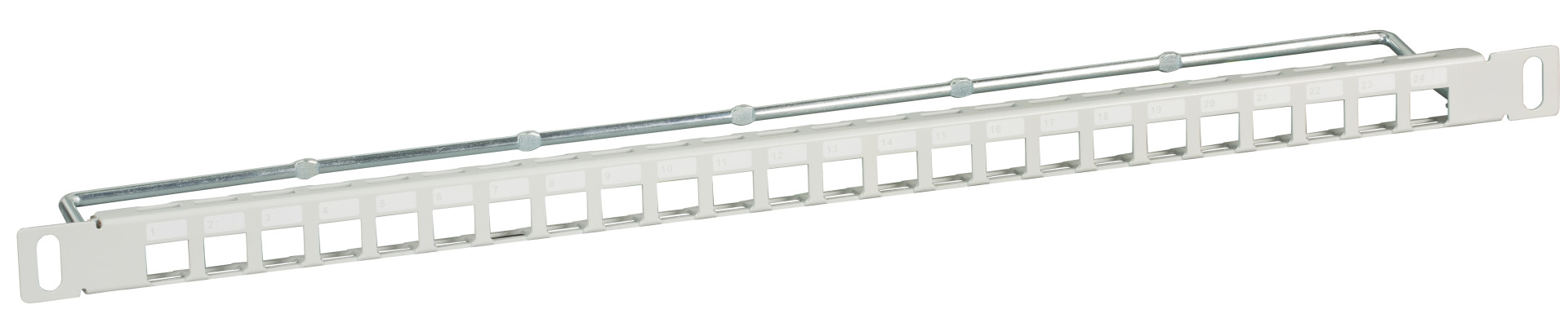

Verteilerfeld 19" 0,5HE 24-Port, Metall, schwarz RAL9005
Color:
black
Number of connector holes:
24
Suitable for adapter:
Keystone
Art. nr. ET-25085V3

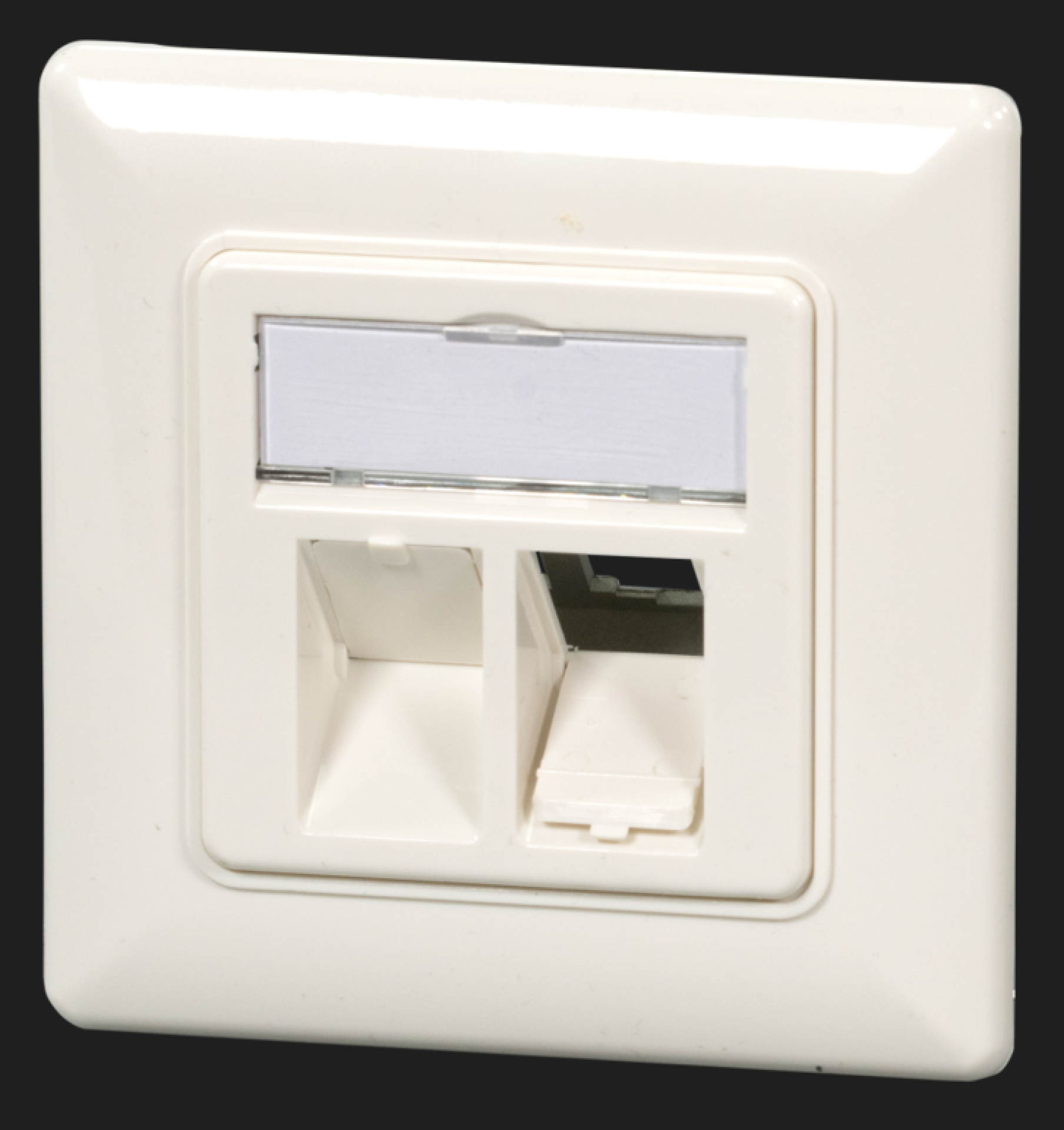

Frame Set 2-port, for keystones, DIN49075, RAL9010
Color:
white
Depth of device:
24.4 mm
Height of device:
80 mm
RAL-number (akin):
9010
Art. nr. ET-25090

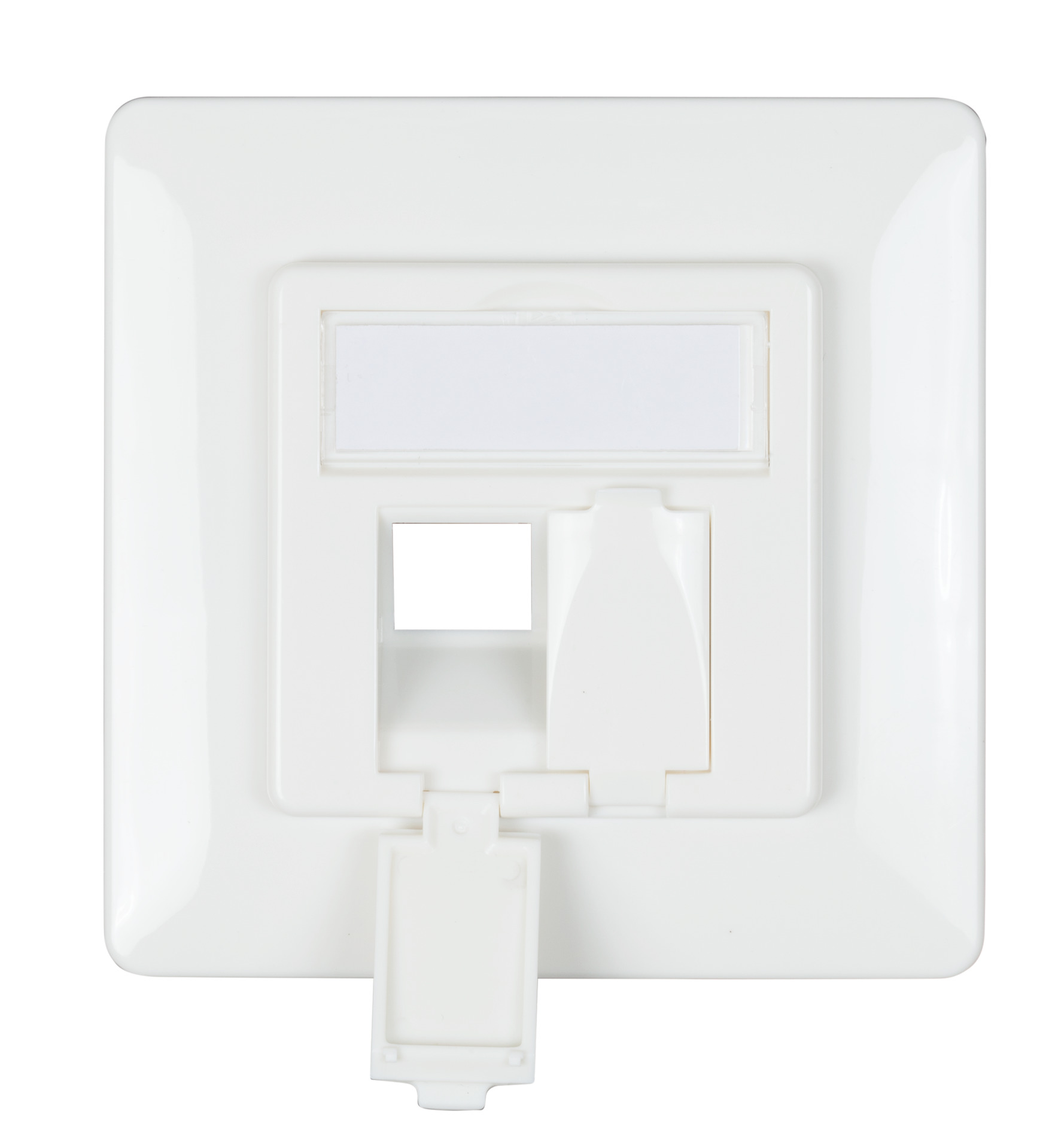

Frame Set 2-Port, for slimline keystone module, design capable UAE
Color:
white
Depth of device:
22.64 mm
Height of device:
80 mm
RAL-number (akin):
9010
Art. nr. ET-25087V3

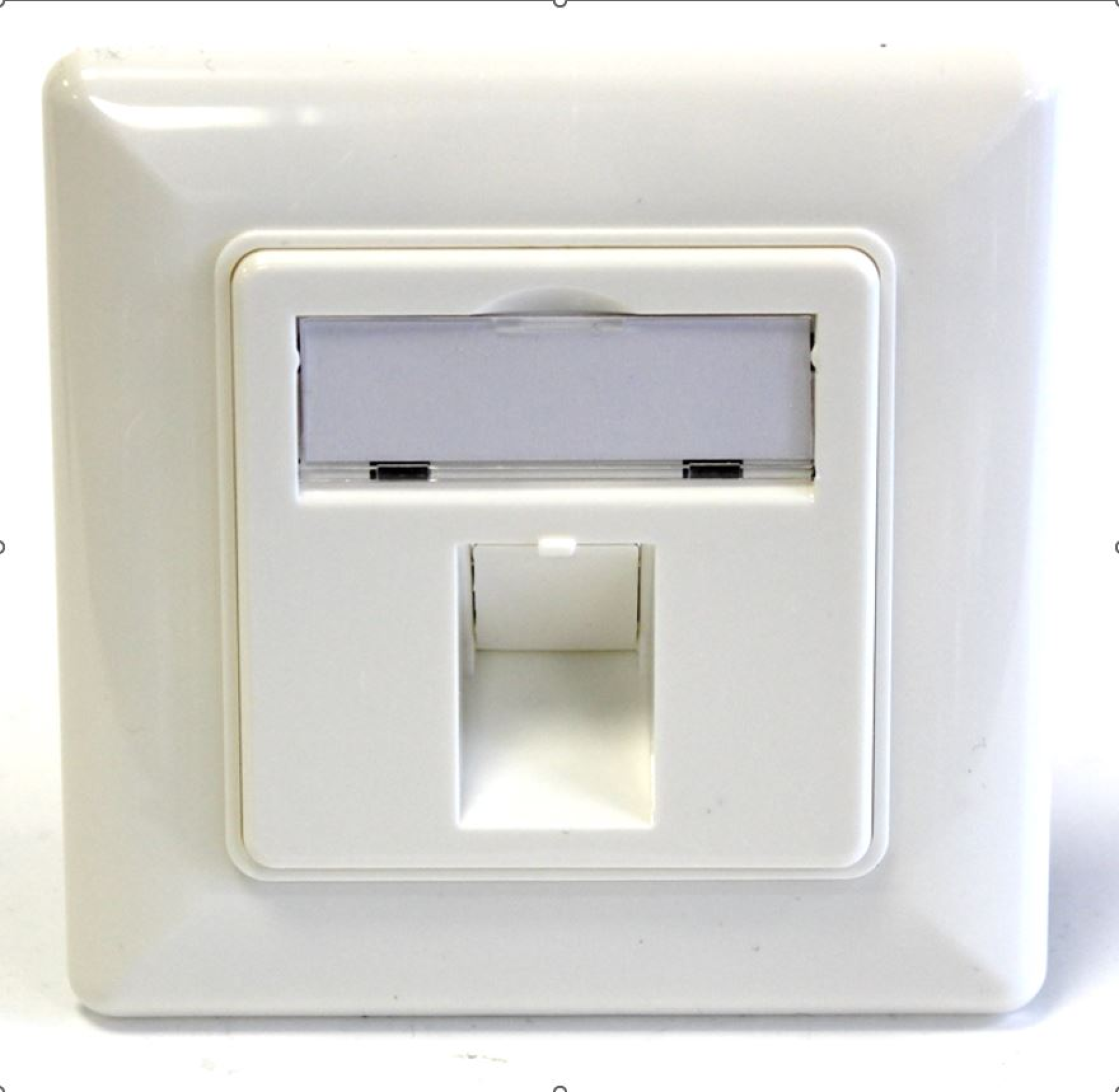

Frame Set 1-port, for keystones, DIN49075, RAL9010
