Frame Set for 2 x Slimline Keystone
Frame Set 2-Port, for slimline keystone module, design capable UAE
Varenummer:
ET-25090
EAN Nr.:
4049759149536
Produktinformation til Frame Set 2-Port, for slimline keystone module, design capable UAE

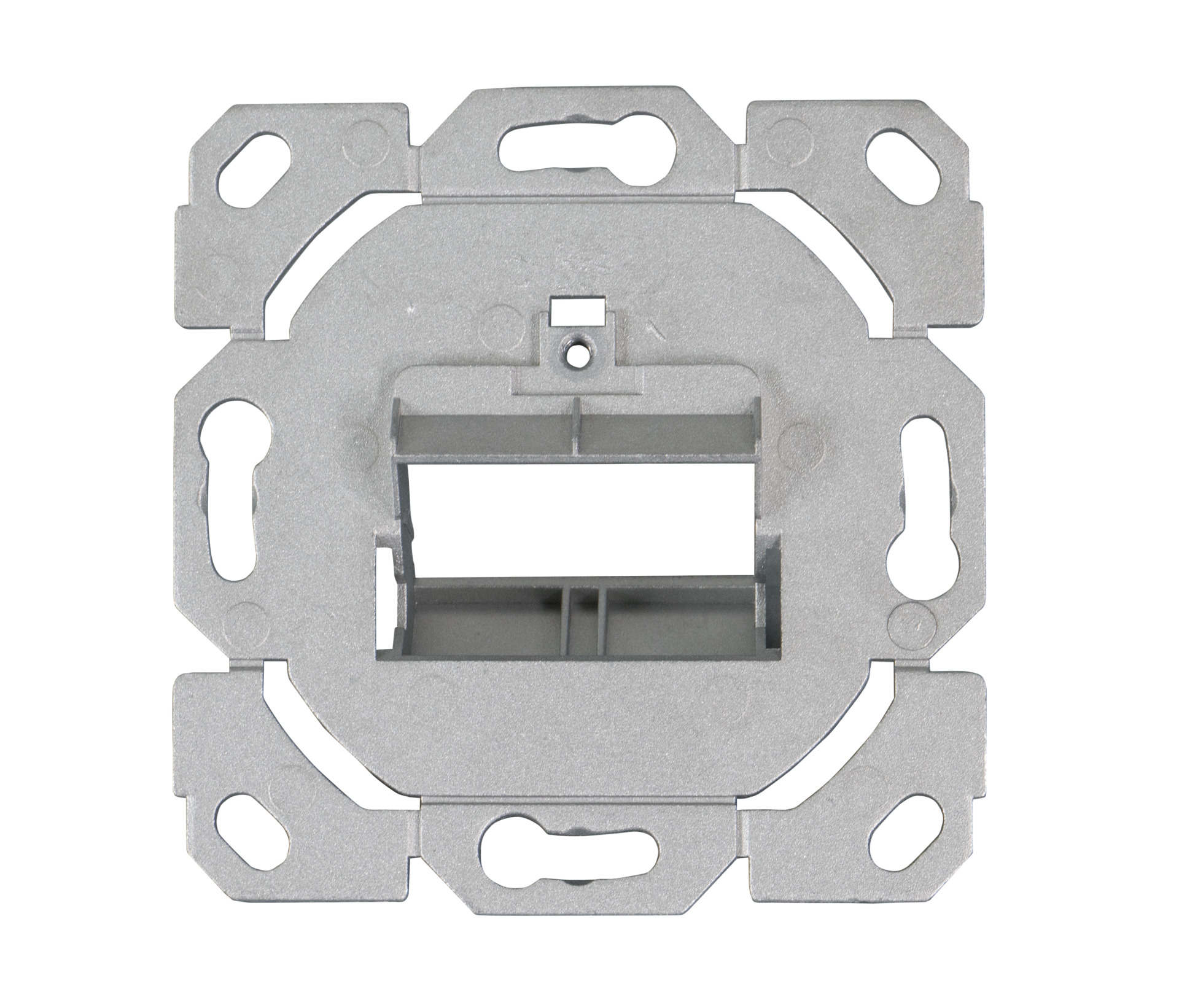

Zinc diecast mounting frame
For holding 2 keystone slimline modules e.g. E-20095, E-200100
40° slanted outlet
RAL 9010
Design capable, compatible to the UAE central plates of switch range manufacturers

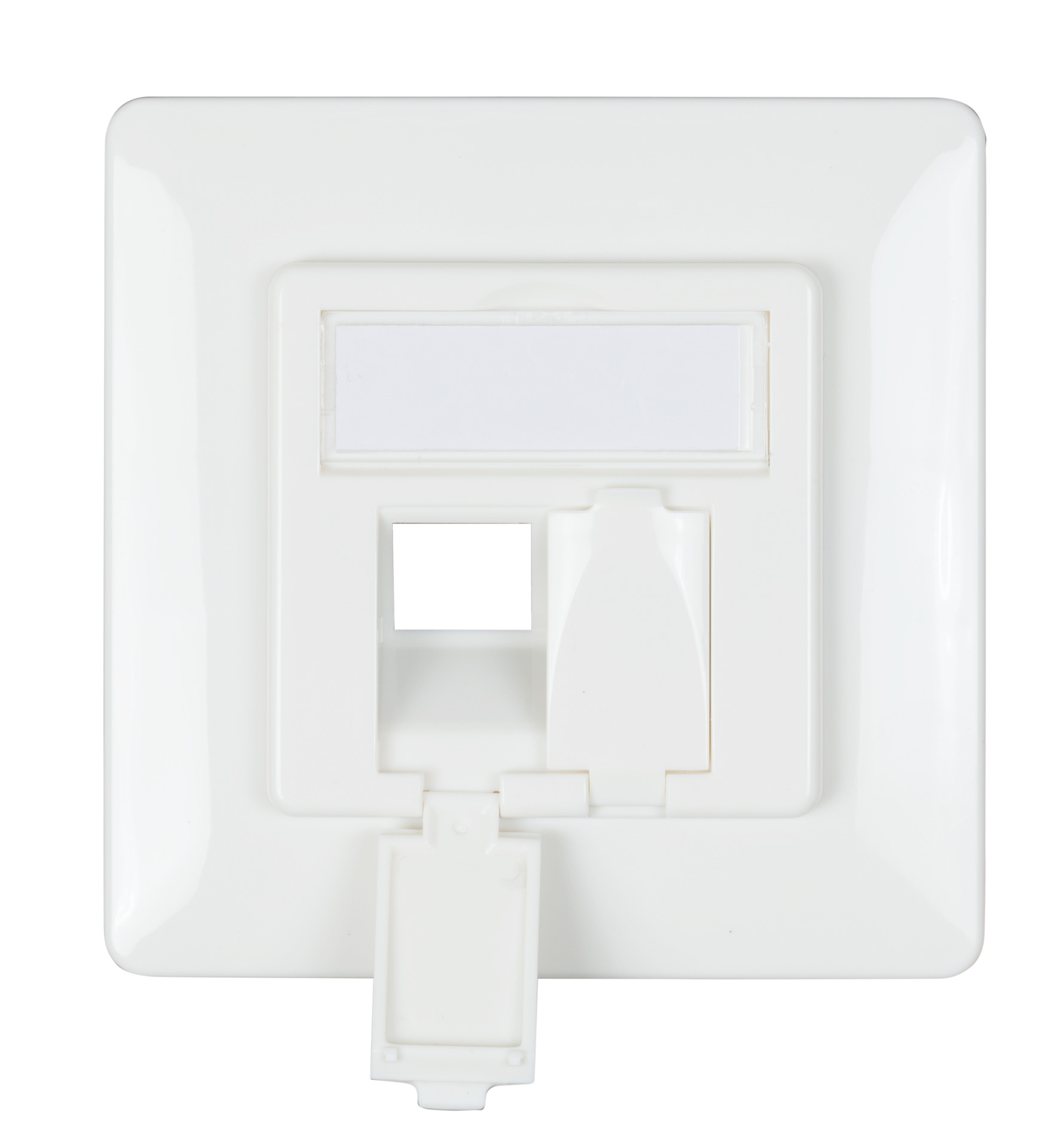

Embedded dust cap and labeling field 11x36mm
Embedded grounding lead for 6.3mm blade receptacle
Scope of delivery:
keystone frame, outer ring, central plate
For holding 2 keystone slimline modules e.g. E-20095, E-200100
40° slanted outlet
RAL 9010
Design capable, compatible to the UAE central plates of switch range manufacturers
Embedded dust cap and labeling field 11x36mm
Embedded grounding lead for 6.3mm blade receptacle
Scope of delivery:
keystone frame, outer ring, central plate
Tekniske egenskaber
| Assembly arrangement: | Basic element |
|---|---|
| Halogen free: | True |
| Imprintable label: | with indication plate |
| Luster terminal: | False |
| Material: | Plastic |
| Material quality: | other |
| Mounting method: | Flush mounted (plaster) |
| Storage Temperature: | 0 - 60° |
| Support ring: | True |
| Surface finishing: | matt |
| Surface treatment: | other |
| Transparent: | False |
| Type of fastening: | mounting with screw |
| With dust cover: | True |
| With hinged lid: | True |
| With imprint: | False |
| With strain relief: | False |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
