RJ45 Keystone Slimline, Cat.6A, silber,
RJ45 Keystone Slimline, Cat.6A, silber,,
Varenummer:
E-20095
EAN nr.:
4049759155056
Produktinformation til RJ45 Keystone Slimline, Cat.6A, silber,,
The RJ45 keystone module slimline garantues very good characteristics for 10Gbit Ethernet application. Special tools are not needed. The assembling is carried out fast and easy. With the RJ45 module slimline you get a full shielded module which provides you good longterm service in your network infrastructure.
Specifications:

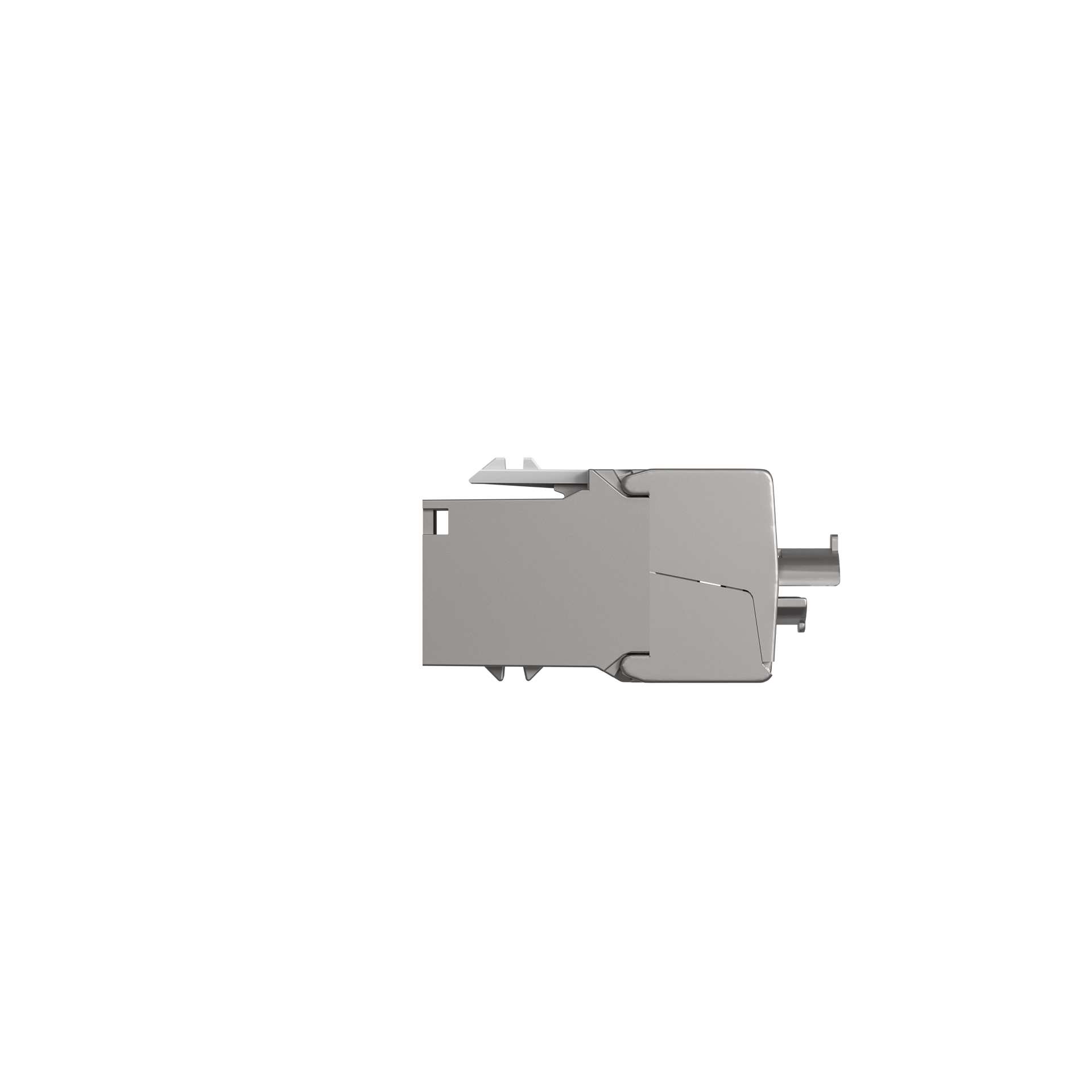

Extremely small design „Slimline“ for installation with UAE frame sets, design capable

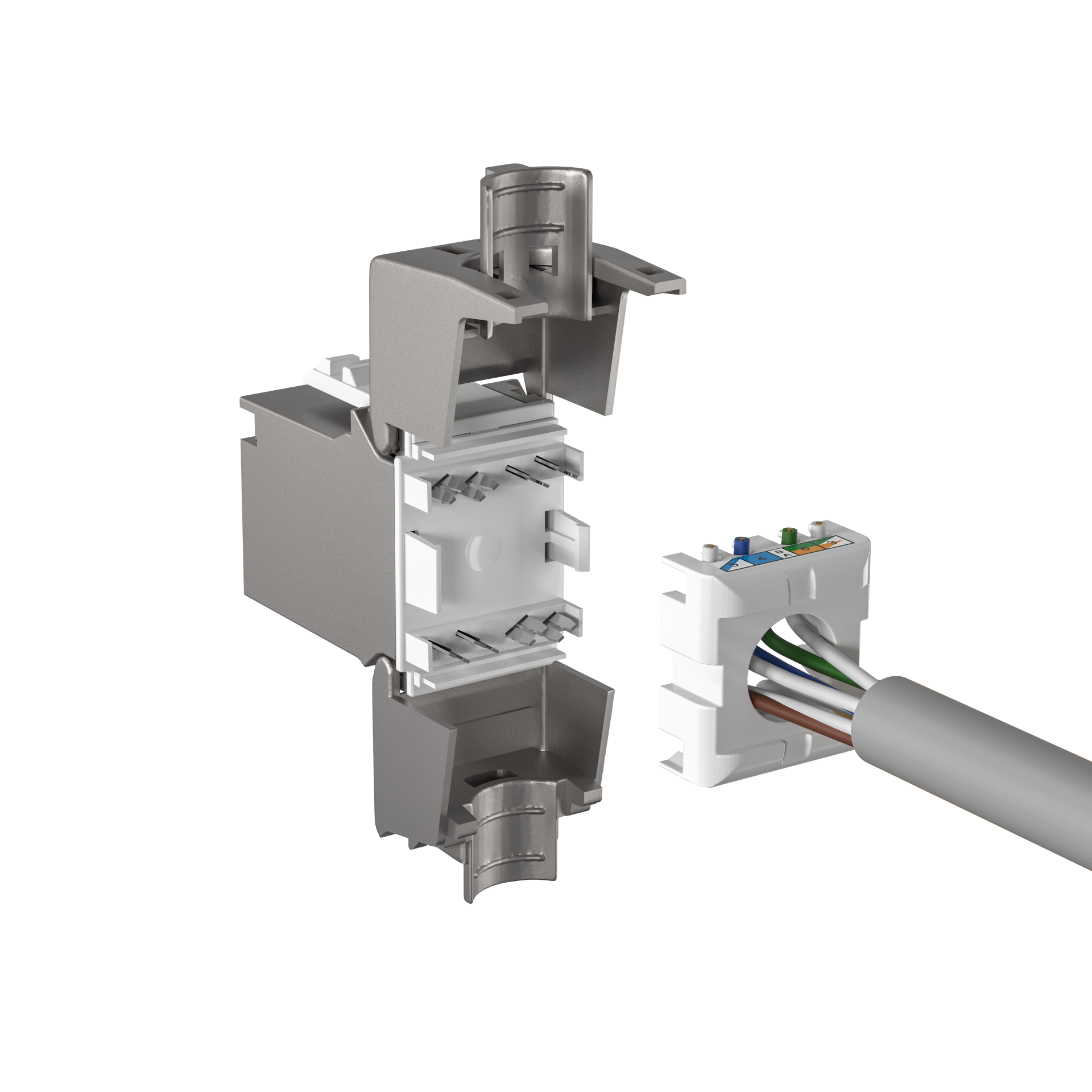

Compact cable presorter for contacting IDC-Terminals AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for all distribution panels and frames with keystone slots

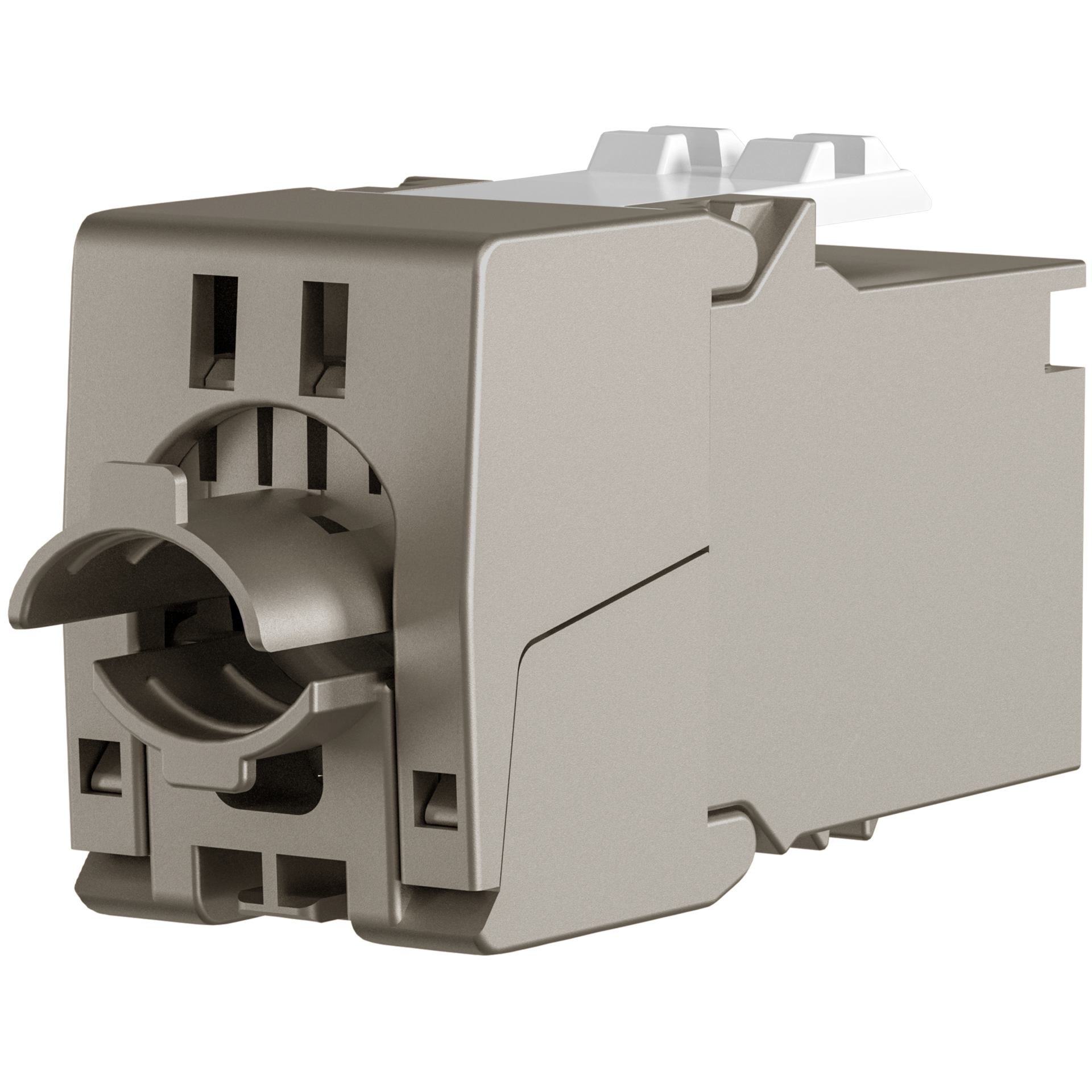

Flexibel strain relief for different cable diameter
Captive dust cover
Scope of delivery:

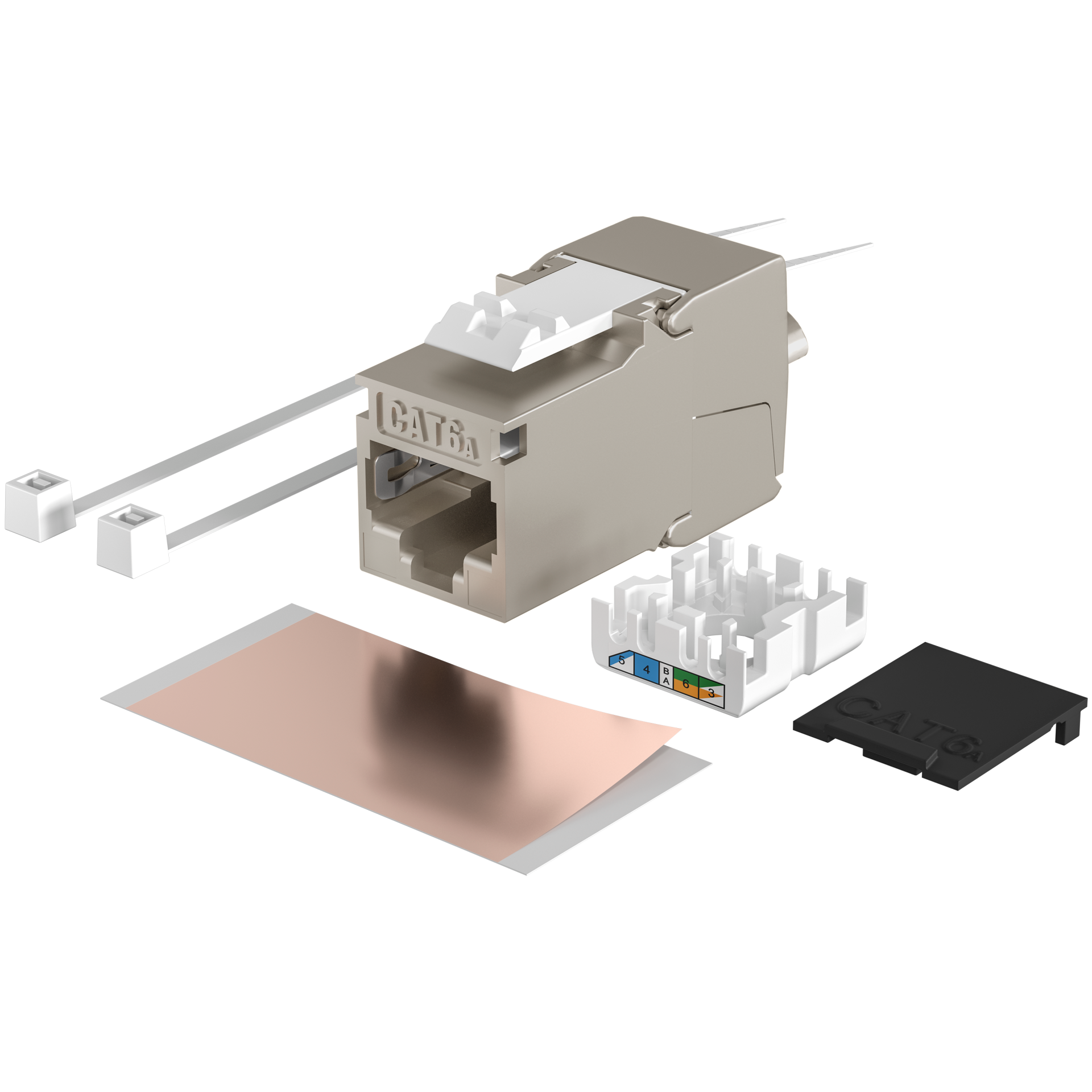

1 x RJ45 keystone, Cable coder, 1 x captive dust cover, 1 x copper foil, 2 x cable ties, mounting instruction
Specifications:
Extremely small design „Slimline“ for installation with UAE frame sets, design capable
Compact cable presorter for contacting IDC-Terminals AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for all distribution panels and frames with keystone slots
Flexibel strain relief for different cable diameter
Captive dust cover
Scope of delivery:
1 x RJ45 keystone, Cable coder, 1 x captive dust cover, 1 x copper foil, 2 x cable ties, mounting instruction
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 24 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| For UAE suitable: | True |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥750 |
| Model: | jack |
| Operating Temperature: | -40 – 66 °C |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| screened: | True |
Tekniske egenskaber
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 24 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| For UAE suitable: | True |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥750 |
| Model: | jack |
| Operating Temperature: | -40 – 66 °C |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| screened: | True |
