Keystone holder 1-Port, for DIN Rail in subdistribution
Keystone holder 1-Port, for DIN Rail in subdistribution, plastic
Varenummer:
ET-25186.V3
EAN Nr.:
4049759297688
Produktinformation til Keystone holder 1-Port, for DIN Rail in subdistribution, plastic
The DIN rail adapter can be mounted on a 35 mm wide DIN rail to enable installation e.g. in a control cabinet , network cabinet or sub-distribution. In addition, the adapter has a small labeling field, which can be individually labeled or provided with various symbols. Once a Keystone is inserted, the adapter can be used to connect an RJ45 patch cable or to connect within the structured cabling.
Specification:
- DIN rail mounting: 35 mm (TH35)
- Stackable
- With labeling field
- For cable diameters from 6.0 - 8.5 mm
- Operating temperature: -40 °C ~ 85 °C
- Material: plastic, metal
- Color: grey

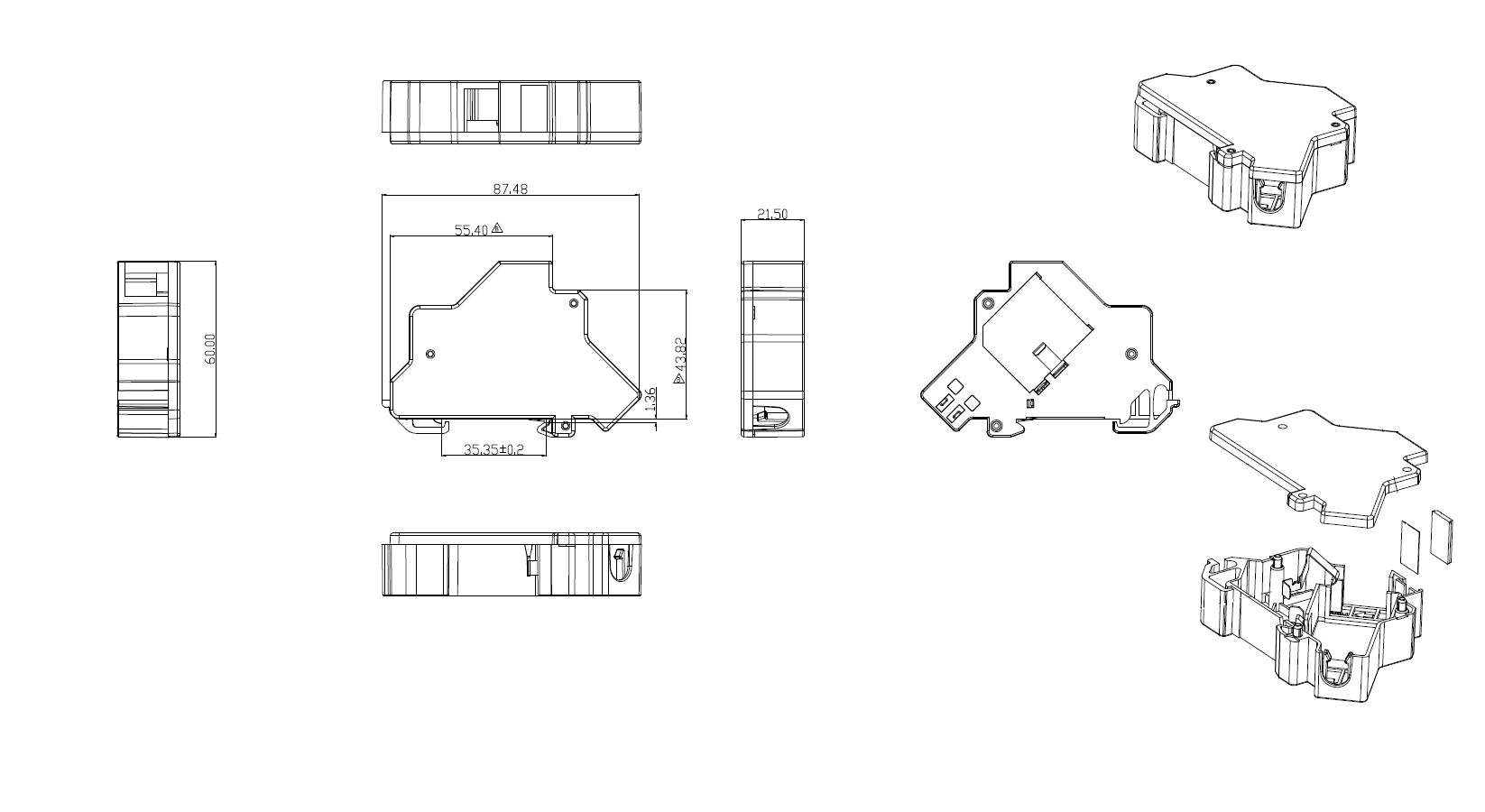

- Dimensions (LxWxH): approx. 21.50 x 60.00 x 87.48 mm
Included: 1 x Keystone module holder
Specification:
- DIN rail mounting: 35 mm (TH35)
- Stackable
- With labeling field
- For cable diameters from 6.0 - 8.5 mm
- Operating temperature: -40 °C ~ 85 °C
- Material: plastic, metal
- Color: grey
- Dimensions (LxWxH): approx. 21.50 x 60.00 x 87.48 mm
Included: 1 x Keystone module holder
Tekniske egenskaber
| Abmessungen (WxHxD): | 21.50 x 60.00 x 87.48 mm |
|---|---|
| Color: | light grey |
| Fit for: | 1 module (keystone format) |
| For DIN-rail acc. DIN EN60715: | True |
| Material: | Plastic |
| RAL colour: | RAL7035 |
| Tackable: | True |
| Type of DIN-rail adapter: | Inclined |
| Type of fastening: | DIN-Rail 35 mm |
| With earthing spring: | True |
| With labeling field: | True |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
