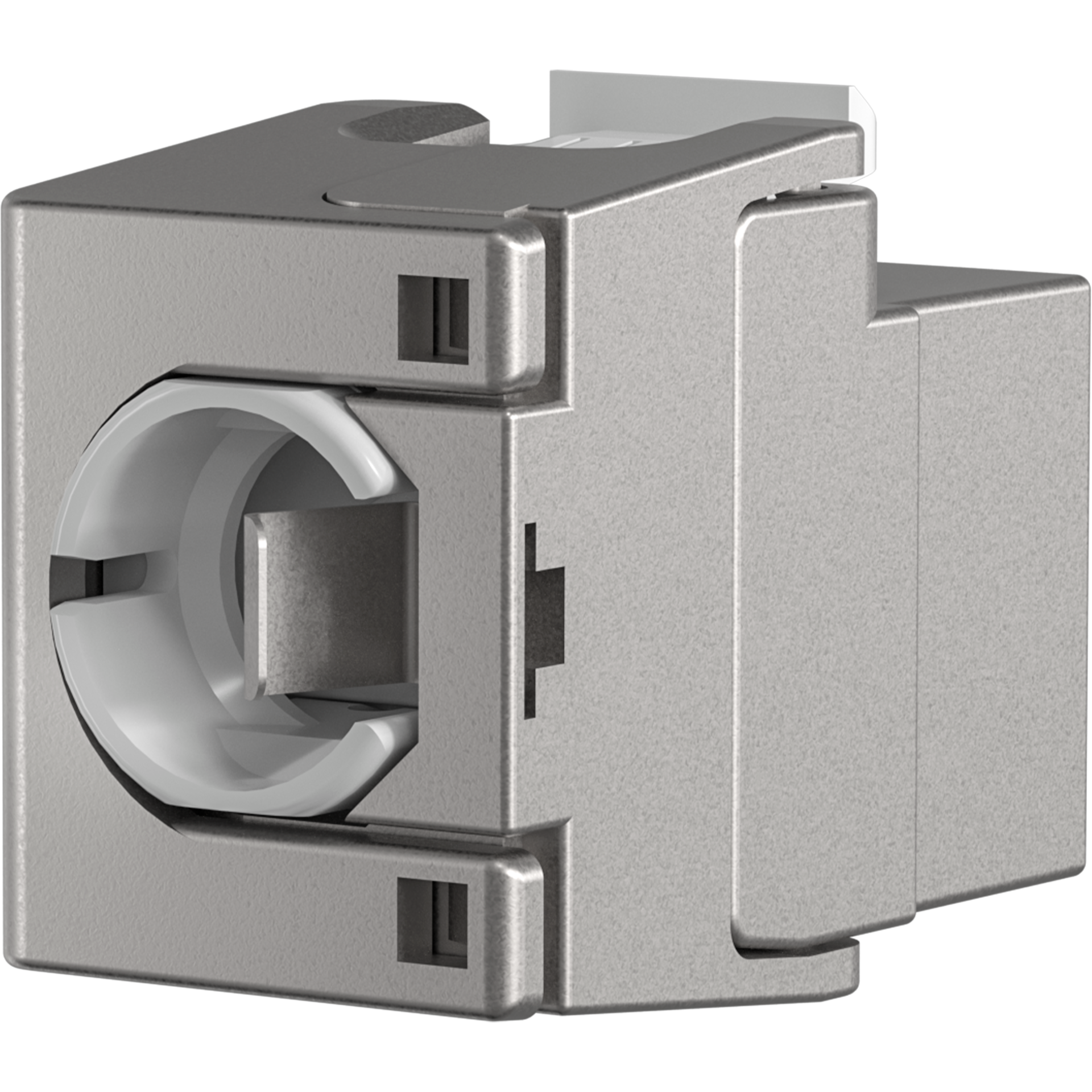

RJ45 Shortbody Keystone STP, Cat.6A 500MHz with internal shutter
RJ45 Shortbody Keystone STP, Cat.6A 500MHz with internal shutter
Varenummer:
E-20093
EAN Nr.:
4049759251031
Produktinformation til RJ45 Shortbody Keystone STP, Cat.6A 500MHz with internal shutter

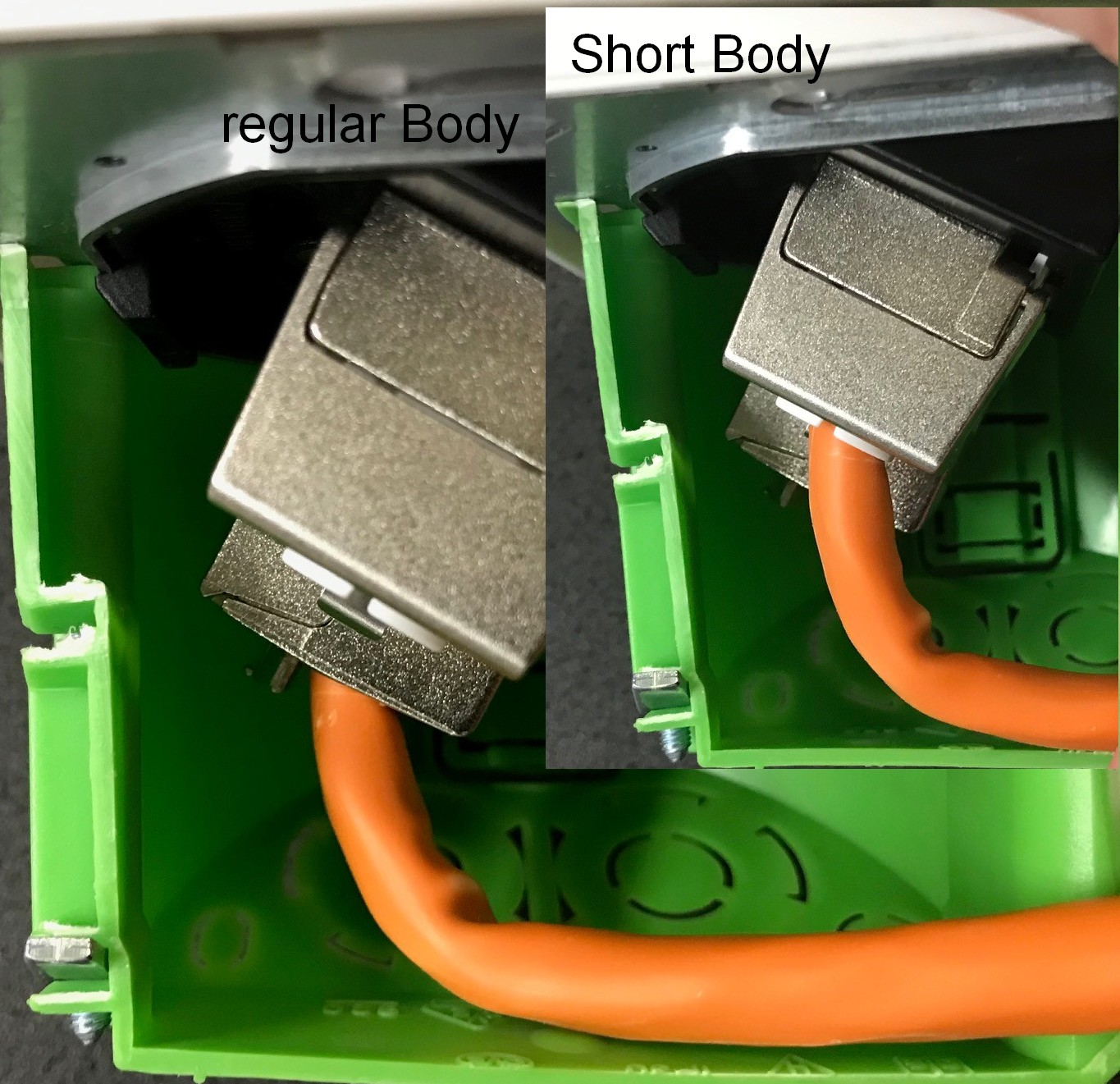

The high quality of the RJ45 Shortbody Keystone Module ensures very good characteristics for 10 Gigabit Ethernet applications. Special tools are not required. The assembly is quick and easy. With the RJ45 module you get a fully shielded module, which offers you good services in your network installation for a long time. Due to its short installation depth of 30.5mm, installation in flush boxes and in limited spaces is even easier compared to standard keystones
Properties:

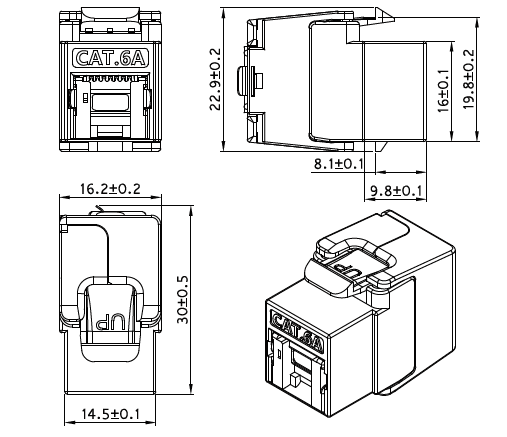

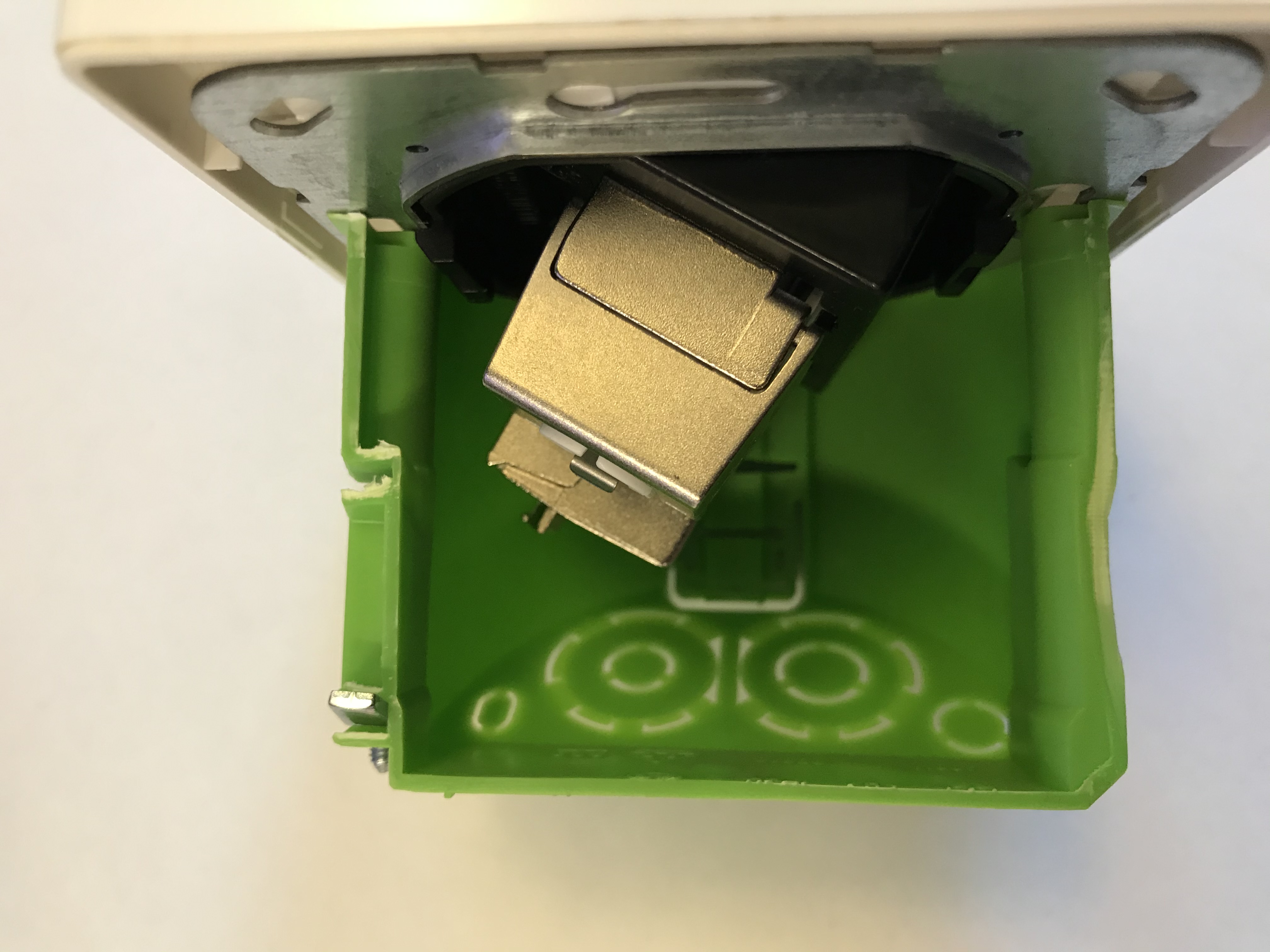

Installation depth of only 30.5mm

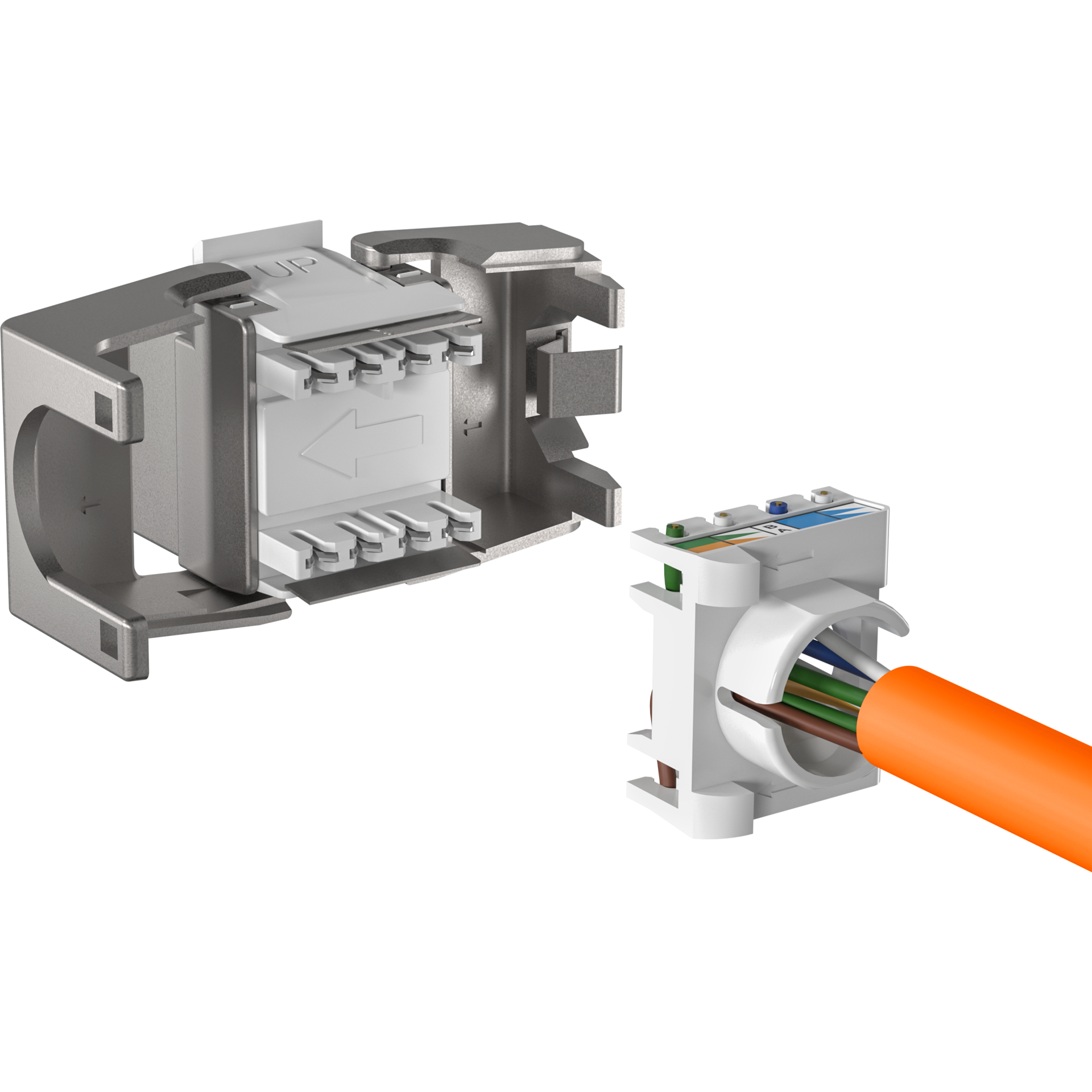

Compact cable pre-sorter for AWG22/1 ... AWG26/1
Pair management according to TIA/EIA 568 A/B colour codes (colour code printed on the cable pre-sorter)
Suitable for distribution panels and support rings with keystone breakout
Scope of supply:

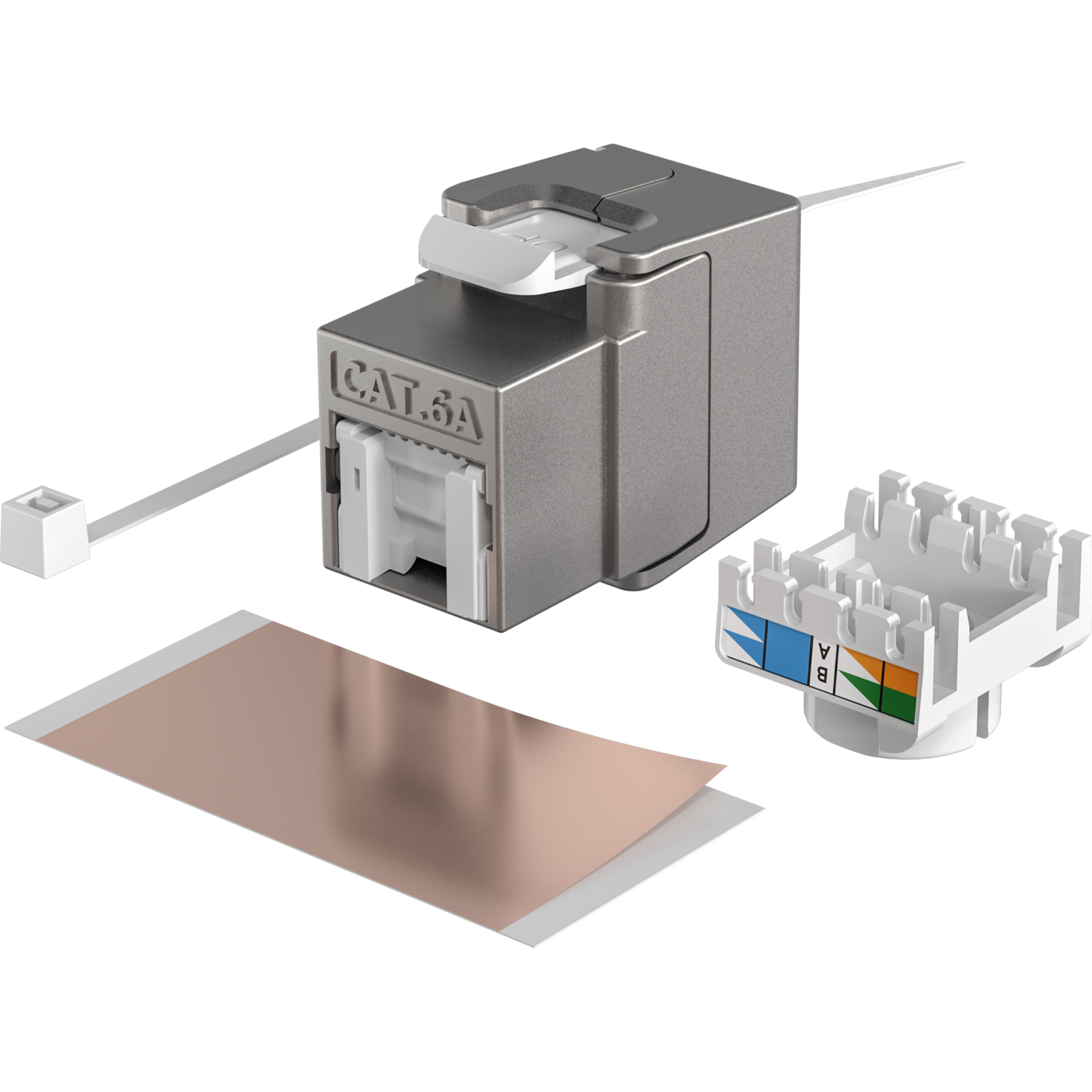

1 x RJ45 Keystone, installation manual (English)
Properties:
Installation depth of only 30.5mm
Compact cable pre-sorter for AWG22/1 ... AWG26/1
Pair management according to TIA/EIA 568 A/B colour codes (colour code printed on the cable pre-sorter)
Suitable for distribution panels and support rings with keystone breakout
Scope of supply:
1 x RJ45 Keystone, installation manual (English)
Tekniske egenskaber
| 360° shield contact: | False |
|---|---|
| AWG-range: | 26 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (TIA) |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | 10 mΩ |
| Contact coating: | 30 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | DC1000V/AC750V 1min |
| Dust cover: | ture, with internal shutter |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥750 |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Separate earthing flag: | False |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | False |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | snap lock |
