INFRALAN® Cat.7A Installation Cable S/FTP 1200 MHz, CPR B2ca
INFRALAN® Cat.7A 1200 AWG22, S/FTP 4P CPR B2ca orange RAL 2003
Varenummer:
MK7100.1-CPR
EAN Nr.:
4049759180980
Produktinformation til INFRALAN® Cat.7A 1200 AWG22, S/FTP 4P CPR B2ca orange RAL 2003

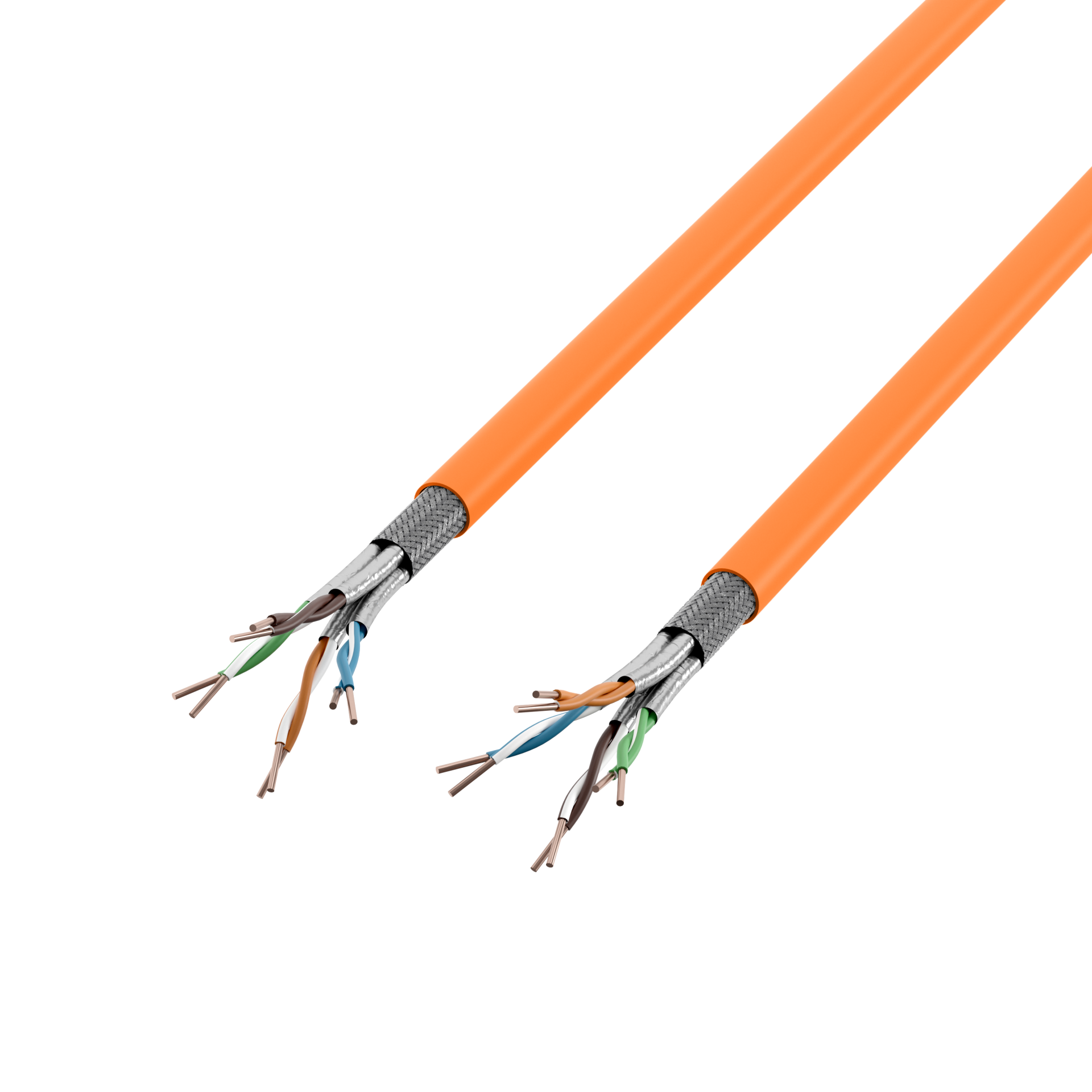

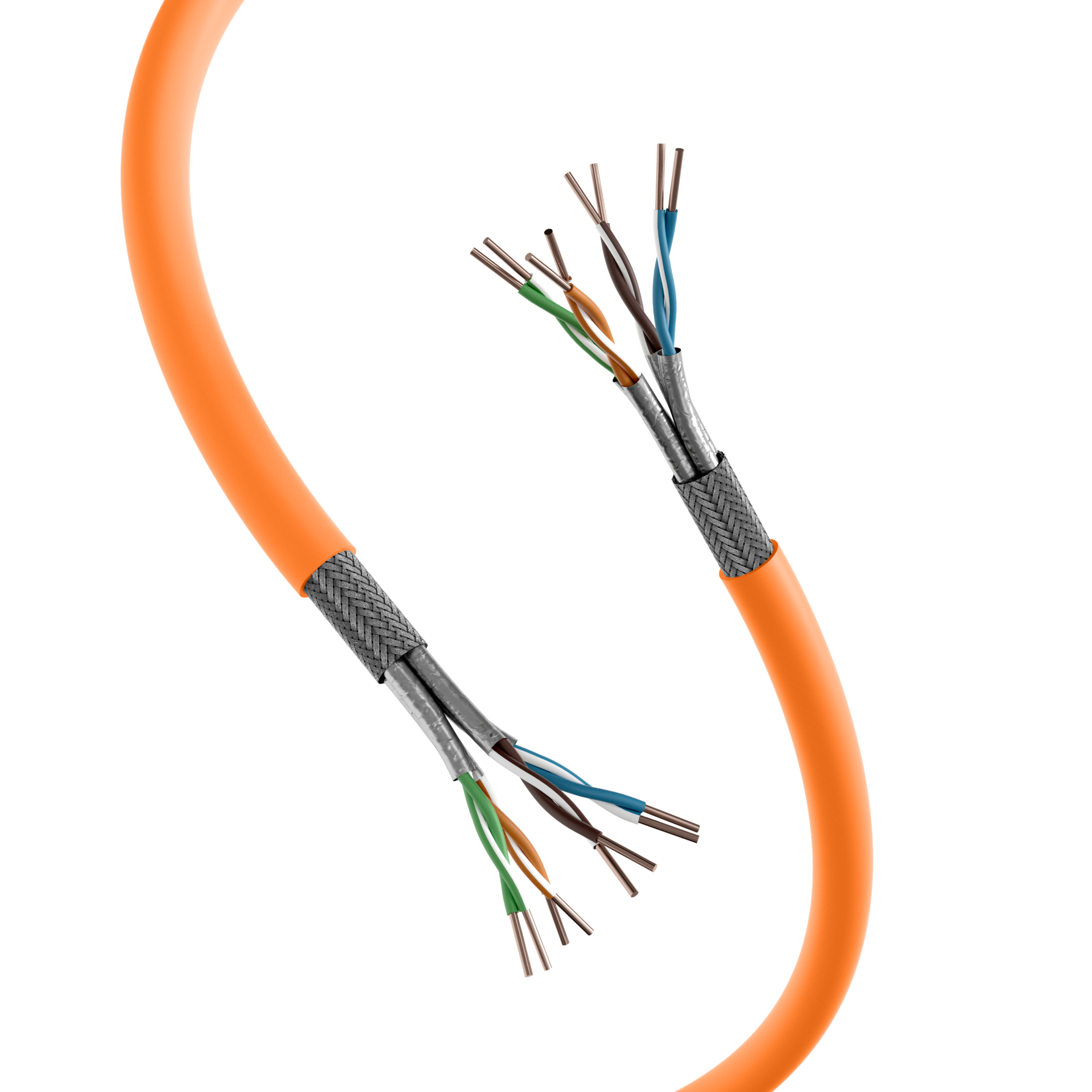

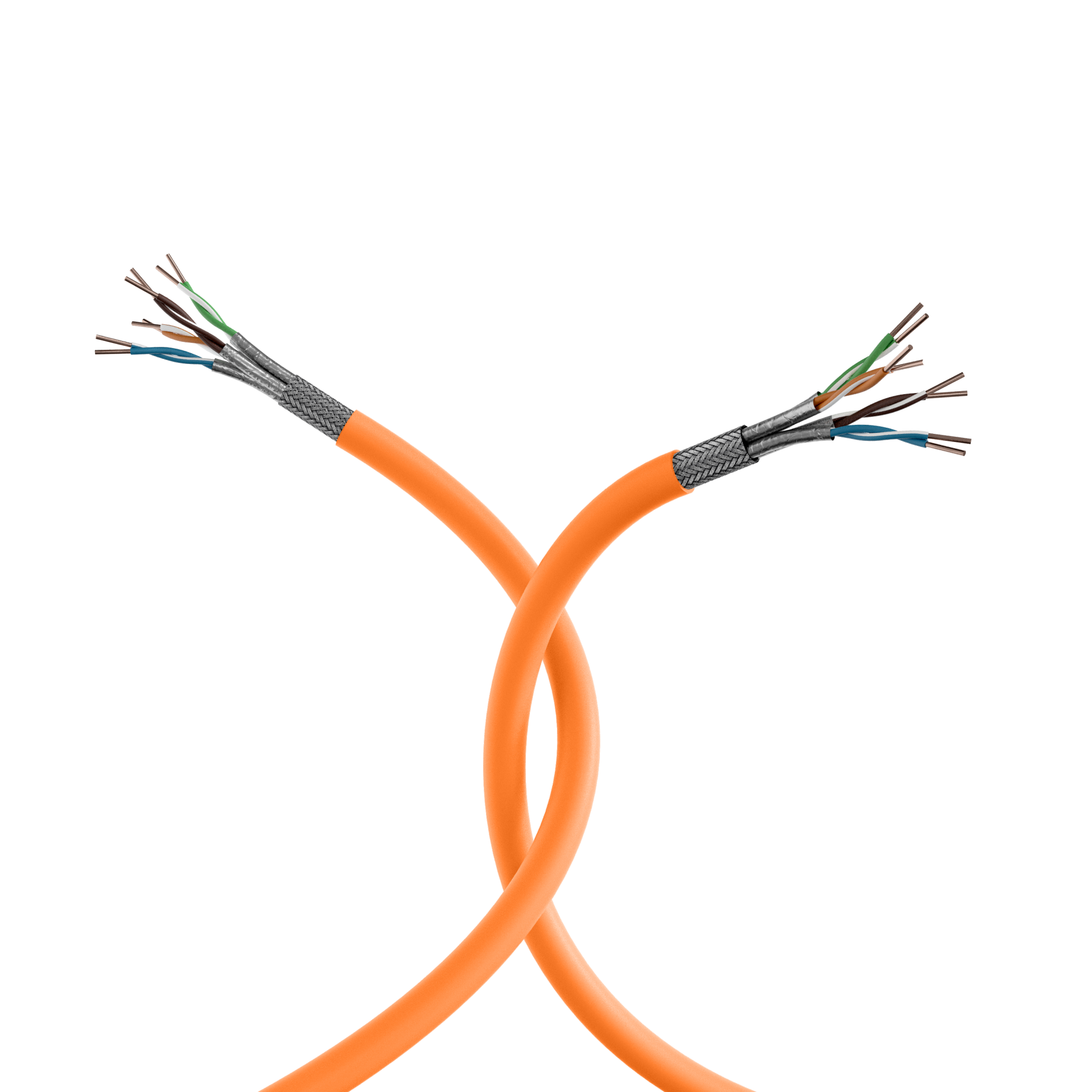

The Delta certified INFRALAN® installation cable MK7100.x-CPR is constructed for transmissions up to 1200 MHz and exceeds with the electrical transmission properties the requirements of the category 7A. Suitable for structured cabling of Class E, EA, F and FA according to ISO/IEC 11801 (AMD 2:2009) resp. EN 50173-1 (2009). The twisted pairs are protected against interferences with a shielding foil (PiMF) and a total shielding. This excellent protection also prevents the radiation of signals out of the cables. The shielding ensures the compliance of emitted interferences according to class B EN 55022 and the interference resistance according to EN 55024. The stranding of the twisted pairs is optimized so that the delay skew between the pairs at the greatest possible uncoupling (crosstalk) is minimun. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.

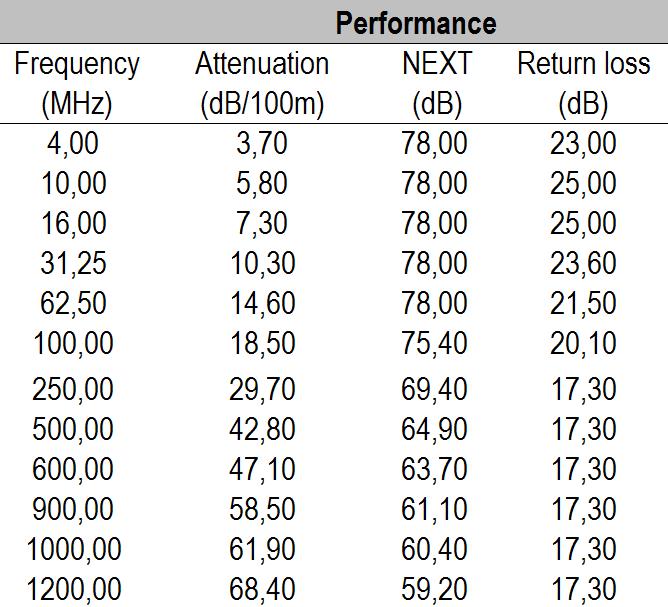

Tekniske egenskaber
| AWG-size: | 22/1 |
|---|---|
| Bending radius (dynamic): | 8 x OD |
| Bending radius (static): | 4 x OD |
| Cable: | IEC 61156-5 |
| Cable structure: | S/FTP |
| Cabling standards: | ISO/IEC 11801 |
| Cabling standards: | EN 50173-1 |
| Cabling standards: | EN 50288 |
| Category: | 7A |
| Characteristic impedance: | 100 ± 15 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Cu, tinned |
| Core identification: | colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 85 dB |
| Coupling attenuation Type: | Type 1 |
| Diameter conductor: | 0.62 mm |
| Euro class: | B2ca |
| Flame retardant: | acc. EN 60332-1 |
| Halogen free: | acc. EN 60754-1/2 |
| Halogen free (acc. EN 50267-2-2): | False |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Jacket material: | FRNC-B |
| Loop resistance: | 143.4 Ohm/km |
| Low smoke: | acc. EN 61034 |
| Low smoke (acc. EN 61034-2): | True |
| Max. frequency: | 1200 MHz |
| NVP value: | 78 % |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | -20 – 50 °C |
| Operating temperature, storage: | 0 – 50 °C |
| PoE: | acc. to IEEE802.3af PoE |
| PoE: | acc. to IEEE802.3bt 4PPoE |
| PoE: | acc. to IEEE802.3at PoE+ |
| Resistance unbalance: | < 3 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
| UV resistant: | no |
Varianten
| Art. Nr. | Bezeichnung | Colour outer sheath | RAL colour | Length | Type | Number of cores | Copper weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MK7100.1-CPR | INFRALAN® Cat.7A 1200 AWG22, S/FTP 4P CPR B2ca orange RAL 2003 | orange | RAL2003 | 1.0 m | simplex | 8 | 3.62 kg/100m | 100 N | 8.4 mm | 640 MJ/km | |
| MK7100DX.500-CPR | INFRALAN® Cat.7A Installation Cable S/FTP 1200 MHz, CPR B2ca | orange | RAL2003 | 500.0 m | duplex | 2x8 | 7.24 kg/100m | 100 N | 8.4 x16.8 mm | 1100 MJ/km |
Sikkerhedsanvisninger
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
