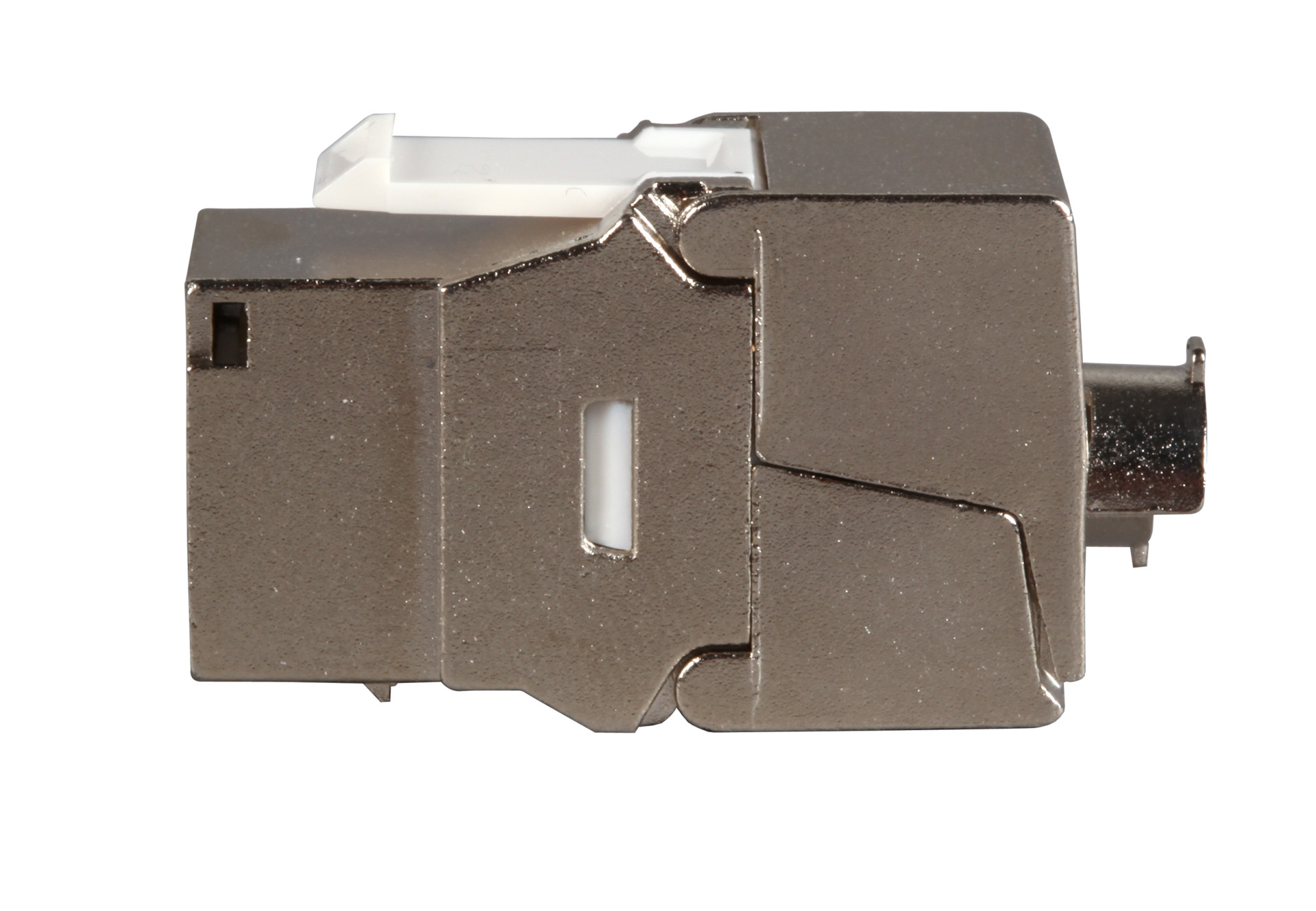

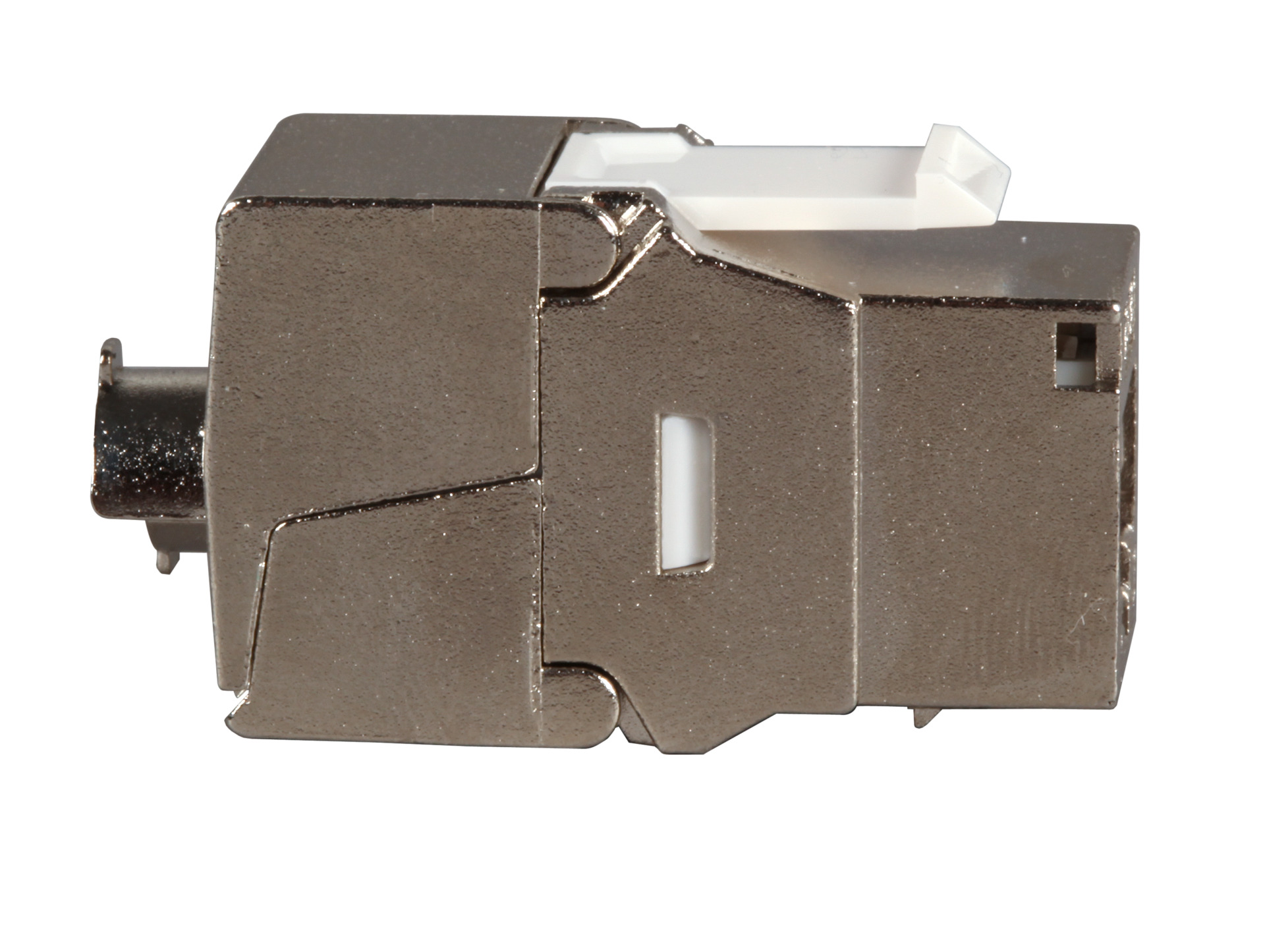

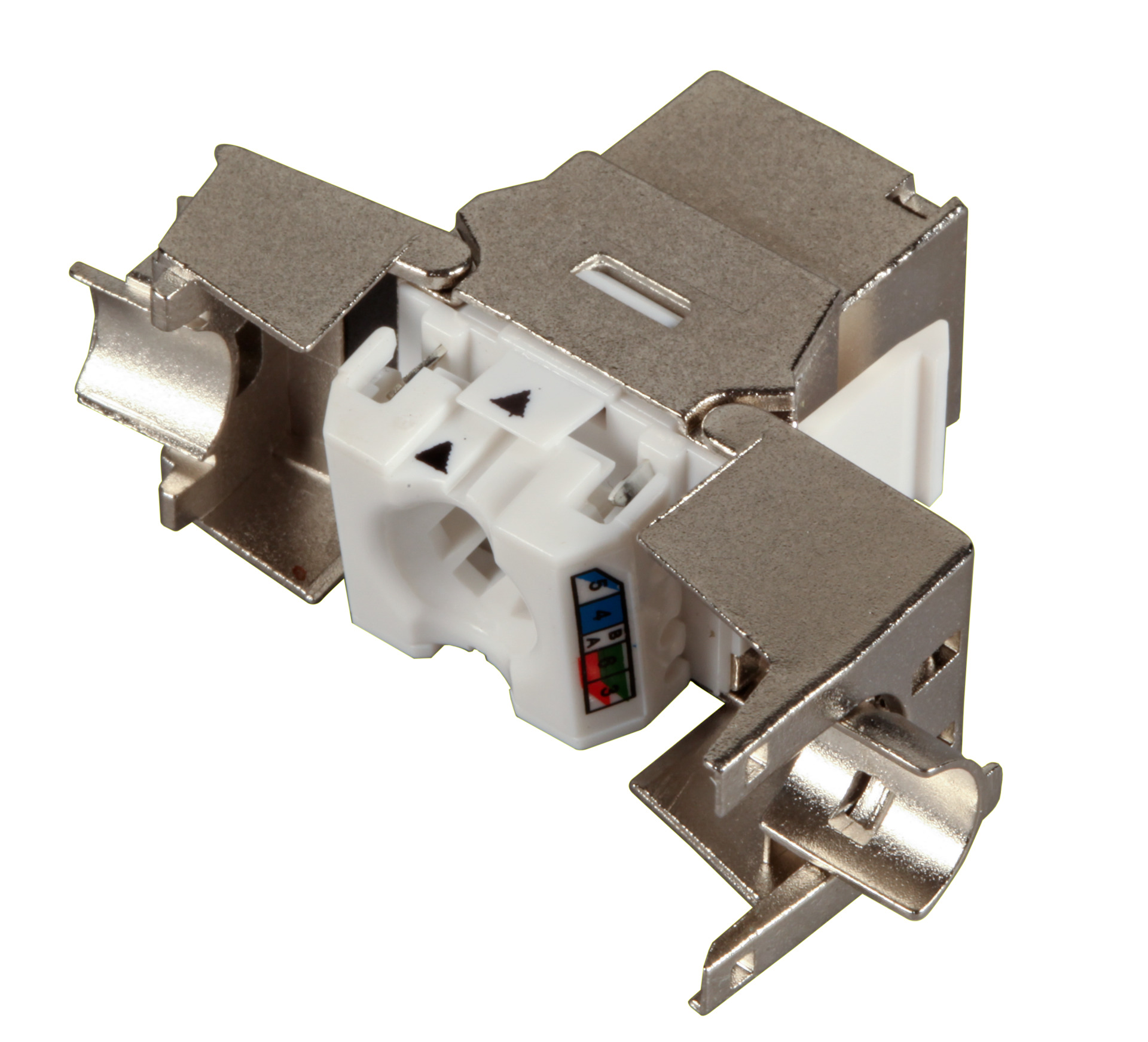

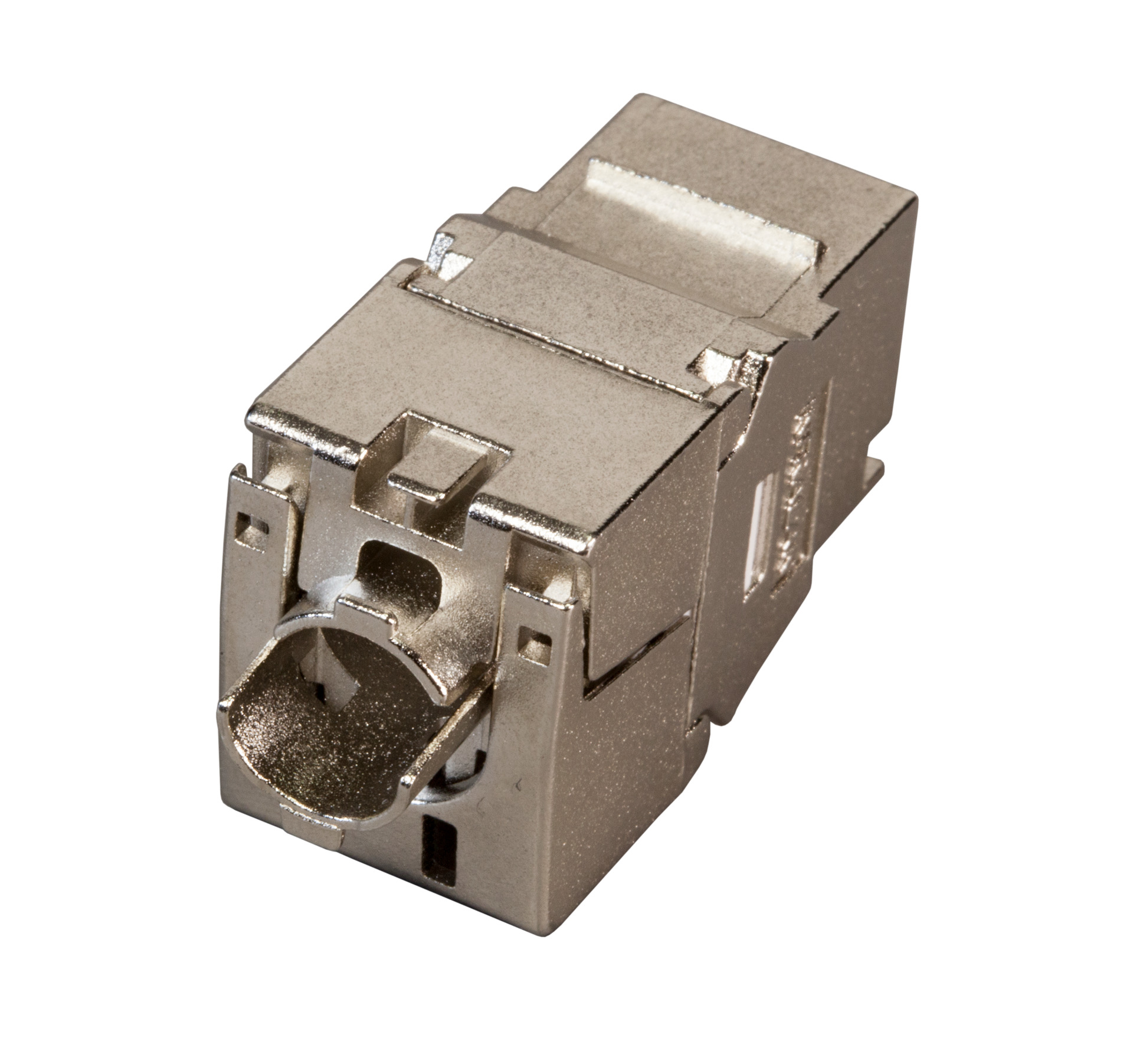

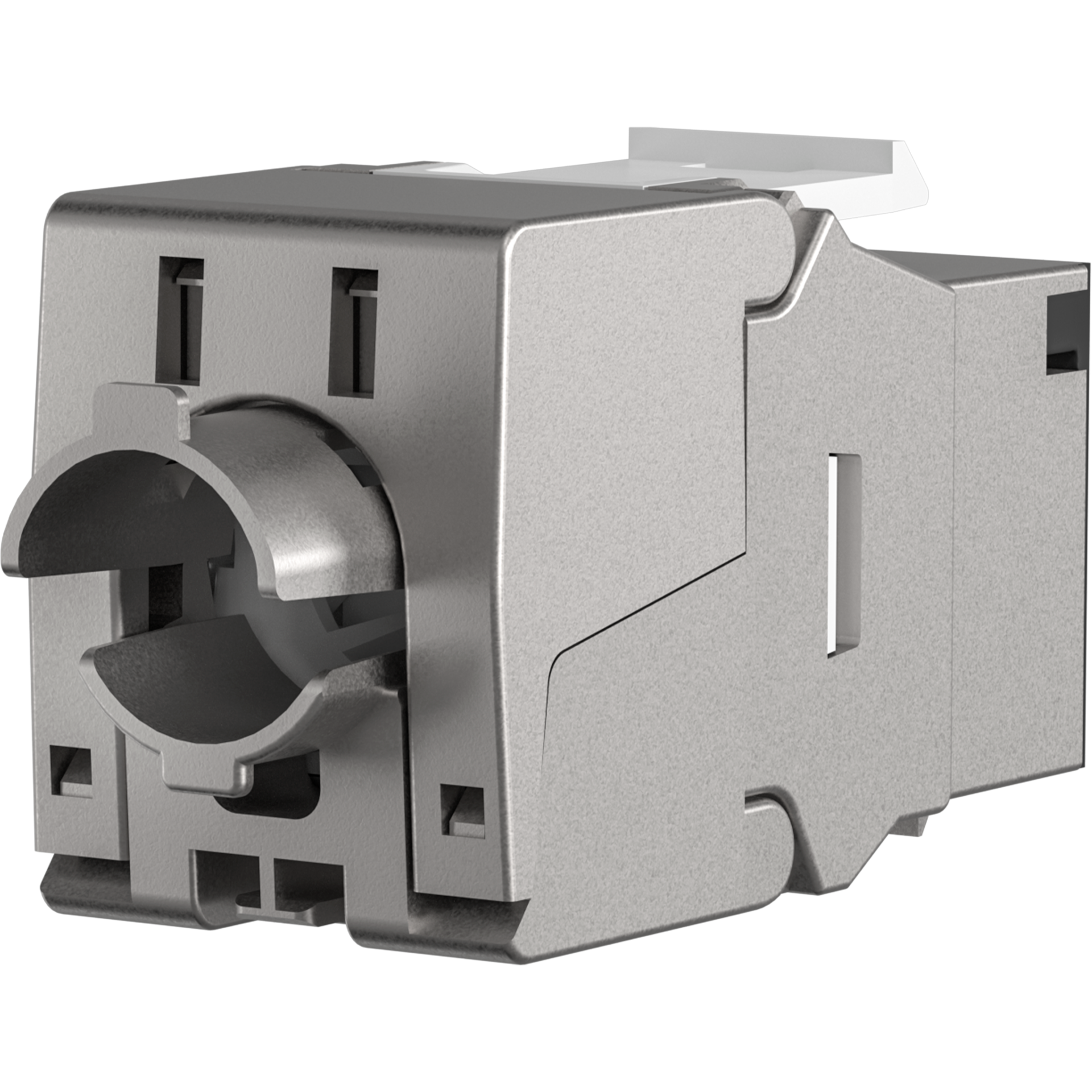

RJ45 Keystone STP, Cat.6A, 500MHz, components certified, earthing
RJ45 Keystone STP, Cat.6A, 500MHz, component certified
Varenummer:
E-20091
EAN Nr.:
4049759129804
Produktinformation til RJ45 Keystone STP, Cat.6A, 500MHz, component certified

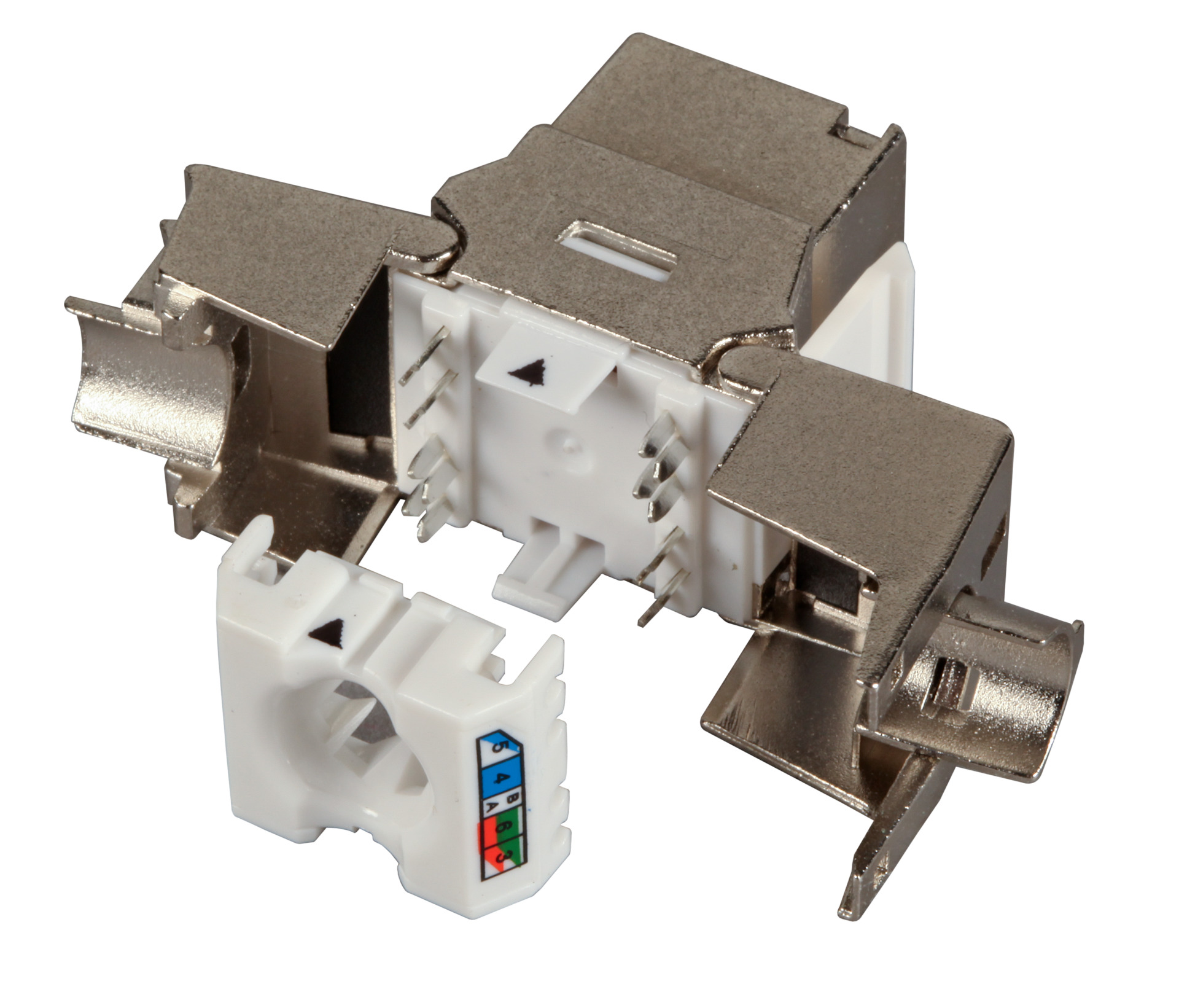

The high-quality of the RJ45 keystone modules warrants very good characteristics for 10Gbit Ethernet application. Special tools are not needed. The assembling is being carried out fast and easy. With the RJ45 module you get a full shielded module, which provides you good longterm service in your network infrastructure.
Specifications:
Cat.6A component certified acc. to ISO/IEC 11801 and IEC 60603-7-51

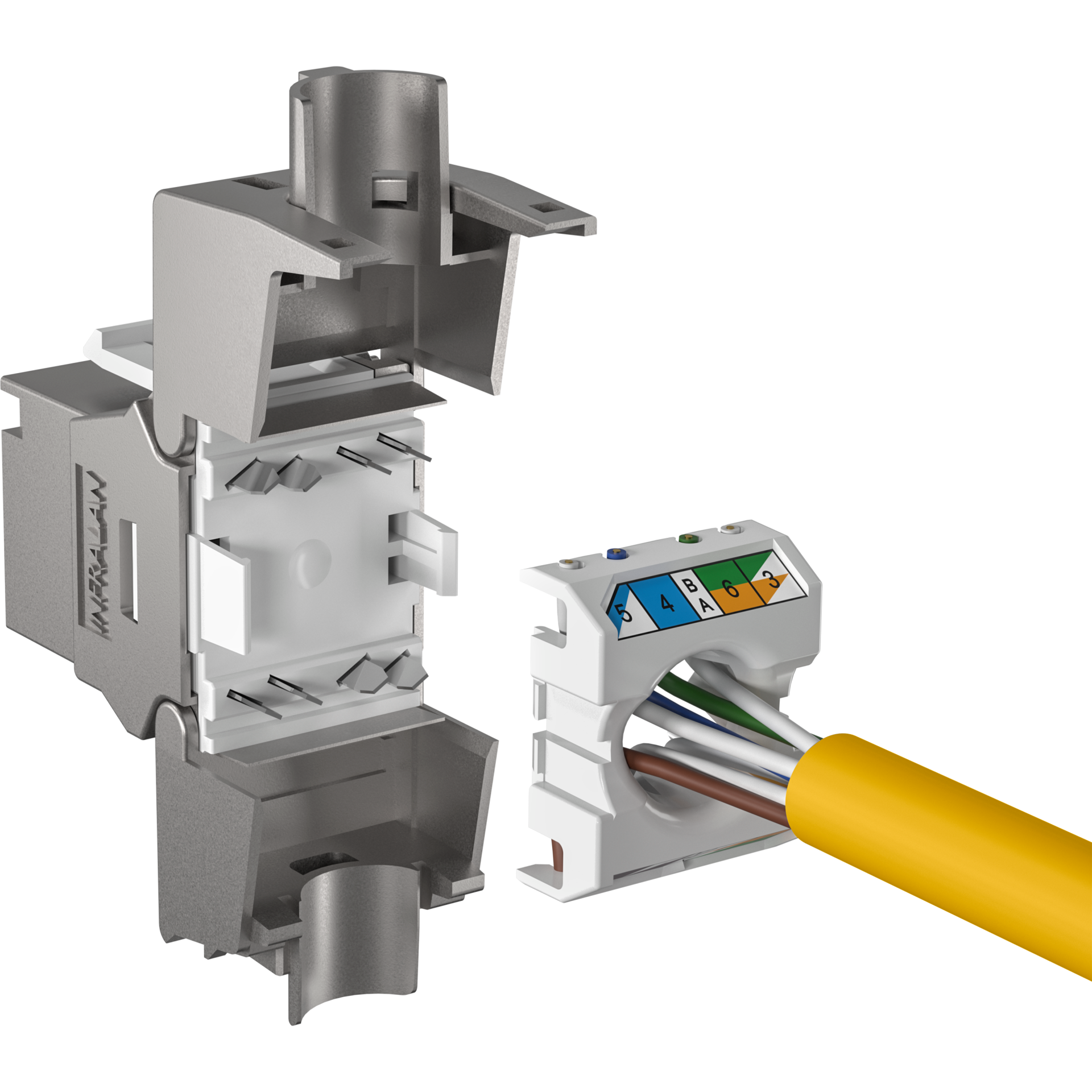

Compact cable presorter for AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Flexibel strain relief for different cable diameter
Scope of delivery:

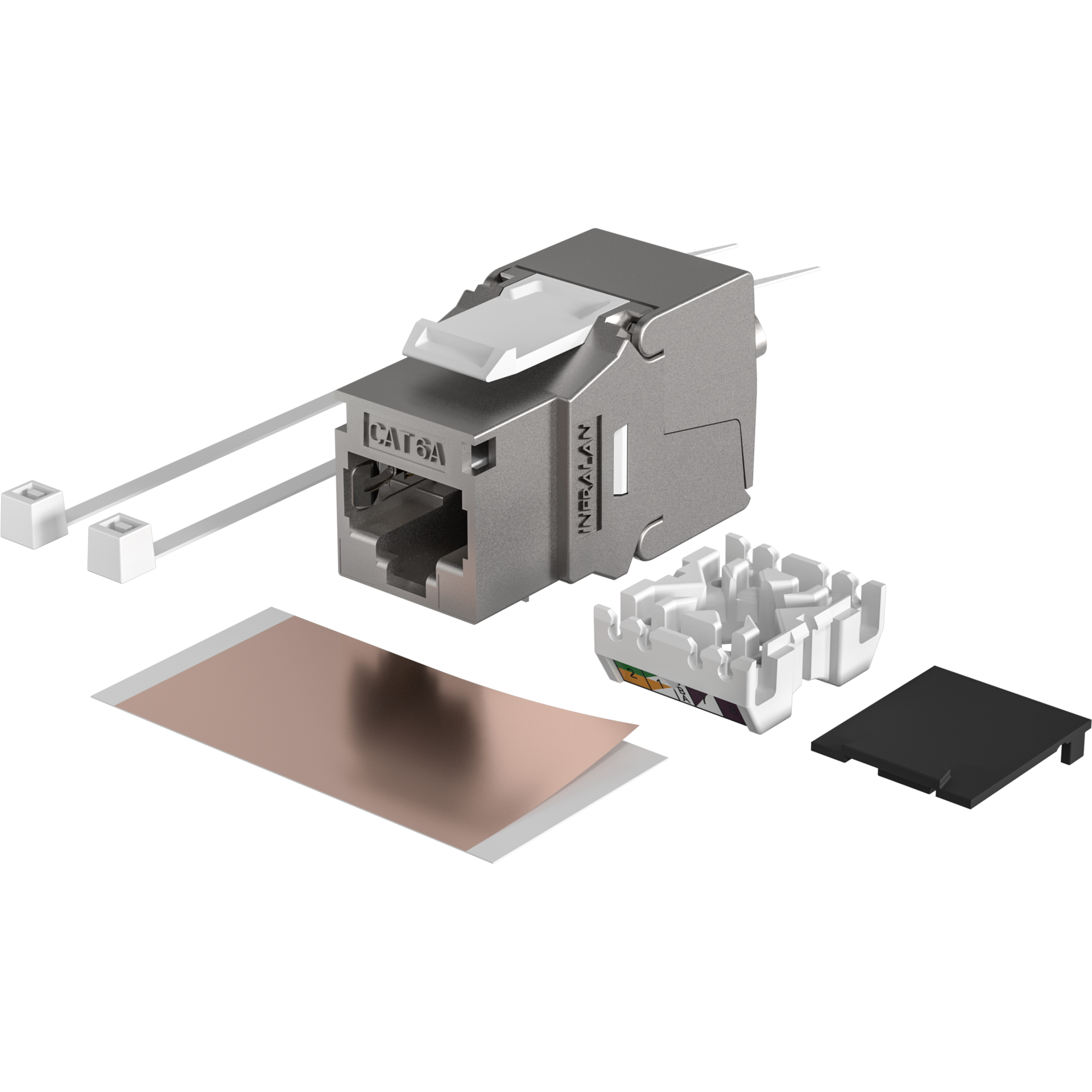

1 x RJ45 keystone, Cable coder, captive dust cover, copper foil, cable ties, mounting instruction
Specifications:
Cat.6A component certified acc. to ISO/IEC 11801 and IEC 60603-7-51
Compact cable presorter for AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Flexibel strain relief for different cable diameter
Scope of delivery:
1 x RJ45 keystone, Cable coder, captive dust cover, copper foil, cable ties, mounting instruction
Tekniske egenskaber
| 4PPOE Zertifiziert: | Ja |
|---|---|
| 360° Schirmkontaktierung: | Ja |
| AWG-Bereich: | 24 – 22 |
| Anschlussart: | Schneidklemme IDC |
| Ausführung: | Buchse |
| Für UAE geeignet: | Nein |
| Geeignet für Flachkabel: | Nein |
| Geeignet für Litzenleiter: | Ja |
| Geeignet für Massivleiter: | Ja |
| Geeignet für Rundkabel: | Ja |
| Gehäuse Material: | Zinkdruckguss |
| Geschirmt: | Ja |
| Isolationswiderstand: | ≥ 500 MΩ |
| Kabeldurchmesser: | 8.5 mm |
| Kategorie: | 6A (IEC) |
| Konform zu UL94: | V-0 |
| Kontaktbeschichtung: | 50 µ" |
| Kontaktwiderstand: | ≤ 20 mΩ |
| Prüfspannung Dieelektrikum: | 1000 V AC 60Hz |
| Schirmung und Zugentlastung getrennt: | Ja |
| Separate Erdungsfahne: | Ja |
| Spezialwerkzeug notwendig: | Nein |
| Staubschutzkappe: | Ja |
| Steckverbindertyp: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | 2 A |
| Temperaturbereich: | -40 – 66 °C |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
