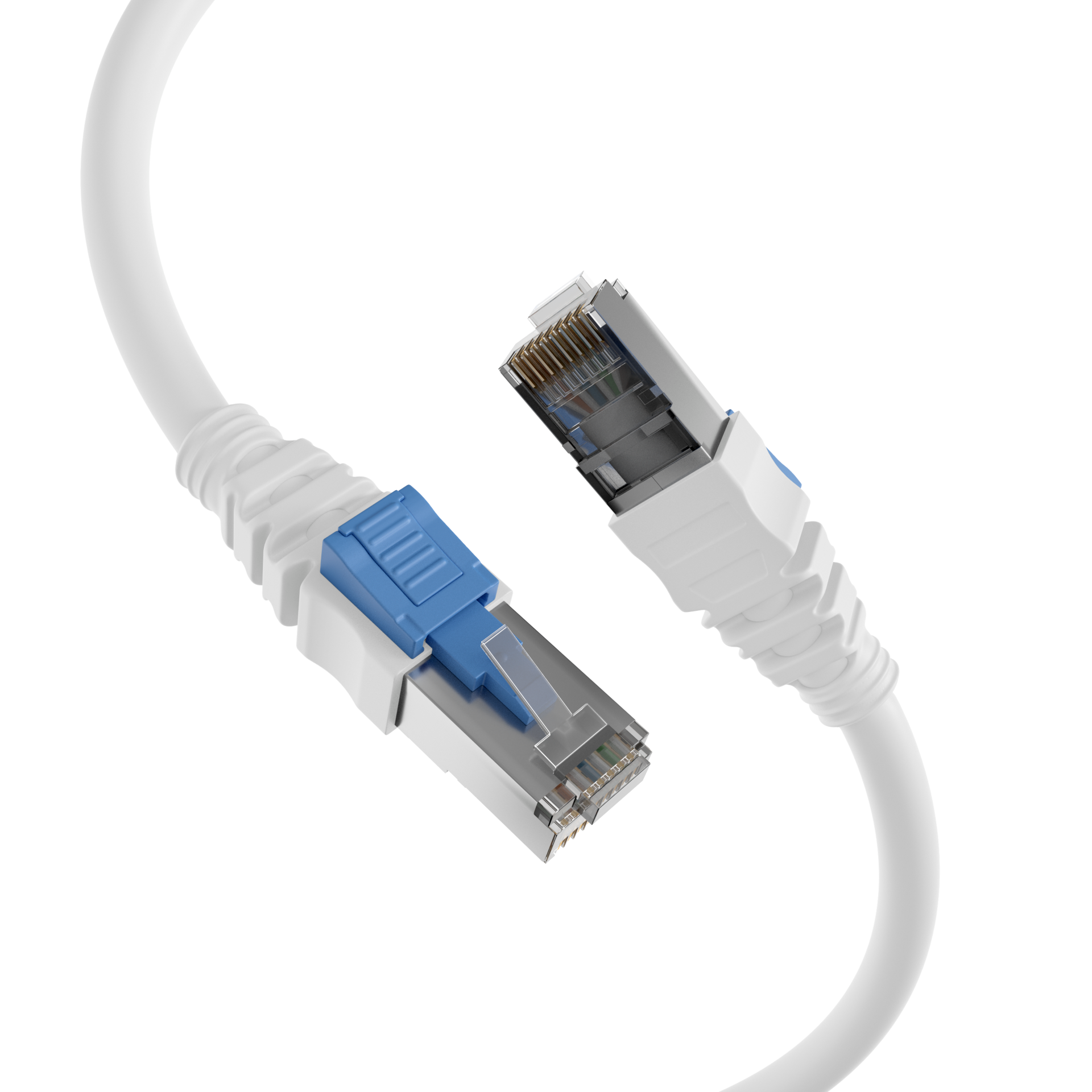

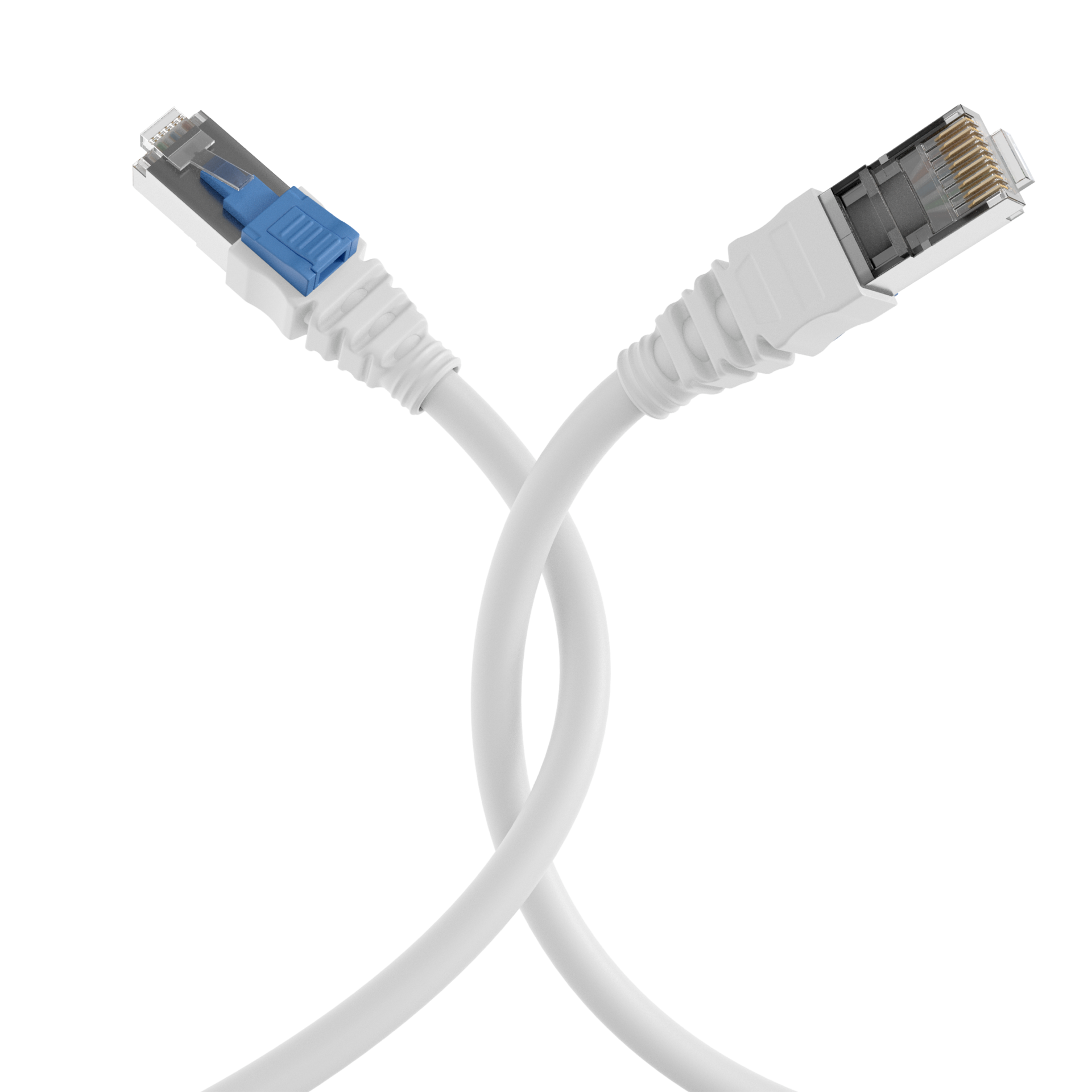

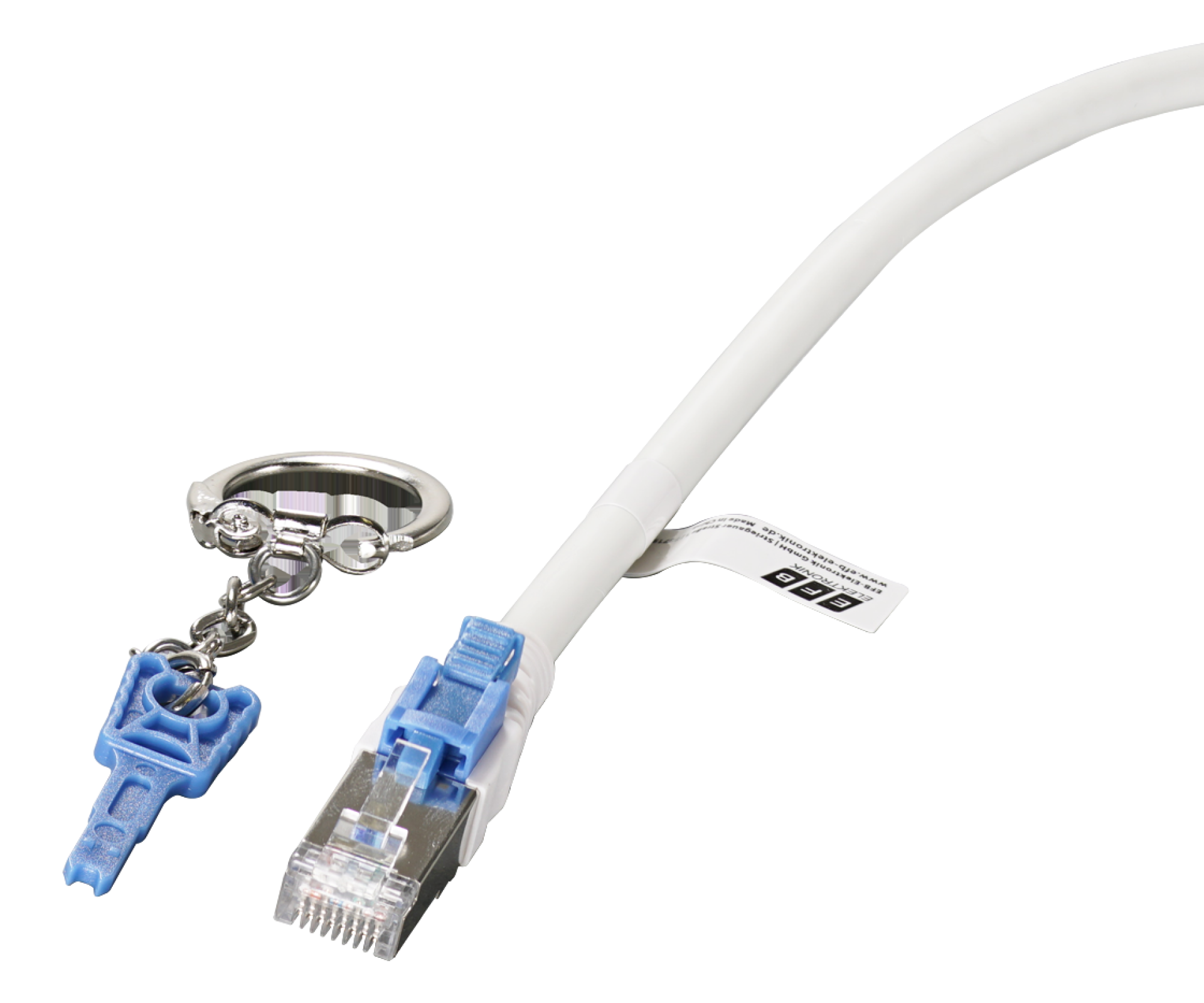

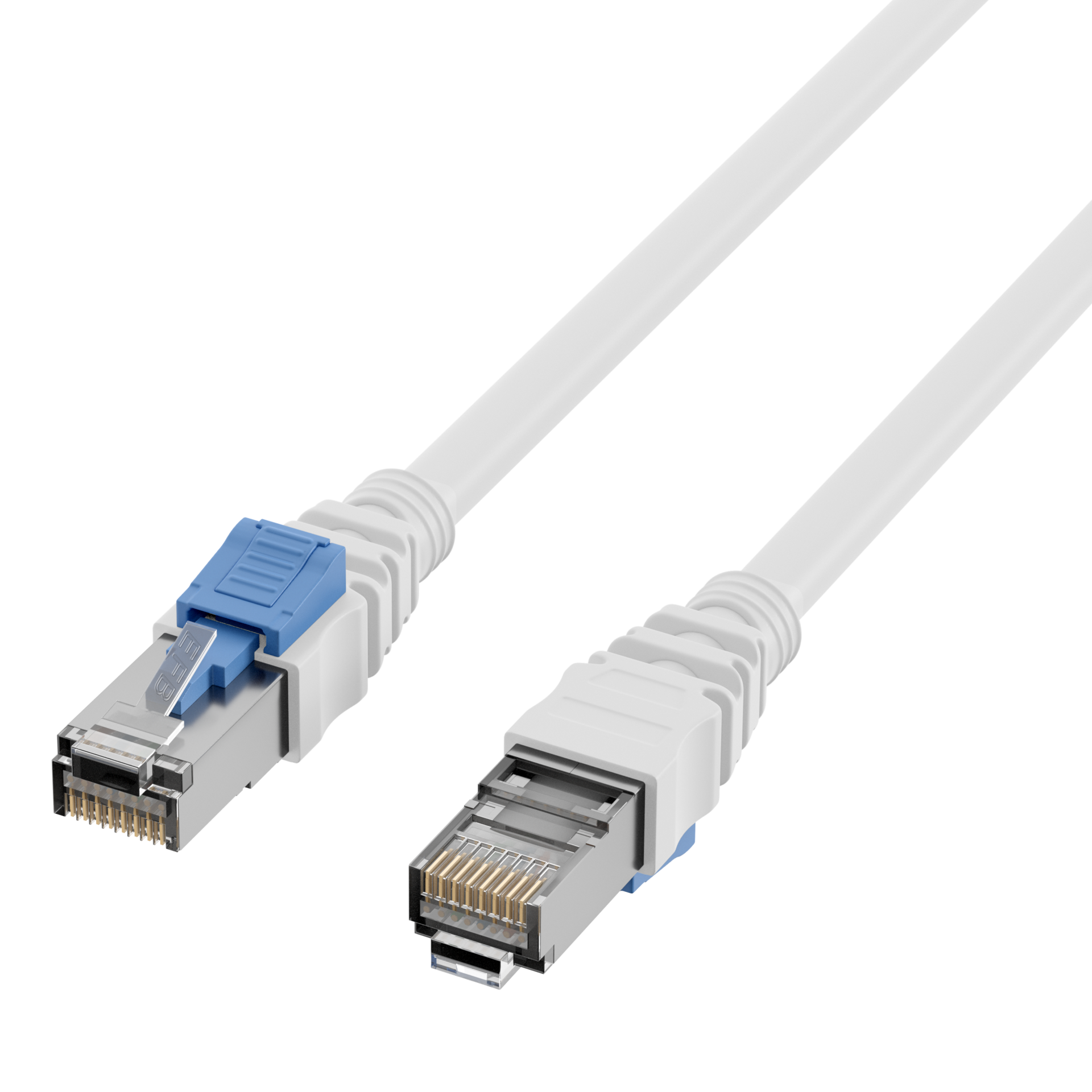

RJ45 Patch Cord Cat.6A S/FTP LSZH AWG26 BC lockable white
RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 0,5m
Varenummer:
K5539WS.0,5
EAN Nr.:
4049759180287
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 0,5m
RJ45 patch cable Cat.6A S/FTP LSZH BC AWG26 lockable
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 2.5Gbit, 5Gbit and 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the temperature range -20 - 60 °C.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 2.5Gbit, 5Gbit and 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the temperature range -20 - 60 °C.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is 500 MHz.
Tekniske egenskaber
| AWG-Querschnitt: | 26/7 |
|---|---|
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | nach IEC60332-1 |
| Außendurchmesser des Kabels: | 6.2 mm |
| Bandbreite: | 500MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >32,5 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Einsatzort: | Rechenzentrum |
| Farbe der Knickschutztülle: | weiß |
| Geeignet für Schutzart (IP): | IP20 |
| Halogenfrei: | nach IEC60754-2 |
| Harmonisierte Norm: | EN 50575 |
| Impedanz: | 100 ±15 Ω |
| Isolationswiderstand: | 100 MΩ |
| Kabelaufdruck: | Cat.6A Patchcord SUPERFLEX S/FTP www.efb-elektronik.de |
| Kabelform: | rund |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/FTP |
| Kategorie: | 6A (TIA) |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet µ" gold plated |
| Kontaktwiderstand: | ≤ 20 mΩ |
| Leitermaterial: | Kupfer |
| Leiterwiderstand DC: | 142 Ω/km |
| Längenaufdruck: | Nein |
| Mantel-Farbe: | weiß |
| Mantel-Material: | LSZH |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Nein |
| Raucharm: | nach IEC61034 |
| Rohkabel: | Cat.7 |
| Schirmkontaktierung: | Nein |
| Schleifenwiderstand: | 284 Ω/km |
| Steckertyp: | RJ45 standard |
| Steckverbinder: | IEC 60603-7-41 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | -20 – 60 °C |
| UL approbiert: | False |
| UV beständig: | Nein |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Ölbeständig: | Nein |
| Übertragung: | 10Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K5539WS.0,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5539WS.1 | RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5539WS.2 | RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5539WS.3 | RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 3m | 3,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5539WS.5 | RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % |
