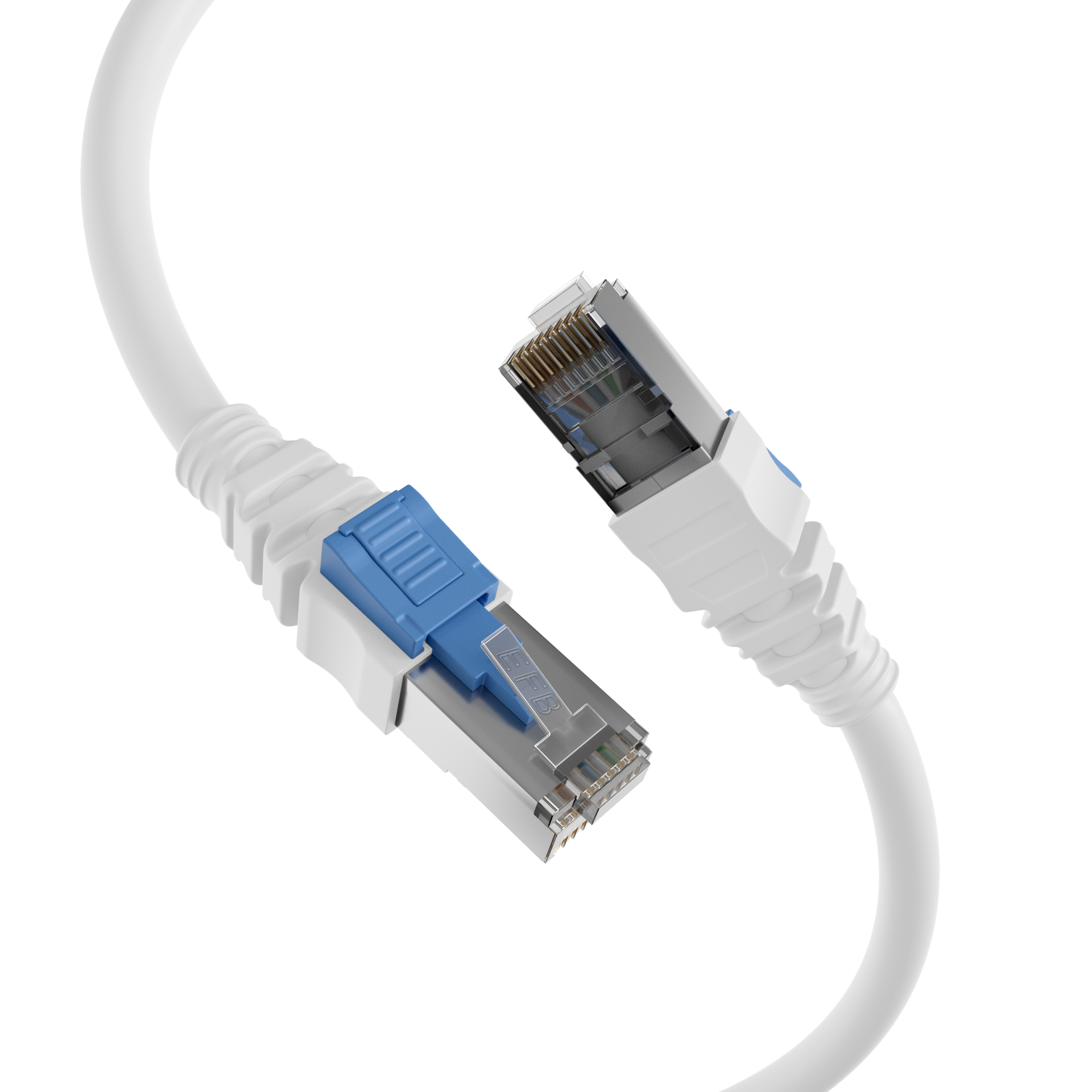

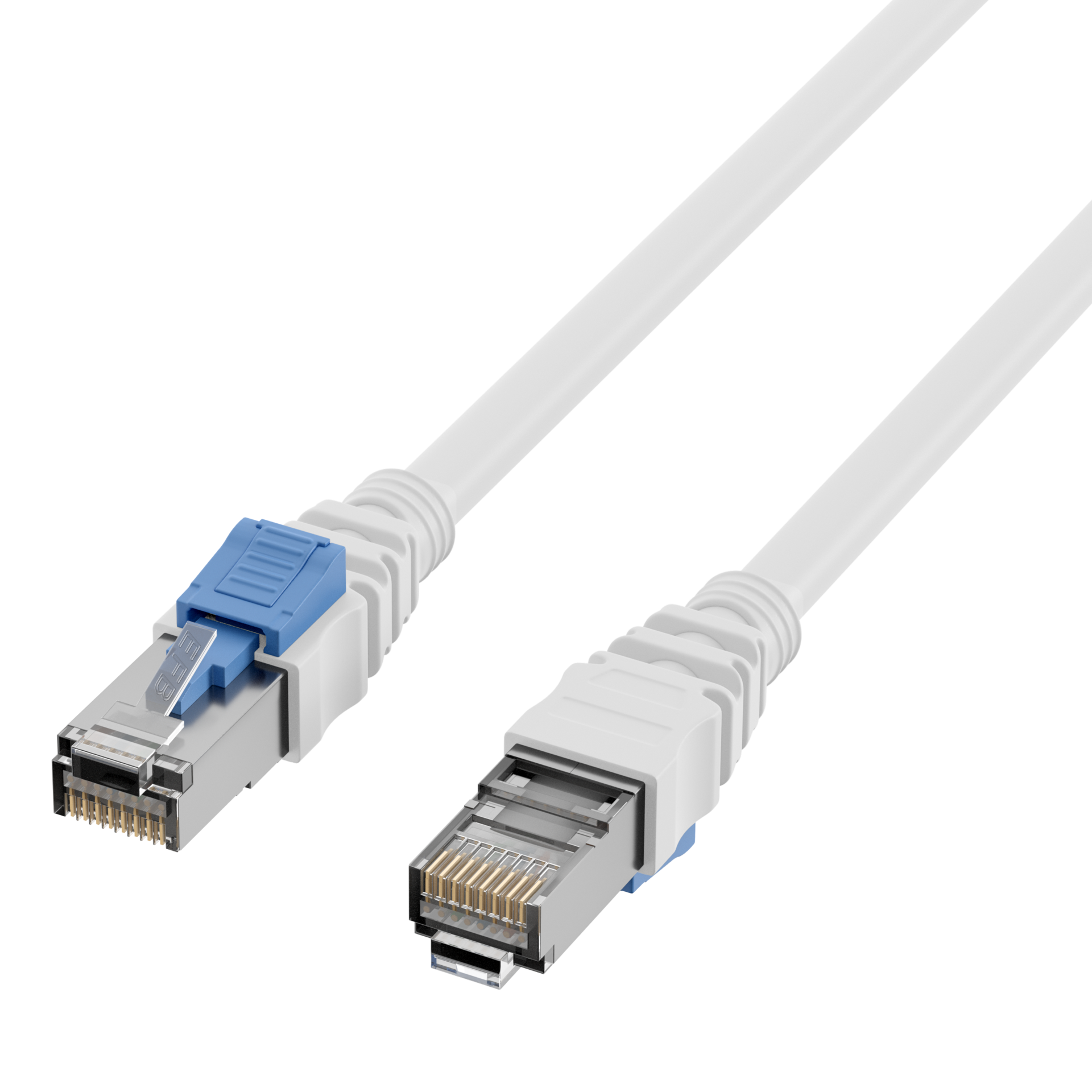

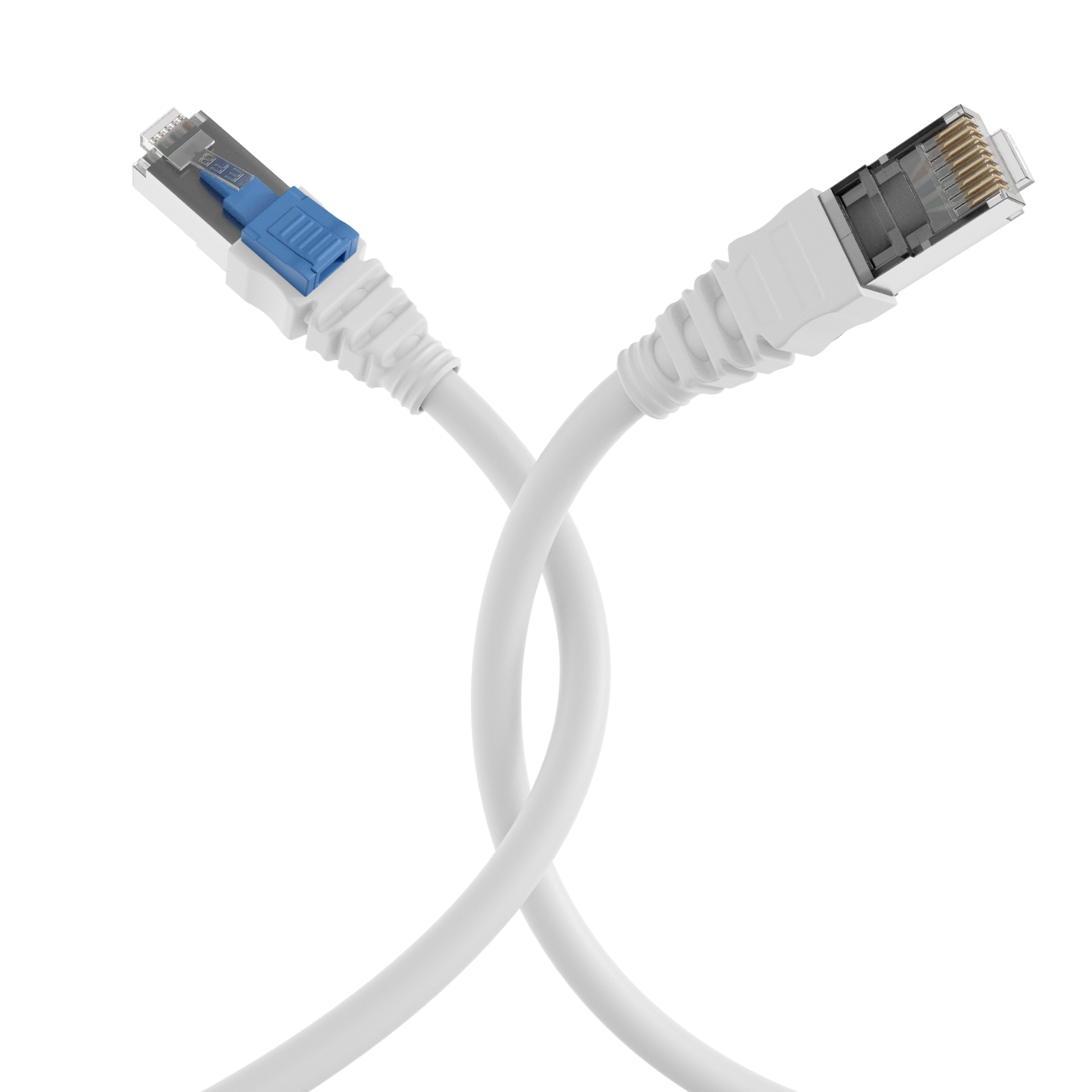

RJ45 Patch Cord Cat.6A S/FTP LSZH AWG26 BC lockable white
RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 5m
Varenummer:
K5539WS.5
EAN Nr.:
4049759180317
Produktinformation til RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 5m
RJ45 patch cable Cat.6A S/FTP LSZH BC AWG26 lockable
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 2.5Gbit, 5Gbit and 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the temperature range -20 - 60 °C.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 2.5Gbit, 5Gbit and 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the temperature range -20 - 60 °C.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is 500 MHz.
Tekniske egenskaber
| AWG-size: | 26/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Area of application: | Data center |
| Bending radius: | >32,5 mm |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | S/FTP |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | white |
| Colour outer sheath: | white |
| Conductive shield: | No |
| Conductor Material: | Copper |
| Conductor resistance DC: | 142 Ω/km |
| Connector: | IEC 60603-7-41 |
| Connector type: | RJ45 standard |
| Contact Resistance: | < 20 mΩ |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | 100 MΩ |
| Jacket material: | LSZH |
| Length imprint: | False |
| Locking lever: | False |
| Loop resistance: | 284 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | shielded |
| Oil resistant: | no |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | -20 – 60 °C |
| Outer diameter of the cable: | 6.2 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | CAT.6(A) S/FTP 4PR 26AWG LSZH PATCH CABLE FT4 A 0A7I001-1 |
| Raw cable: | Cat.7 |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 500MHz |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | no |
Varianten
| Art. Nr. | Bezeichnung | Length | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K5539WS.0,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5539WS.1 | RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 1m | 1.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5539WS.2 | RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 2m | 2.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5539WS.3 | RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 3m | 3.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5539WS.5 | RJ45 Patch Cord Cat.6A S/FTP LSZH BC AWG26 lockable white 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
