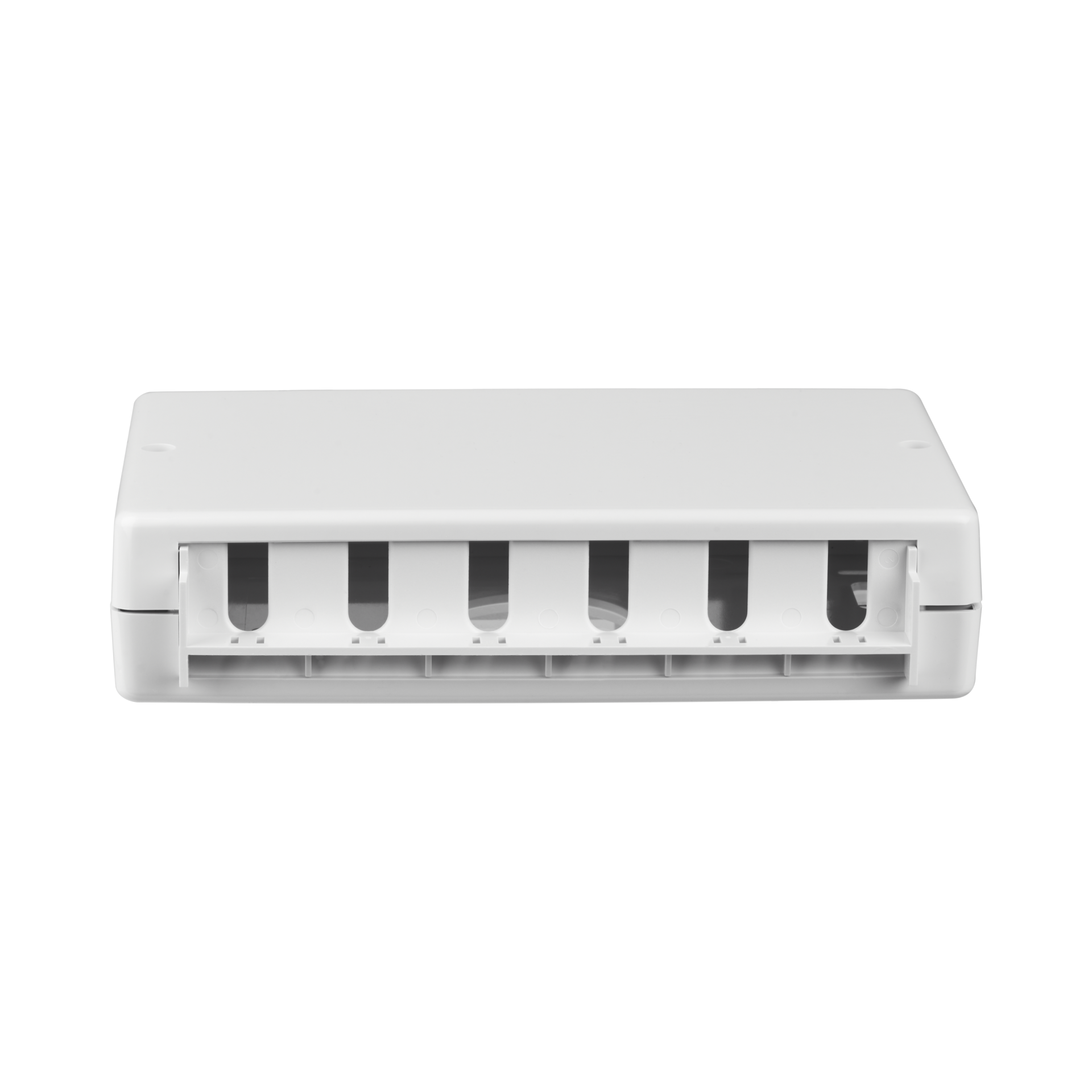

Keystone Distribution Box
Keystone distribution box surface mounting 6/12 Keystones
Varenummer:
ET-25174.1
EAN Nr.:
4049759111489
Produktinformation til Keystone distribution box surface mounting 6/12 Keystones
Description
The compact plastic case can be used for collecting points at desks, intermediate ceilings or in underfloor systems. The empty case is also suitable for wall mounting.
The extensive accessories makes the following variants possible:

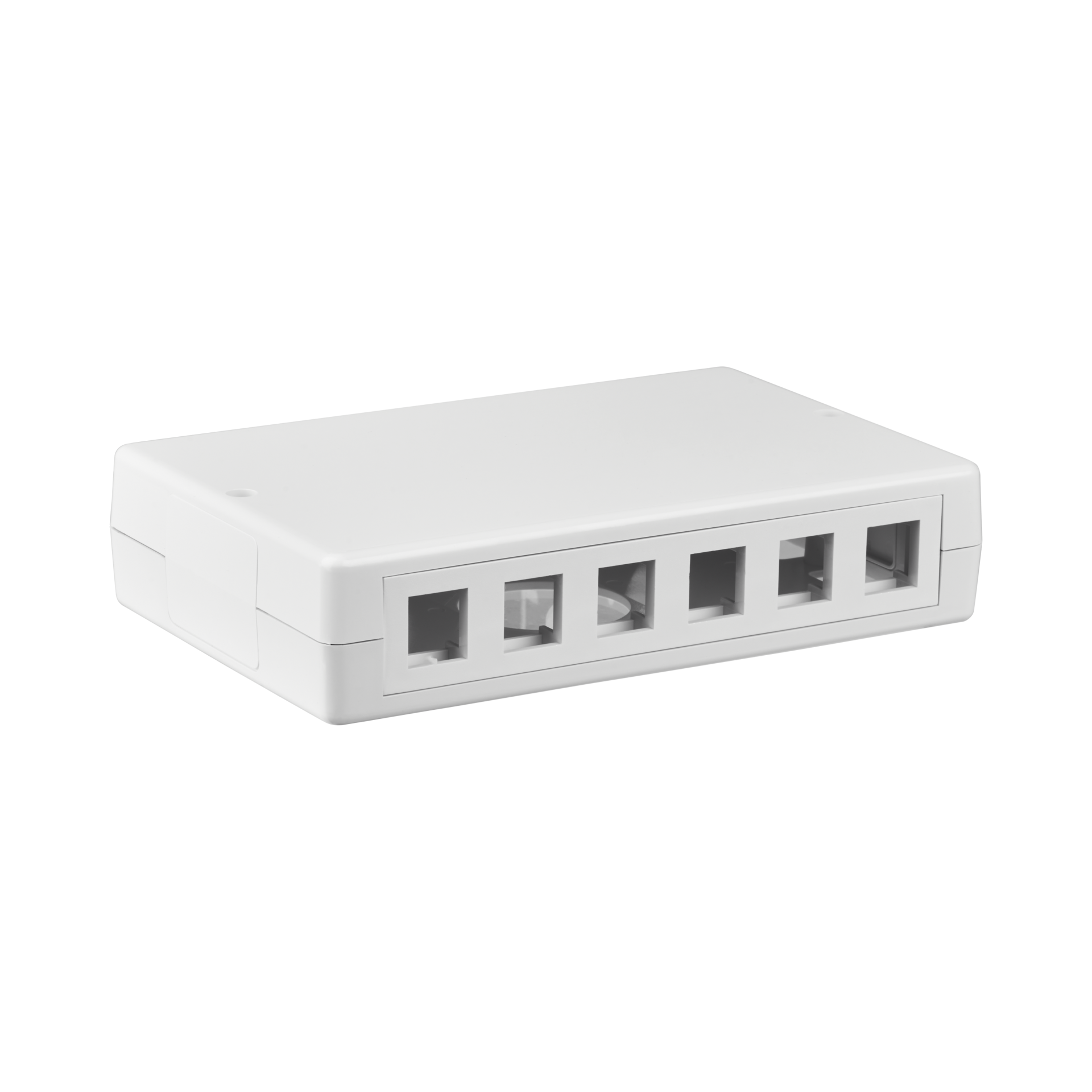

6 keystone modules when using the rear cable entries

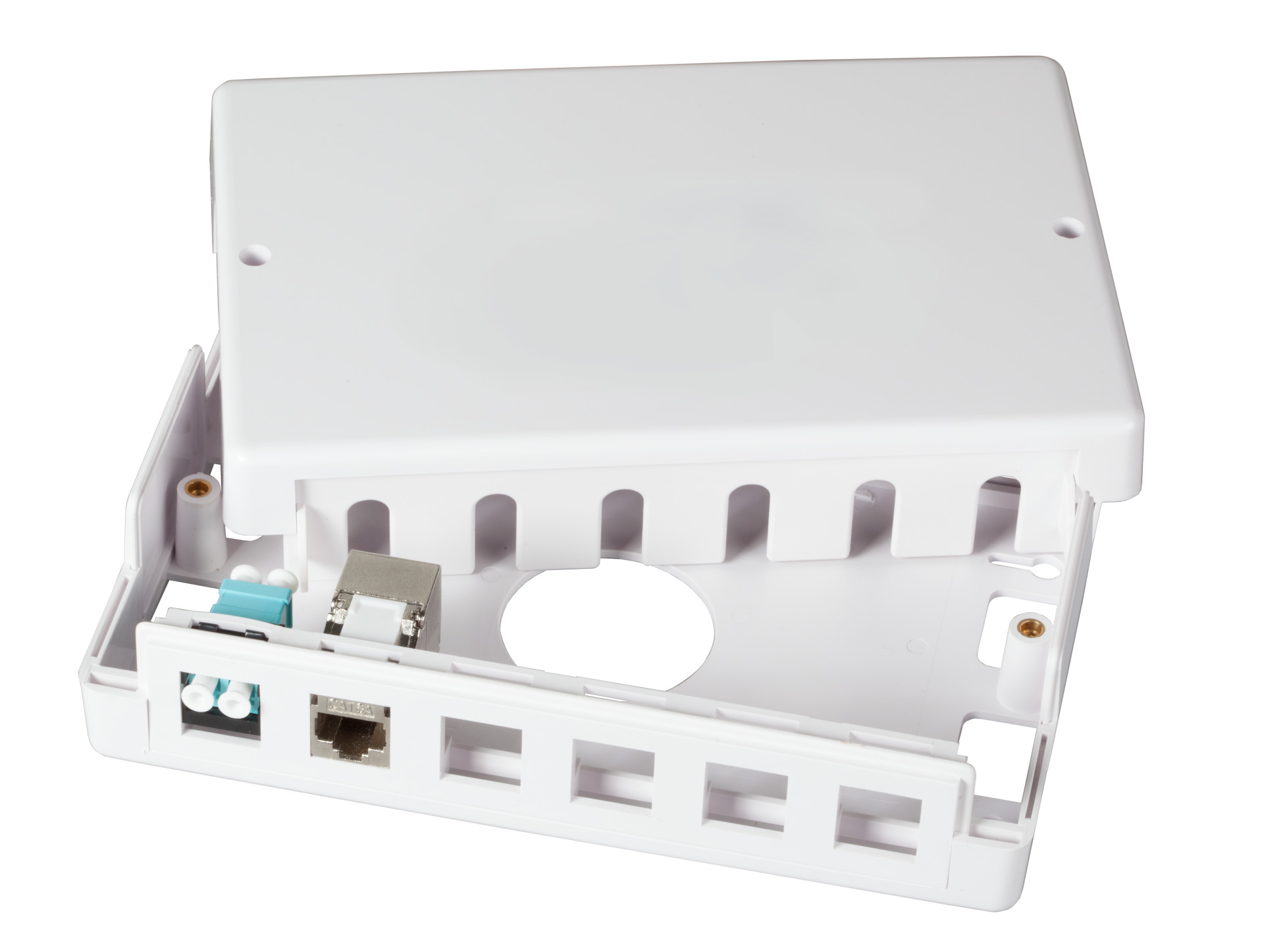

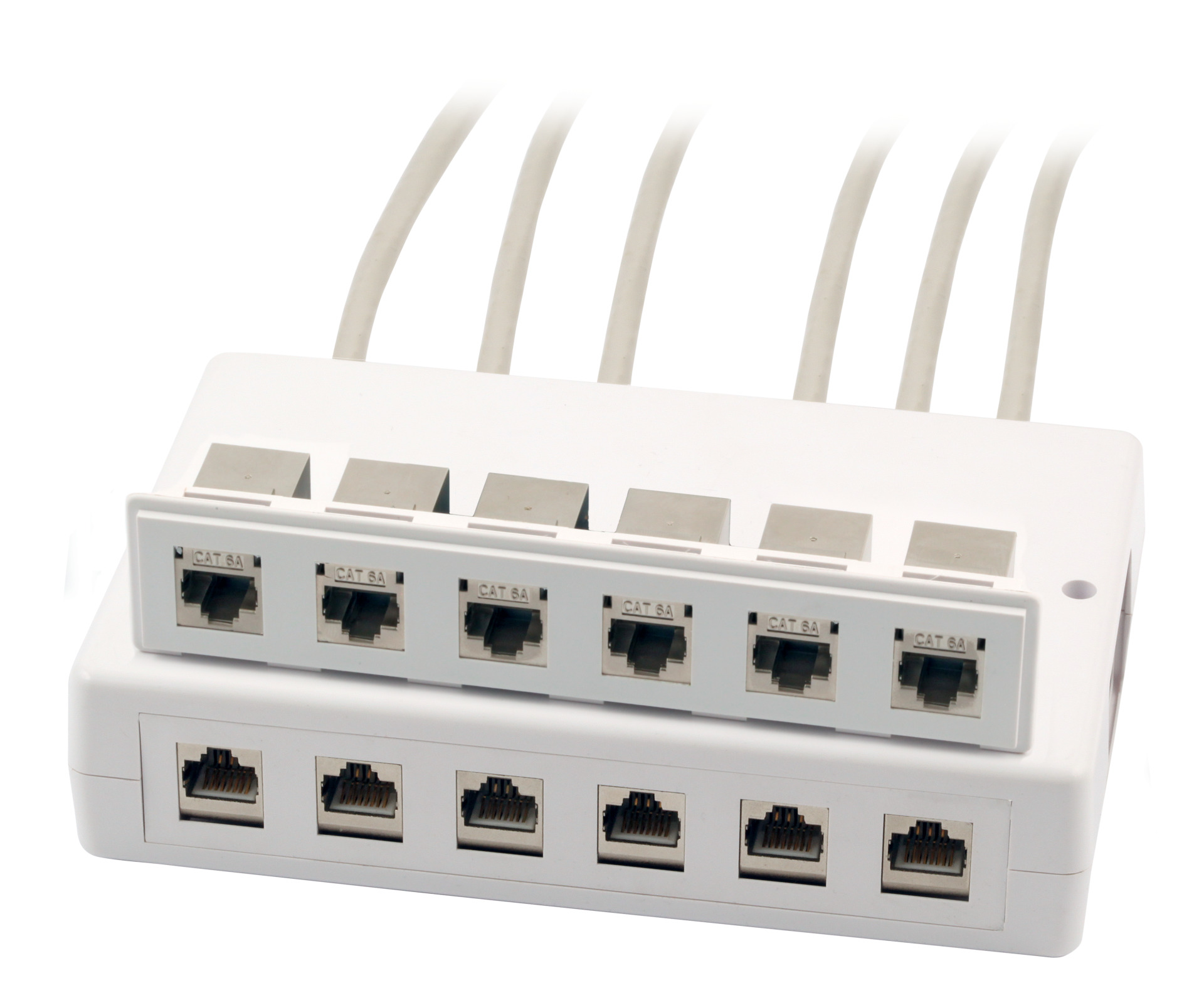

12 keystone modules maximum when using the cable entries at both sides

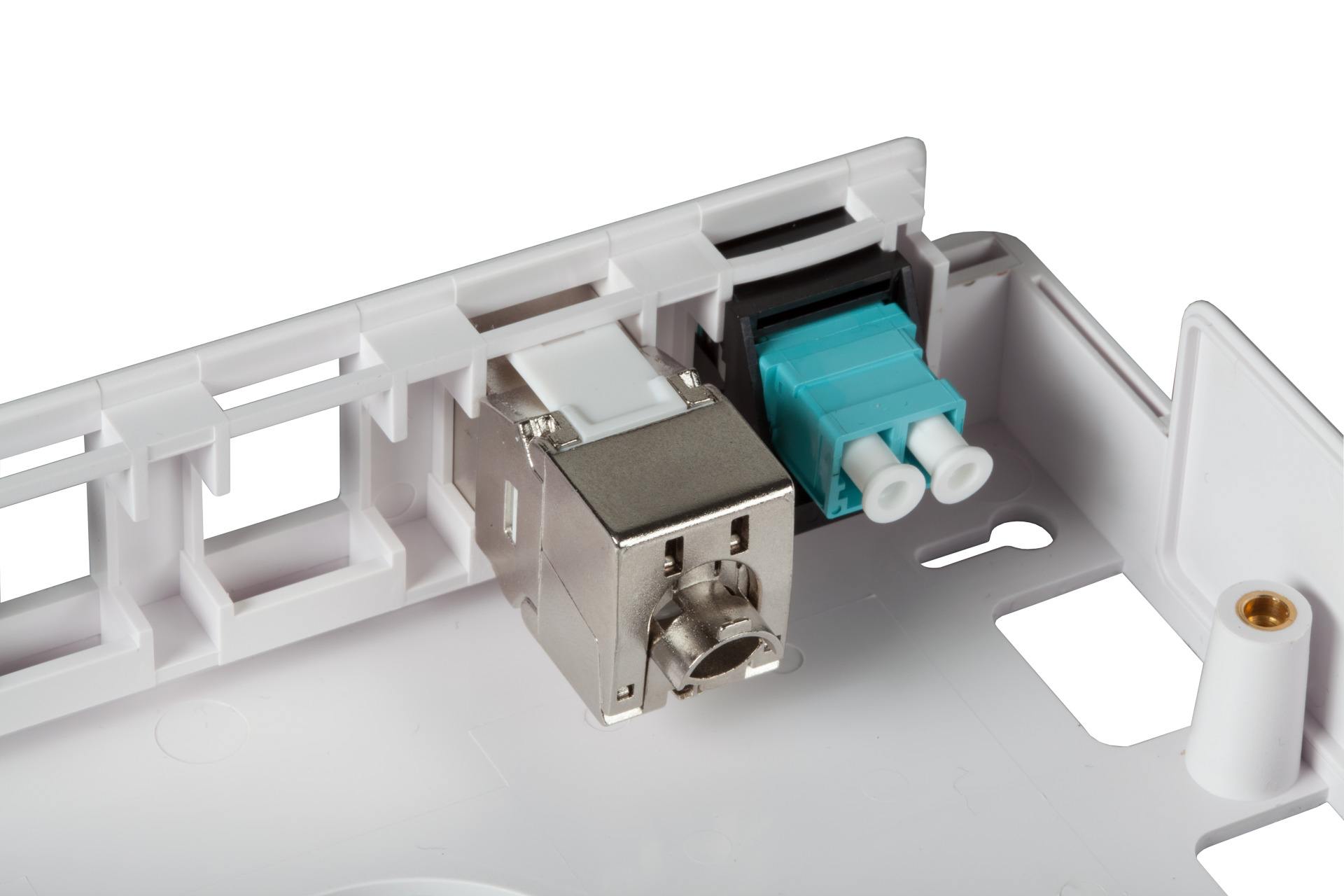

The lower part of the case with opening for cable entry and fixing holes for wall mounting
Specifications
For 6 or 12 keystone modules from the EFB-Elektronik portfolio
Colour: pure white, RAL9010
Material: ABS

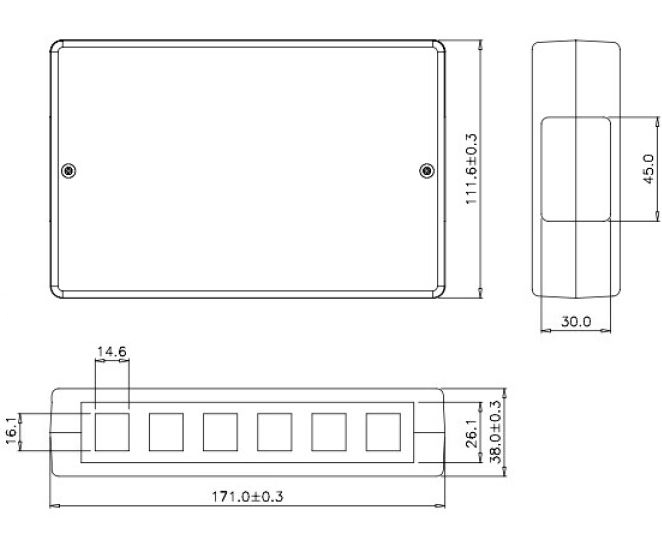

Dimensions: 170 x 110 x 40 mm (L x W x D)
Suitable for wall mounting

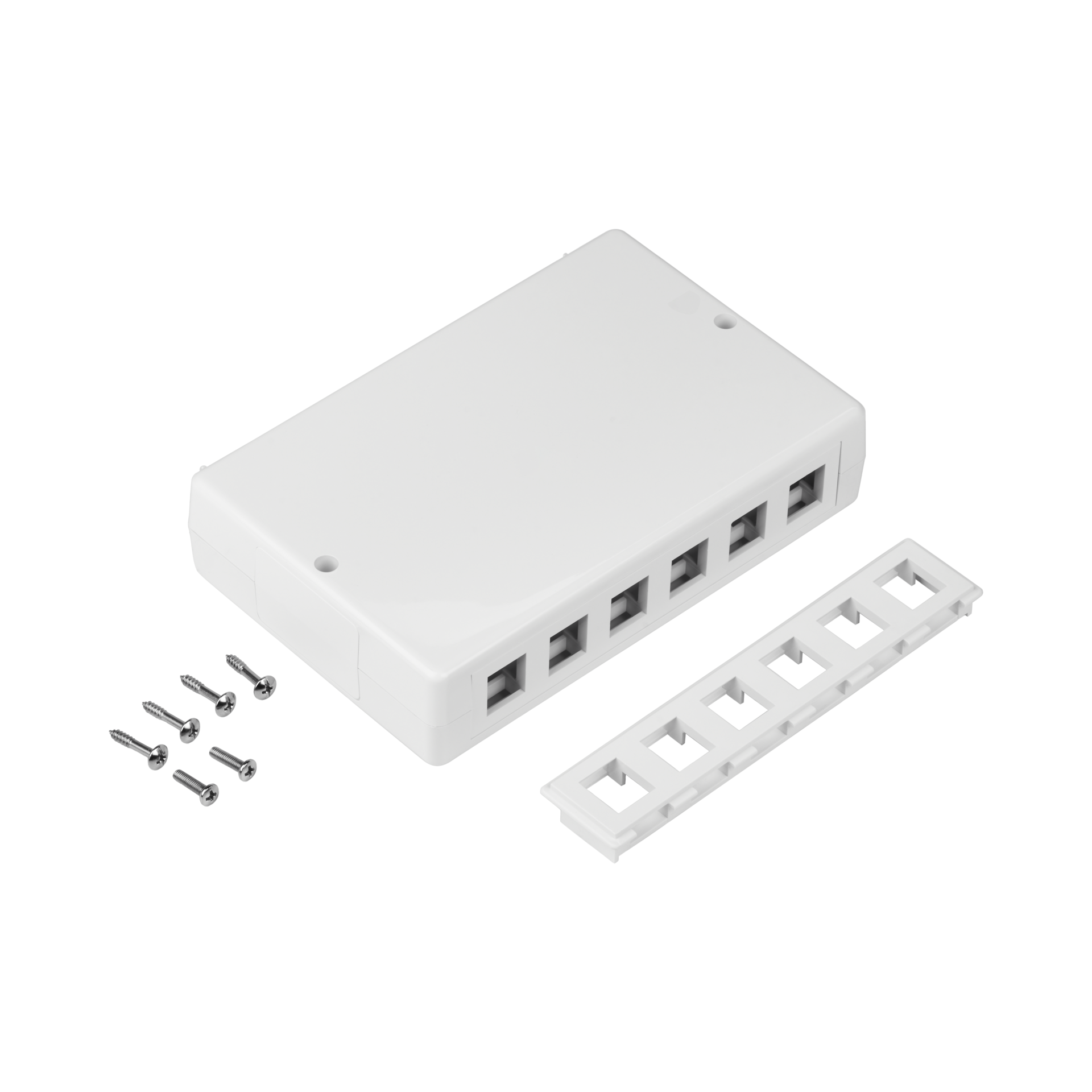

Plastic housing consisting of:
1 x upper housing shell, 1 x lower housing shell, 2 x adapter inserts with openings for 6 keystones, 1 x adapter insert for 6 cable entries, 2 x side cover
Delivery without modules
The compact plastic case can be used for collecting points at desks, intermediate ceilings or in underfloor systems. The empty case is also suitable for wall mounting.
The extensive accessories makes the following variants possible:
6 keystone modules when using the rear cable entries
12 keystone modules maximum when using the cable entries at both sides
The lower part of the case with opening for cable entry and fixing holes for wall mounting
Specifications
For 6 or 12 keystone modules from the EFB-Elektronik portfolio
Colour: pure white, RAL9010
Material: ABS
Dimensions: 170 x 110 x 40 mm (L x W x D)
Suitable for wall mounting
Plastic housing consisting of:
1 x upper housing shell, 1 x lower housing shell, 2 x adapter inserts with openings for 6 keystones, 1 x adapter insert for 6 cable entries, 2 x side cover
Delivery without modules
Tekniske egenskaber
| Ambient temperature: | 3 – °C |
|---|---|
| Category: | - |
| Colour coding: | False |
| Connection type: | Other |
| Connector housing: | - |
| Degree of protection: | - |
| Duct installation: | False |
| Floor box/sub-floor mounted: | False |
| Flush-mounted installation/built-in installation: | False |
| Material connector housing: | Plastic |
| Mechanical coding: | False |
| Mounting method shielding connection: | None |
| Outlet direction: | Straight |
| Separate earthing connection: | False |
| Separate strain relief: | False |
| Shielded buses: | False |
| Shielded housing: | False |
| Surface mounting: | True |
| Type of connector: | RJ45 8(8) |
| Type of fastening: | Screwing |
| With dust cover: | True |
| With label space: | False |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
