RJ45 Connector STP, Cat.6, Field-Plug

Priser kun synlige for indloggede brugere

RJ45 Connector STP, Cat.6, Field-Plug
Varenummer: 88035.1
EAN nr.: 4049759134471

Produktinformation für RJ45 Connector STP, Cat.6, Field-Plug

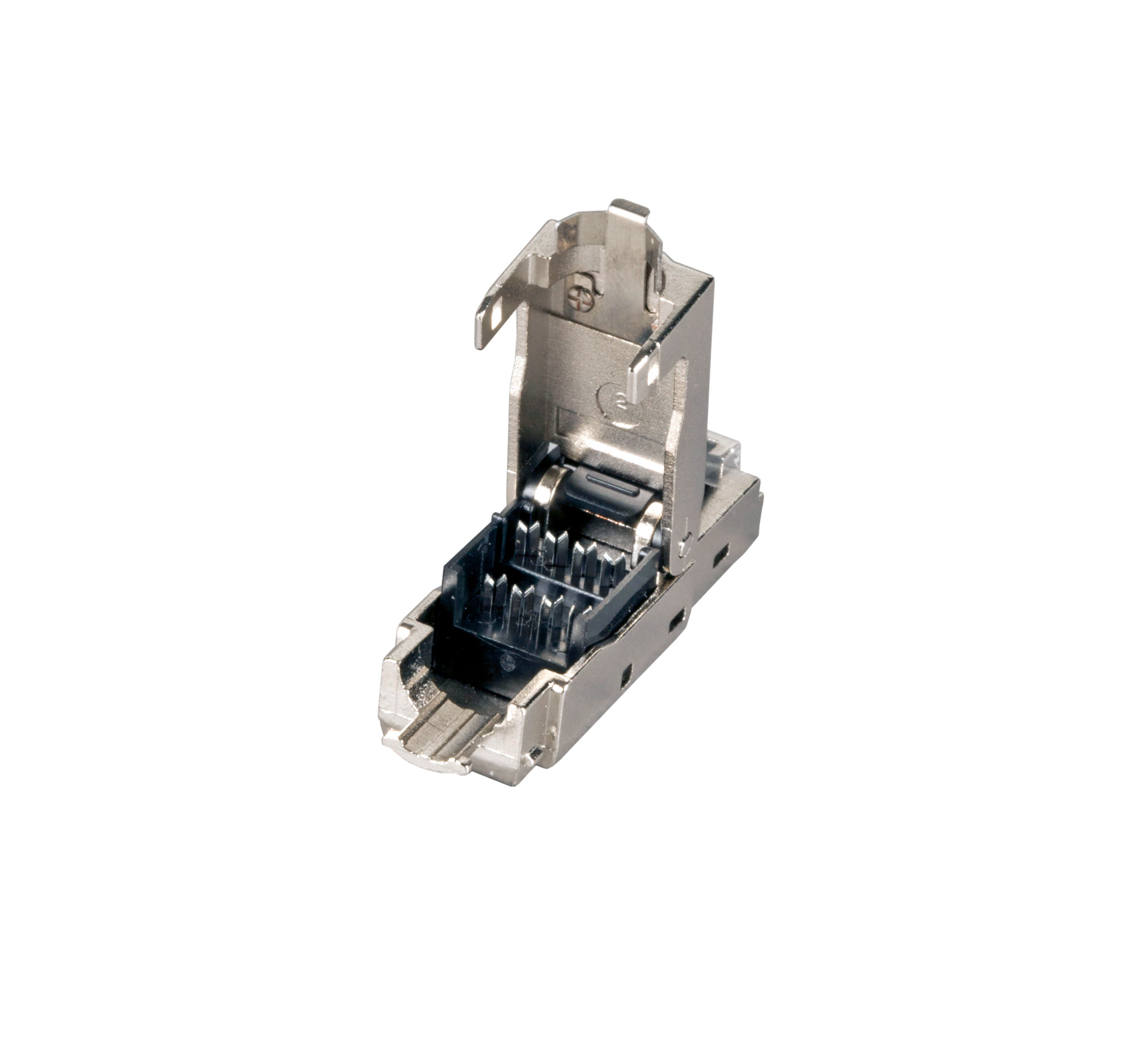

The RJ45 plug provides a combination of excellent transmission quality and fast and easy tool-free assembly. Fully shielded zinc diecast housing ensures the best EMC features especially in industrial environments. IDC terminals and very low contact resistances assure high quality contacting for installation cables up to 9mm diameter and wire gauge from AWG22 - AWG27.

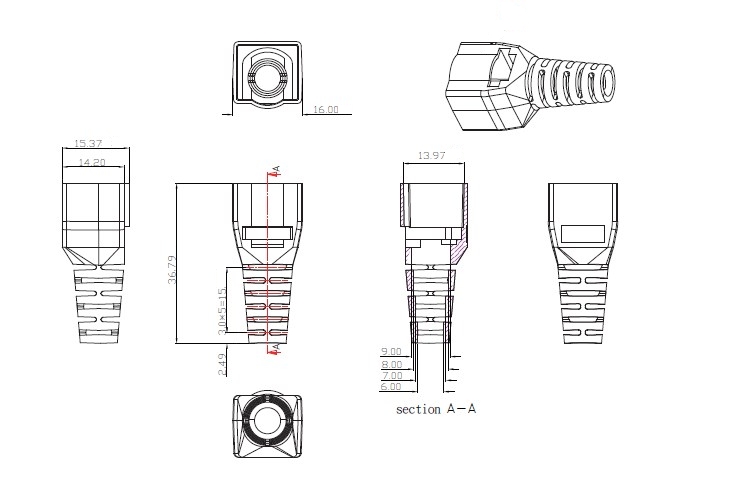

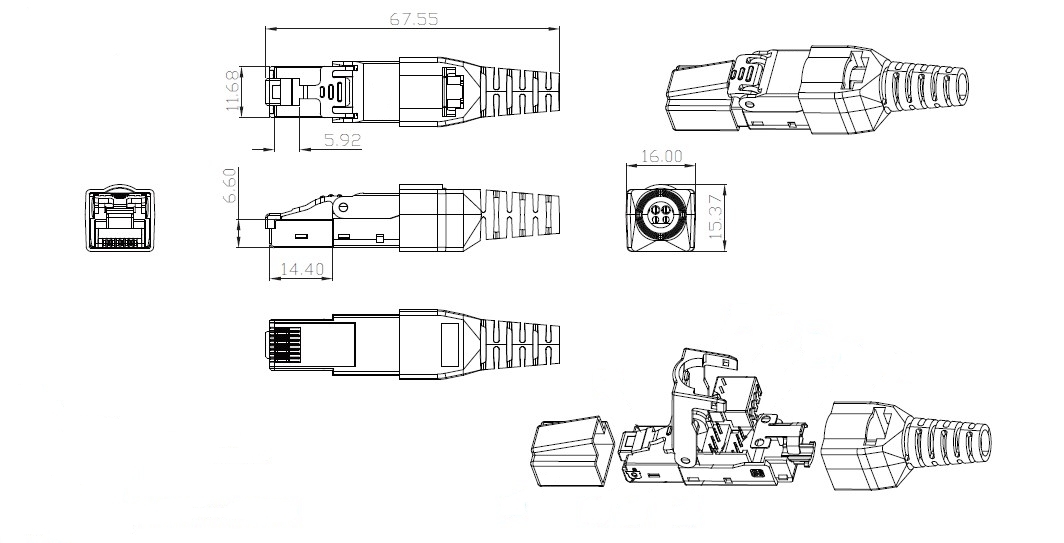

Shielded zinc diecast body with separate dust cap and anti-kink sleeve
Class E performance according to ISO/IEC11801 and IEC60603-7-5
Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
Re-termination capability up to 5 times with the same width, for AWG27/7 up to 2 times
Suitable for cable dia from 6.0 mm .. 9.0 mm
Strain relief with cable tie

Tekniske egenskaber

4PPOE certified: True
360° shield contact: True
AWG-range: 22 – 27
Category: 6
Complaint to UL94: V-0
Connection type: LSA
Contact coating: 50 µ"
Contact resistance: ≤ 20 mΩ
Current capacity: 1.5 A
Dielectric Withstanding Voltage: 1000 V DC
Dust cover: true
Housing material: Zinc die cast
Insulation resistance: ≥ 500 MΩ
Mating cycles: 750 Mating cycles
Model: plug
Screened: True
Separate earthing flag: False
Shield contact and strain relief separate: True
Special tool necessary: False
Suitable for degree of protection (IP): IP20
Suitable for flat cable: False
Suitable for litz wire conductor: True
Suitable for round cable: True
Suitable for solid core: True
Temperature range: -40 – 66 °C
Type of connector: RJ45 8(8)
Type of locking: snap lock
max. Cable diameter: 9.0 mm
