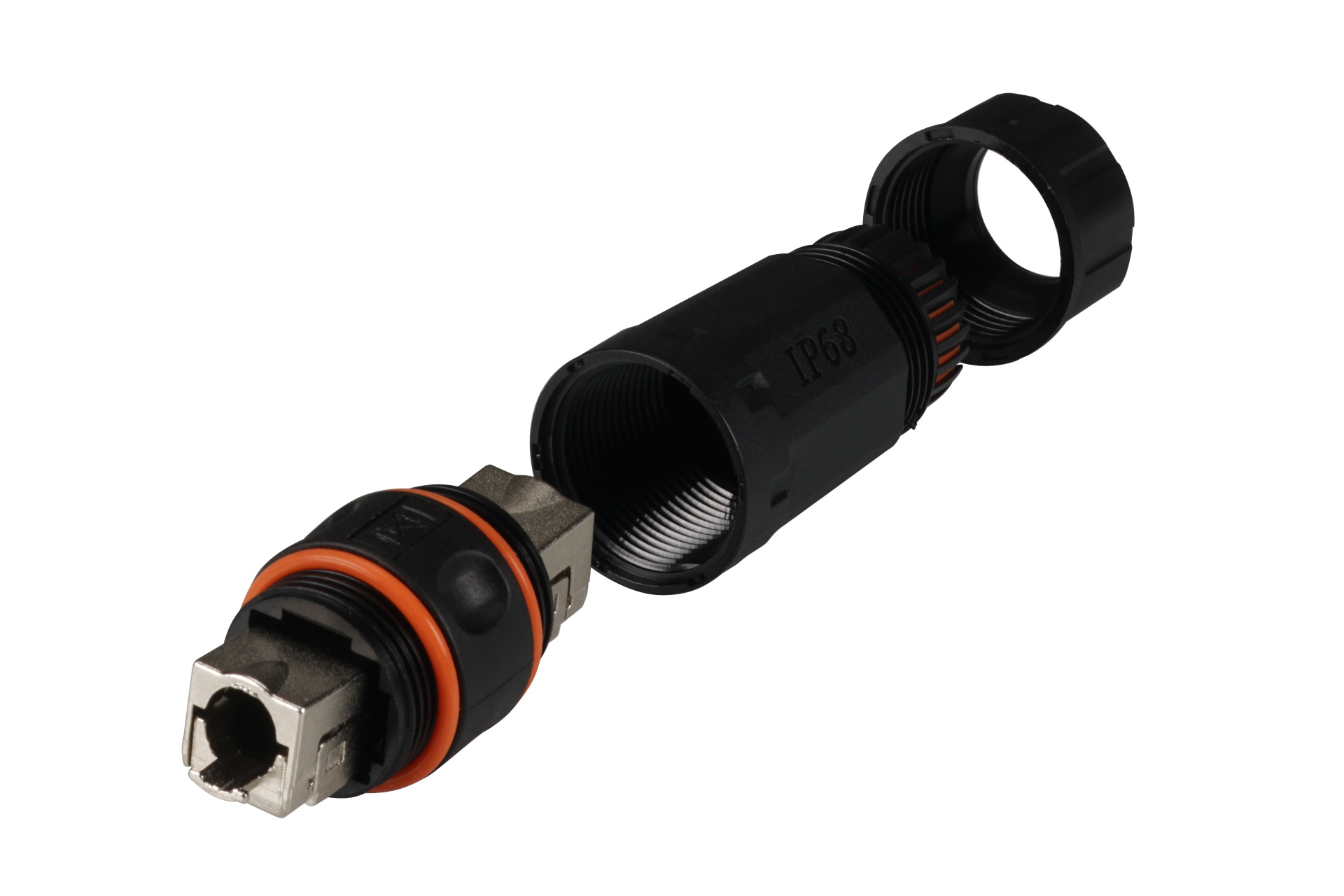

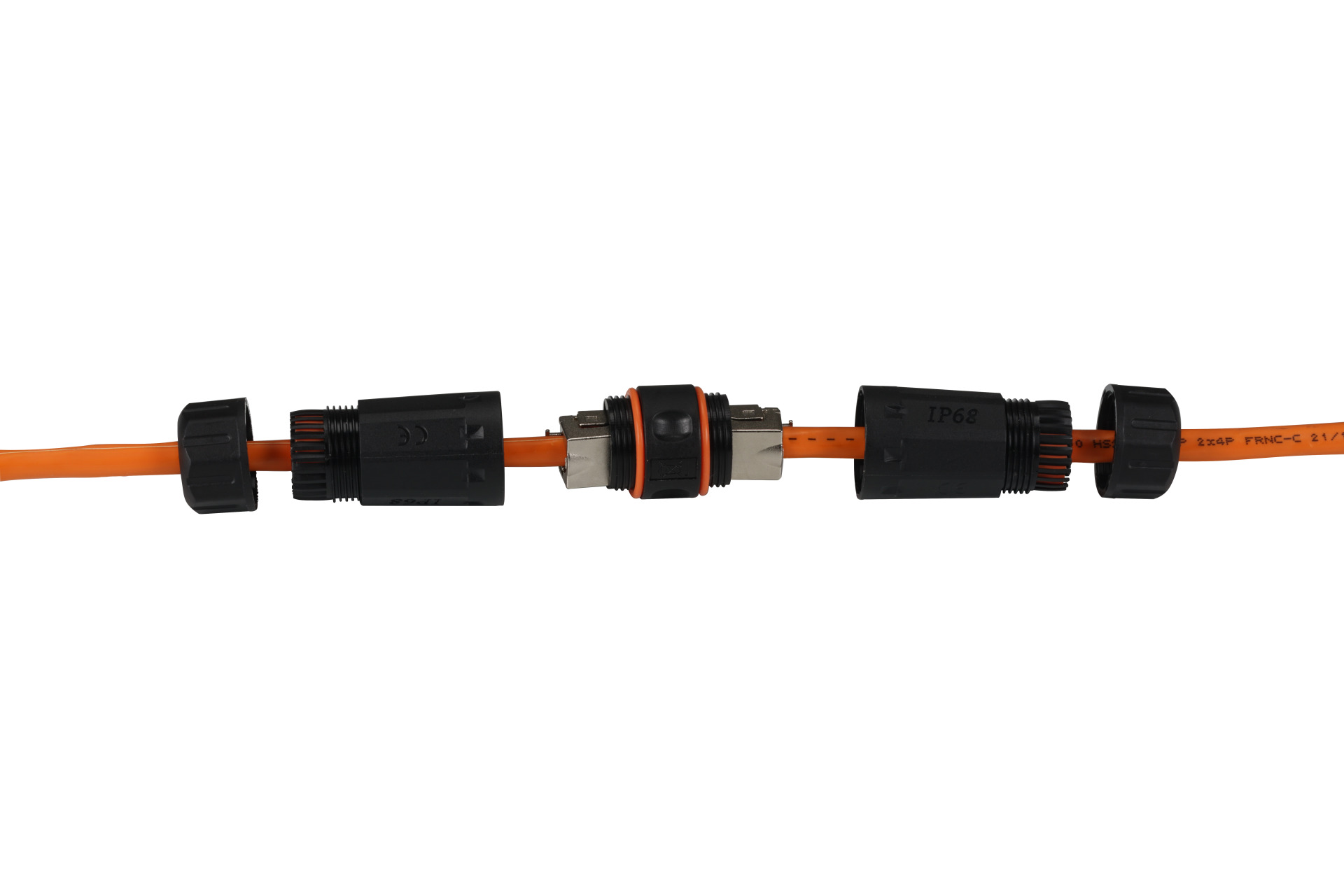

IP68 Connection module Cat.6A 10Gbit/s for AWG22/1-26/1

Produktinformation til IP68 Connection module Cat.6A 10Gbit/s for AWG22/1-26/1

IP68 cable connector for outdoor installation and direct burial. Integrated Cat.6A insulation displacement technology to facilitate connection. Designed for transmissions up to 500MHz according to ISO/IEC 11801 ClassEA and Data transmission rate up to 10 Gbit/s.

- Easy installation
- Waterproof cable connector of protection class IP68
- Max. Voltage of 125V and max. current of 1.5A
- Cable gland in PG16
- For cables with a diameter of 4,5 mm- 10 mm

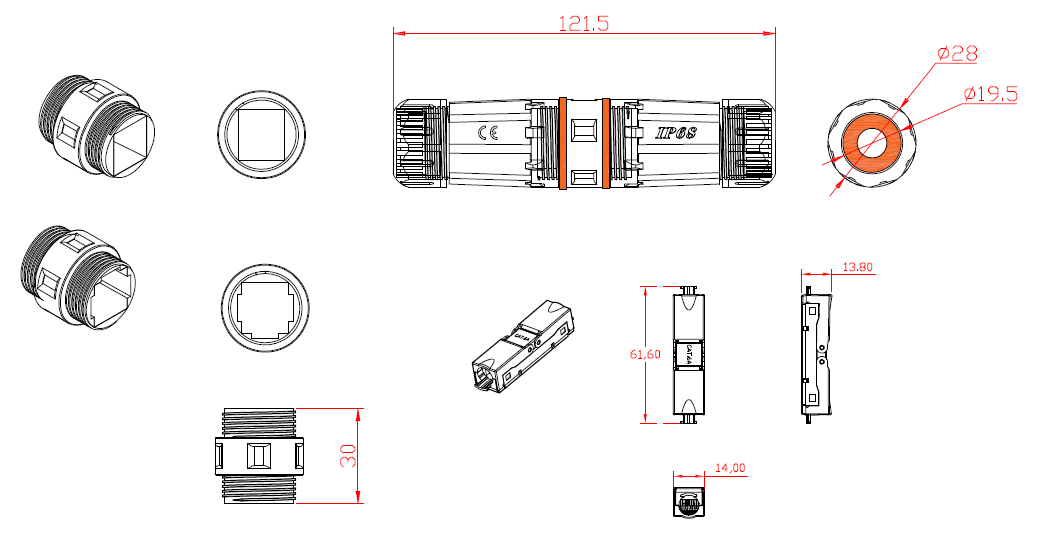

- L x D 121.5mm x 28 mm
Category: 6A (TIA)
Construction type: straight
Model: LSA/LSA
Temperature Range (Operation): 0 – 70 °C
Temperature Range (Storage): -40 – 85 °C
Type of connector: 2x LSA
Type of fastening: Other

Tekniske egenskaber

Category: 6A (TIA)
Construction type: straight
Model: LSA/LSA
Temperature Range (Operation): 0 – 70 °C
Temperature Range (Storage): -40 – 85 °C
Type of connector: 2x LSA
Type of fastening: Other

Produktinformation til IP68 Connection module Cat.6A 10Gbit/s for AWG22/1-26/1

IP68 cable connector for outdoor installation and direct burial. Integrated Cat.6A insulation displacement technology to facilitate connection. Designed for transmissions up to 500MHz according to ISO/IEC 11801 ClassEA and Data transmission rate up to 10 Gbit/s.

- Easy installation
- Waterproof cable connector of protection class IP68
- Max. Voltage of 125V and max. current of 1.5A
- Cable gland in PG16
- For cables with a diameter of 4,5 mm- 10 mm
- L x D 121.5mm x 28 mm
Category: 6A (TIA)
Construction type: straight
Model: LSA/LSA
Temperature Range (Operation): 0 – 70 °C
Temperature Range (Storage): -40 – 85 °C
Type of connector: 2x LSA
Type of fastening: Other

Category: 6A (TIA)
Construction type: straight
Model: LSA/LSA
Temperature Range (Operation): 0 – 70 °C
Temperature Range (Storage): -40 – 85 °C
Type of connector: 2x LSA
Type of fastening: Other

Sikkerhedsanvisninger


Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse. Important safety information to prevent accidents and damage during installation: Hazard: If the raised floor is used incorrectly, it may break. Action: Avoid walking on the raised floor unless the correct loads and load specifications are taken into account. Incorrect loading Hazard: Incorrect loading can lead to instability and damage. Action: Ensure that the load is even and prescribed according to the manufacturer's instructions. Enclosure falls due to weight being exceeded Hazard: Exceeding the maximum weight limit can destabilize the enclosure. Action: Check the maximum permissible load of the enclosure and ensure that this is not exceeded. Falling components due to inadequate fastening Hazard: Inadequately fastened components can fall and cause injury. Action: Ensure that all parts are properly and securely assembled. Housing parts breaking out due to incorrect loading Danger: Inadmissible loading leads to material damage and possible housing parts breaking out. Action: Ensure that the load is distributed correctly and that the recommended load is used. Risk of tipping due to uneven floor Danger: An uneven floor can cause the cabinet or device to tip over. Action: Make sure that the surface is level and stable to avoid the risk of tipping. Risk of tipping due to insufficient load-bearing capacity of the surface Danger: Insufficient load-bearing capacity of the surface can encourage the cabinet to tip over. Action: Check the load-bearing capacity of the surface before installation and ensure that it can safely support the weight. Cabinet can tip over if heavy server unit is pulled forward Danger: Pulling heavy server units forward can cause the cabinet to tip over. Action: Always secure cabinets and server units with suitable brackets and seek assistance when handling heavy equipment. Risk of tipping over with heavy cooling unit without safety measures Hazard: Improper fastening of cooling units to external brackets can cause the cabinet or device to tip over. Action: Secure cooling units with suitable devices to prevent tipping. Side walls fall off - sash lock not used correctly Hazard: Incorrectly used sash locks can cause the side walls of the cabinet to fall off. Action: Regularly check that all sash locks are correctly and securely fitted. Load capacity not provided Hazard: An insufficient load capacity can destabilise the system. Action: Before installation, check the load capacity information and ensure that the base and the shelves are sufficiently stable. Inadequate fastening when fitting accessories Hazard: Loosely fitted accessories can fall down dangerously. Action: Fasten all accessories carefully and regularly check them for strength. Insufficient wall statics - housing falls down Danger: Insufficient wall statics can cause the housing to fall down. Action: Before installation, make sure that the wall has sufficient static load-bearing capacity and that the housing can be installed safely. Injury from falling attachments Danger: Insufficiently secured attachments can fall down and cause injuries. Action: Make sure that all attachments are correctly secured and check them regularly.

Producentangivelse


EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt

Spring produktgalleriet over

sold with

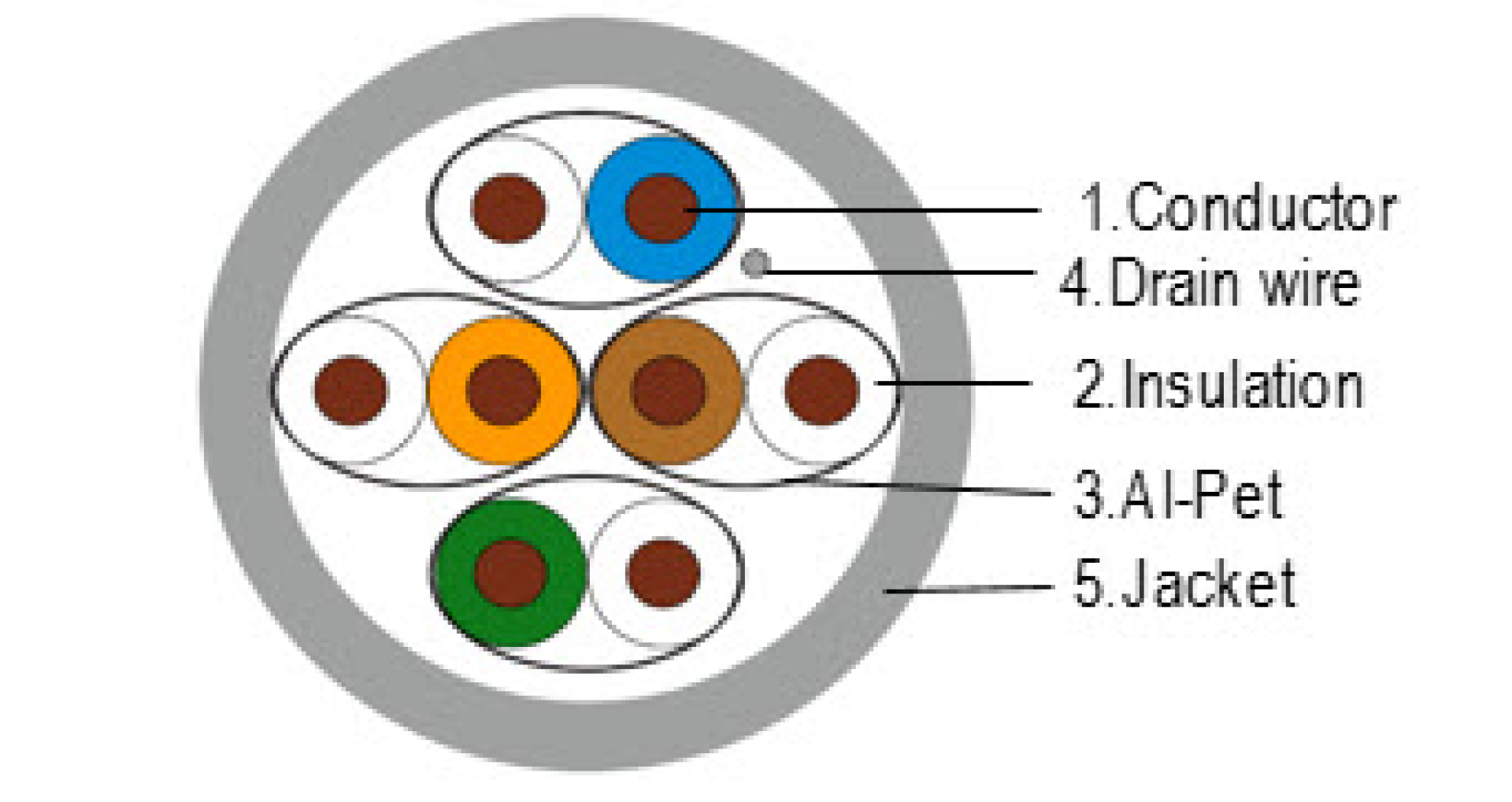

INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 305m Box, white

Art. nr. 99978.305-CPR

INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 305m Box, white
Colour outer sheath: white
Length: 305.0 m
Number of cores: 8
RAL colour: RAL 9003
INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Eca

Art. nr. 99980.1-CPR

INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Eca
Colour outer sheath: orange
Length: 1.0 m
Number of cores: 8
RAL colour: RAL 2003
INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Cca

Art. nr. 99981.1-CPR

INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Cca
Colour outer sheath: orange
Length: 1.0 m
Number of cores: 8
RAL colour: RAL 2003

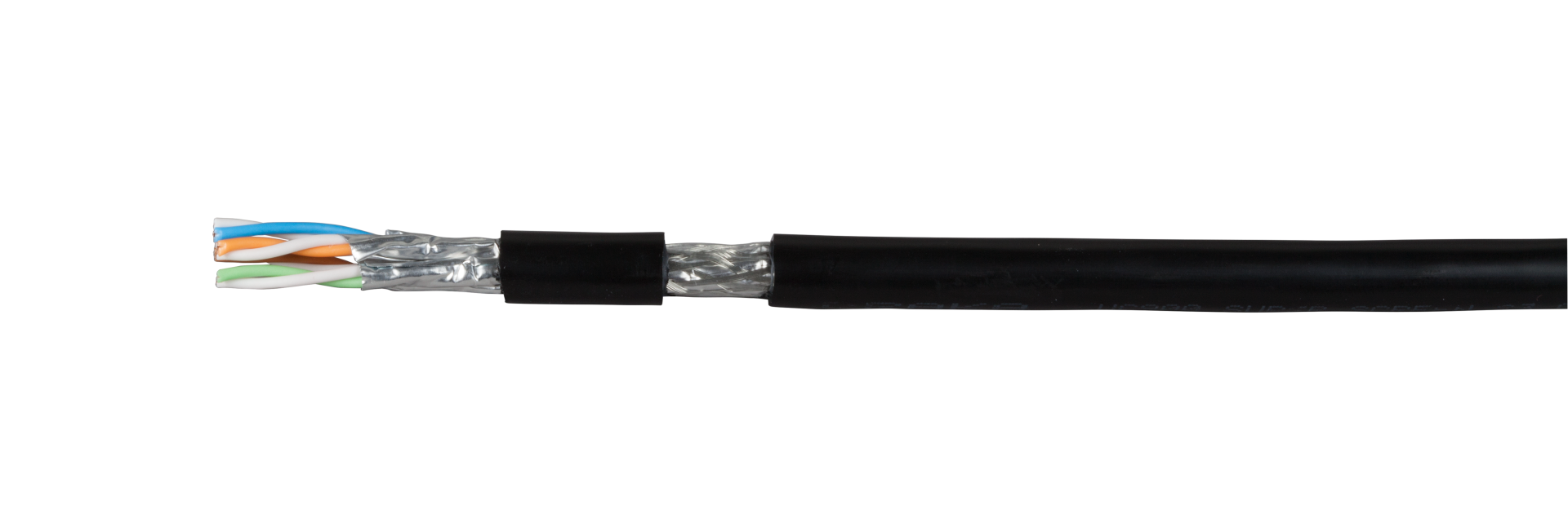

Cat.7 Outdoor cable UC900 SS23/1,4P PE, 500metres

Art. nr. 99731.500

Cat.7 Outdoor cable UC900 SS23/1,4P PE, 500metres
Colour outer sheath: black
Length: 500.0 m
Number of cores: 8
RAL colour: RAL 9005

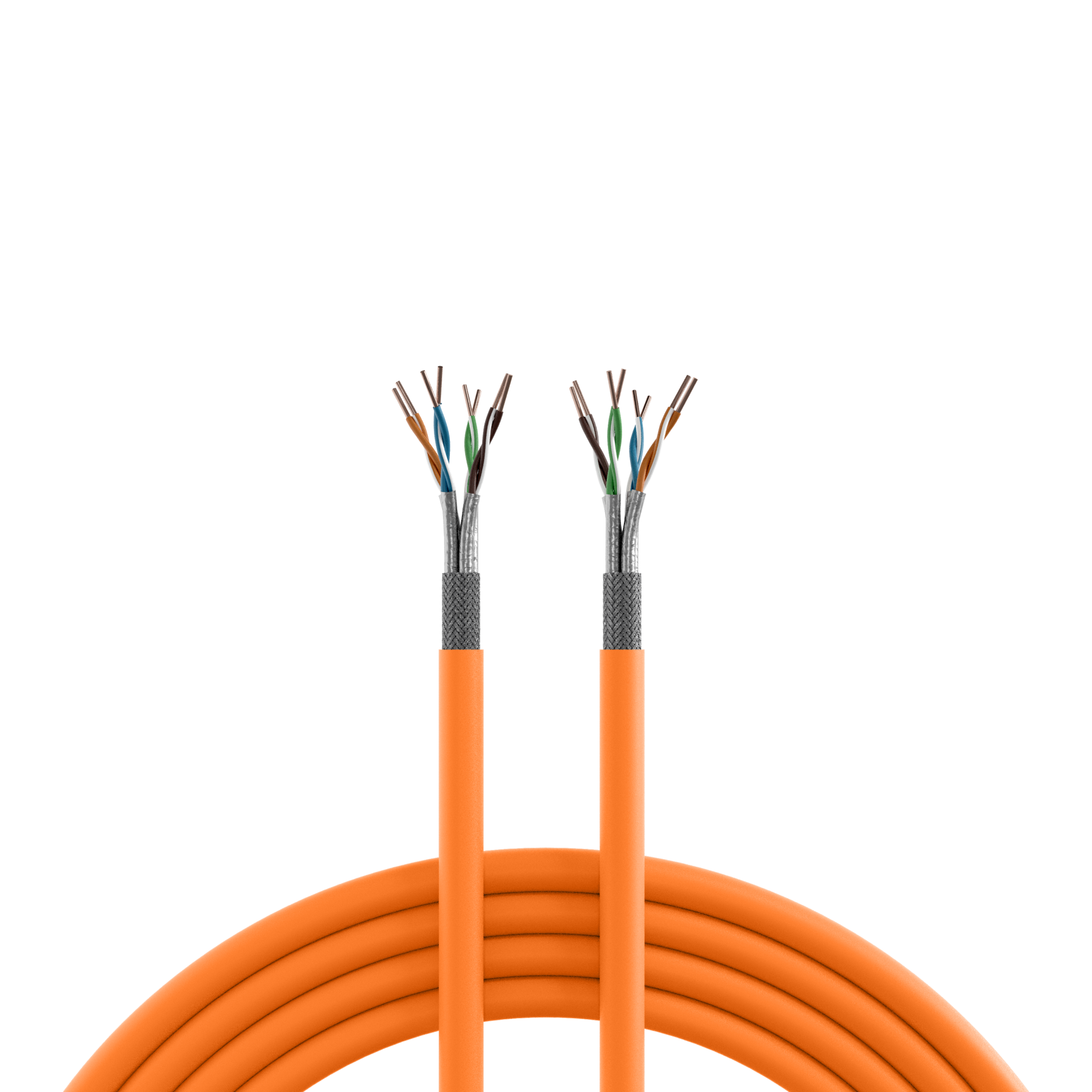

INFRALAN® Cat.7A 1200 AWG22, S/FTP 4P CPR B2ca orange RAL 2003

Art. nr. MK7100.1-CPR

INFRALAN® Cat.7A 1200 AWG22, S/FTP 4P CPR B2ca orange RAL 2003
Colour outer sheath: orange
Length: 1.0 m
Number of cores: 8
RAL colour: RAL 2003

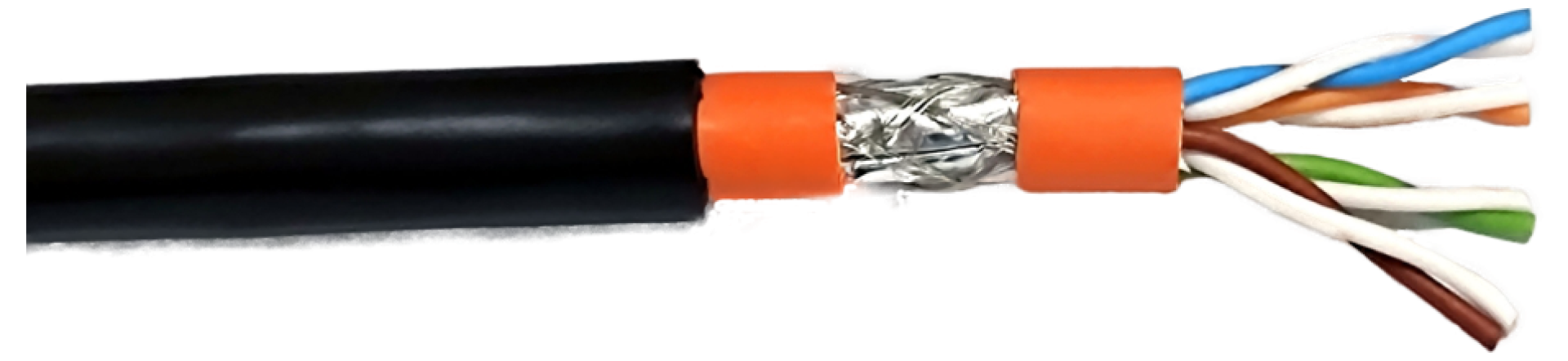

Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,1000m
