RJ45 Keystone STP, Cat.8 Class 1
RJ45 Keystone STP, Cat.8 Class 1, 2000MHz
Varenummer:
E-20092
EAN Nr.:
4049759210694
Produktinformation til RJ45 Keystone STP, Cat.8 Class 1, 2000MHz

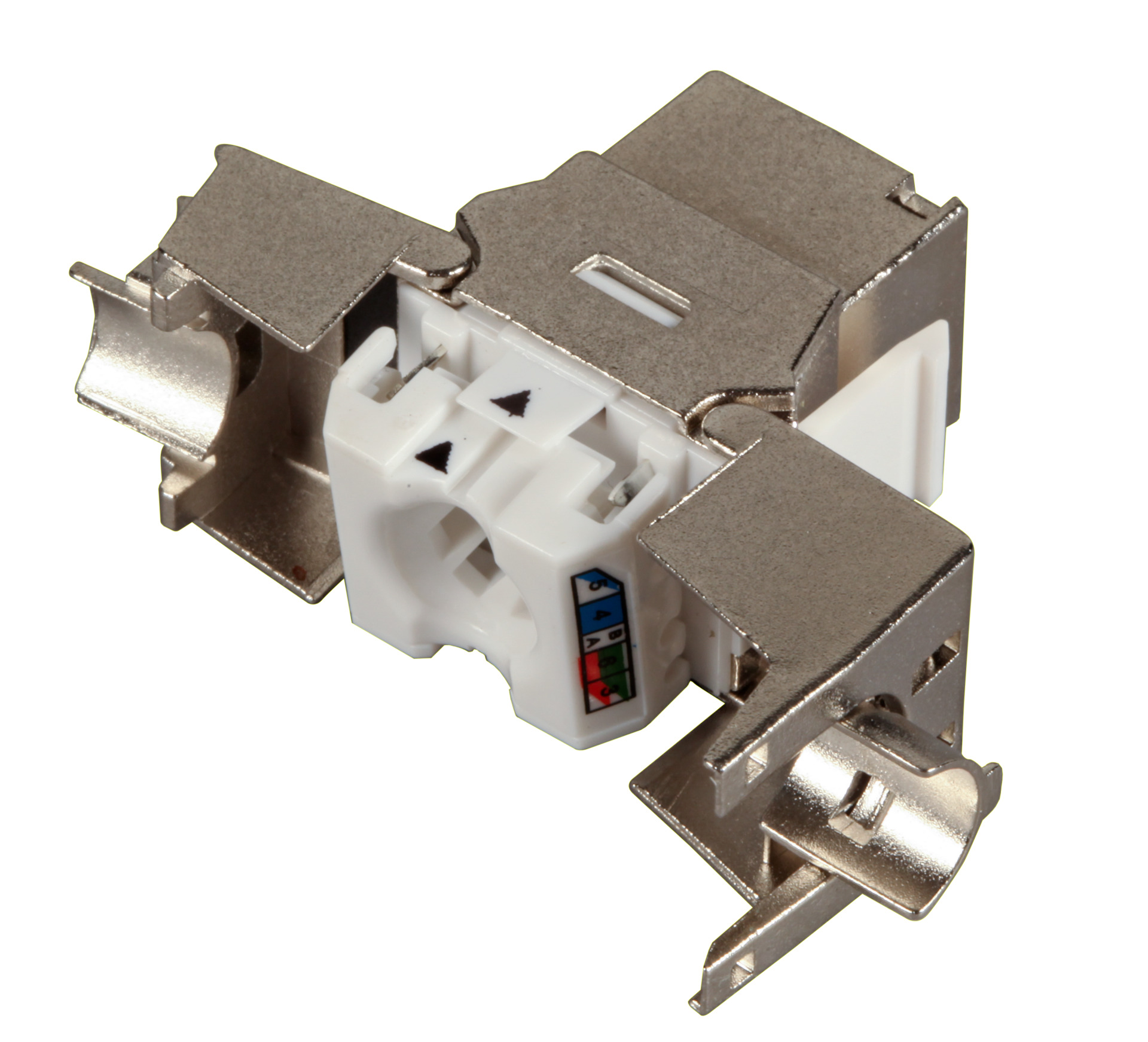

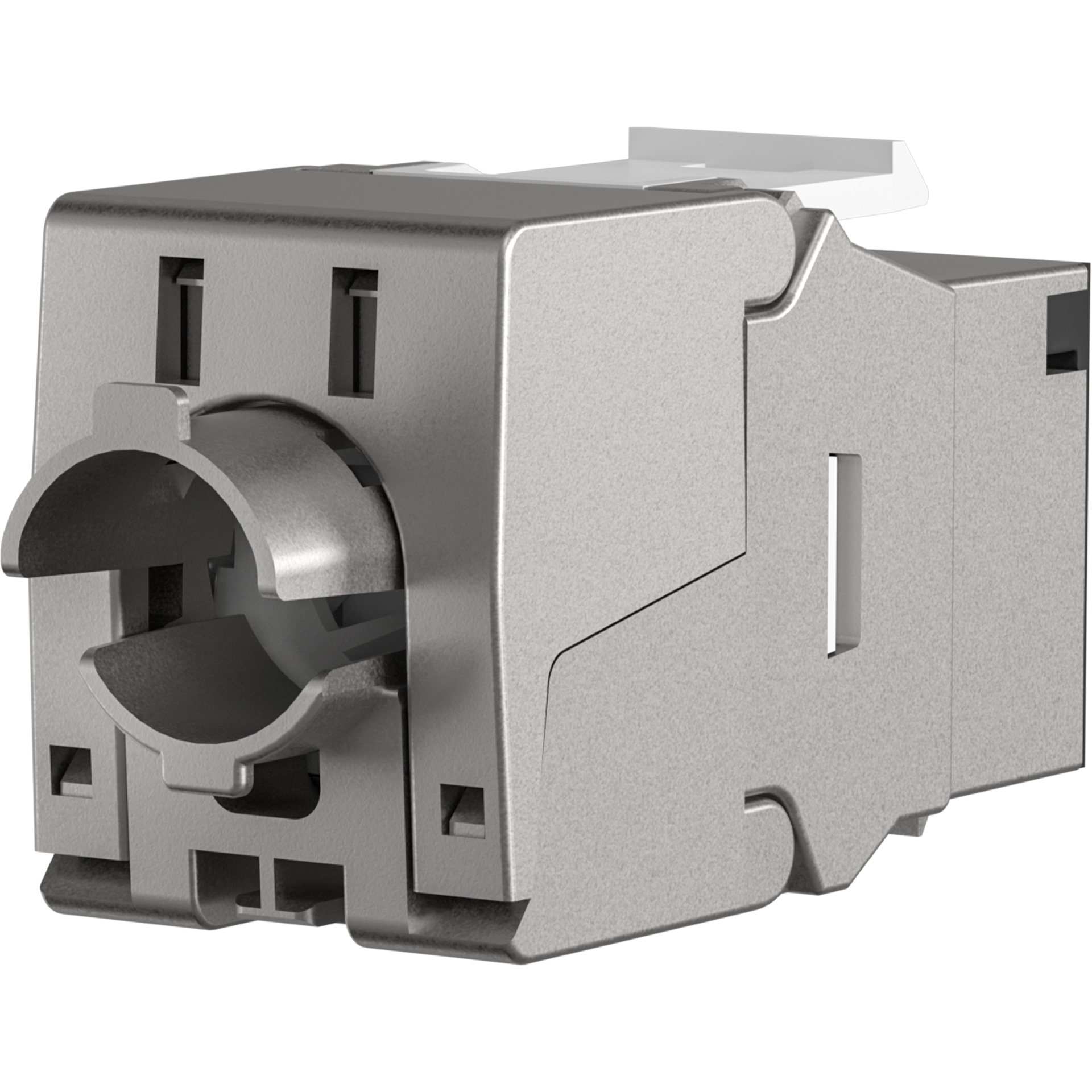

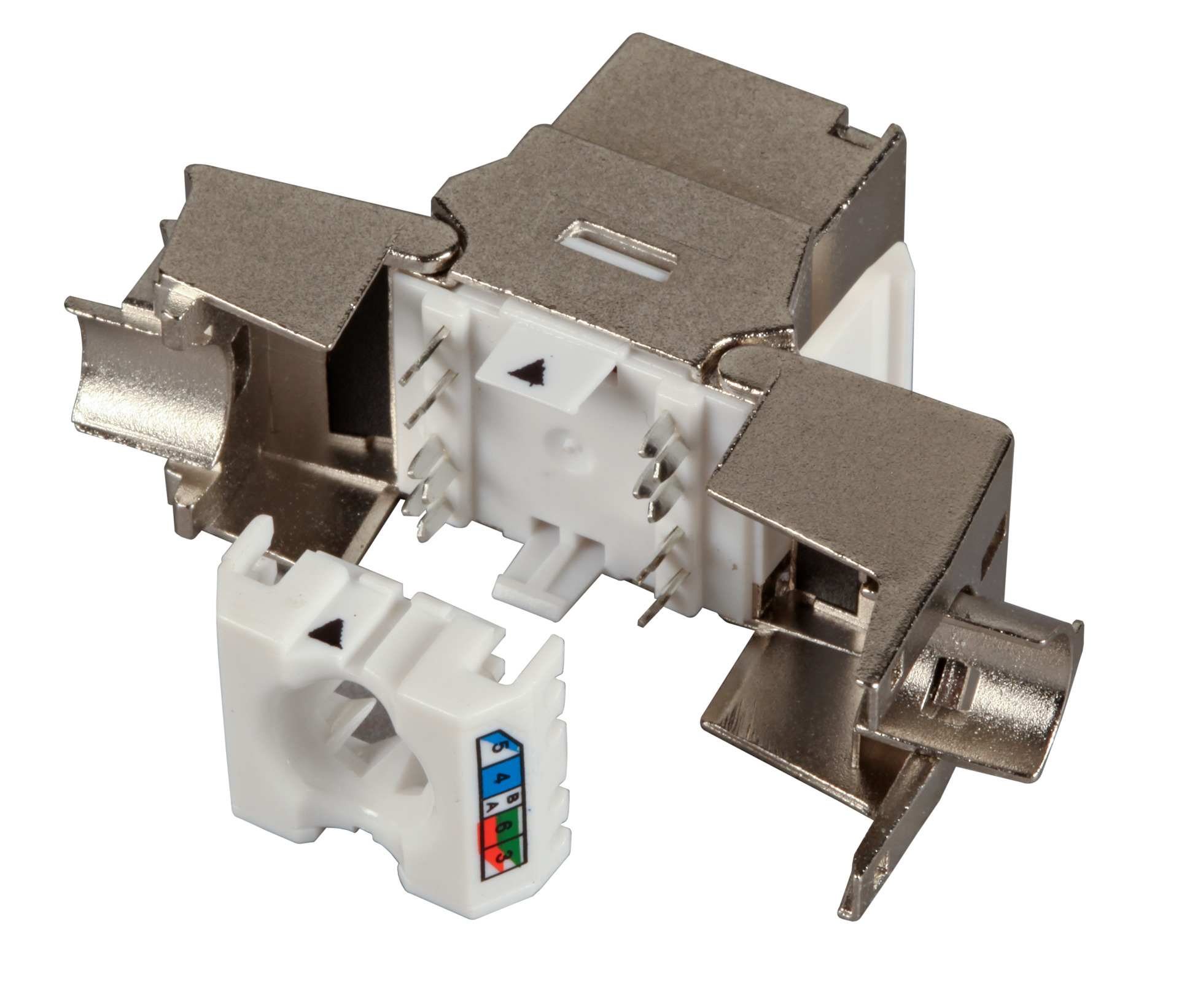

The high-quality of the RJ45 keystone modules warrants very good characteristics for 40 Gbit Ethernet application. Special tools are not needed. The assembling is being carried out fast and easy. With the RJ45 module you get a full shielded module, which provides you good longterm service in your network infrastructure.
Specifications:

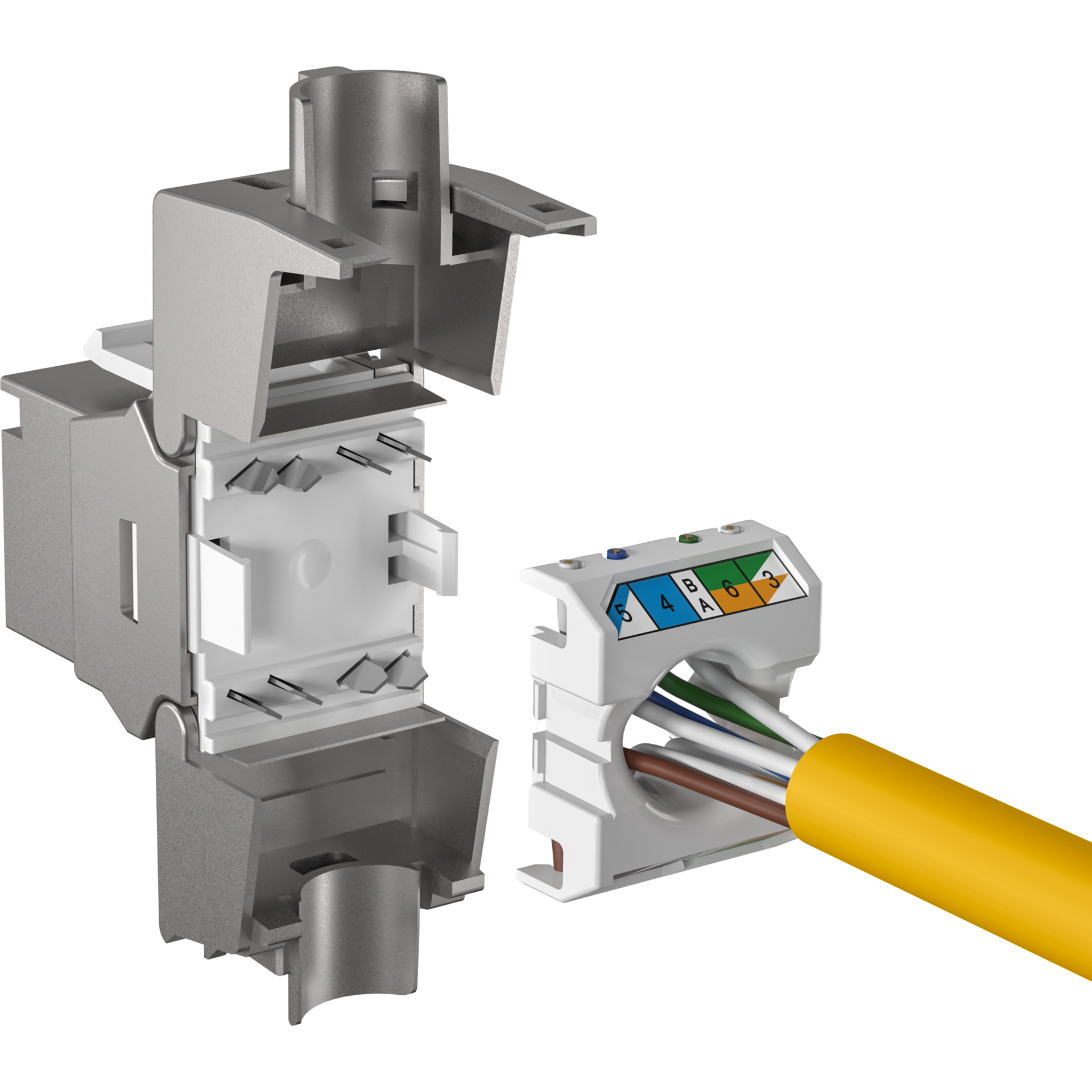

Compact cable presorter for AWG 24/1
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots

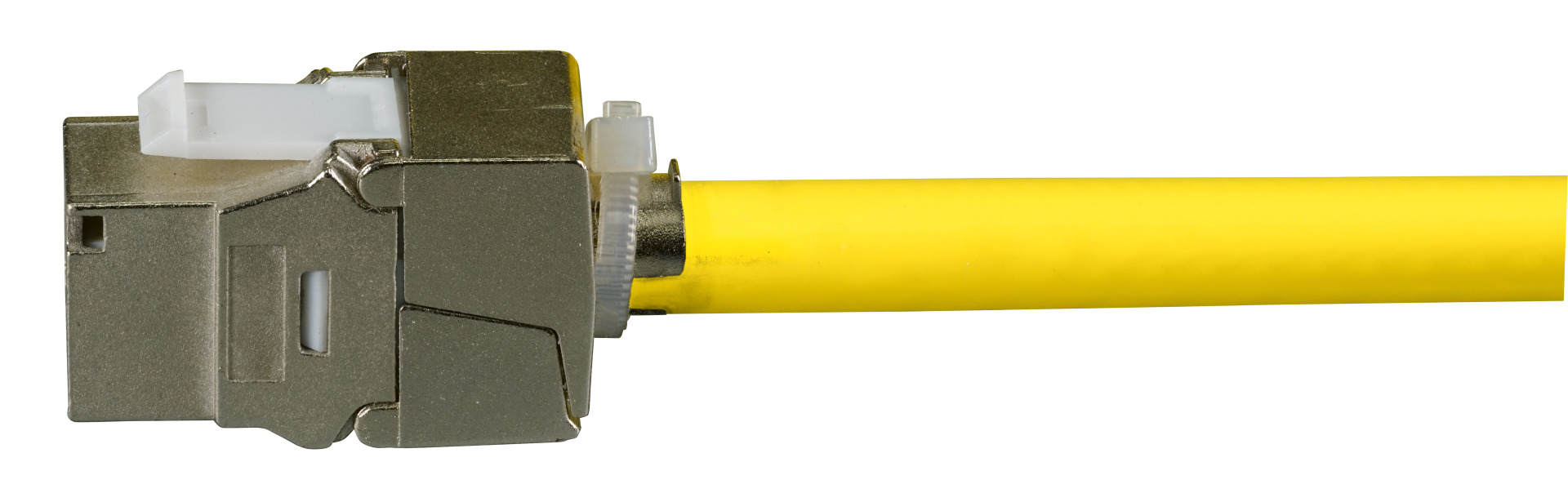

Flexibel strain relief for different cable diameter
Scope of delivery:

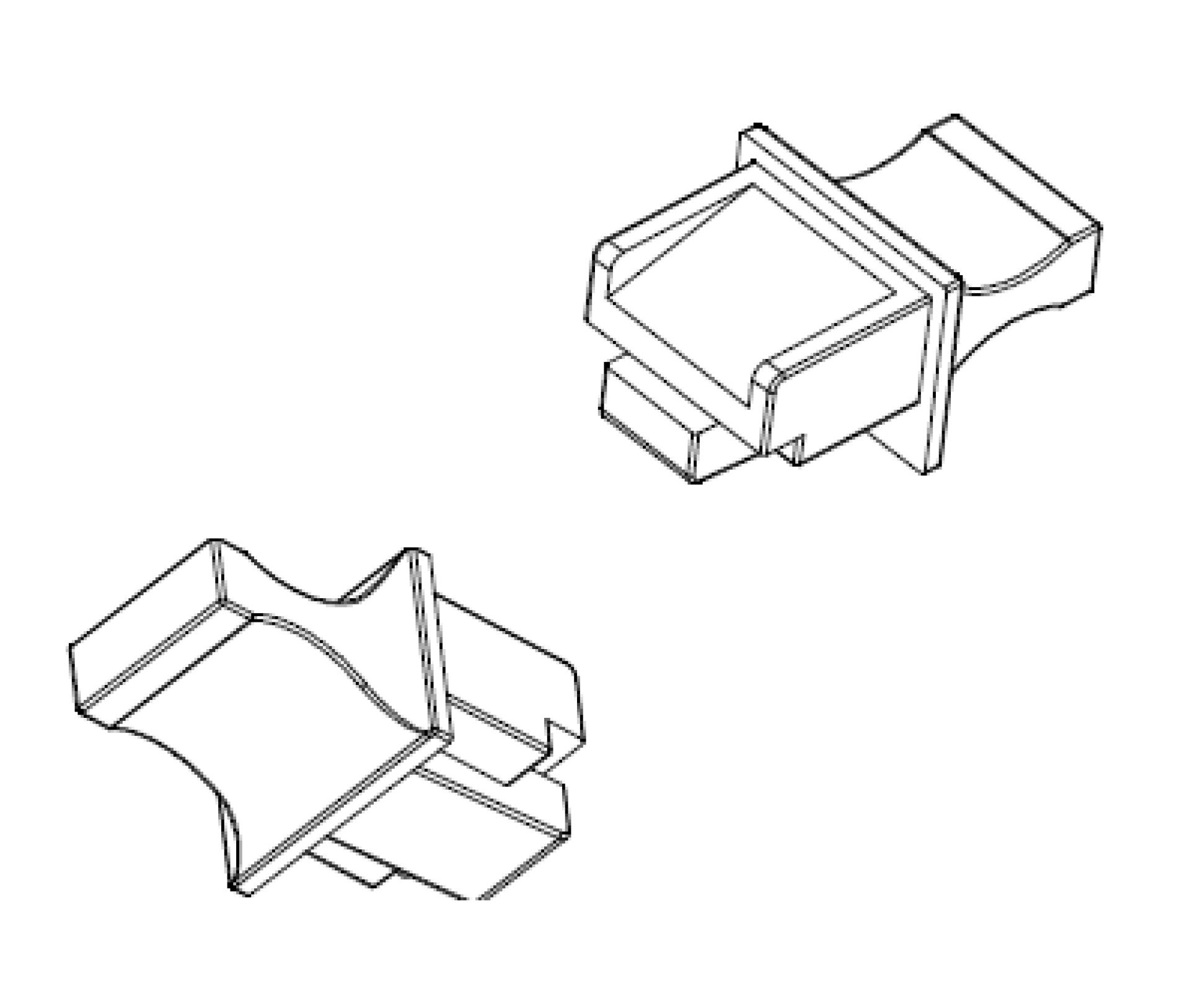

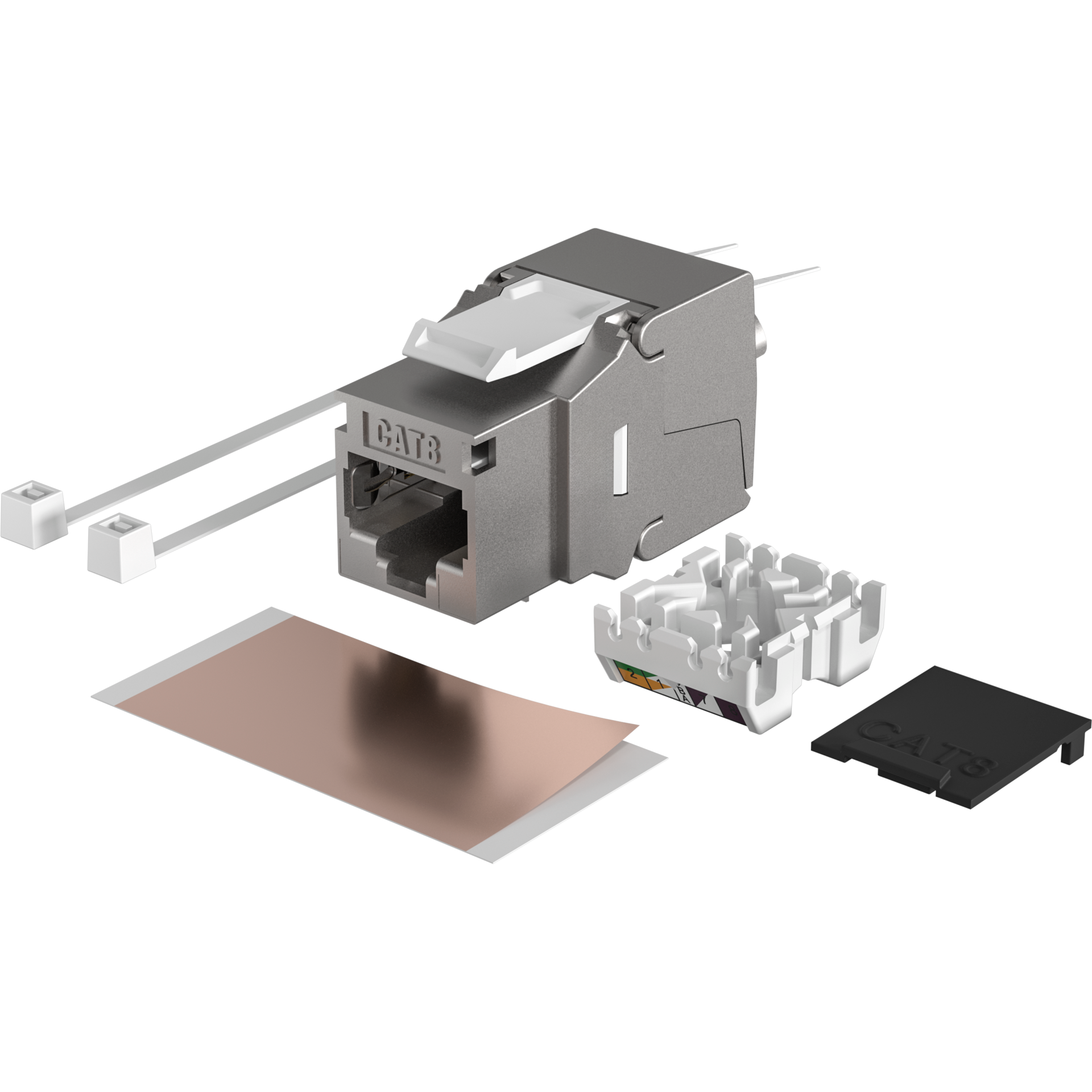

1 x RJ45 keystone, Cable coder, captive dust cover, copper foil, cable ties, mounting instruction
Specifications:
Compact cable presorter for AWG 24/1
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Flexibel strain relief for different cable diameter
Scope of delivery:
1 x RJ45 keystone, Cable coder, captive dust cover, copper foil, cable ties, mounting instruction
Tekniske egenskaber
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 24 – 22 |
| Category: | Cat.8 Class 1 |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current Rating: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | true |
| For UAE suitable: | False |
| Housing material: | Zinc die cast |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 |
| Max. cable diameter: | 8.5 mm |
| Model: | jack |
| Screened: | True |
| Separate earthing flag: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Temperature range: | -40 – 66 °C |
| Type of connector: | RJ45 8(8) |
