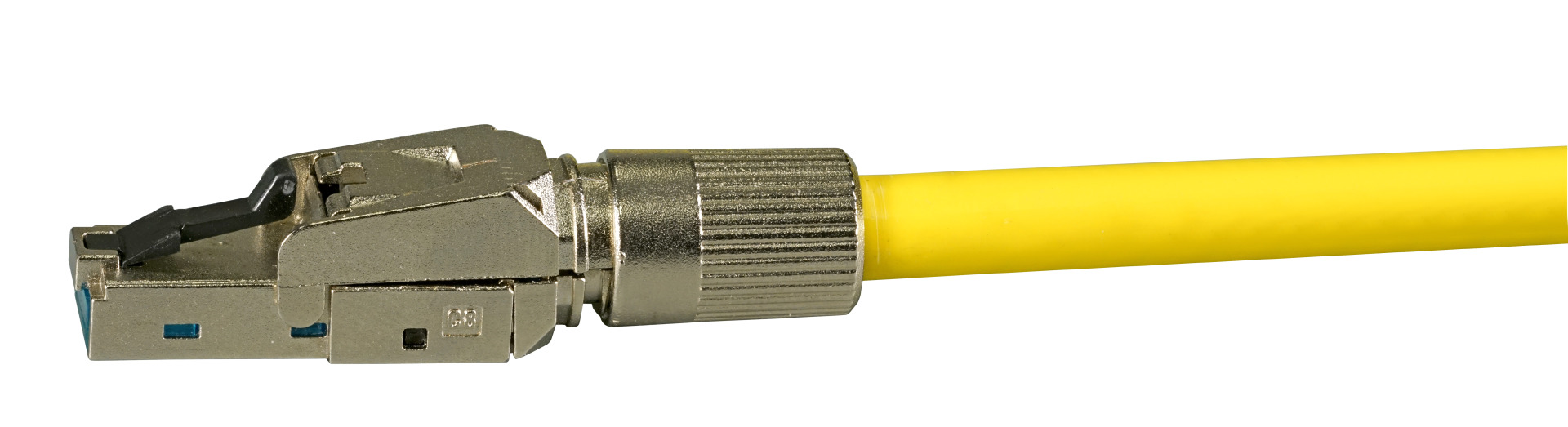

Field installable connector RJ45 Cat.8 Class 1
Field installable connector, RJ45 Cat.8 Class 1 AWG22 - 27, zinc alloy
Varenummer:
88035.2
EAN Nr.:
4049759210700
Produktinformation til Field installable connector, RJ45 Cat.8 Class 1 AWG22 - 27, zinc alloy
The RJ45 plug provides a combination of excellent transmission quality and fast and easy tool-free assembly. Fully shielded zinc diecast housing ensures the best EMC features especially in industrial environments. IDC terminals and very low contact resistances assure high quality contacting for installation cables up to 9mm diameter and wire gauge from AWG22 - AWG27.
Shielded zinc diecast body with separate dust cap and anti-kink sleeve
Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
Re-termination capability up to 5 times with the same width, for AWG27/7 up to 2 times
Suitable for cable dia from 6.0 mm .. 9.0 mm
Strain relief with cable gland
Tension relief with cable gland and sliding lever
Shielded zinc diecast body with separate dust cap and anti-kink sleeve
Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
Re-termination capability up to 5 times with the same width, for AWG27/7 up to 2 times
Suitable for cable dia from 6.0 mm .. 9.0 mm
Strain relief with cable gland
Tension relief with cable gland and sliding lever
Tekniske egenskaber
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 22 – 27 |
| Cable diameter: | 9.0 mm |
| Casing material: | Zinc die cast |
| Category: | Cat.8 Class 1 |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V DC |
| Dust cover: | true |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | plug |
| Operating Temperature: | -40 – 66 °C |
| Screened: | True |
| Separate earthing flag: | False |
| Shield contact and strain relief separate: | False |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | snap lock |
