Cat.7 Indoor/Outdoor cable 1200MHz AWG23 S/FTP
Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,500m
Varenummer:
99733.500-CPR
EAN Nr.:
4049759251185
Produktinformation til Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,500m
The Cat.7 S/FTP indoor/outdoor cable features a 4x2xAWG23/1 cable structure and achieves a transmission frequency of up to 1200 MHz.
The cable is suitable for installation in dry or damp rooms, outdoors, or buried. Compliant with the standards ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-4-1.

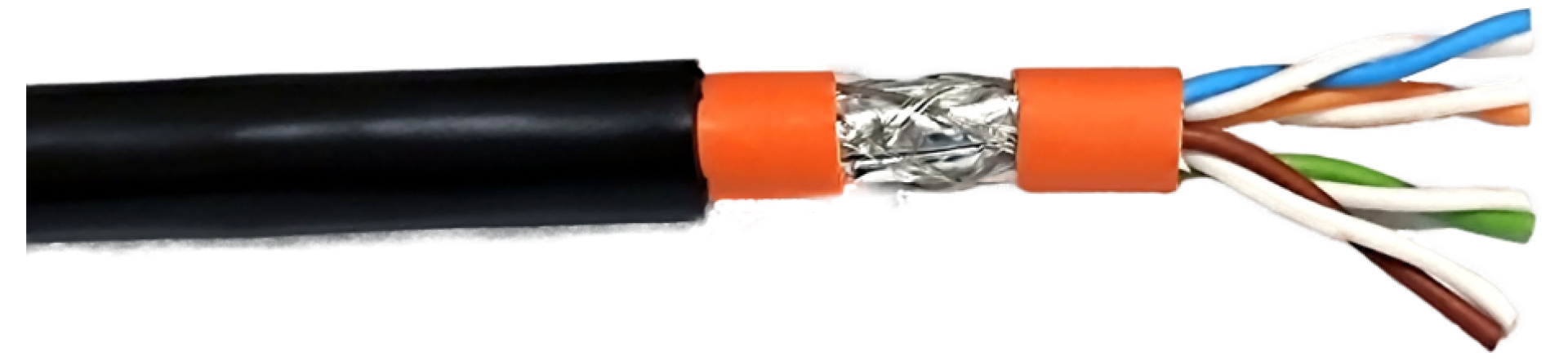

The cable has a PE outer jacket and a halogen-free LSZH inner jacket.
The LSZH jacket complies with the IEC 60332-1 standard and is comparable to CPR Euroclass Dca.
The entire cable is Euroclass Fca according to the Construction Products Regulation.
Since CPR certification is only possible for an entire cable, there is no CPR certification for the indoor cable.
The cable is suitable for installation in dry or damp rooms, outdoors, or buried. Compliant with the standards ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-4-1.
The cable has a PE outer jacket and a halogen-free LSZH inner jacket.
The LSZH jacket complies with the IEC 60332-1 standard and is comparable to CPR Euroclass Dca.
The entire cable is Euroclass Fca according to the Construction Products Regulation.
Since CPR certification is only possible for an entire cable, there is no CPR certification for the indoor cable.
Tekniske egenskaber
| (Halogenfree): | acc. EN 60754-1/2 |
|---|---|
| (Halogenfree): | acc. EN 60754 |
| AWG-size: | 23/1 |
| Bending radius (dynamic): | 8 x OD |
| Bending radius (static): | 7 x OD |
| Cable: | IEC 61156-5 |
| Cable: | EN 50288-4-1 |
| Cable structure: | S/FTP |
| Cabling standards: | ISO/IEC 11801 |
| Cabling standards: | EN 50173-1 |
| Category: | 7 |
| Characteristic impedance: | 100 ± 15 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Cu, tinned |
| Core identification: | colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Coupling attenuation Type: | Type 1 |
| Diameter conductor: | 0.56 mm |
| Directive/Regulation: | REACH 1907/2006/EC |
| Directive/Regulation: | RoHS 2011/65/UE |
| Flame retardant: | acc. EN 60332-1 |
| Flame retardant: | acc. IEC 60754-2 |
| Flame retardant: | acc. IEC 61034 |
| Halogen free (according to EN 60754-1/2): | True |
| Installation standard: | EN 50174 |
| Jacket material: | PE + LSZH |
| Loop resistance: | 171.2 Ohm/km |
| Low smoke: | acc. EN 61034 |
| Max. frequency: | 1200 MHz |
| NVP value: | 76 |
| Operating temperature, fix: | -30 – 70 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -30 – 70 °C |
| PoE: | acc. to IEEE802.3af PoE |
| PoE: | acc. to IEEE802.3bt 4PPoE |
| PoE: | acc. to IEEE802.3at PoE+ |
| Resistance unbalance: | 3 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
| UV resistant: | True |
Varianten
| Art. Nr. | Bezeichnung | Colour outer sheath | Type | Number of cores | Length | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 99733.1-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,1000m | black | simplex | 8 | 1.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.500-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,500m | black | simplex | 8 | 500.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.250-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,250m | black | simplex | 8 | 250.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.100-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,100m | black | simplex | 8 | 100.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.50-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,50m | black | simplex | 8 | 50.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.25-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,25m | black | simplex | 8 | 25.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km |
Sikkerhedsanvisninger
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
