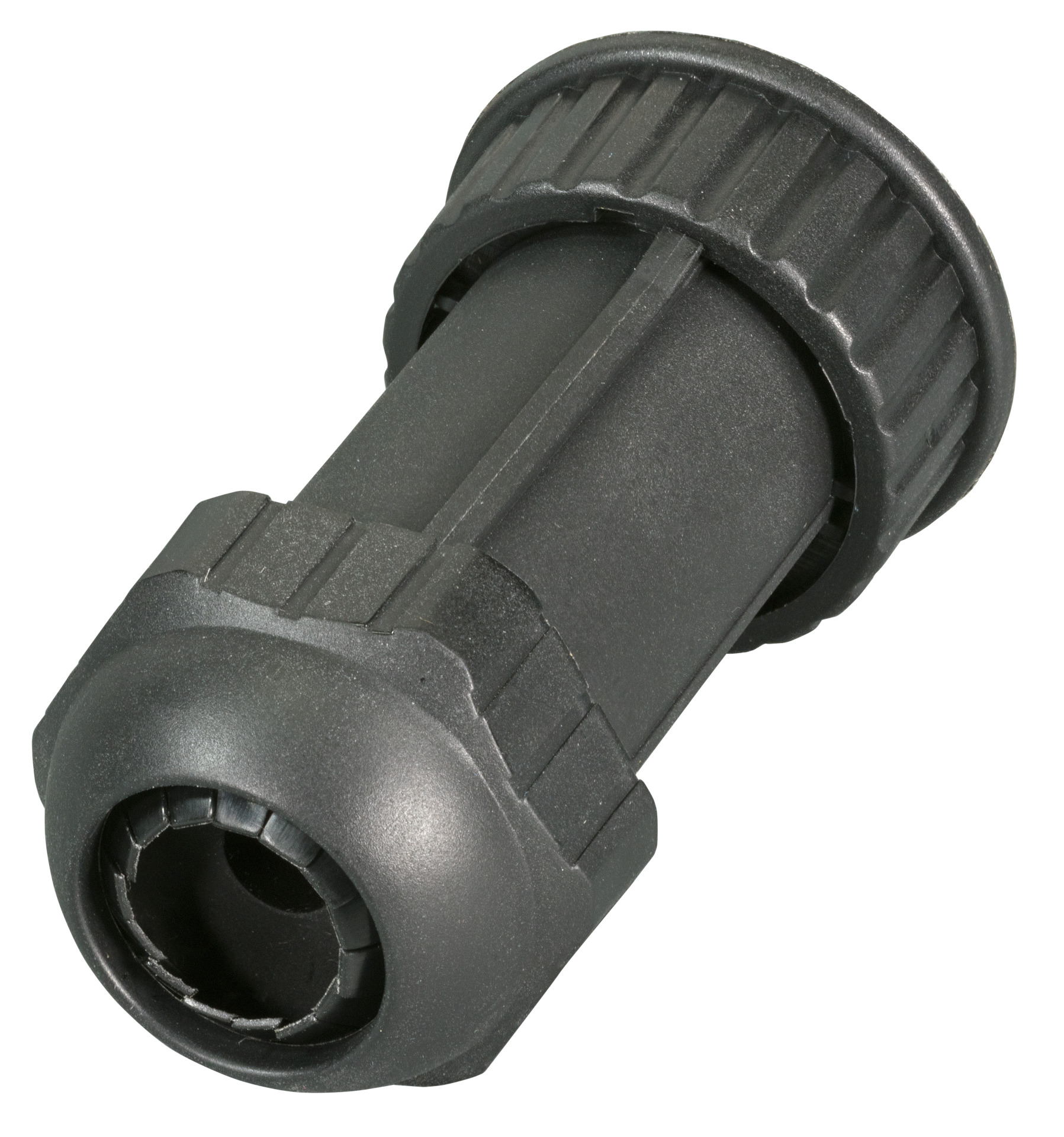

IP68 Kabelverschraubung für RJ45
IP68 Kabelverschraubung für RJ45 feldkonf. Stecker, Kabel-Durchm.: 6,5 - 9,0 mm
Varenummer:
IP68FST6AB
EAN Nr.:
4049759186746
Produktinformation til IP68 Kabelverschraubung für RJ45 feldkonf. Stecker, Kabel-Durchm.: 6,5 - 9,0 mm
IP68 cable gland for RJ45 field-assembly plugs
With bayonet lock to IEC61076-3-106
Straight outlet 180 °
Delivery unequipped
Scope of delivery: 3-part consisting of:
1x IP68 cable gland housing (without plug)
1x Cable seal IP68FST6AA: 6,5 - 9,0 mm
1x Strain relief fitting
Accessories:
IP68 Cap: IP68STCAP
Field assembly plug: 88035.1, 88035P8.1, 88035UTP.1, 88035AV.1, IVB-6A-S
With bayonet lock to IEC61076-3-106
Straight outlet 180 °
Delivery unequipped
Scope of delivery: 3-part consisting of:
1x IP68 cable gland housing (without plug)
1x Cable seal IP68FST6AA: 6,5 - 9,0 mm
1x Strain relief fitting
Accessories:
IP68 Cap: IP68STCAP
Field assembly plug: 88035.1, 88035P8.1, 88035UTP.1, 88035AV.1, IVB-6A-S
Tekniske egenskaber
| Assembly arrangement: | Basic element with complete housing |
|---|---|
| Material: | Plastic |
| Material quality: | Duroplast |
| Storage Temperature: | -40 / +85 Celsius |
| Suitable for degree of protection (IP): | IP68 |
| Type of fastening: | screw mounting |
| Type of locking: | Bayonet lock |
| With dust cover: | True |
| With strain relief: | True |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
