IP67 Cable gland, M25, LC Duplex, OS2
IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 5.0m
Varenummer:
IP67KVLCDOS2-5,0
EAN nr.:
4049759194956
Produktinformation til IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 5.0m

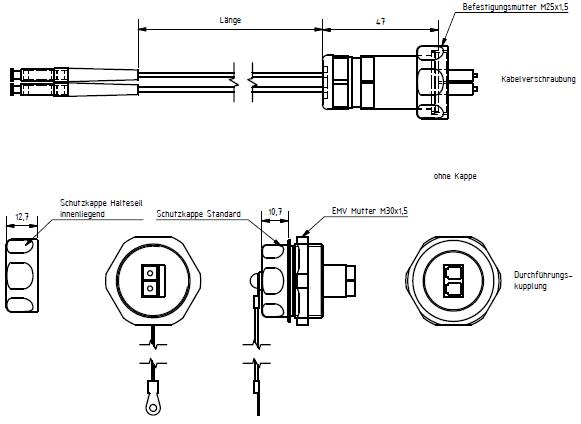

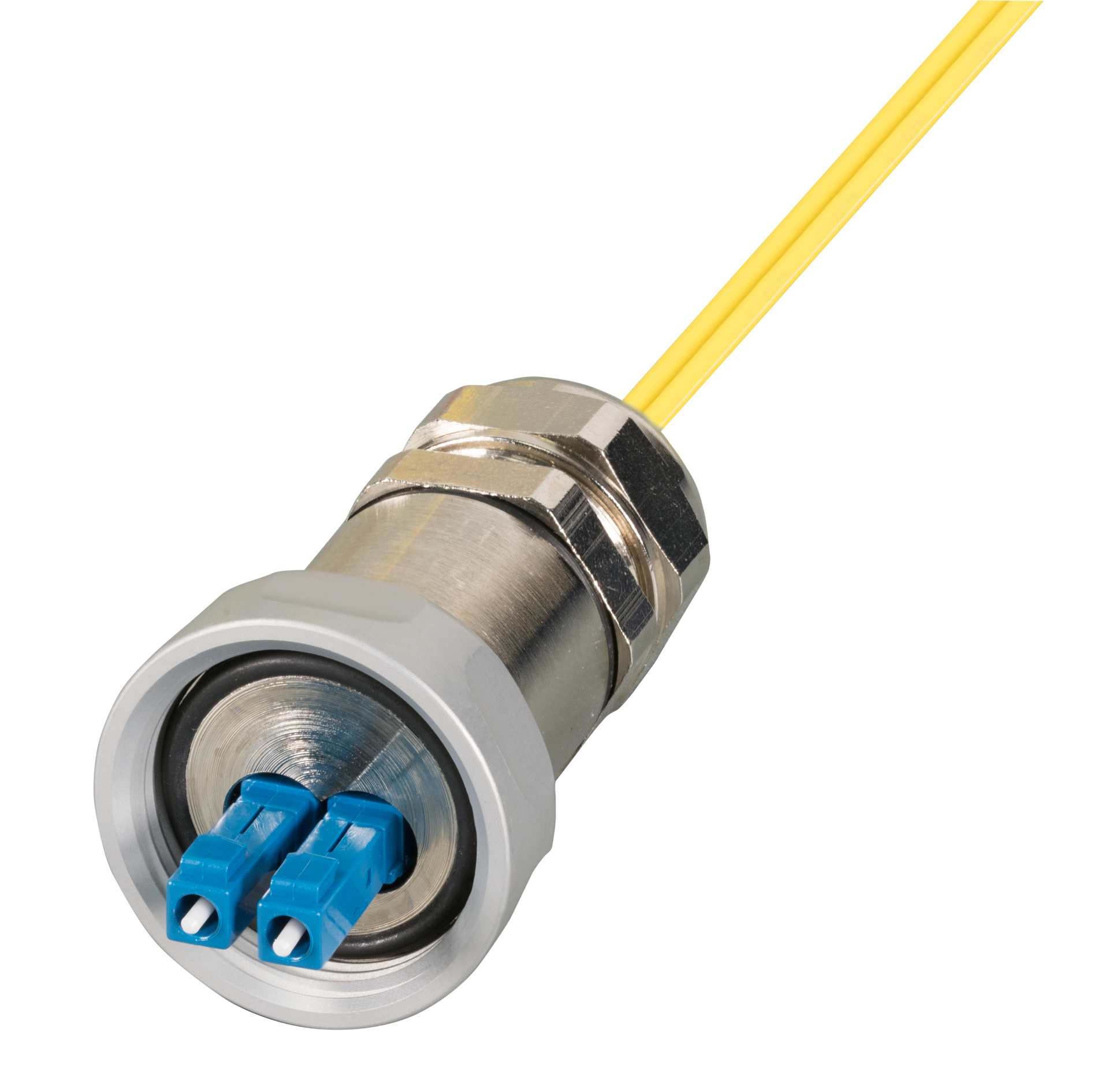

IP67 cable gland with pre-installed LC duplex fiber optic cable

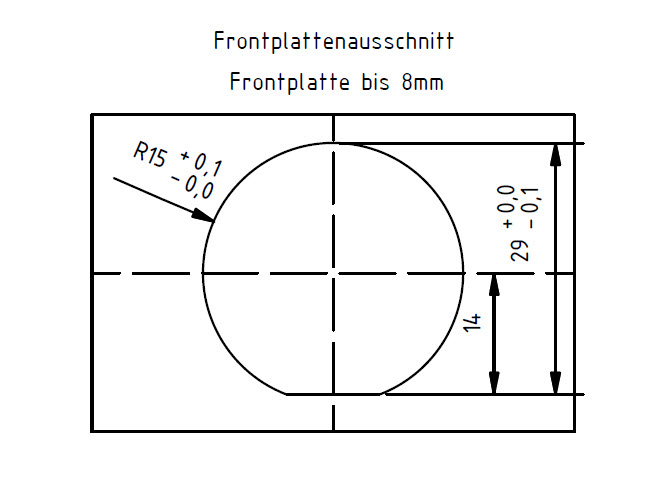

For installation in housings with M25 cut-out
Material gland: brass
For installation in housings with M25 cut-out
Material gland: brass
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Cable structure: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 2.0 mm |
| Category: | OS2 G652D |
| Colour outer sheath: | yellow |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | acc. to EN 50265-2-1 |
| Jacket material: | LSZH |
| Number of fibers: | 2 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M25 |
Tekniske egenskaber
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Cable structure: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 2.0 mm |
| Category: | OS2 G652D |
| Colour outer sheath: | yellow |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | acc. to EN 50265-2-1 |
| Jacket material: | LSZH |
| Number of fibers: | 2 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M25 |
Varianter
| Art. Nej. | Betegnelse | Length | |
|---|---|---|---|
| IP67KVLCDOS2-2,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 2.0m | 2.0 m | |
| IP67KVLCDOS2-5,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 5.0m | 5.0 m | |
| IP67KVLCDOS2-10,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 10.0m | 10.0 m | |
| IP67KVLCDOS2-20,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 20.0m | 20.0 m |
Produktinformation til IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 5.0m
IP67 cable gland with pre-installed LC duplex fiber optic cable
For installation in housings with M25 cut-out
Material gland: brass
For installation in housings with M25 cut-out
Material gland: brass
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Cable structure: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 2.0 mm |
| Category: | OS2 G652D |
| Colour outer sheath: | yellow |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | acc. to EN 50265-2-1 |
| Jacket material: | LSZH |
| Number of fibers: | 2 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M25 |
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Cable structure: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 2.0 mm |
| Category: | OS2 G652D |
| Colour outer sheath: | yellow |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | acc. to EN 50265-2-1 |
| Jacket material: | LSZH |
| Number of fibers: | 2 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M25 |
Varianter
| Art. Nej. | Betegnelse | Length | |
|---|---|---|---|
| IP67KVLCDOS2-2,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 2.0m | 2.0 m | |
| IP67KVLCDOS2-5,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 5.0m | 5.0 m | |
| IP67KVLCDOS2-10,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 10.0m | 10.0 m | |
| IP67KVLCDOS2-20,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 20.0m | 20.0 m |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
Spring produktgalleriet over
used with
Art. nr. IP67DFKLCDM

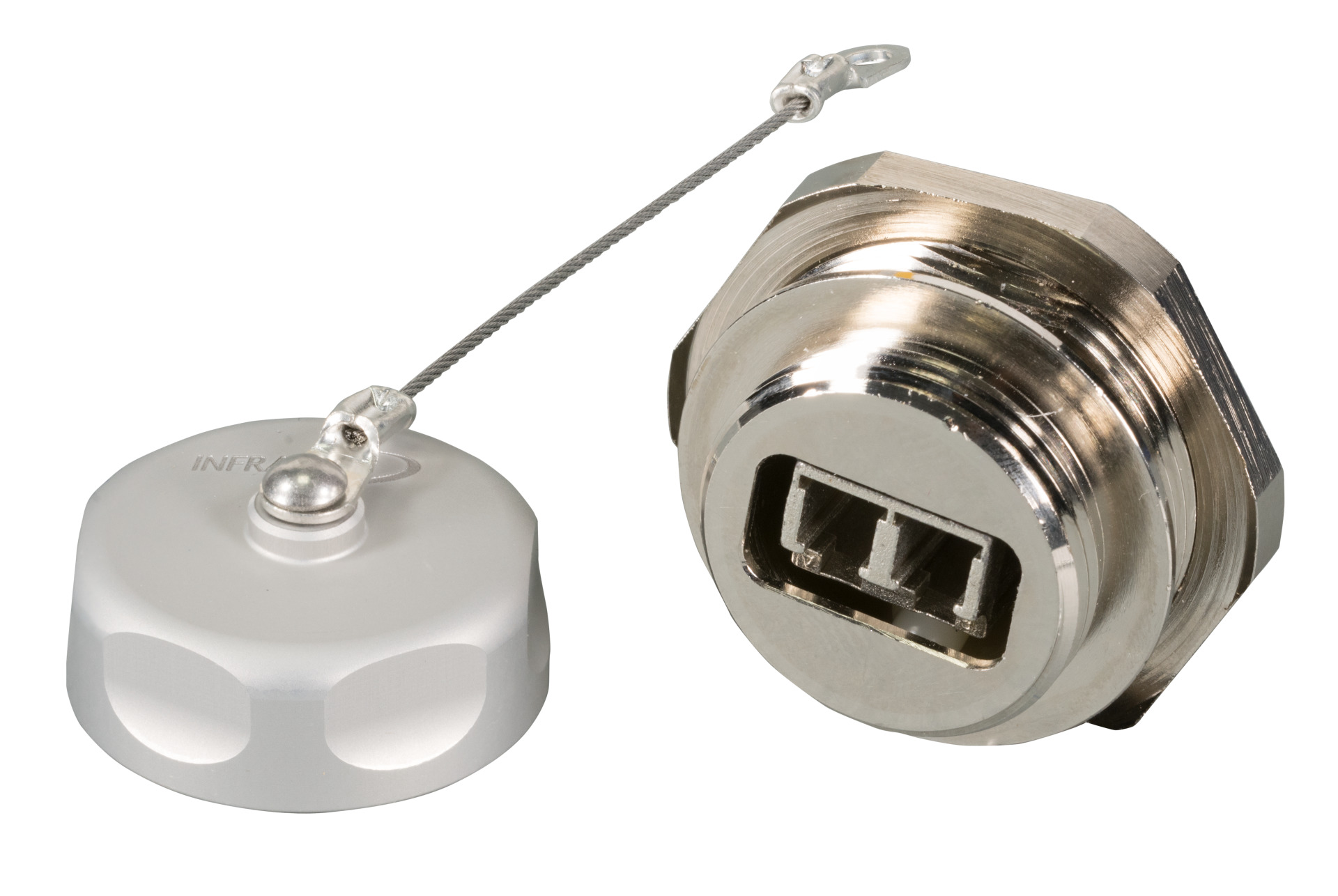

IP67 Metal adapter, M25, LC Duplex ceramic sleeve
Color:
metall
Model:
LC
Suitable for type of fibre:
Single mode and Multi mode
