IP67 Cable gland, M25, LC Duplex, OS2
IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 2.0m
Varenummer:
IP67KVLCDOS2-2,0
EAN Nr.:
4049759194932
Produktinformation til IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 2.0m

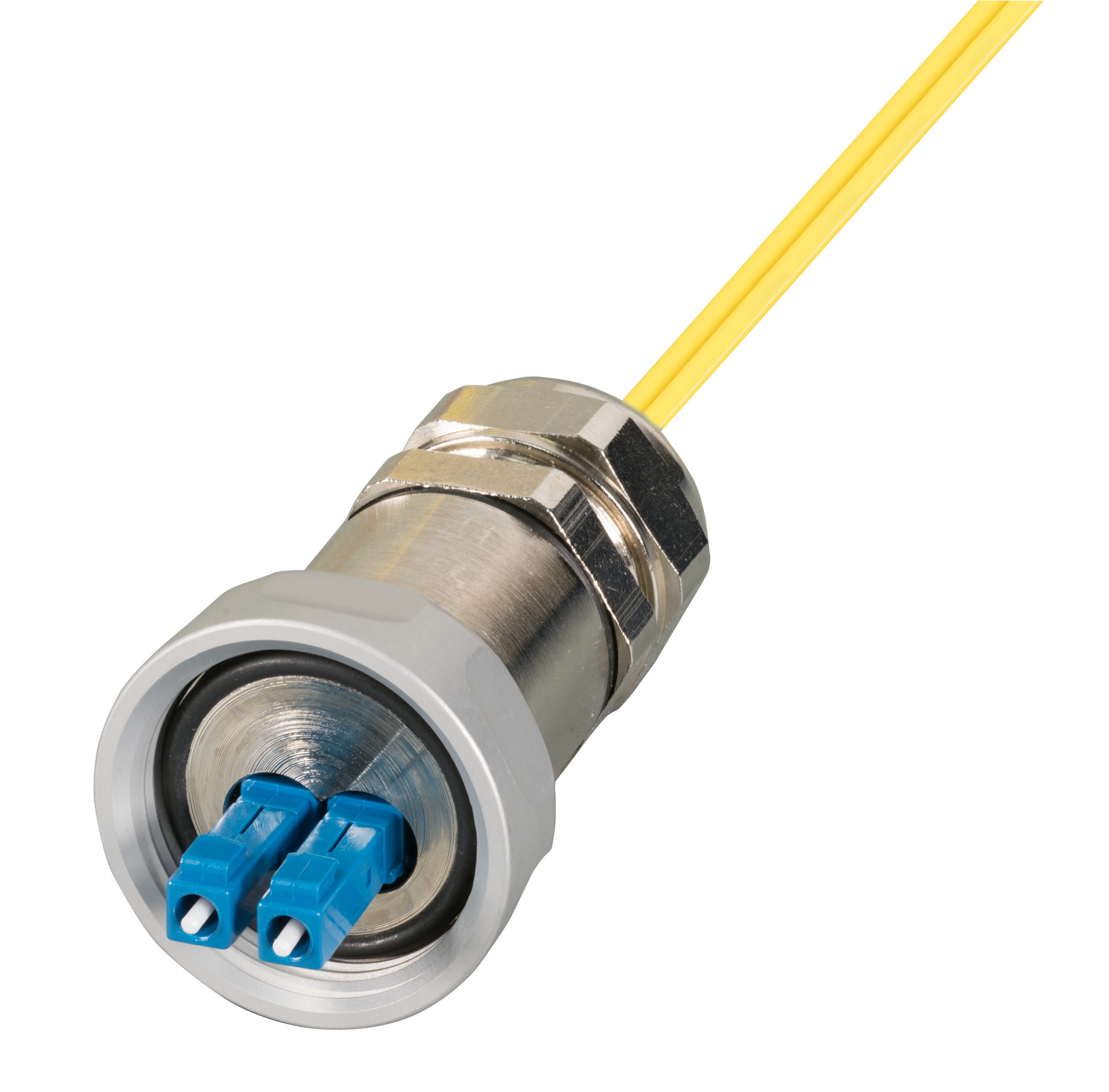

IP67 cable gland with pre-installed LC duplex fiber optic cable

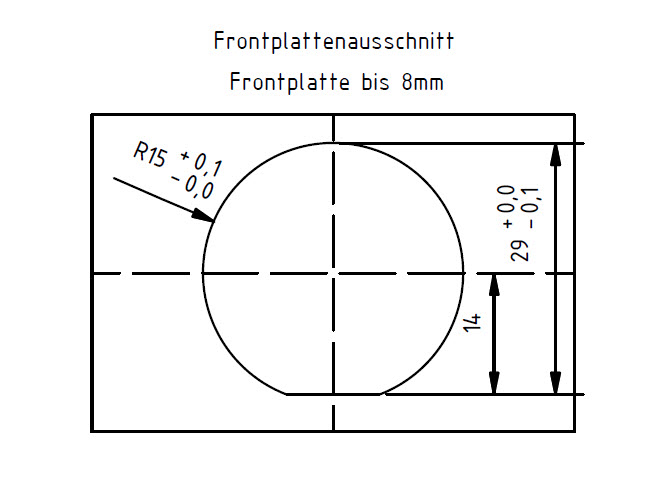

For installation in housings with M25 cut-out
Material gland: brass
For installation in housings with M25 cut-out
Material gland: brass
Tekniske egenskaber
| APC-version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Cable Construction: | Duplex |
| Cable type: | Simplex |
| Cable Ø: | 2.0 mm |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour outer sheath: | yellow |
| Connector colour 1: | blue |
| Connector colour 2: | blue |
| Fibre type: | Single mode 9/125 |
| Flame-retardant: | According to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| Number of fibres: | 2 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M20 |
Varianten
| Art. Nr. | Bezeichnung | Length | |
|---|---|---|---|
| IP67KVLCDOS2-2,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 2.0m | 2.0 m | |
| IP67KVLCDOS2-5,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 5.0m | 5.0 m | |
| IP67KVLCDOS2-10,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 10.0m | 10.0 m | |
| IP67KVLCDOS2-20,0 | IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 20.0m | 20.0 m |
