IP67 Distribution Box Cat.6A

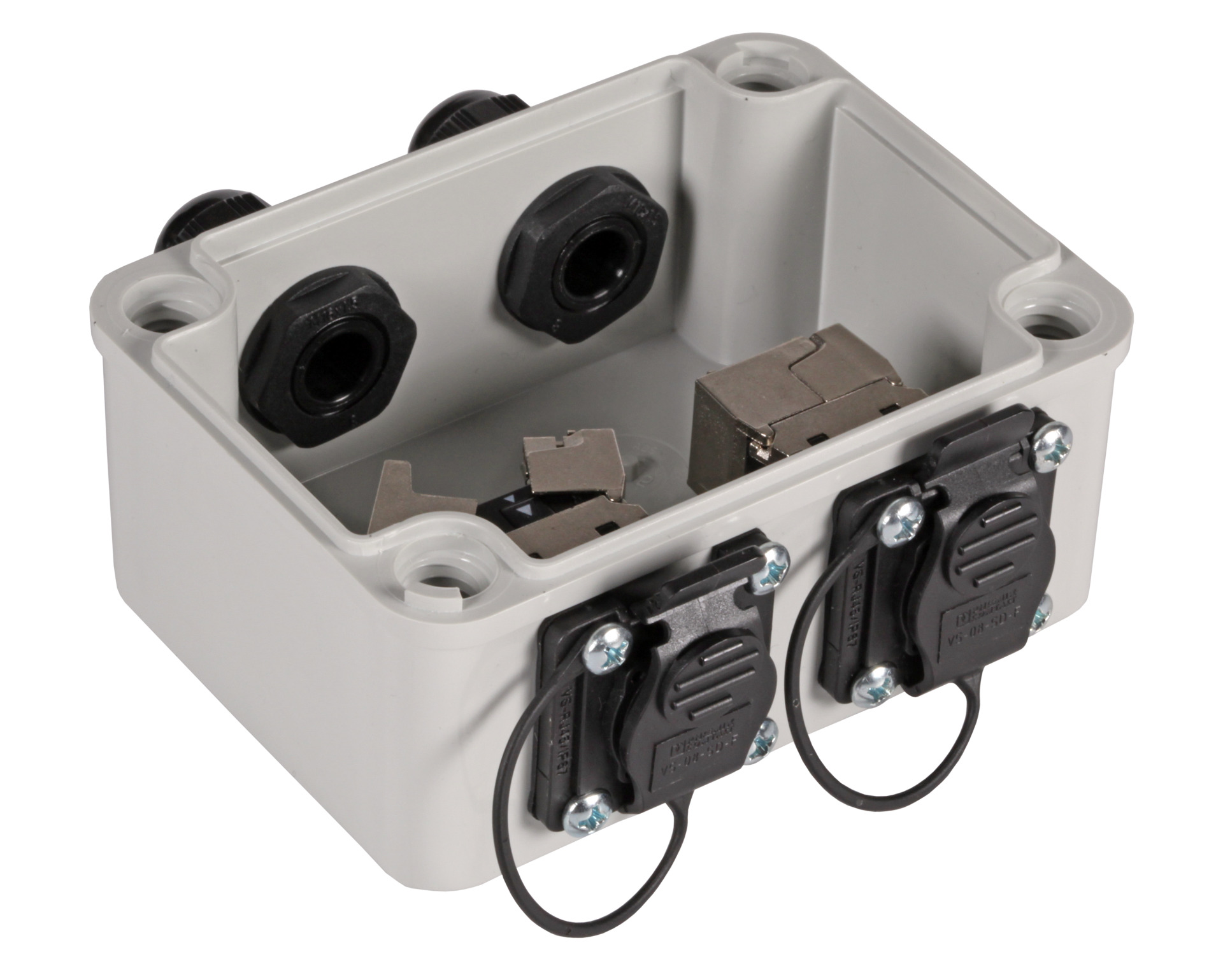

IP67 Distribution Box with 2xRJ45 Ports, Cat.6A, 2xM16 couplings
Varenummer:
53730.1V2
EAN Nr.:
4049759146597
Produktinformation til IP67 Distribution Box with 2xRJ45 Ports, Cat.6A, 2xM16 couplings
Housing: Complete with 2 x Cat.6A RJ45 Keystone, IP67 strip for patch cable IP67 (K8670.x) and 2 x cable glands M16
Housing entry: 2 x cable glands M16 for data cable (reference Cat.7 UC900)
Housing outlet: 2 x Cat.6A RJ45 Keystone with IP67 strip
Plastic housing
Dimension W x H x D: 80 x 45 x 110 mm
UV resistant acc. to UL508
impact resistant(EN62262): IK08
Fire classification(UL746C5):94V5

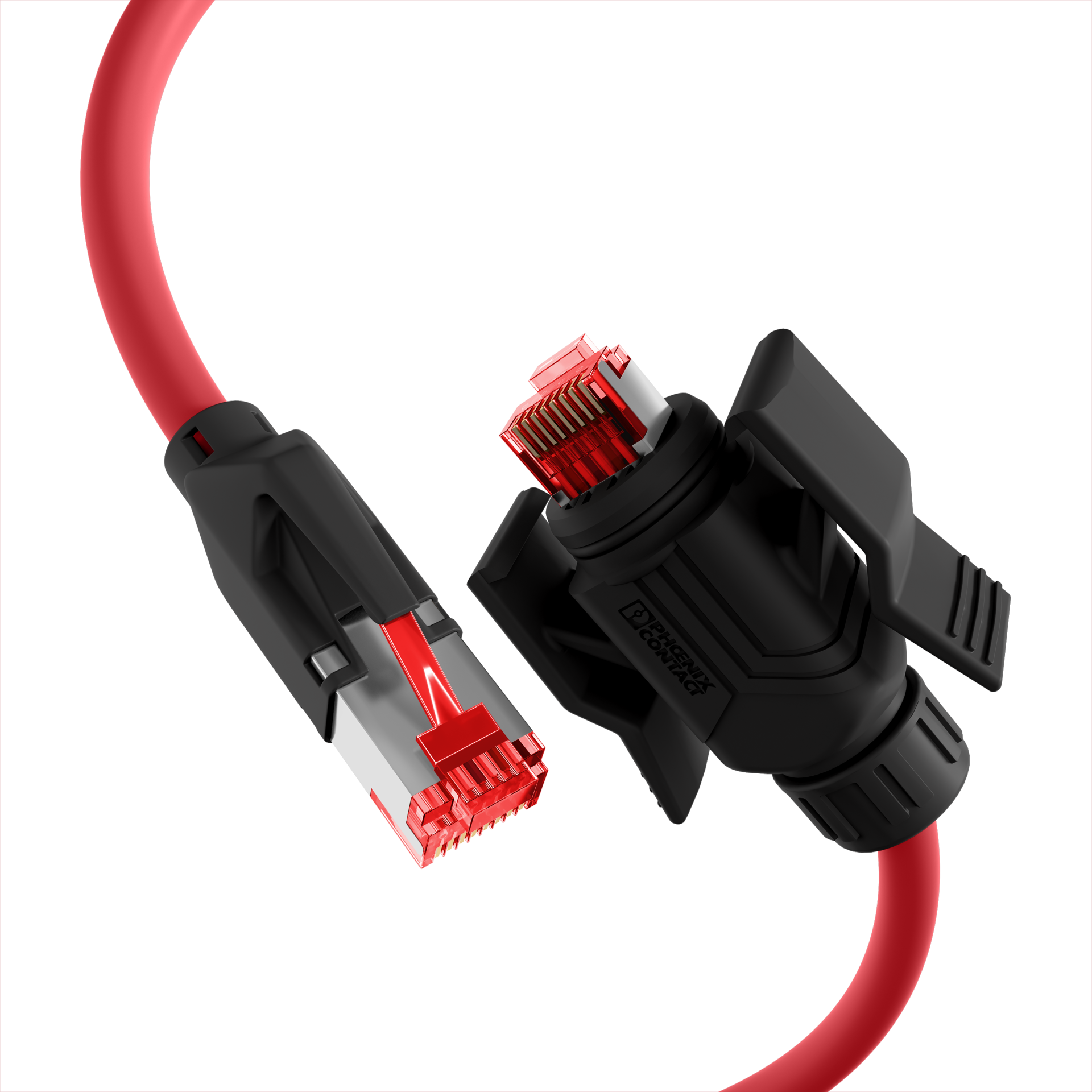

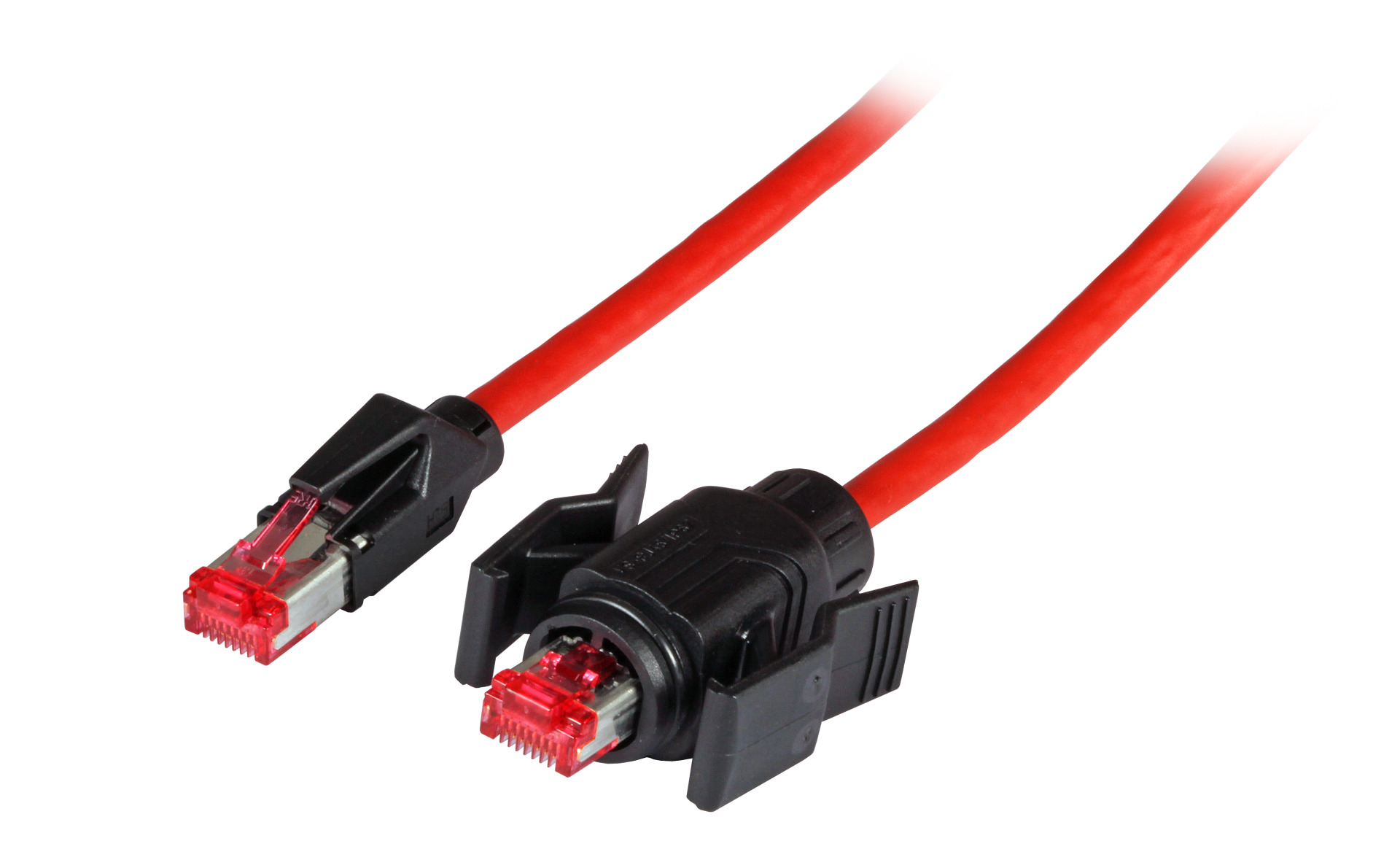

Recommended Patch Cable: K8670.x
Housing entry: 2 x cable glands M16 for data cable (reference Cat.7 UC900)
Housing outlet: 2 x Cat.6A RJ45 Keystone with IP67 strip
Plastic housing
Dimension W x H x D: 80 x 45 x 110 mm
UV resistant acc. to UL508
impact resistant(EN62262): IK08
Fire classification(UL746C5):94V5
Recommended Patch Cable: K8670.x
Tekniske egenskaber
| Ambient temperature: | -40 – 60 °C |
|---|---|
| Category: | 6A (TIA) |
| Colour coding: | True |
| Connection type: | LSA |
| Connector housing: | - |
| Degree of protection: | IP67 |
| Duct installation: | False |
| Floor box/sub-floor mounted: | False |
| Flush-mounted installation/built-in installation: | False |
| Material connector housing: | Plastic |
| Mechanical coding: | False |
| Mounting method shielding connection: | - |
| Outlet direction: | Straight |
| Separate earthing connection: | False |
| Separate strain relief: | False |
| Shielded buses: | True |
| Shielded housing: | True |
| Surface mounting: | True |
| Type of connector: | RJ45 8(8) |
| Type of fastening: | Screwing |
| With dust cover: | True |
| With label space: | False |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
