IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 2.0m
IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 2.0m
Varenummer:
IP67KVRJ45TM31-2,0
EAN nr.:
4049759194987
Produktinformation til IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 2.0m

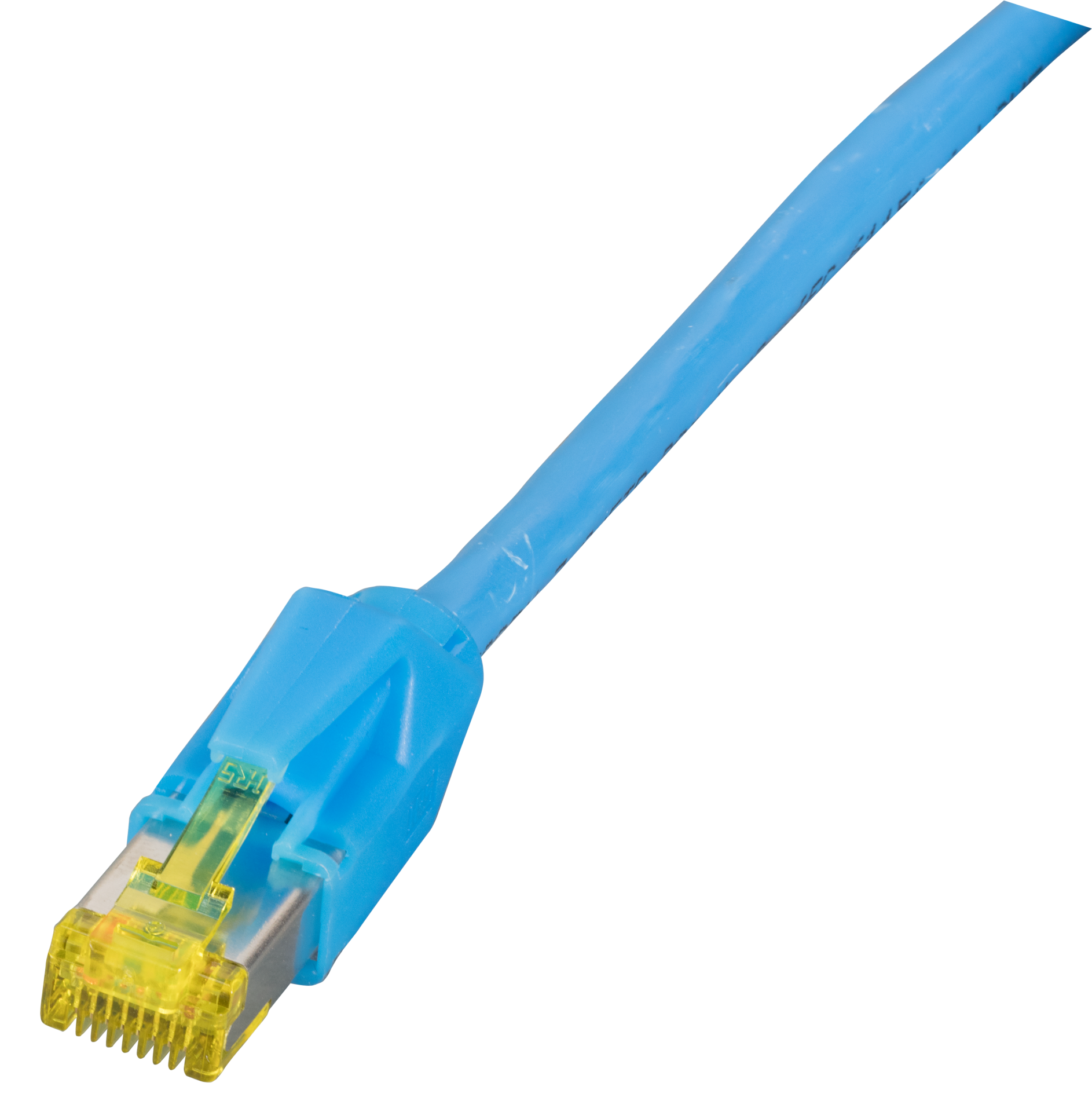

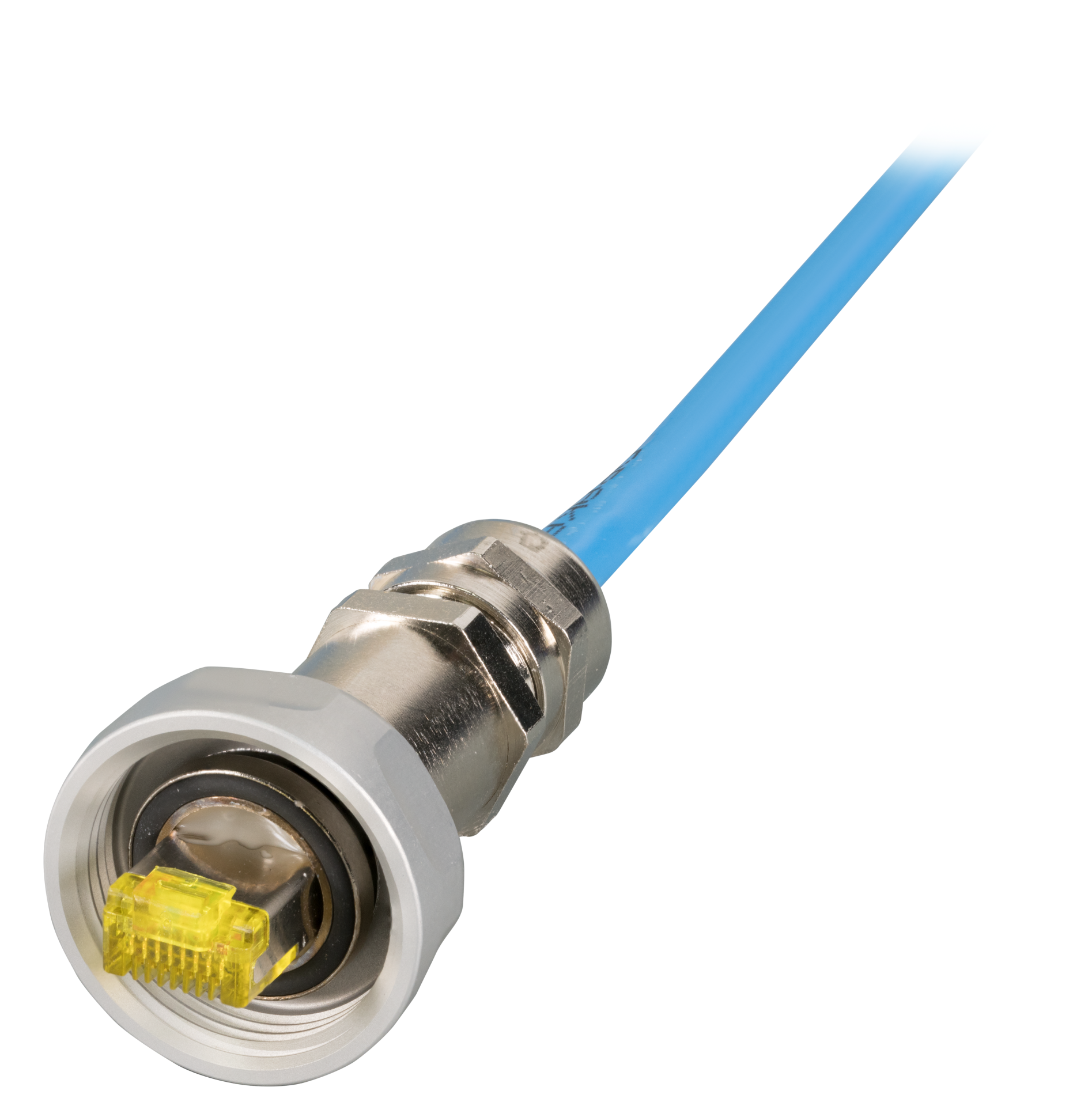

IP67 cable gland with pre-installed Cat.6A TM31 RJ45 S/FTP cable plug / plug
For installation in housings with M25 cut-out
Gland material: brass
For installation in housings with M25 cut-out
Gland material: brass
| AWG-size: | 27 |
|---|---|
| Anti-kink sleeve: | put-on |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | blue |
| Colour outer sheath: | blue |
| Locking lever: | True |
| Pin assignment: | 1:1 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M25 |
Tekniske egenskaber
| AWG-size: | 27 |
|---|---|
| Anti-kink sleeve: | put-on |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | blue |
| Colour outer sheath: | blue |
| Locking lever: | True |
| Pin assignment: | 1:1 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M25 |
Produktinformation til IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 2.0m
IP67 cable gland with pre-installed Cat.6A TM31 RJ45 S/FTP cable plug / plug
For installation in housings with M25 cut-out
Gland material: brass
For installation in housings with M25 cut-out
Gland material: brass
| AWG-size: | 27 |
|---|---|
| Anti-kink sleeve: | put-on |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | blue |
| Colour outer sheath: | blue |
| Locking lever: | True |
| Pin assignment: | 1:1 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M25 |
| AWG-size: | 27 |
|---|---|
| Anti-kink sleeve: | put-on |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | blue |
| Colour outer sheath: | blue |
| Locking lever: | True |
| Pin assignment: | 1:1 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M25 |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
Spring produktgalleriet over
used with
Art. nr. IP67EBRJ45KSFL
IP67 Receptacle, M25, RJ45 Cat.6A E-20070, for Cat.5/6/7 cable
Colour:
metall
