19" 1U PDU BN2000 Monitored 6 x CEE7/3
19" 1U PDU BN2000 Monitored 6 x CEE 7/5 Outlet
Varenummer:
691791.1
EAN Nr.:
4016514048366
Produktinformation til 19" 1U PDU BN2000 Monitored 6 x CEE 7/5 Outlet

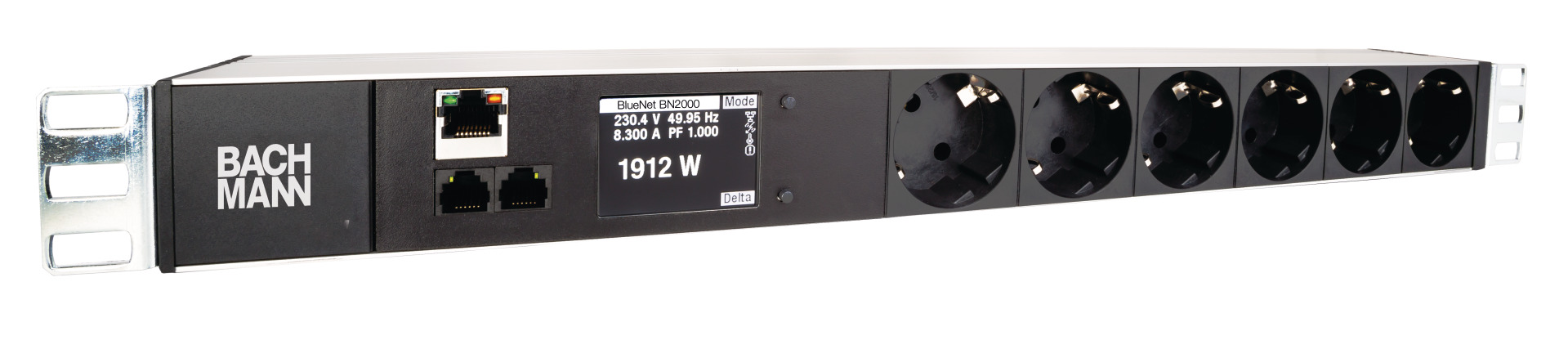

19" 1U PDU BlueNet BN2000 Monitored
Feeding 1-phase
Outlets: 6 x CEE7/3

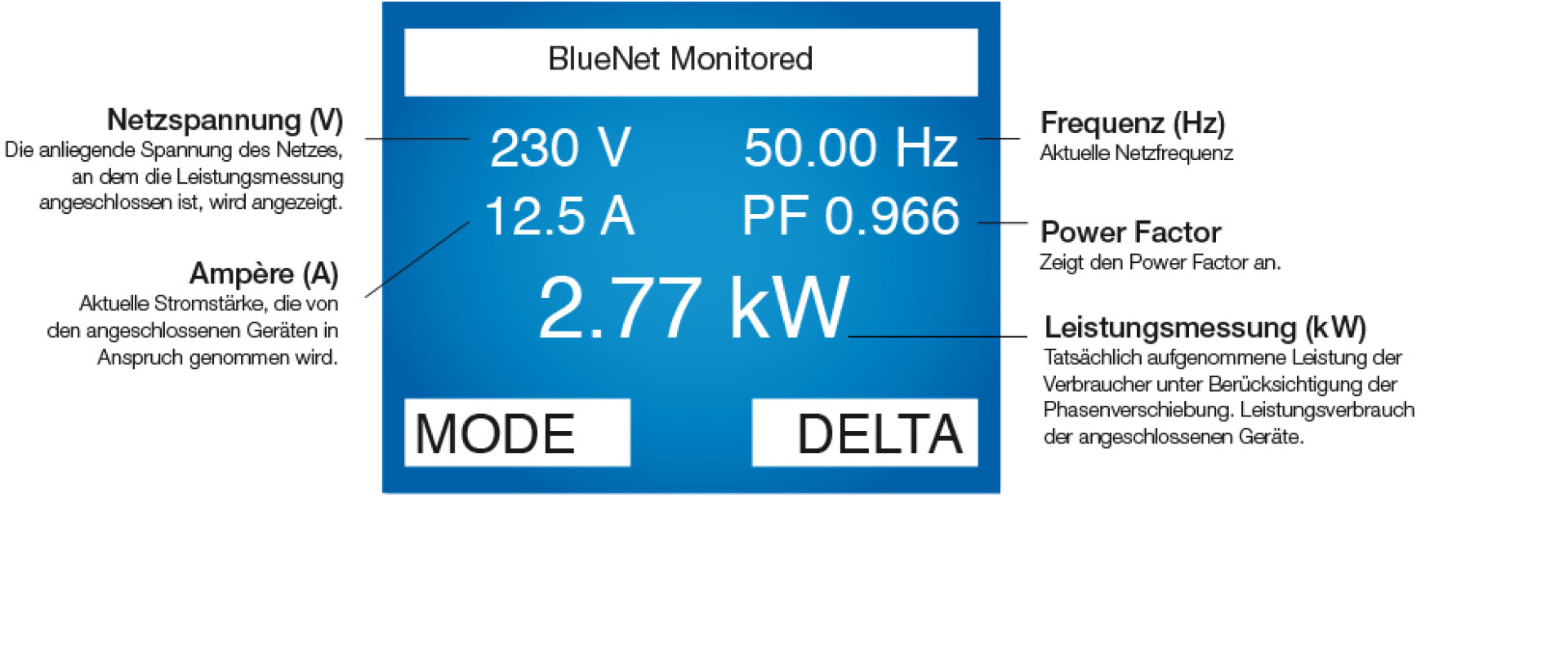

Integrated function for measuring of current, voltage, reactive-, apparent-, active power, frequency and power factor
Integrated temperature sensor + two interfaces for external sensors

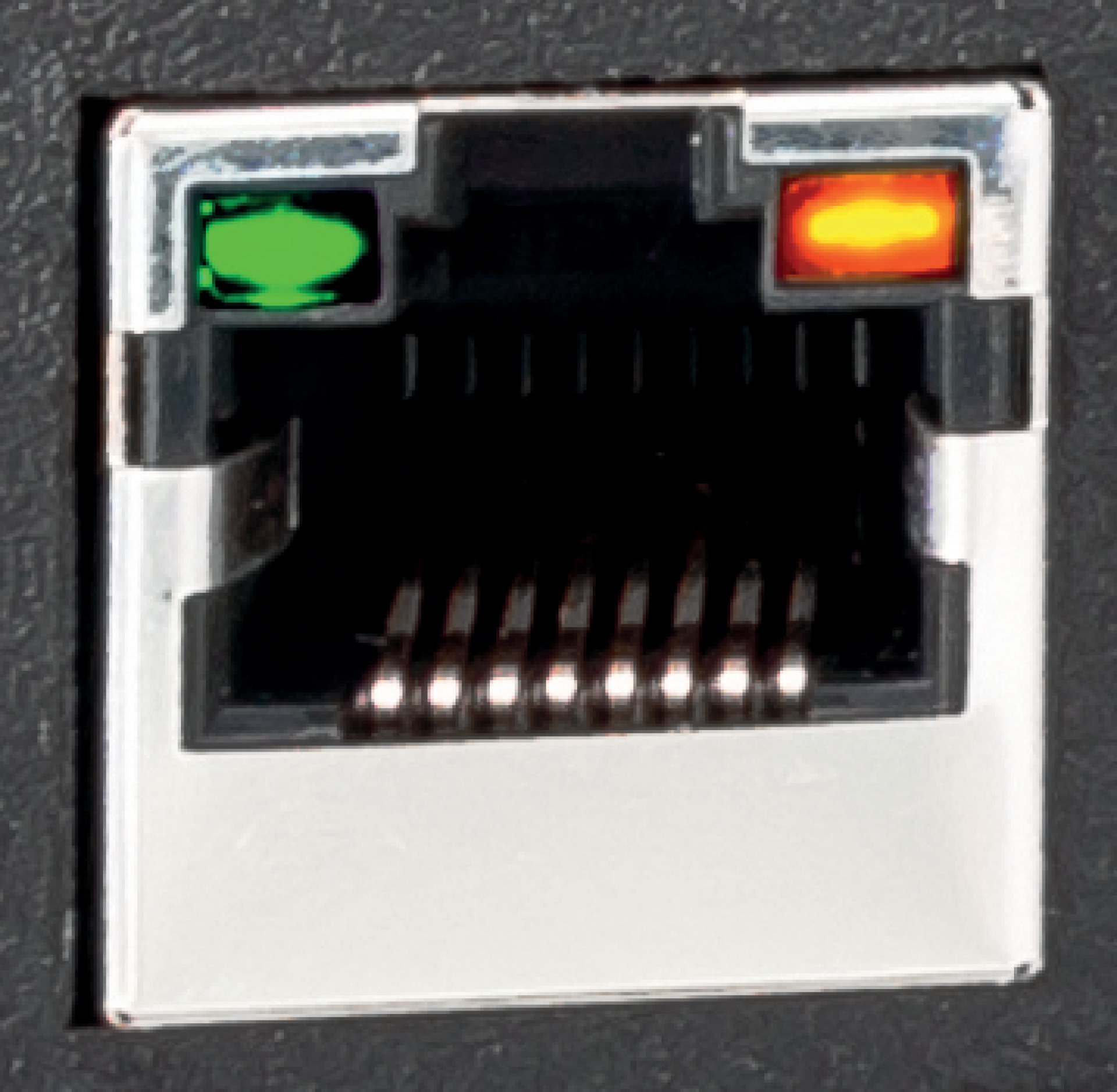

With integrated display, integrated web server with 10/100 Mbit/s Ethernet port (RJ45)

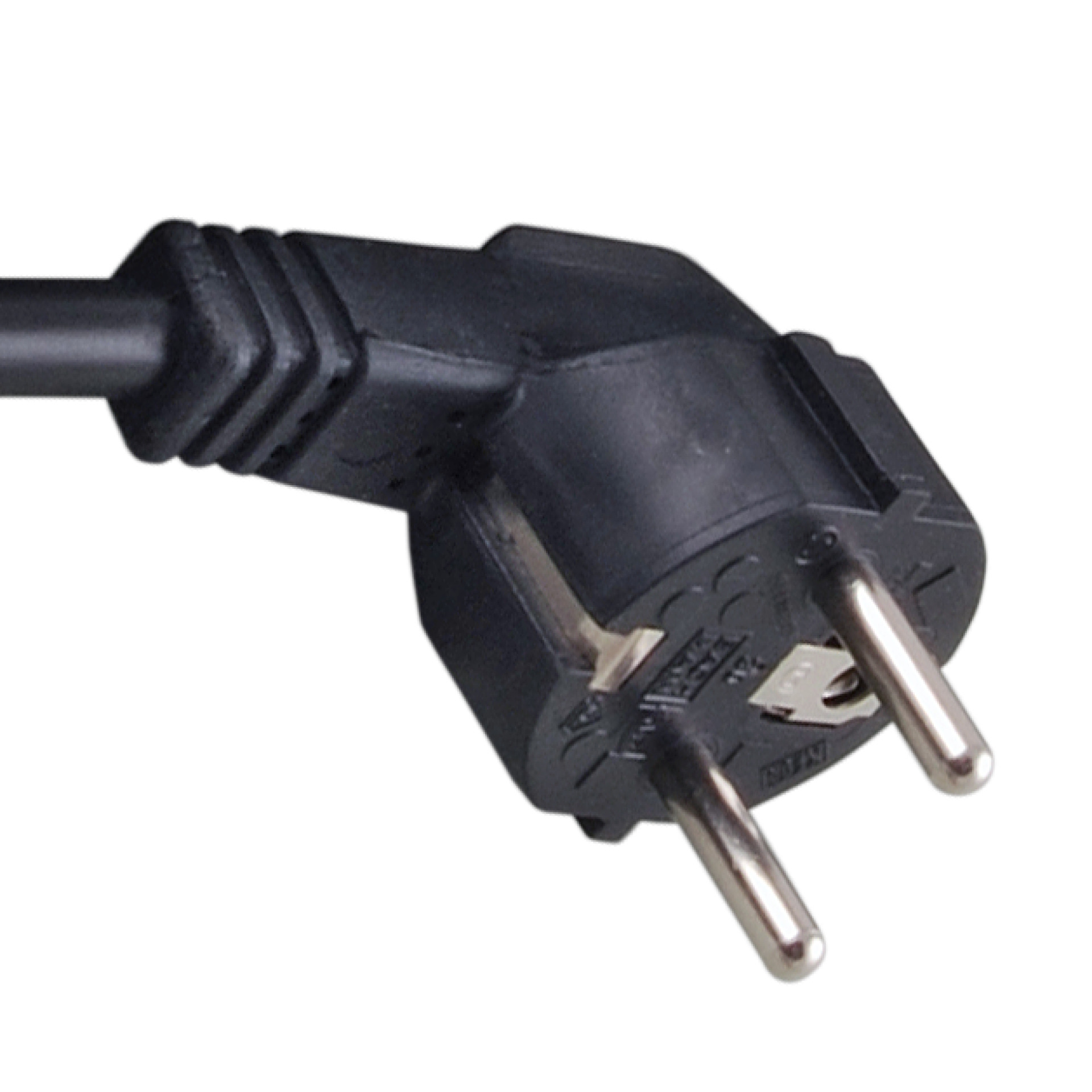

Cable 2.0 m H05VV-F 3G 1.5 mm² with angled CEE7/7 plug
Housing aluminium profile

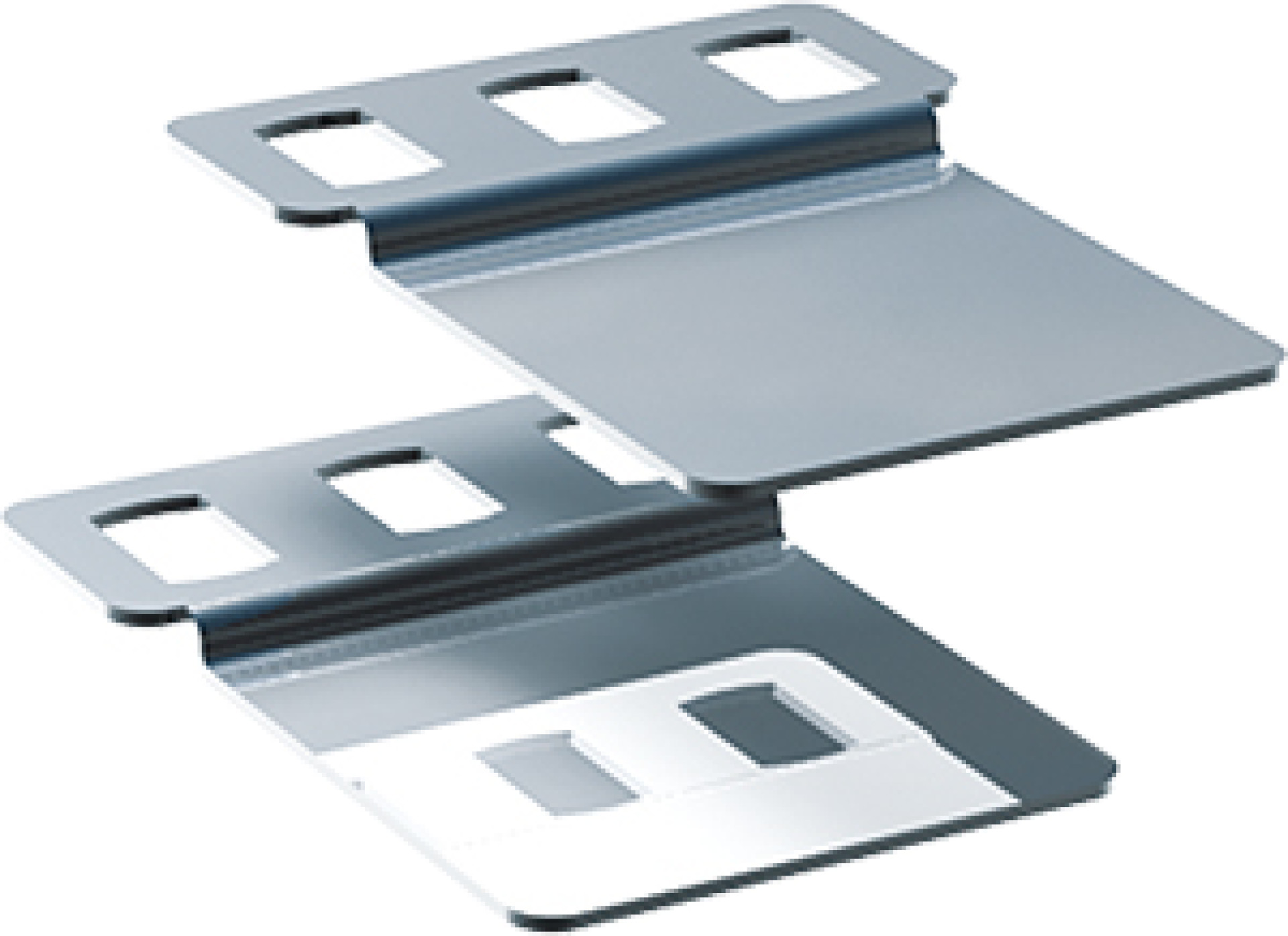

Delivery incl. mounting brackets and screws
Packed in carton
Feeding 1-phase
Outlets: 6 x CEE7/3
Integrated function for measuring of current, voltage, reactive-, apparent-, active power, frequency and power factor
Integrated temperature sensor + two interfaces for external sensors
With integrated display, integrated web server with 10/100 Mbit/s Ethernet port (RJ45)
Cable 2.0 m H05VV-F 3G 1.5 mm² with angled CEE7/7 plug
Housing aluminium profile
Delivery incl. mounting brackets and screws
Packed in carton
Tekniske egenskaber
| Ampere meter: | True |
|---|---|
| Auto ping: | True |
| Cable length: | 3.0 m |
| Cascadable: | False |
| Electrical connection: | connection cable with plug |
| Evaluation: | at distance |
| Length: | 482.6 mm |
| Mains filter: | True |
| Measuring Capability: | per PDU |
| Mounting dimension: | 482.6 mm (19 inch) |
| Mounting direction: | horizontal/vertical |
| Number of height units: | 1 U |
| Over voltage category: | nicht zutreffend |
| SNMP: | True |
| Supply voltage: | 250 V |
| Switchable: | True |
| Switching Capability: | none |
| Temperature measurement: | True |
| With LED indication: | True |
| With display: | True |
| With fuse: | True |
| With mounting material: | True |
