EFB Server, 600x1200, 1+2-Part Doors

Priser kun synlige for indloggede brugere

19" EFB Server 42U, 600x1200 mm, F=1-Part R=2-Part, RAL7035
Varenummer: ESV-4262GR.P1P2OS
EAN nr.: 4049759243869

Produktinformation für 19" EFB Server 42U, 600x1200 mm, F=1-Part R=2-Part, RAL7035

19“ server cabinet according to DIN41494
Steel sheet housing with screwed profile frame, completely pre-assembled, dismountable

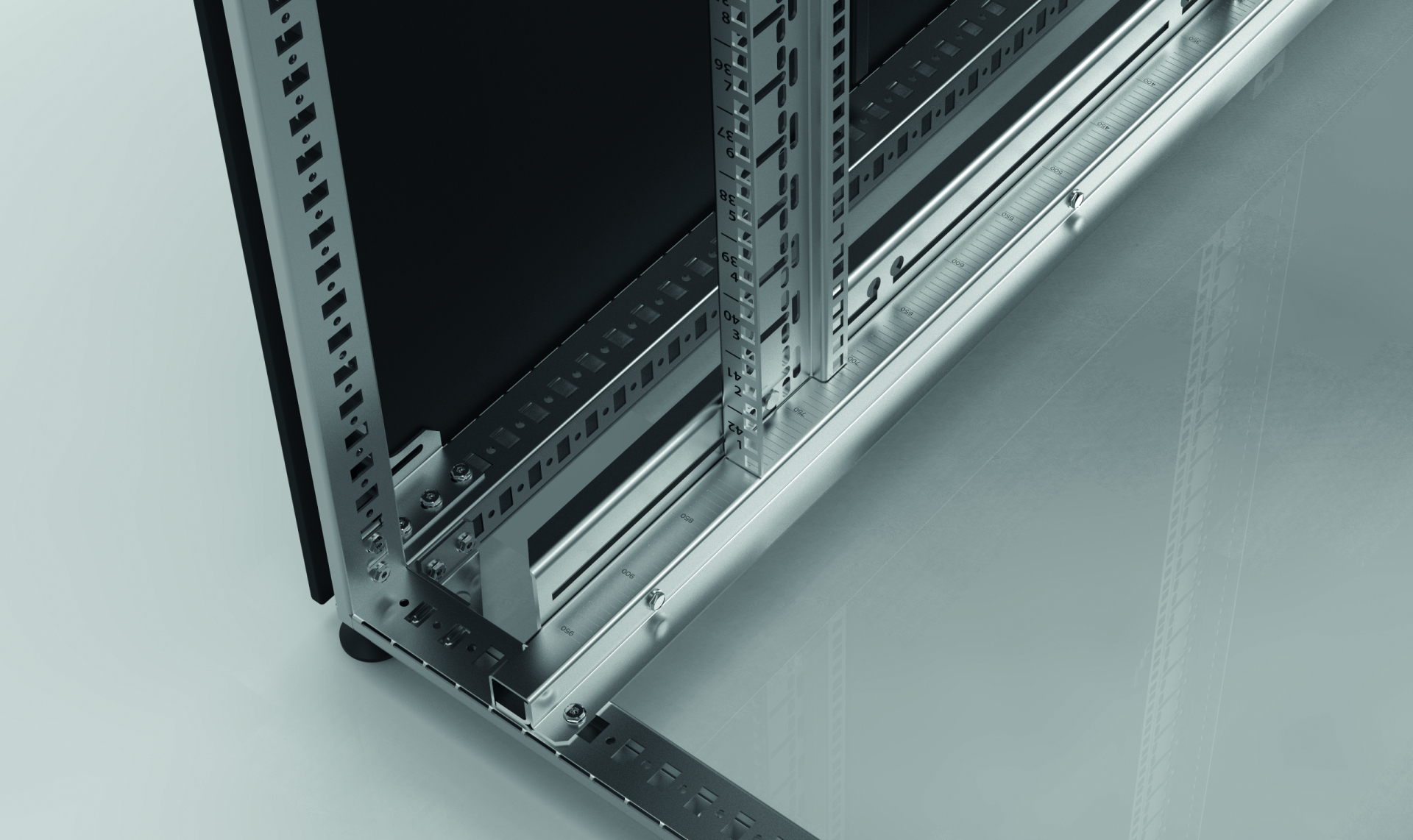

Inside front and rear 4 x 19“ profile rails (2 front, 2 rear), galvanised, toolless stepless depth-adjustable
Scaling for depth-adjustment at the profile carrying rails
Contrariwsie numbering of rack units at the 19“ profiles

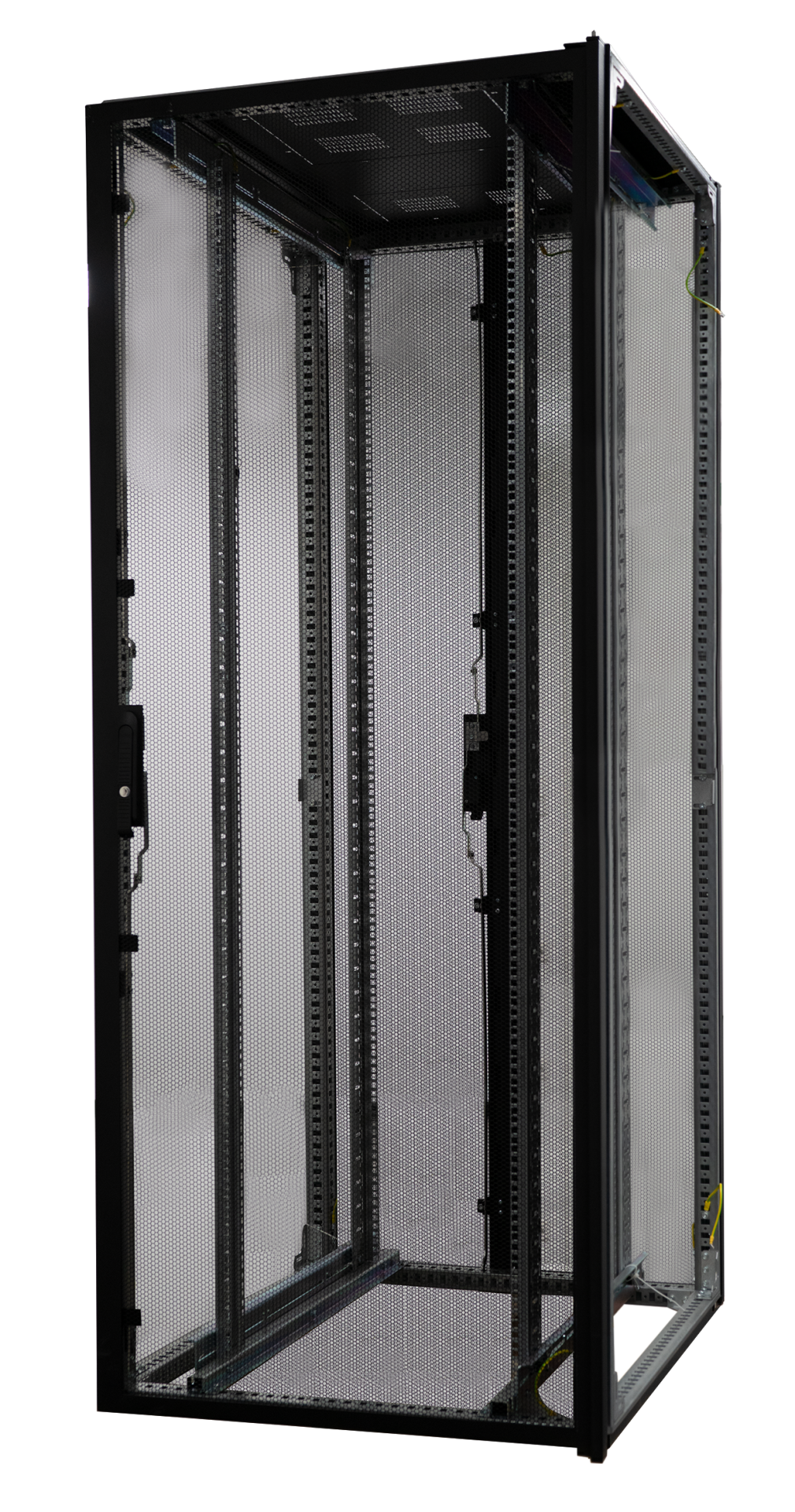

Front- and rear door steel, perforated, 1-part or 2-part, perforation degree > 80 %, perforation area up to 86 %

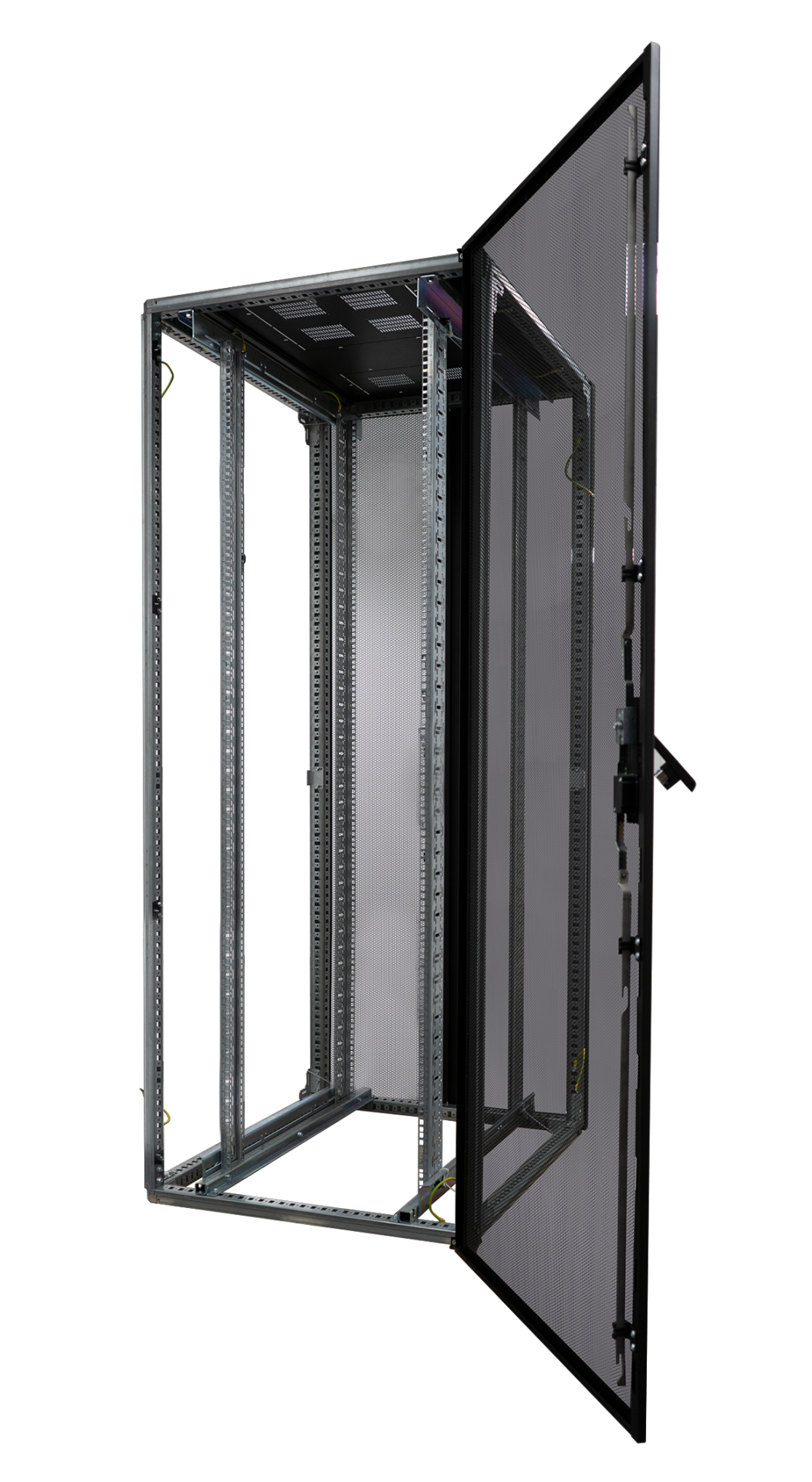

1-part door with 5-point locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303, door stop right or left-sided possible
2-part door with 3-point bar locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door opening angle up to 270°

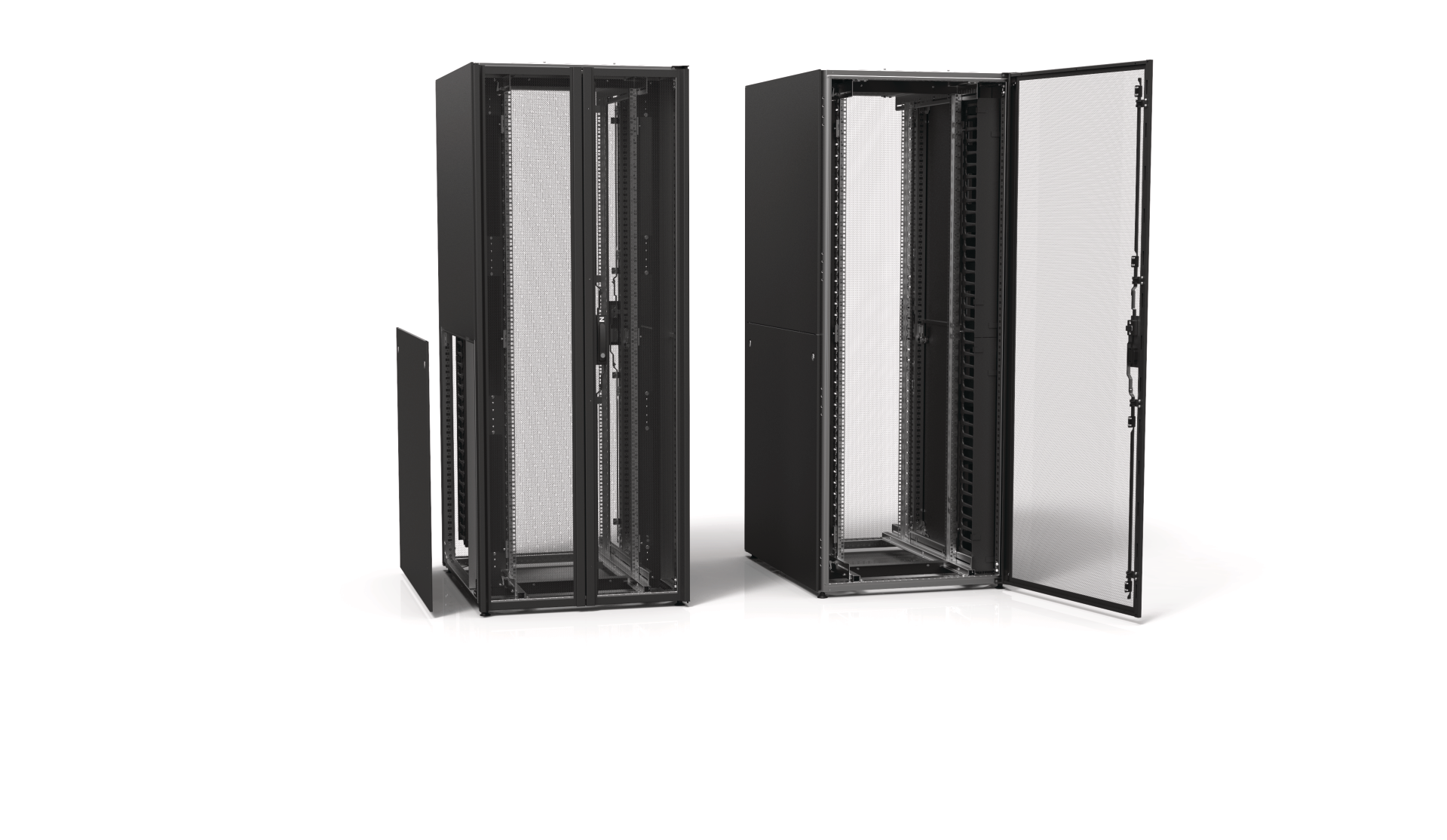

Delivery without side walls, side walls available in 4 variants:
Type A – Side wall, horizontally divided, door opening angle 270°
Type B – Side wall, horizontally divided, enables lateral PDU mounting in cabinet width 600 mm
Type C – Bulkhead, 1-part, for cabinets with levelling feet
Type D – Bulkhead, 1-part, for cabinets without levelling feet
Cabinets stackable side-by-side with stacking set Art.-No. ESV-ANR01
Bulkheads are retrofittable onto already stacked cabinets

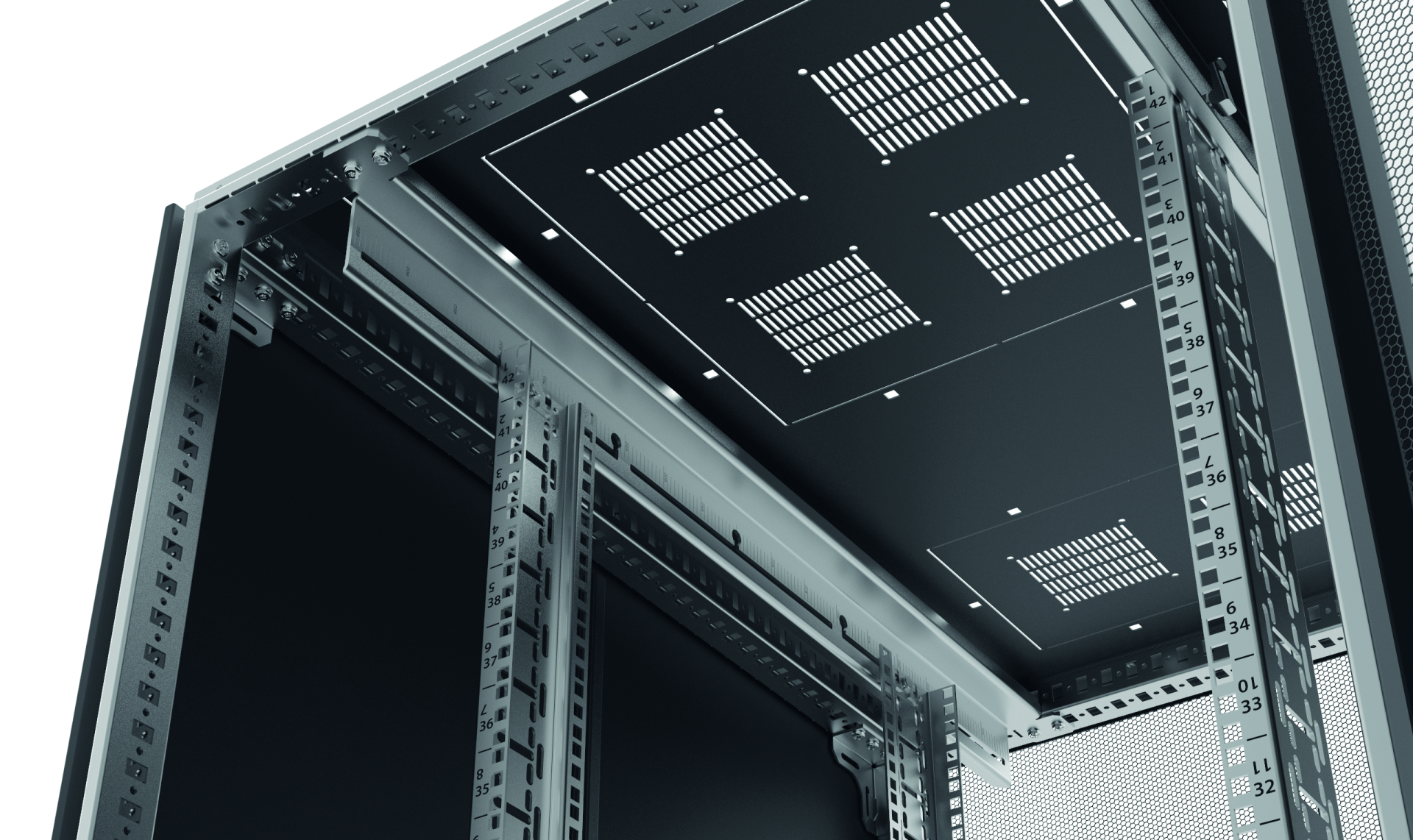

Roof toolless mountable, with pre-punched ventilation openings for use of up to 2 fan units (2-fan or 4-fan type)
Roof with cable entries over full cabinet length after toolless removal of the pre-punched lateral covers
Delivery without bottom
Max. load 1500 kg, optionally up to 2400 kg possible
All cabinet parts inside completely grounded
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20 (except of bottom area)
Scope of supply: 1 x set of captive nuts (PU 20 pcs), 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet

Tekniske egenskaber

Degree of protection: IP20
Demountable: True
Material: steel
Model: With permanent frame
Modular spacing: 482,6 mm (19 inch)
Mounting level: Front and rear
Surface finishing: Powder coating
Toolless depth adjustment: True
Type of back door: Steel perforated 2-part
Type of front door: Steel perforated 1-part
Type of profile rail: Crank
Type of ventilation: Passive
With backside door: True
With earthing: True
With front door: True
With roof plate: True
With sidewall: False
With socket: False
