19" Server Cabinets PRO, 600x1200 mm, 1-Part Doors

Priser kun synlige for indloggede brugere

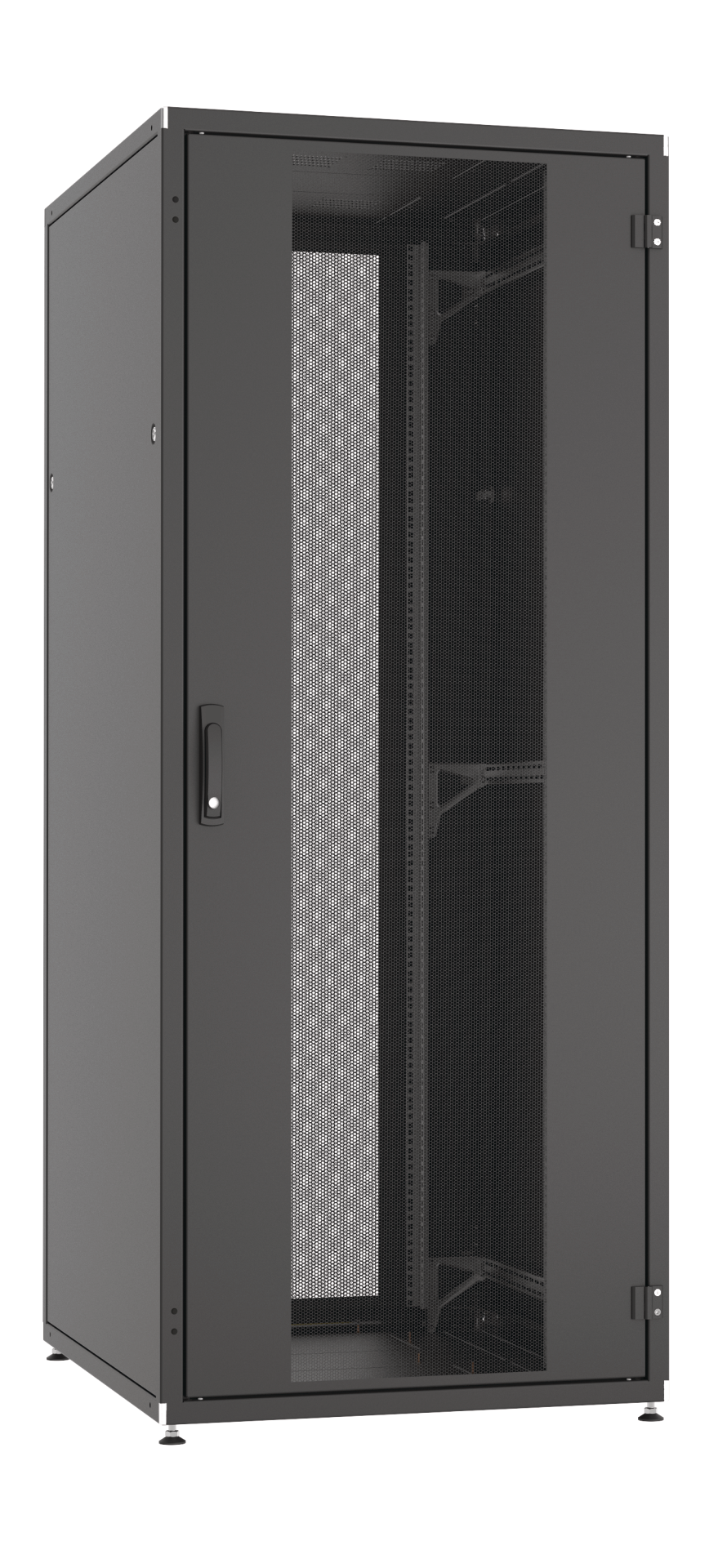

19" Server Cabinet PRO 42U, 600x1200 mm, F+R 1-Part, RAL9005
Varenummer: PRO-4262TS.P1
EAN nr.: 4049759218249
Piece

Produktinformation für 19" Server Cabinet PRO 42U, 600x1200 mm, F+R 1-Part, RAL9005

19" server cabinet according to DIN41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles

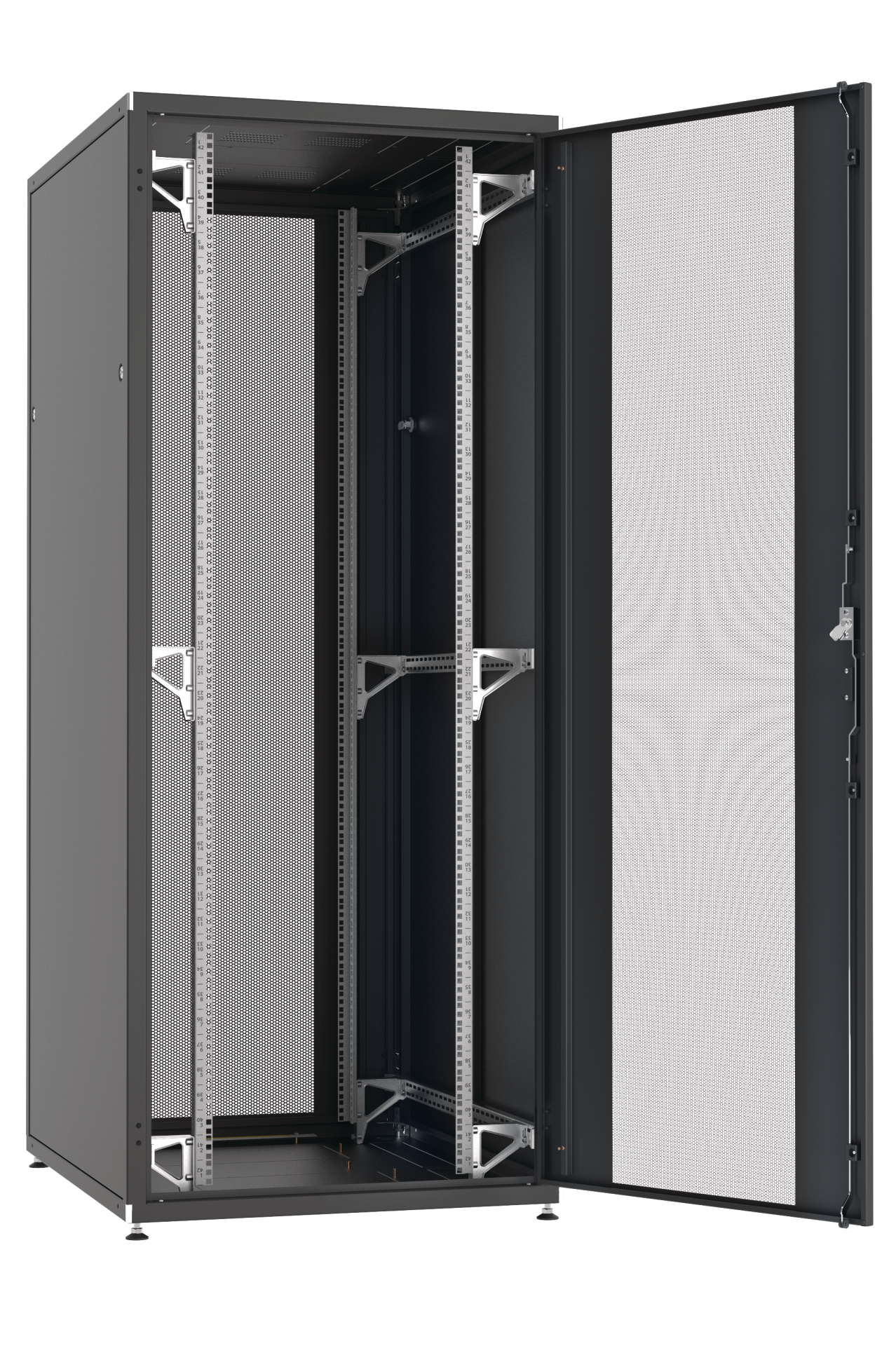

Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

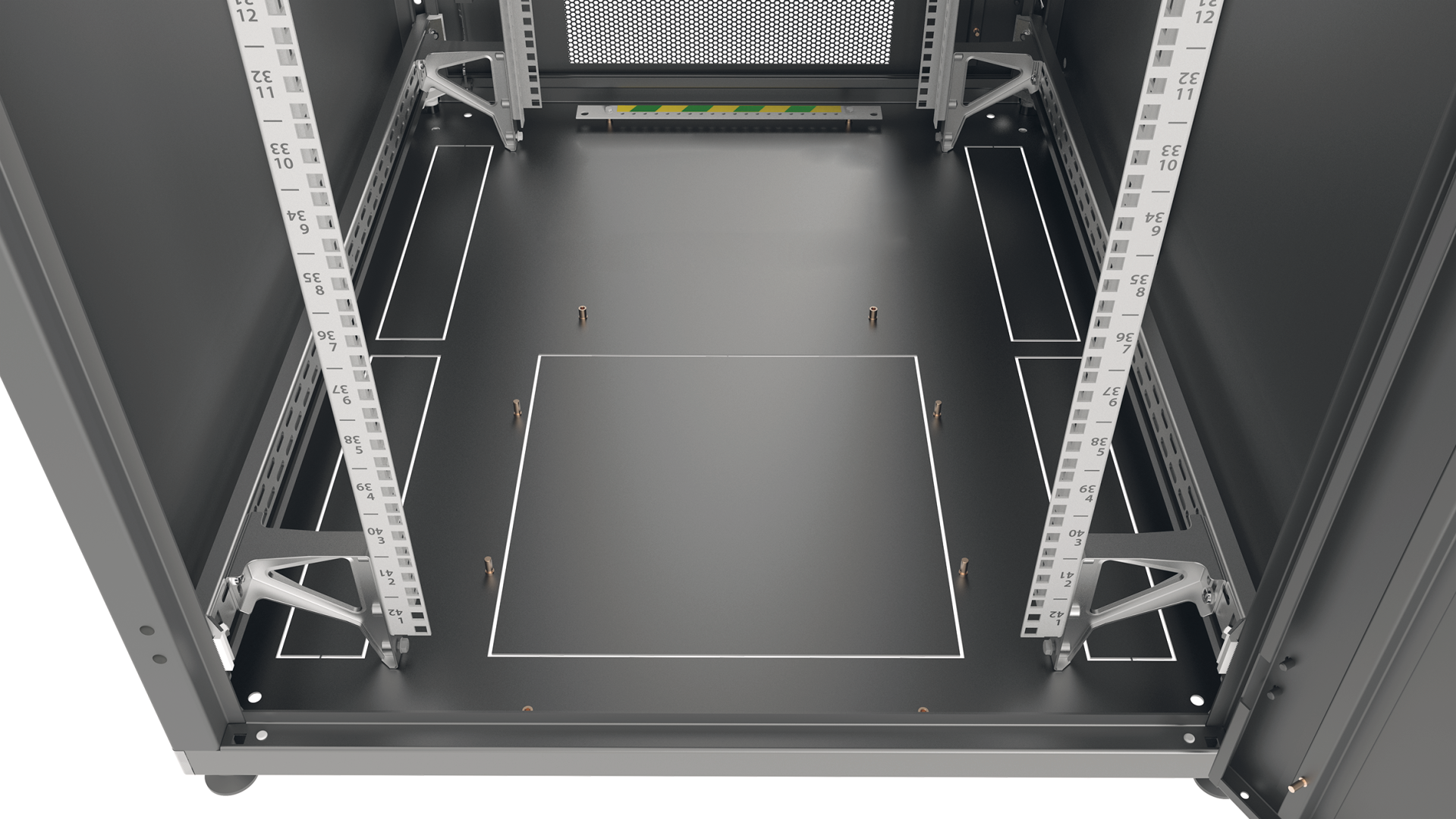

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

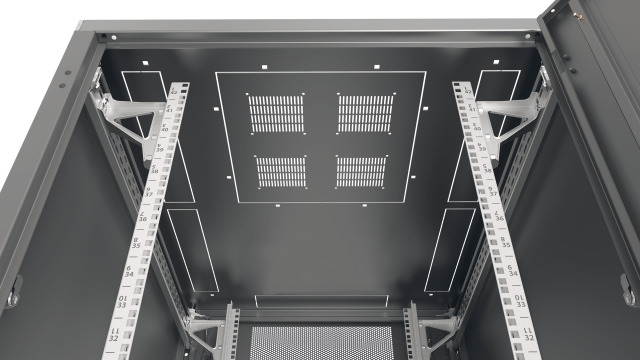

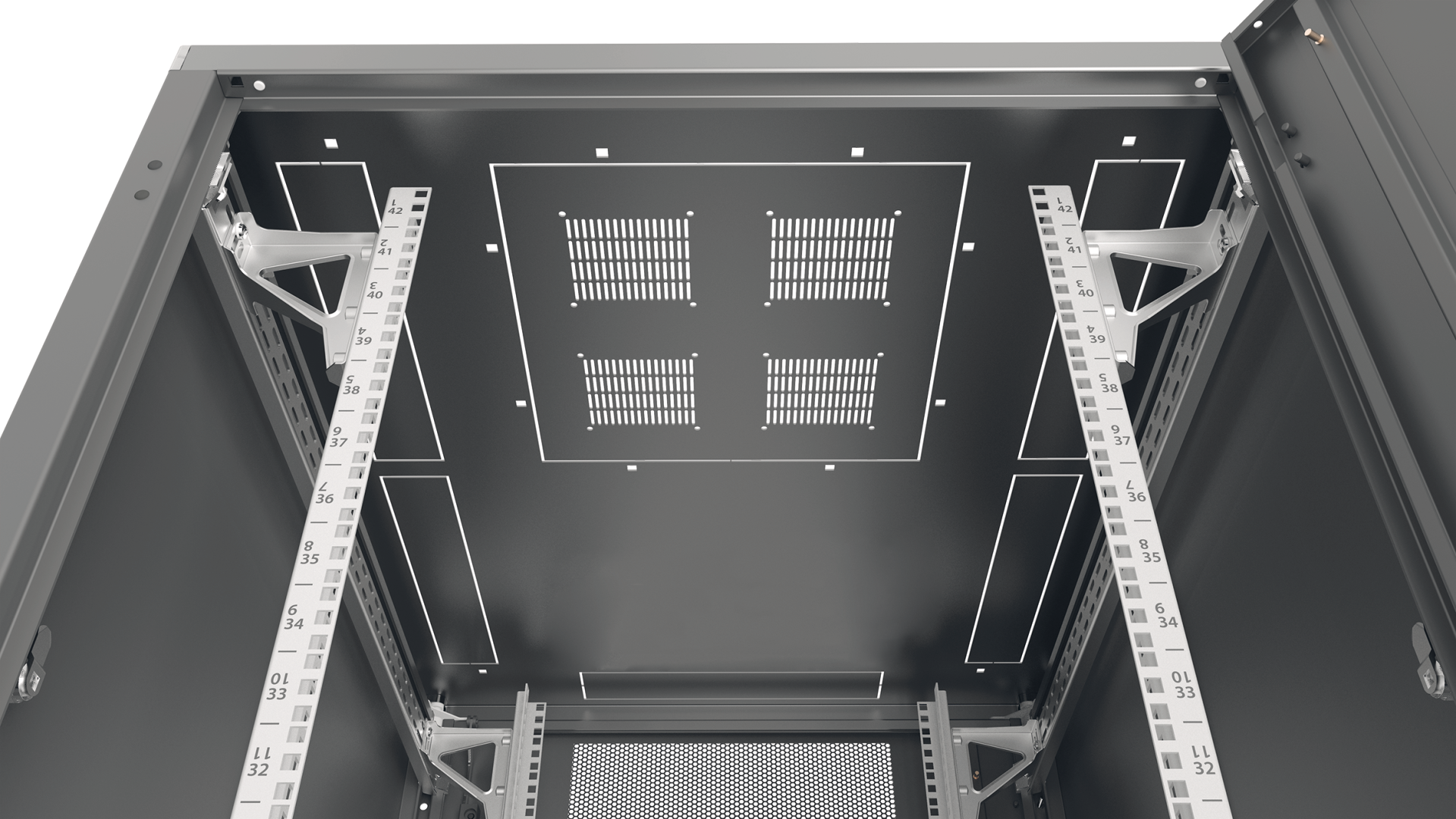

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet

Tekniske egenskaber

Degree of protection: IP20
Demountable: True
Material: steel
Model: With permanent frame
Modular spacing: 482,6 mm (19 inch)
Mounting level: Front and rear
Surface finishing: With powder coating
Type of back door: Steel perforated 1-part
Type of front door: Steel perforated 1-part
Type of profile rail: Crank
Type of ventilation: Passive
With backside door: True
With earthing: True
With front door: True
With roof plate: True
With sidewall: True
With socket: False
