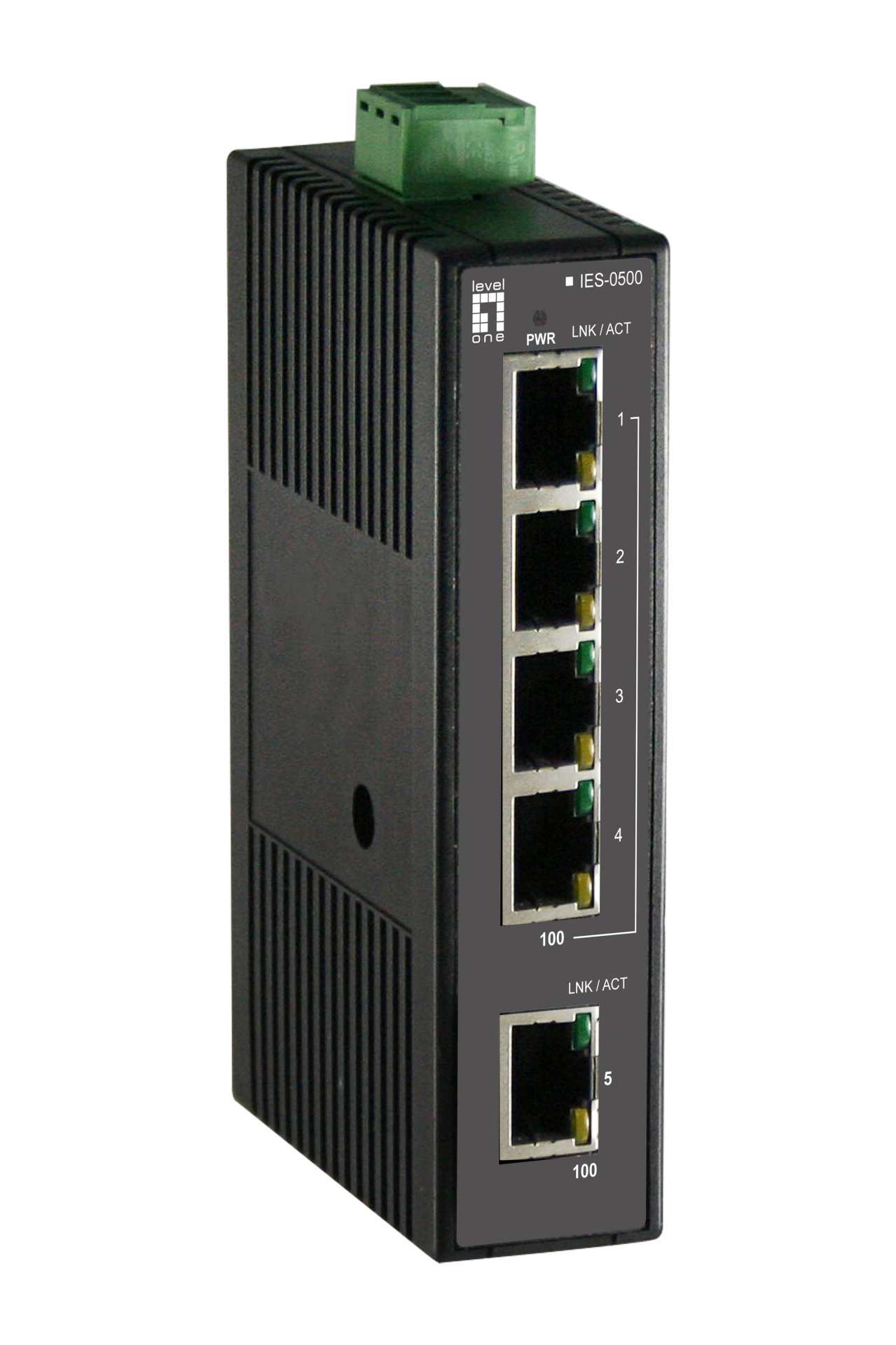

IES-0500, 5-Port Fast Ethernet Industrial Switch
5-Port Fast Ethernet Industrial Switch, DIN rail
Varenummer:
IES-0500
EAN Nr.:
4015867181591
Produktinformation til 5-Port Fast Ethernet Industrial Switch, DIN rail
- Offers flexibility of 5 x 10/100BASE-TX ports
- 10/100 Mb/s, full/half duplex, auto-negotiation, auto-MDI/MDIX
- Supports 12 to 48 V power inputs DC Voltage
- Compliant with IEC61000-6-2 for industrial environments
- 10/100 Mb/s, full/half duplex, auto-negotiation, auto-MDI/MDIX
- Supports 12 to 48 V power inputs DC Voltage
- Compliant with IEC61000-6-2 for industrial environments
Tekniske egenskaber
| Depth: | 70 mm |
|---|---|
| Ethernet: | True |
| Height: | 110 mm |
| Layer 2: | False |
| Layer 3: | False |
| Layer 4: | False |
| Layer 7: | False |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Mounting method: | DIN rail (top hat rail) |
| Number of ports 10/100 Mbps RJ45: | 5 |
| Operating Temperature: | -10 – 60 °C |
| Width: | 26 mm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
