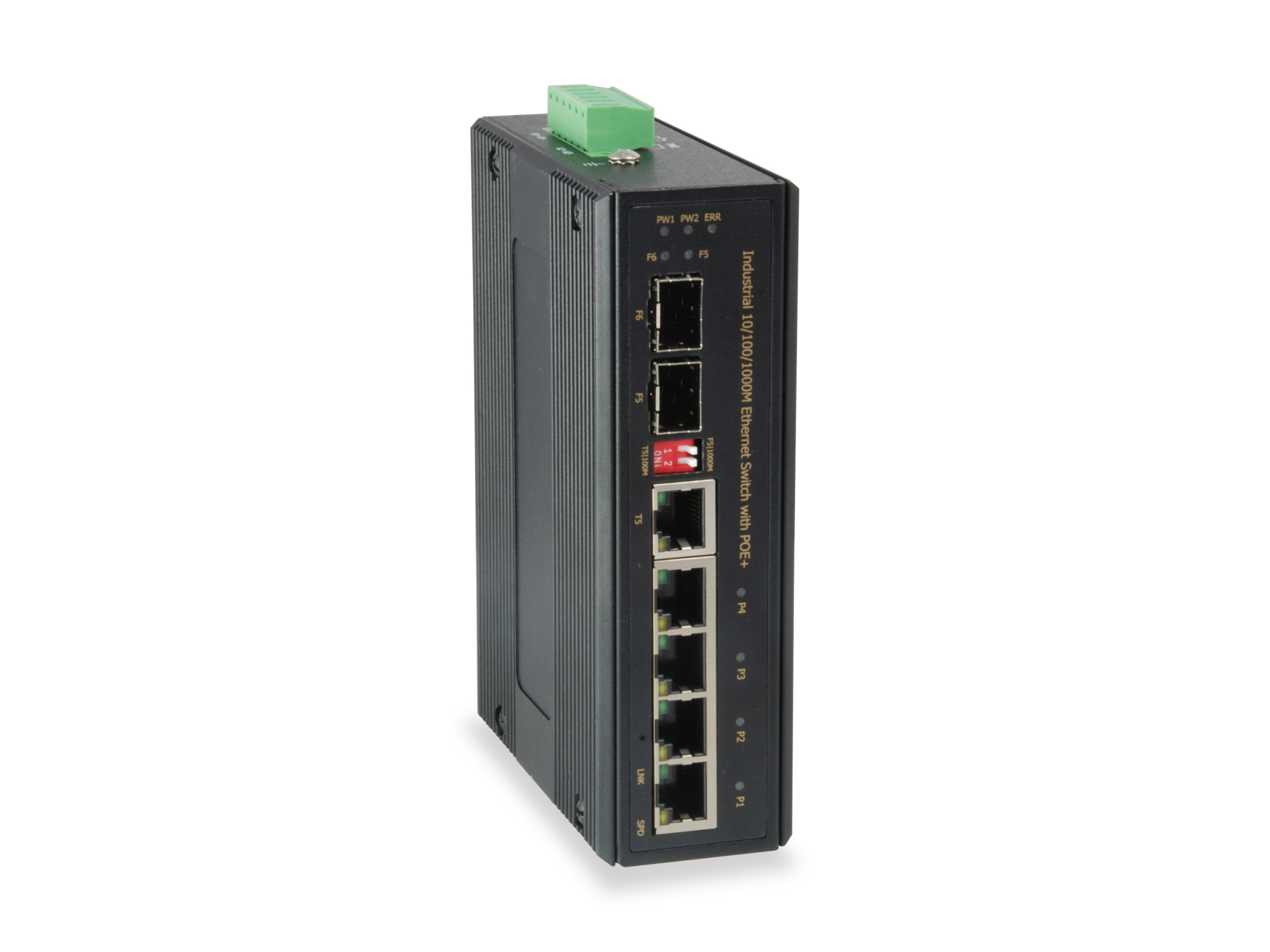

IES-0610, Industrial Gigabit Eth. Switch - 4xPOE
6-Port Gigabit PoE Industrial Switch, 4 PoE outputs, 2xSFP, DIN rail
Varenummer:
IES-0610
EAN nr.:
4015867188507
Produktinformation til 6-Port Gigabit PoE Industrial Switch, 4 PoE outputs, 2xSFP, DIN rail
- 4 Gigabit PoE ports, 1 Gigabit SFP slot and 1 Gigabit RJ45/SFP combo port
- Total PoE budget: 126 W, up to 30 W per port
- IP30 metal housing
- Redundant network inputs with connection block
- Total PoE budget: 126 W, up to 30 W per port
- IP30 metal housing
- Redundant network inputs with connection block
| Depth: | 105.0 mm |
|---|---|
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 38.0 mm |
| Layer 2: | False |
| Layer 3: | False |
| Layer 4: | False |
| Layer 7: | False |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Mounting method: | DIN rail (top hat rail) |
| Number of combination-ports RJ45/Mini GBIC: | 1 |
| Number of ports 10/100/1000 Mbps RJ45: | 5 |
| Number of ports 1000 Mbps Mini GBIC: | 2 |
| Operating Temperature: | -40 – 75 °C |
| PoE Port: | 4 |
| Power over Ethernet (PoE): | 802.3 at (PoE+) |
| Width: | 40 mm |
Tekniske egenskaber
| Depth: | 105.0 mm |
|---|---|
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 38.0 mm |
| Layer 2: | False |
| Layer 3: | False |
| Layer 4: | False |
| Layer 7: | False |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Mounting method: | DIN rail (top hat rail) |
| Number of combination-ports RJ45/Mini GBIC: | 1 |
| Number of ports 10/100/1000 Mbps RJ45: | 5 |
| Number of ports 1000 Mbps Mini GBIC: | 2 |
| Operating Temperature: | -40 – 75 °C |
| PoE Port: | 4 |
| Power over Ethernet (PoE): | 802.3 at (PoE+) |
| Width: | 40 mm |
Produktinformation til 6-Port Gigabit PoE Industrial Switch, 4 PoE outputs, 2xSFP, DIN rail
- 4 Gigabit PoE ports, 1 Gigabit SFP slot and 1 Gigabit RJ45/SFP combo port
- Total PoE budget: 126 W, up to 30 W per port
- IP30 metal housing
- Redundant network inputs with connection block
- Total PoE budget: 126 W, up to 30 W per port
- IP30 metal housing
- Redundant network inputs with connection block
| Depth: | 105.0 mm |
|---|---|
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 38.0 mm |
| Layer 2: | False |
| Layer 3: | False |
| Layer 4: | False |
| Layer 7: | False |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Mounting method: | DIN rail (top hat rail) |
| Number of combination-ports RJ45/Mini GBIC: | 1 |
| Number of ports 10/100/1000 Mbps RJ45: | 5 |
| Number of ports 1000 Mbps Mini GBIC: | 2 |
| Operating Temperature: | -40 – 75 °C |
| PoE Port: | 4 |
| Power over Ethernet (PoE): | 802.3 at (PoE+) |
| Width: | 40 mm |
| Depth: | 105.0 mm |
|---|---|
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 38.0 mm |
| Layer 2: | False |
| Layer 3: | False |
| Layer 4: | False |
| Layer 7: | False |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Mounting method: | DIN rail (top hat rail) |
| Number of combination-ports RJ45/Mini GBIC: | 1 |
| Number of ports 10/100/1000 Mbps RJ45: | 5 |
| Number of ports 1000 Mbps Mini GBIC: | 2 |
| Operating Temperature: | -40 – 75 °C |
| PoE Port: | 4 |
| Power over Ethernet (PoE): | 802.3 at (PoE+) |
| Width: | 40 mm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
