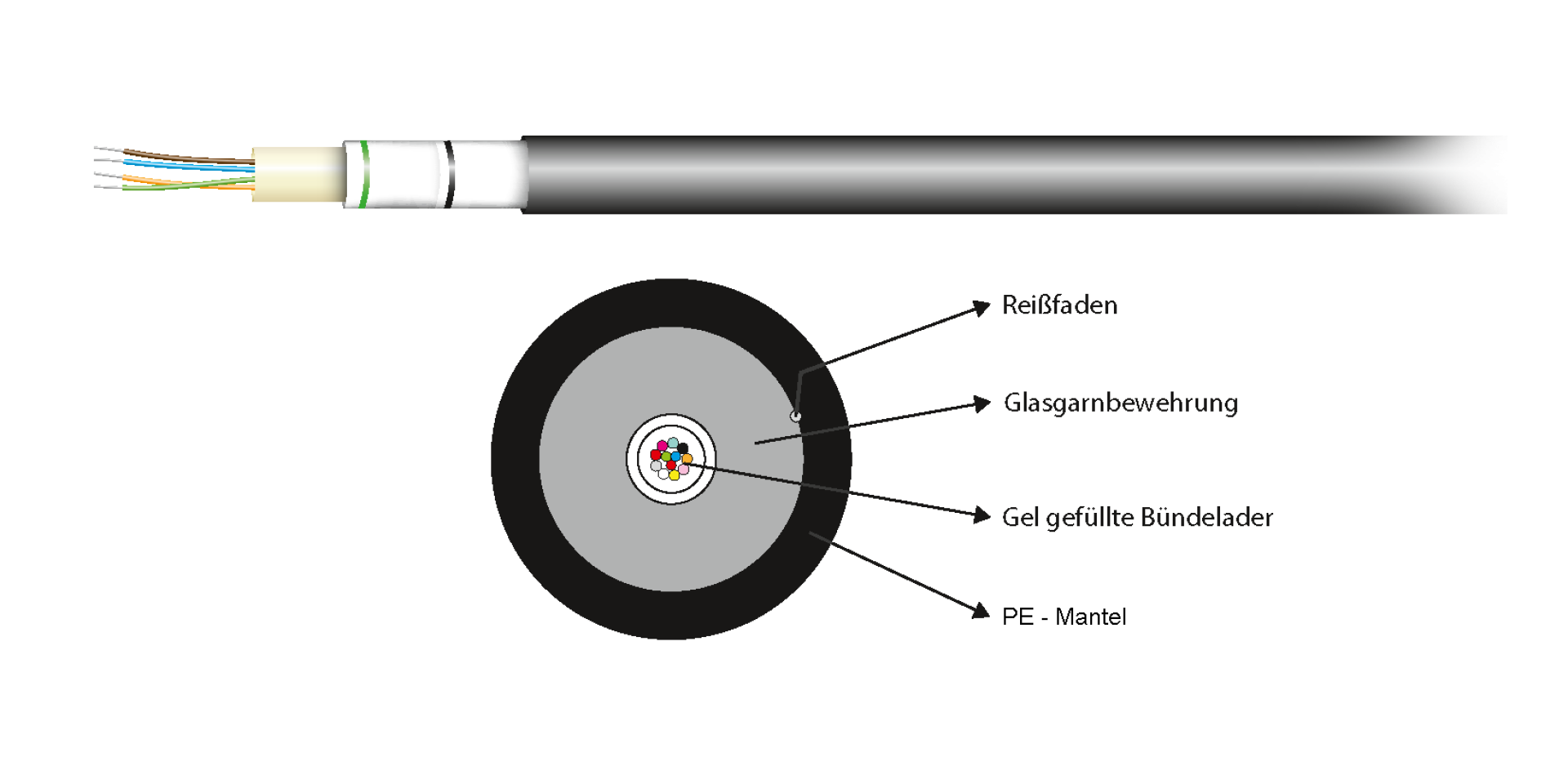

Outdoor cable A-DQ (ZN)B2Y MM OM3 3200N
A-DQ(ZN)B2Y 4x12G 50/125µ OM3 PE black
Varenummer:
55248.1OM3
EAN nr.:
5413260468155
Produktinformation til A-DQ(ZN)B2Y 4x12G 50/125µ OM3 PE black
Application:
For fixed installation outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Suitable for underground laying (direct buried)
Characteristics:
Outdoor cable
The cable diameter can vary
For fixed installation outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Suitable for underground laying (direct buried)
Characteristics:
Outdoor cable
The cable diameter can vary
| Application: | Outside |
|---|---|
| Armouring: | True |
| Cable & Fiber: | IEC/EN 60793, IEC/EN 60794-1 |
| Cable metal free: | True |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | Nein |
| Halogen free: | acc. to EN 60754-1/2 |
| IL max. (dB/km) 1310nm: | 0.40 dB/km |
| IL max. (dB/km) 1550nm: | 0.4 dB/km |
| Jacket material: | PE |
| Longitudinal water blocking: | True |
| Low smoke: | No |
| Low smoke (acc. EN 61034-2): | False |
| Oil resistant: | yes |
| Radial water blocking: | True |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -30 – 70 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
| Tube marking: | Colour |
| Tube Ø: | 2.3 mm |
| Type of tube: | Central tube |
| UV resistant: | True |
| With strain relief: | True |
Tekniske egenskaber
| Application: | Outside |
|---|---|
| Armouring: | True |
| Cable & Fiber: | IEC/EN 60793, IEC/EN 60794-1 |
| Cable metal free: | True |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | Nein |
| Halogen free: | acc. to EN 60754-1/2 |
| IL max. (dB/km) 1310nm: | 0.40 dB/km |
| IL max. (dB/km) 1550nm: | 0.4 dB/km |
| Jacket material: | PE |
| Longitudinal water blocking: | True |
| Low smoke: | No |
| Low smoke (acc. EN 61034-2): | False |
| Oil resistant: | yes |
| Radial water blocking: | True |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -30 – 70 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
| Tube marking: | Colour |
| Tube Ø: | 2.3 mm |
| Type of tube: | Central tube |
| UV resistant: | True |
| With strain relief: | True |
Produktinformation til A-DQ(ZN)B2Y 4x12G 50/125µ OM3 PE black
Application:
For fixed installation outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Suitable for underground laying (direct buried)
Characteristics:
Outdoor cable
The cable diameter can vary
For fixed installation outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Suitable for underground laying (direct buried)
Characteristics:
Outdoor cable
The cable diameter can vary
| Application: | Outside |
|---|---|
| Armouring: | True |
| Cable & Fiber: | IEC/EN 60793, IEC/EN 60794-1 |
| Cable metal free: | True |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | Nein |
| Halogen free: | acc. to EN 60754-1/2 |
| IL max. (dB/km) 1310nm: | 0.40 dB/km |
| IL max. (dB/km) 1550nm: | 0.4 dB/km |
| Jacket material: | PE |
| Longitudinal water blocking: | True |
| Low smoke: | No |
| Low smoke (acc. EN 61034-2): | False |
| Oil resistant: | yes |
| Radial water blocking: | True |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -30 – 70 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
| Tube marking: | Colour |
| Tube Ø: | 2.3 mm |
| Type of tube: | Central tube |
| UV resistant: | True |
| With strain relief: | True |
| Application: | Outside |
|---|---|
| Armouring: | True |
| Cable & Fiber: | IEC/EN 60793, IEC/EN 60794-1 |
| Cable metal free: | True |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | Nein |
| Halogen free: | acc. to EN 60754-1/2 |
| IL max. (dB/km) 1310nm: | 0.40 dB/km |
| IL max. (dB/km) 1550nm: | 0.4 dB/km |
| Jacket material: | PE |
| Longitudinal water blocking: | True |
| Low smoke: | No |
| Low smoke (acc. EN 61034-2): | False |
| Oil resistant: | yes |
| Radial water blocking: | True |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -30 – 70 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
| Tube marking: | Colour |
| Tube Ø: | 2.3 mm |
| Type of tube: | Central tube |
| UV resistant: | True |
| With strain relief: | True |
