Outdoor Cable A-DQ(ZN)B2Y 2x12 E 9/125µ OS2, G652D
A-DQ(ZN)B2Y OS2 24E (2x12), Fca 4500N PE black 10.0mm G652D
Varenummer:
55424.3A
EAN Nr.:
3700223691081
Produktinformation til A-DQ(ZN)B2Y OS2 24E (2x12), Fca 4500N PE black 10.0mm G652D
Application:
For fixed installation outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Suitable for underground laying (direct buried)
Characteristics:
Outdoor cable
Resistant to oil, petrol, acid and leach
The cable diameter can vary
For fixed installation outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Suitable for underground laying (direct buried)
Characteristics:
Outdoor cable
Resistant to oil, petrol, acid and leach
The cable diameter can vary
Tekniske egenskaber
| (Halogenfree): | acc. EN 60754-1/2 |
|---|---|
| Application: | Outside |
| Armouring: | True |
| Blow in: | False |
| Cable & Fiber: |
IEC/EN 60794-1 IEC 60794-3 |
| Cable metal free: | True |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 1500 N/dm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | colour |
| Fibre category: | OS2 |
| Fibre type: | Single mode 9/125 |
| Flame-retardant: | False |
| Halogen free (according to EN 60754-1/2): | True |
| IL max. (dB/km) 1310nm: | 0.4 dB/km |
| IL max. (dB/km) 1550nm: | 0.4 dB/km |
| Jacket Material: | PE |
| Longitudinally watertight: | 3/24 m/h |
| Longitudinal water blocking: | True |
| Low smoke: | False |
| Low smoke (acc. EN 61034-2): | False |
| Oil resistant: | Yes |
| Radial water blocking: | True |
| Resistant to chemicals: | True |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -25 – 60 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
| Tube marking: | colour |
| Tube Ø: |
Up to 12 fibers: 2.9 Up to 24 fibers: 3.5 mm |

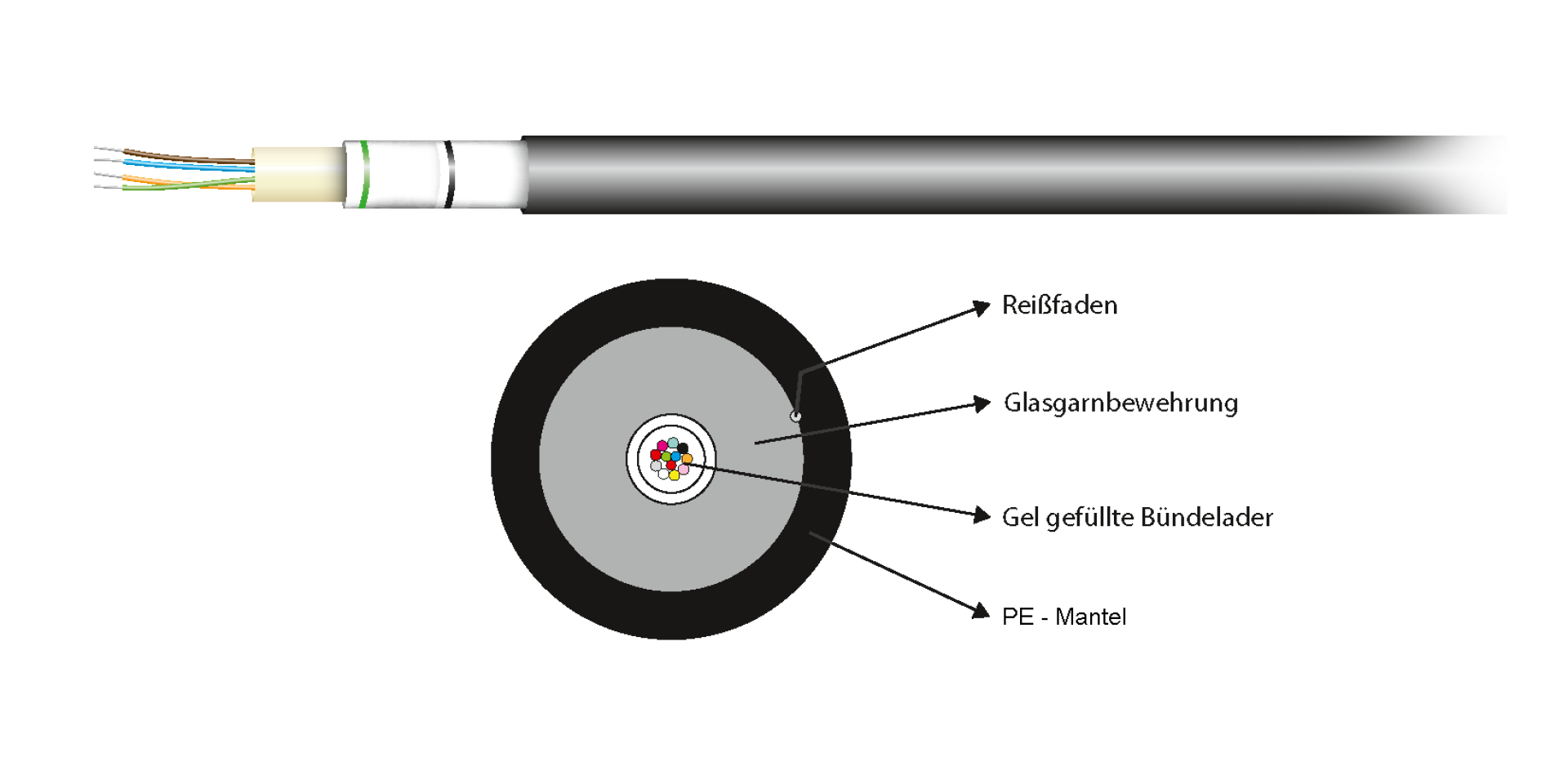

| Type of tube: | Central tube |
| UV resistance: | True |
| With rodent protection: | True |
| With strain relief: | True |
