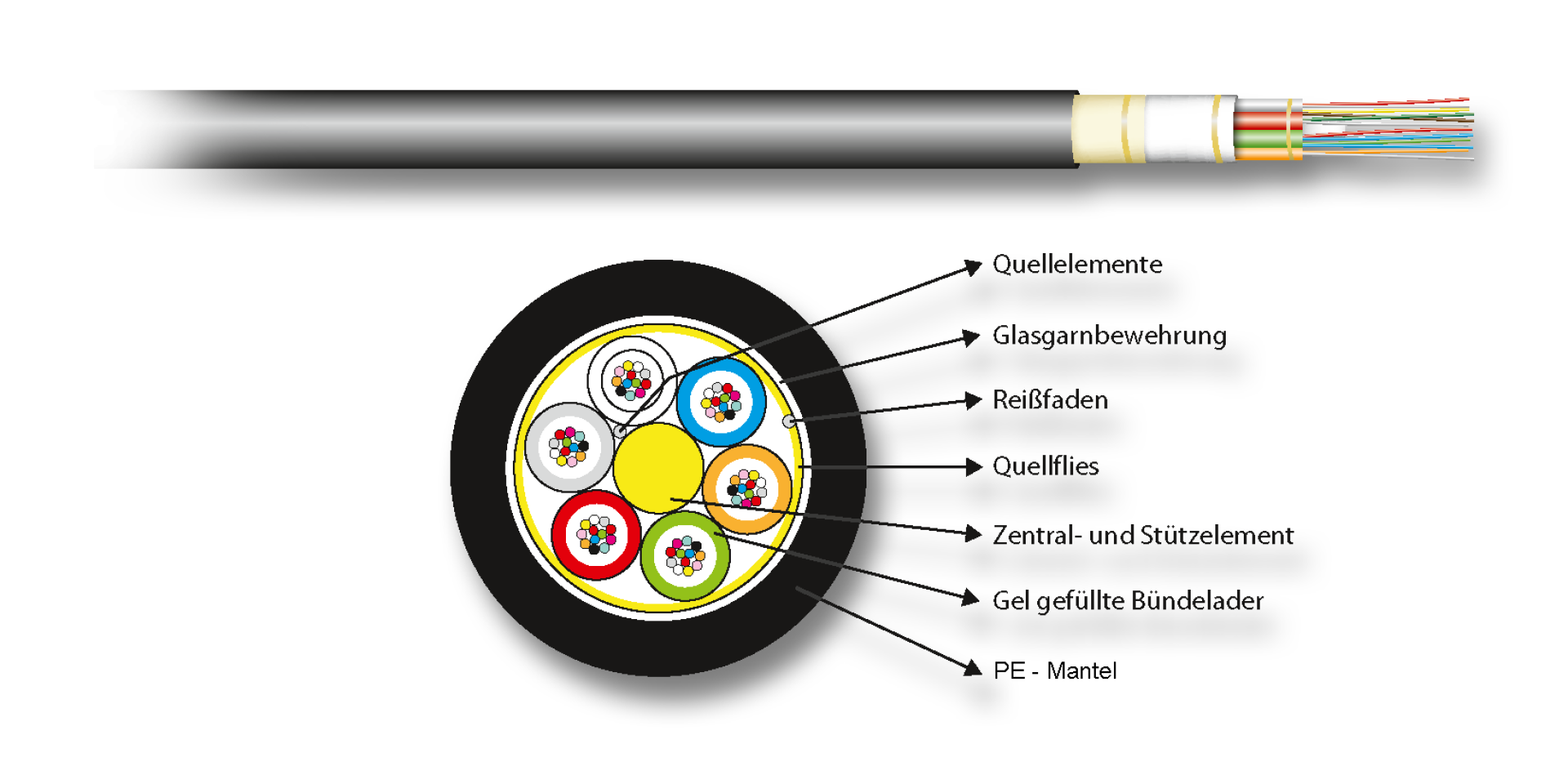

Outdoor Cable A-DQ (ZN)B2Y SM G657.A1 5000N
A-DQ(ZN)B2Y OS2 48E (4x12) Fca 5000N PE black 11.2mm G657A1
Varenummer:
55448.1
EAN Nr.:
4049759073152
Produktinformation til A-DQ(ZN)B2Y OS2 48E (4x12) Fca 5000N PE black 11.2mm G657A1
Application:
For fixed installation outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Suitable for underground laying (direct buried)
Characteristics:
Outdoor cable
Easy to install with tear thread to open the jacket
Resistant to oil, petrol, acid and leach
The cable diameter can vary
For fixed installation outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Suitable for underground laying (direct buried)
Characteristics:
Outdoor cable
Easy to install with tear thread to open the jacket
Resistant to oil, petrol, acid and leach
The cable diameter can vary
Tekniske egenskaber
| (Halogenfree): | acc. EN 60754-1/2 |
|---|---|
| Application: | Outside |
| Armouring: | True |
| Cable & Fiber: |
IEC/EN 60793 IEC/EN 60794-1 |
| Cable metal free: | True |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | G657.A1 |
| Fibre type: | Single mode 9/125 |
| Flame-retardant: | False |
| Halogen free (according to EN 60754-1/2): | True |
| IL max. (dB/km) 1310nm: | 0.4 dB/km |
| IL max. (dB/km) 1550nm: | 0.4 dB/km |
| Jacket Material: | PE |
| Longitudinally watertight: | 3/24 m/h |
| Longitudinal water blocking: | True |
| Low smoke: | False |
| Low smoke (acc. EN 61034-2): | False |
| Oil resistant: | Yes |
| Radial water blocking: | True |
| Resistant to chemicals: | True |
| Temperature Range (Installation): | -15 – 50 °C |
| Temperature Range (Operation): | -40 – 60 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
| Tube marking: | Colour |
| Tube Ø: | 2.3 mm |
| Type of tube: | Central tube |
| UV resistance: | True |
| With strain relief: | True |
Varianten
| Art. Nr. | Bezeichnung | Construct | Fire load | Bending radius | Cable Ø | Tensile Force | Weight | |
|---|---|---|---|---|---|---|---|---|
| 55448.1 | A-DQ(ZN)B2Y OS2 48E (4x12) Fca 5000N PE black 11.2mm G657A1 | 48E (4 x 12) singlemode G.657.A1 | 2.4 MJ/m | 170 mm | 11.2 mm | 5000 N | 105 kg/km | |
| 55496.1 | A-DQ(ZN)B2Y OS2 96E (8x12) Fca 5000N PE black 13.1mm G657A1 | 96E (8 x 12) singlemode G.657.A1 | 3.1 MJ/m | 200 mm | 13.1 mm | 5000 N | 145 kg/km |
