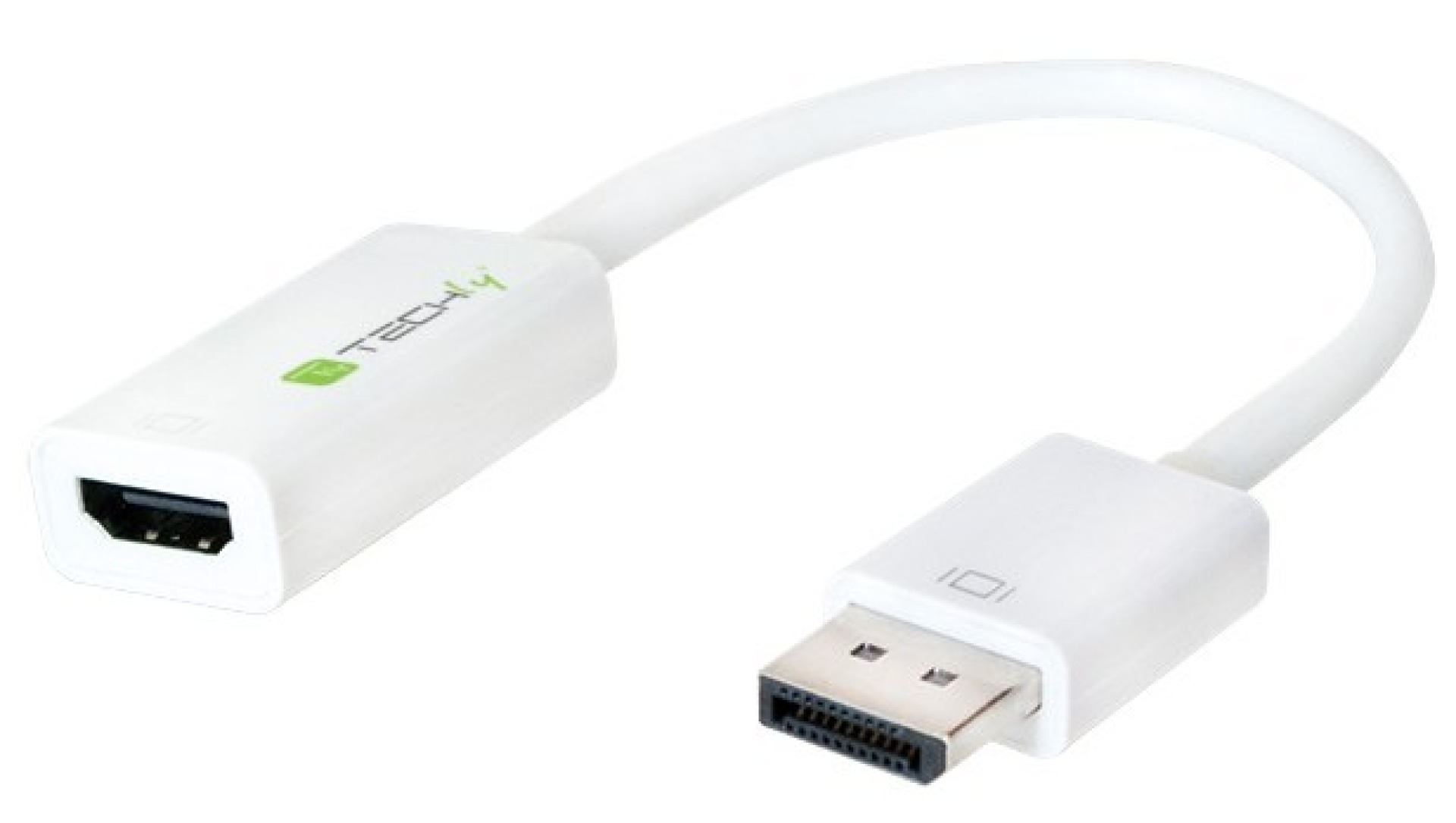

Adapter - DisplayPort 1.2 male to HDMI female 15 cm
Adapter - DisplayPort 1.2 male to HDMI female 15 cm
Varenummer:
IADAP-DP-HDMIF2
EAN Nr.:
8057685309814
Produktinformationen für Adapter - DisplayPort 1.2 male to HDMI female 15 cm

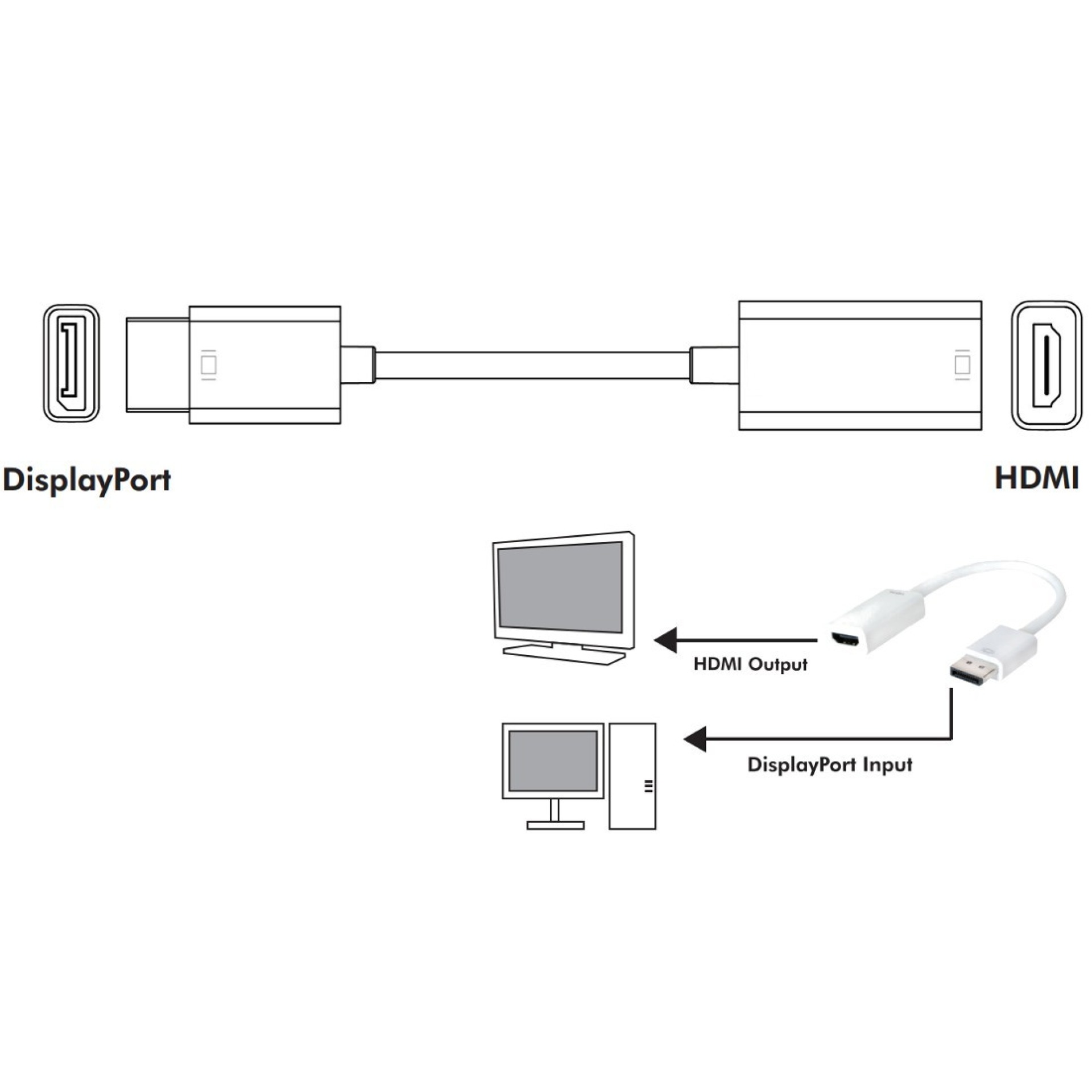

• Connects a DisplayPort source to an HDMI monitor cable
• Provides a single high-quality signal to an HDMI - ideal for computer Mac
• Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
• Supports DisplayPort 1.2 signal
• Molded PVC boot
Connections
• 1x DisplayPort 20-pin male
• 1x HDMI 19-pin female
• Molded PVC
• Shielded
Signal: IN / OUT
• Input video signal: DisplayPort
• Maximum range Single Link: 4Kx2K
• Video Output: HDMI
• Input Connector: DisplayPort Male 20pin
• Output Connector Type: HDMI A female 19pin
Operating Frequency
• Vertical Frequency Range: 50 / 60Hz
• Video amplifier bandwidth up to 5.4Gbps
Resolutions (HDTV)
• 4Kx2K / 30HZ
• Supports 3D mode
Dimensions
• Length: 80 mm
• Width: 23 mm
• Height: 12 mm
• Cable length: 150 mm
Environmental Characteristics
• Operating Temperature: 0°C to +70°C
• Operating humidity: 10% to 85% (non-condensing)
• Storage temperature: -10°C to +80°C
• Storage Humidity: 5% to 90% (non-condensing)
Power Requirements
• No need for external power supply
• Power Consumption (Max) 1W
Standards and Certifications
• DisplayPort 1.2
• EC
• RoHS
• WEEE
Package Contents
• 1x Adapter DisplayPort (Thunderbolt) to HDMI
• 1x Instruction Manual
