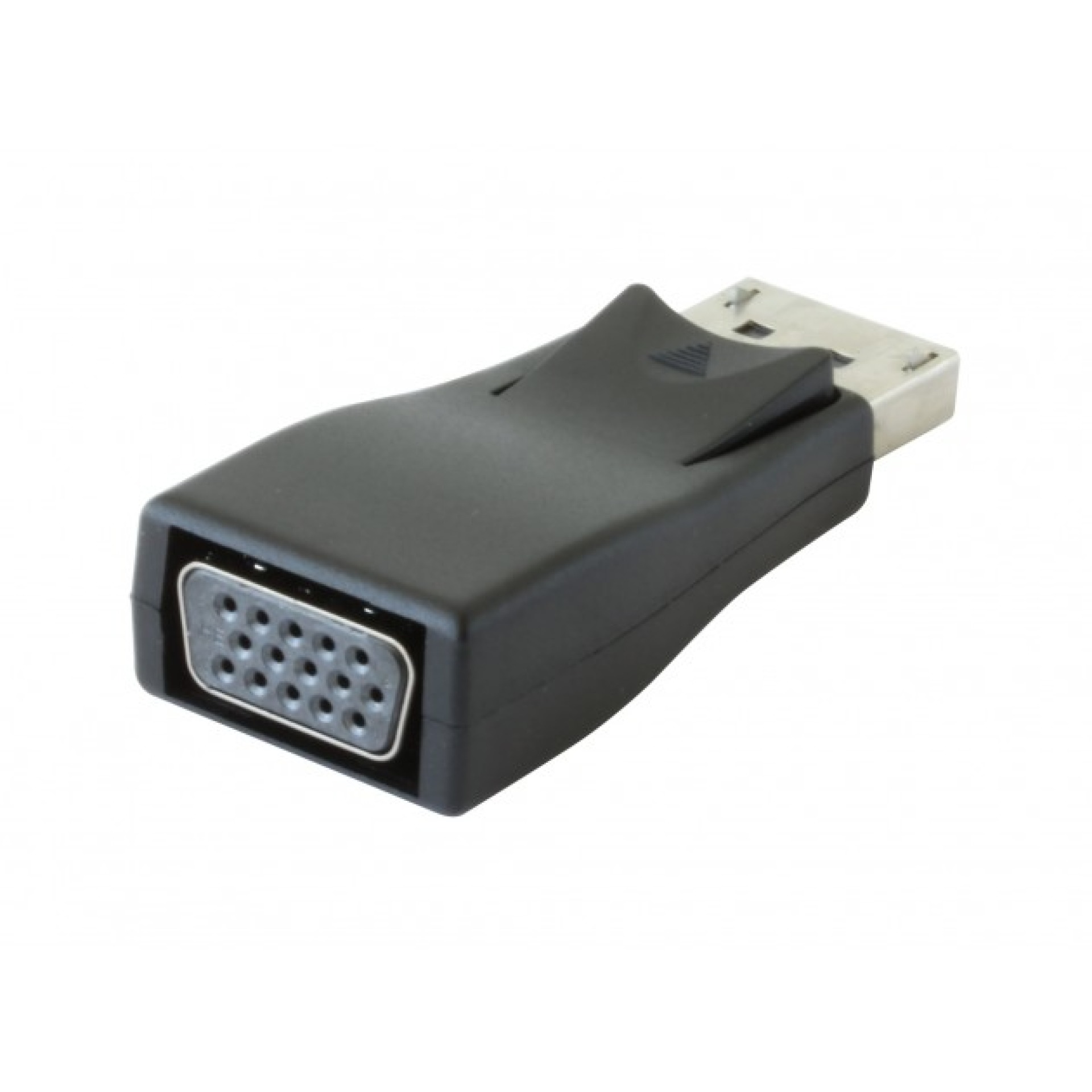

Adapter - DisplayPort 1.2 male to VGA compact female

Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Varenummer: IADAP-DSP-230T
EAN Nr.: 8051128105827
Forudbestil det ønskede antal nu, eller få besked, når det er tilgængeligt:
Piece
Log ind som kunde
Giv mig besked, når produktet er på lager igen.
Beskrivelse

Produktinformation til Adapter - DisplayPort 1.2 male to VGA compact female

  • DisplayPort to VGA converter to interface the new generation of PCs and notebooks equipped with DisplayPort to conventional VGA monitor as CRT, LCD and projectors

    • Technical Specifications
  • Compatible with VESA DisplayPort 1.2 standard with backward compatibility 1.1a
  • Compatible with VESA and DP v1.3 standard
  • 2 lanes of high speed differential input with configurable speed: 1.62Gbps or 2.7Gbps
  • Supports Spread Spectrum (SSC)
  • Supports resolution with pixel rates up to180MHz
  • Supports resolutions up to WUXGA (1920x1200@60HZ@60Hz reduced blanking, 24bpp)
  • VGA VESA compliant VSIS V1R2 clock jitter specification
  • Sleep mode and low-consumption automatic connection and disconnection of the monitor
  • Supports DDC
  • EDID pass-through from PC source to display
  • Wide Spread Spectrum (de-spreading) for EMI reduction
  • Operates at low power consumption - Active 400mW, standby mode 12mW
  • Display resolution: 1920x1200 (WUXGA-R), 60Hz, 8bpc: 154MHz, 1920x1080P, 60Hz, 10bpc: 144MHz
  • Vertical Frequency Range: 50 / 60Hz
  • Video Bandwidth: 162MHz mechanical
  • Colour: Black

    • Connections
  • DisplayPort Male for connection to the source
  • VGA F to connect to monitors with VGA Cable M / M (If you use the DisplayPort Coupler F / F, please use a DisplayPort cable with 20-pin connected)

    • Dimensions
  • Dimensions (L x W x H): 54 x 23 x 12 mm

    • Package Contents

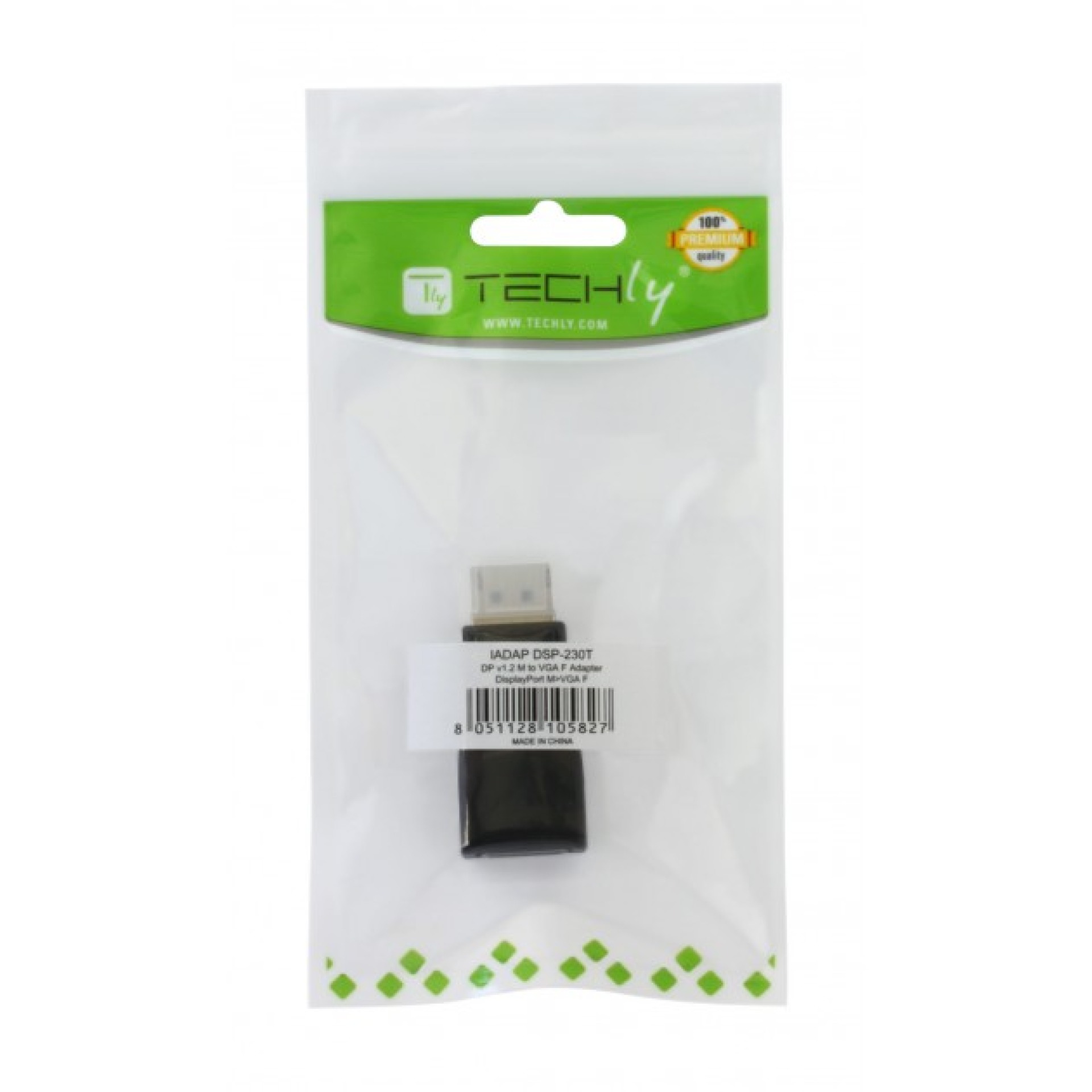

  • DisplayPort V.1.2 M to VGA F Adapter
    • Tekniske egenskaber

    Tekniske egenskaber

    Connection type connection 1: Jack
    Connection type connection 2: Plug
    Type of connector connection 1: Other
    Type of connector connection 2: Other
    Downloads

    Downloads

    Sikkerhedsanvisninger

    Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
