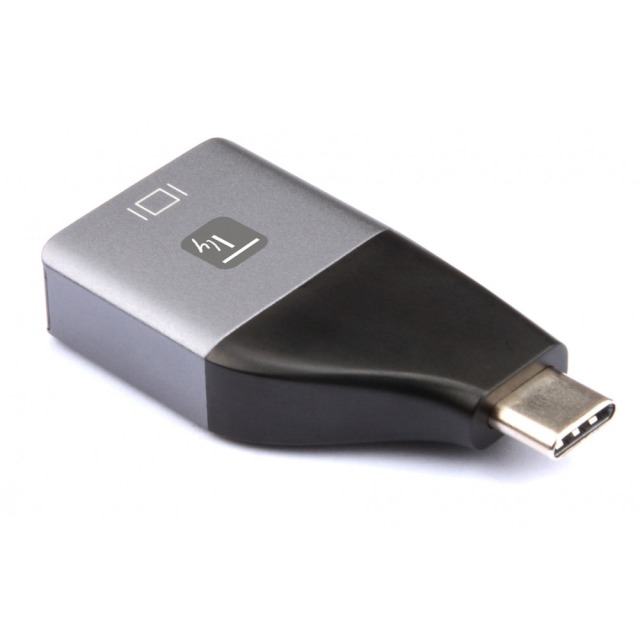

Adapter DisplayPort F 1.2 to USB-C M
Adapter DisplayPort F 1.2 to USB-C M
Varenummer:
IADAP-USBC-DP4K
EAN Nr.:
8059018362442
Produktinformation til Adapter DisplayPort F 1.2 to USB-C M
IADAP USBC-DP4K is a USB-C™ to DisplayPort Adapter. It allows to connect USB-C™ source or Thunderbolt™ 3 source to DisplayPort display at max 3840x2160@60Hz resolution. It supports to work on any Type-C host that supports DP1.2 Alt mode. When working on Thunderbolt™ 3 host, this product transmits DP signal.
Features
Supports:
Type-C input and DisplayPort output
DisplayPort 1.2 Alt mode
Per lane data rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
Content protection of HDCP1.4 & HDCP 2.2
DisplayPort resolution up to 3840x2160@60Hz
USB bus power (no external power supply)
Technical specifications
Input connector: male USB-C™
Output connector: female DisplayPort
Resolution: up to 3840x2160@60Hz
Operating Temperature: 0°C ~ 45°C
Operating Humidity: 10% ~ 85 % RH (no condensation)
Storage Temperature: -10°C ~ 70°C
Storage Humidity: 5% ~ 90 % RH (no condensation)
Power Source: Bus Power

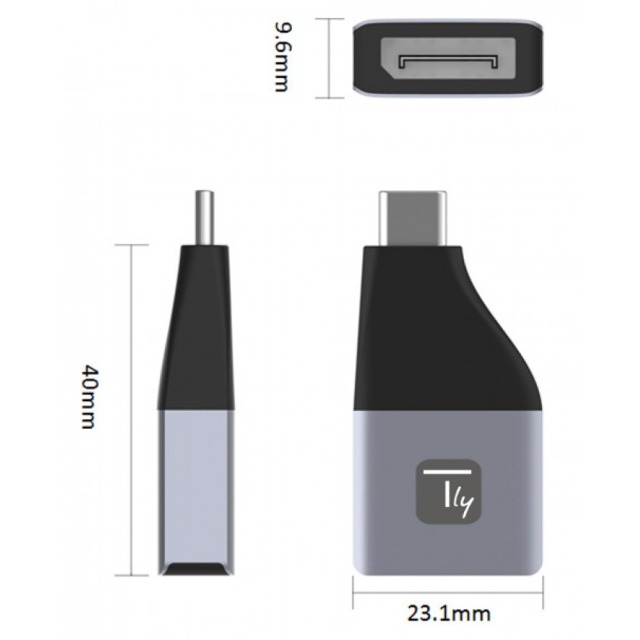

Dimensions: 40 x 23,1 x 9,6 mm
Certifications: FCC, CE
Package contents
USB-C™ to Displayport Adapter
Features
Supports:
Type-C input and DisplayPort output
DisplayPort 1.2 Alt mode
Per lane data rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
Content protection of HDCP1.4 & HDCP 2.2
DisplayPort resolution up to 3840x2160@60Hz
USB bus power (no external power supply)
Technical specifications
Input connector: male USB-C™
Output connector: female DisplayPort
Resolution: up to 3840x2160@60Hz
Operating Temperature: 0°C ~ 45°C
Operating Humidity: 10% ~ 85 % RH (no condensation)
Storage Temperature: -10°C ~ 70°C
Storage Humidity: 5% ~ 90 % RH (no condensation)
Power Source: Bus Power
Dimensions: 40 x 23,1 x 9,6 mm
Certifications: FCC, CE
Package contents
USB-C™ to Displayport Adapter
Tekniske egenskaber
| Connection 1: | USB-C |
|---|---|
| Connection 2: | DisplayPort (DP) |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Jack |
| Screened: | True |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
