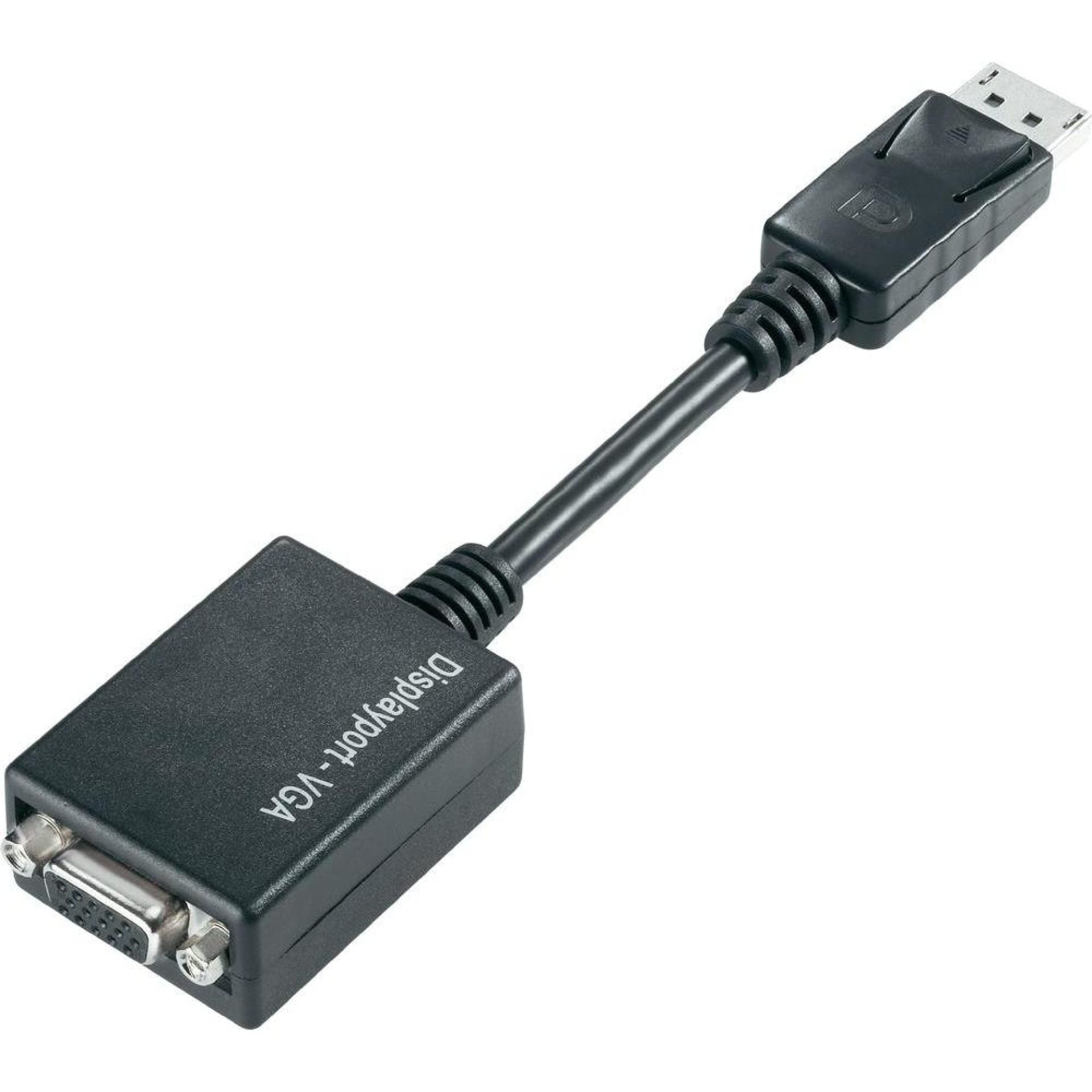

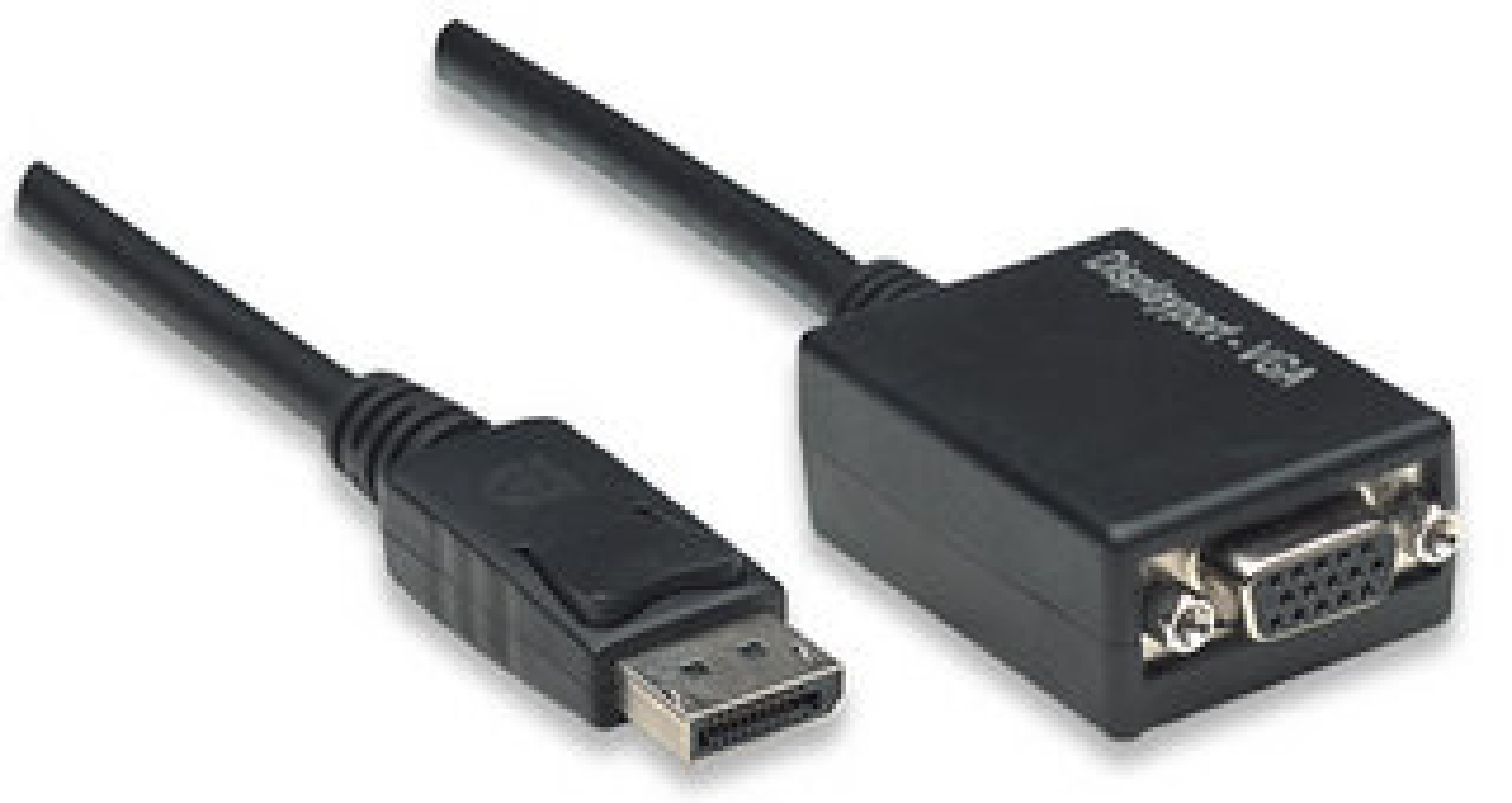

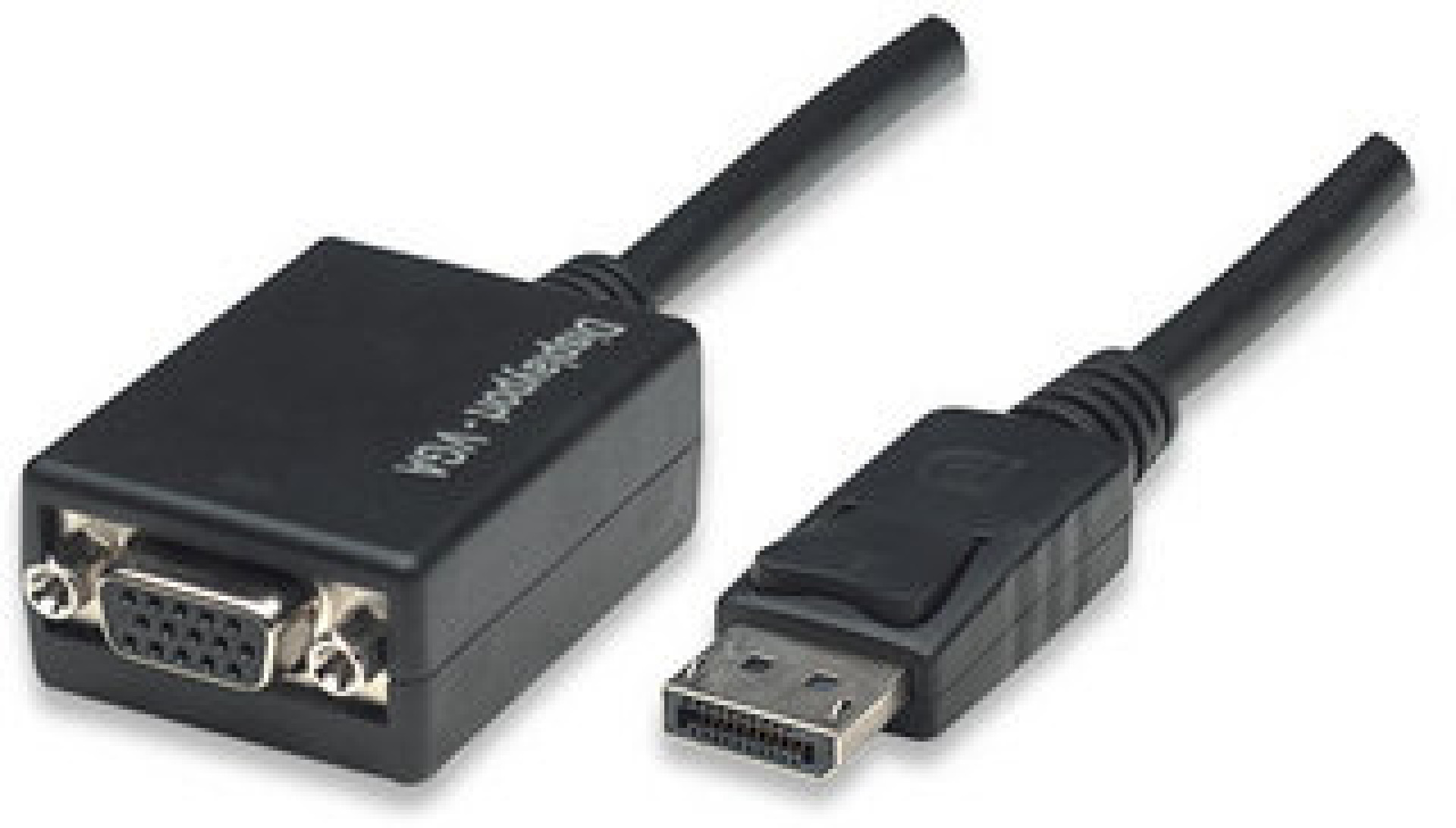

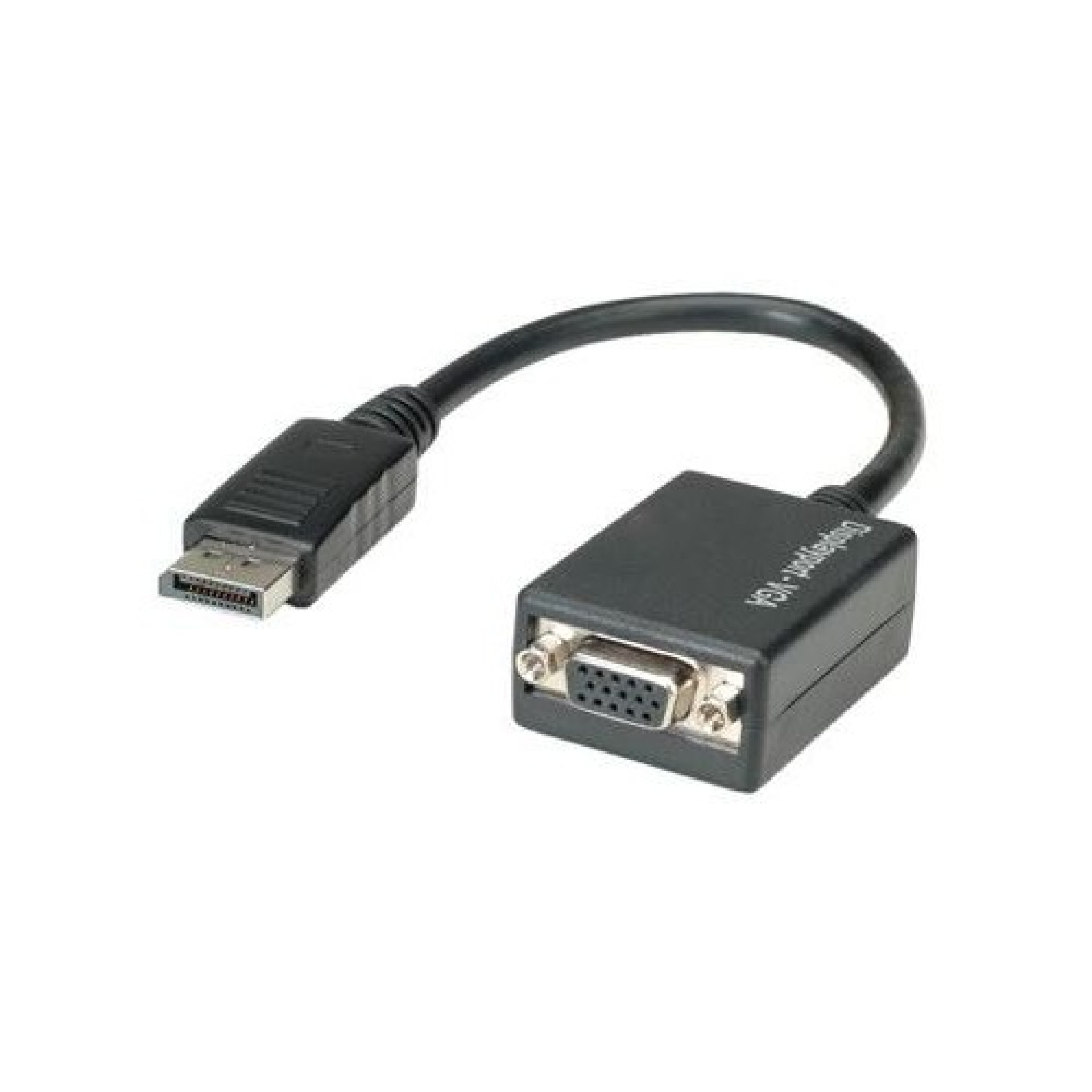

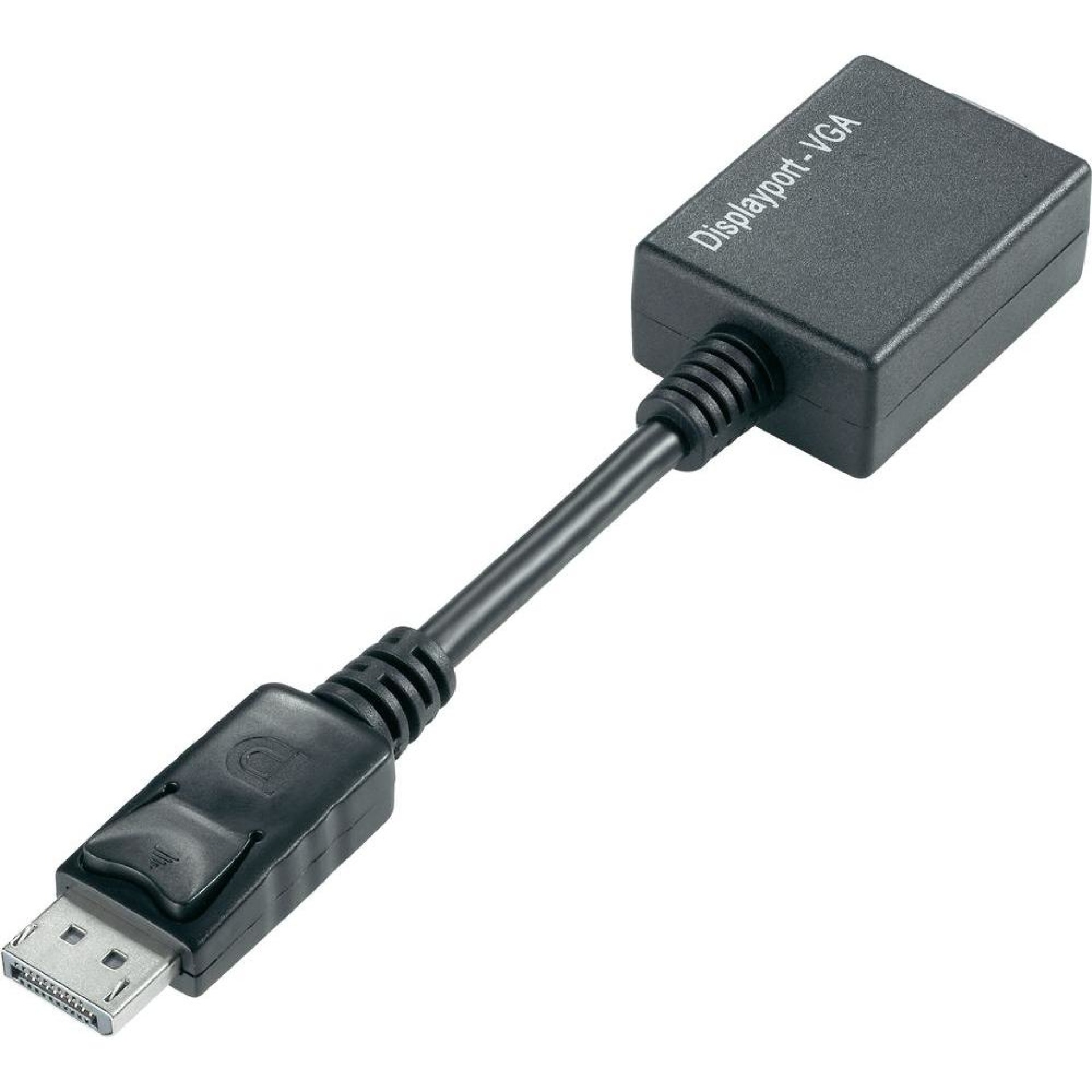

Adapter - DisplayPort to VGA female
Adapter - DisplayPort to VGA female
Varenummer:
IADAP-DSP-250
EAN Nr.:
8057685307582
Produktinformation til Adapter - DisplayPort to VGA female
• Easily connect computers equipped with DisplayPort connector to VGA monitors, projectors etc.
• Provides a high-quality digital video signal - ideal for extending the life of the old devices with VGA connection
• Supports color depth, applications with high frequency band to 10.8 Gbps and resolutions up to 1080p monitor 1920 x 1200 (WUXGA)
• Plug and Play
• Compatible with Windows and Mac
Standards and Certifications
• FCC
• EC
• DisplayPort 1.1
Connections
• 1x DisplayPort 20-pin male

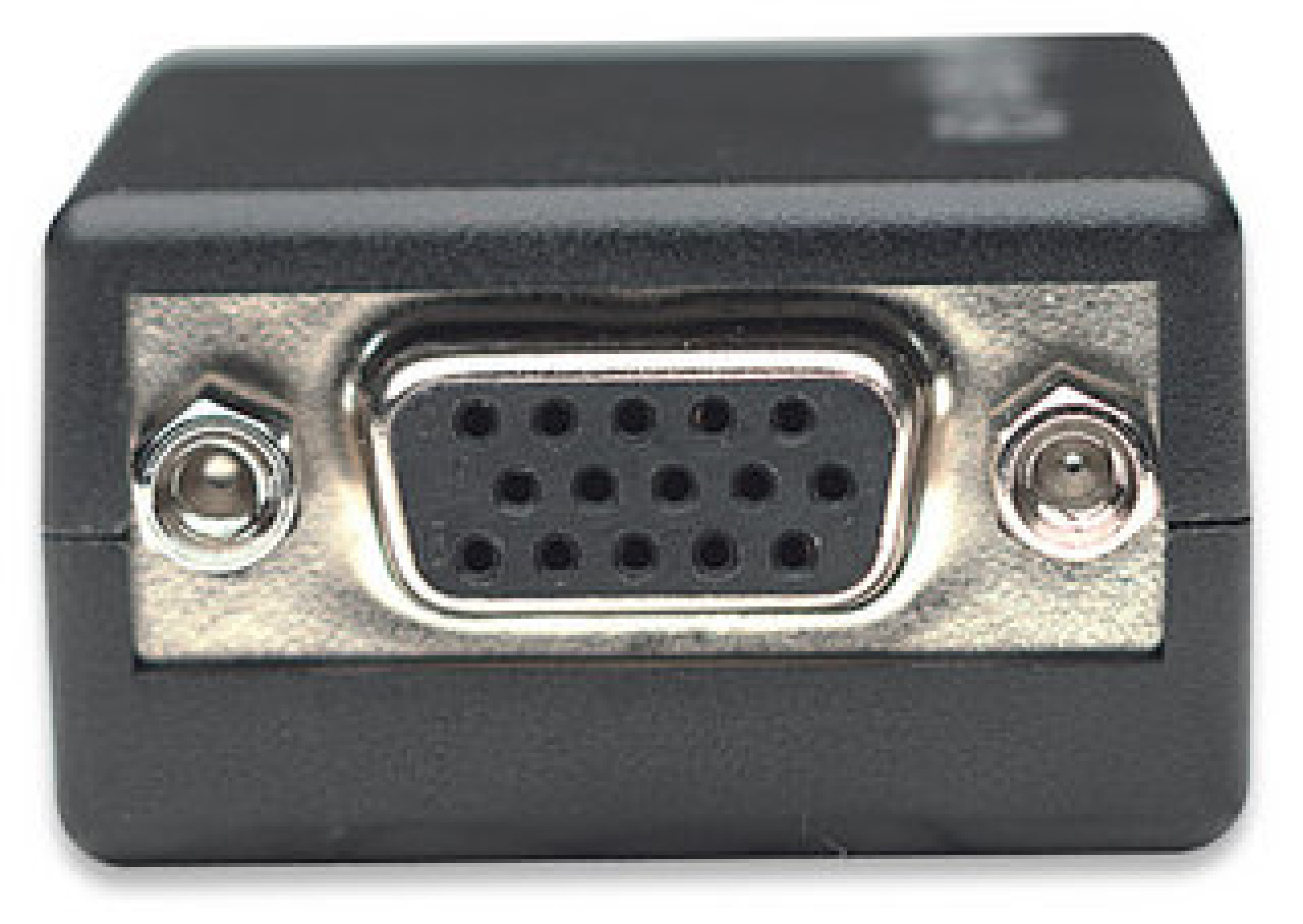

• 1x 15-pin HD female
• Contact material: Nickel
General information
• Power supply: +3.3 V (of DisplayPort source)
• Operating Power Consumption: 1.4 W; Standby Power Consumption: 100 mW
• EDID (VGA EDID conversion)
Input / Output Signal
• Single link range, 1920 x 1200, 1080p (max.)
• Supports VGA, 1920 x 1200 (max.)
• Analog video output (RGB)
• Video resolution up to 1920 x 1200 (WUXGA-R) / 60 Hz, 8 bpc; 154 MHz
• Supports bandwidth up to 10.8 Gbps
• Supports color depth, 8-bit and 10-bit
• Workflow: DisplayPort to VGA
• Amplifier bandwidth video, 8 bpc to 10 bpc
Operating Frequency
• Frequency, 154 MHz / 144 MHz
• Vertical Extension, 60 Hz
General Information
• Operating Temperature: 0°C to 70°C
• Storage temperature: -10°C to 80°C
• Operating humidity: 10% to 85% relative humidity (non-condensing)
• Storage humidity: 5% to 90% relative humidity (non-condensing)
Physical Information
• Plastic housing
• Cable length: 70 mm
Package Contents
• 1x Cable DisplayPort to VGA
• Provides a high-quality digital video signal - ideal for extending the life of the old devices with VGA connection
• Supports color depth, applications with high frequency band to 10.8 Gbps and resolutions up to 1080p monitor 1920 x 1200 (WUXGA)
• Plug and Play
• Compatible with Windows and Mac
Standards and Certifications
• FCC
• EC
• DisplayPort 1.1
Connections
• 1x DisplayPort 20-pin male
• 1x 15-pin HD female
• Contact material: Nickel
General information
• Power supply: +3.3 V (of DisplayPort source)
• Operating Power Consumption: 1.4 W; Standby Power Consumption: 100 mW
• EDID (VGA EDID conversion)
Input / Output Signal
• Single link range, 1920 x 1200, 1080p (max.)
• Supports VGA, 1920 x 1200 (max.)
• Analog video output (RGB)
• Video resolution up to 1920 x 1200 (WUXGA-R) / 60 Hz, 8 bpc; 154 MHz
• Supports bandwidth up to 10.8 Gbps
• Supports color depth, 8-bit and 10-bit
• Workflow: DisplayPort to VGA
• Amplifier bandwidth video, 8 bpc to 10 bpc
Operating Frequency
• Frequency, 154 MHz / 144 MHz
• Vertical Extension, 60 Hz
General Information
• Operating Temperature: 0°C to 70°C
• Storage temperature: -10°C to 80°C
• Operating humidity: 10% to 85% relative humidity (non-condensing)
• Storage humidity: 5% to 90% relative humidity (non-condensing)
Physical Information
• Plastic housing
• Cable length: 70 mm
Package Contents
• 1x Cable DisplayPort to VGA
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
