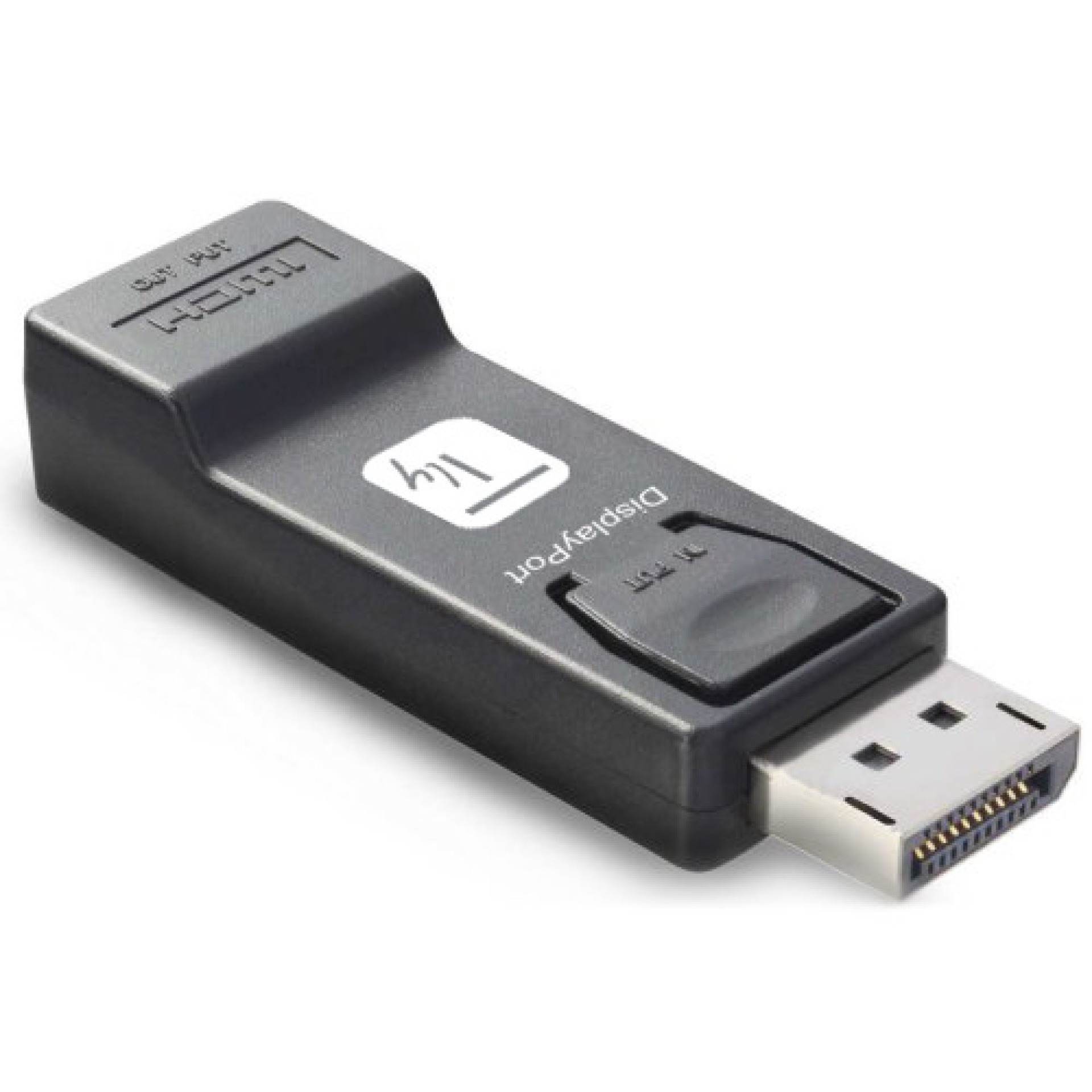

Adapter - DisplayPort1.2 Plug to HDMI Jack, 4K 30Hz
Adapter - DisplayPort1.2 Plug to HDMI Jack, 4K 30Hz
Varenummer:
IADAP-DSP-2124K3
EAN Nr.:
8051128109337
Produktinformation til Adapter - DisplayPort1.2 Plug to HDMI Jack, 4K 30Hz
IADAP DSP-2124K3 is a converter from DisplayPort 1.2 to HDMI signal.
Allows you to connect HDMI devices to the DP output of your computer, notebook or Mac with UHD quality.
Technical specifications
Supports DisplayPort1.2
AC coupling capable of moving the level
Supports DisplayPort 1.2a input and HDMI1.4b output
Supports 4K X 2K and 3D video formats over HDMI
Supports multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4: 4: 4, YCbCr4: 2: 2, 8/10 / 12bpc
Compliant with HDMI 1.4b specifications up to 3.0 Gbps
Supports 1080p deep color 10/12 bit up to 2.25 Gbps
Black colour
Size
Length: 58.6mm
Width: 22.5 mm
Height: 14.0 mm
Package contents
HDMI DP converter
Allows you to connect HDMI devices to the DP output of your computer, notebook or Mac with UHD quality.
Technical specifications
Supports DisplayPort1.2
AC coupling capable of moving the level
Supports DisplayPort 1.2a input and HDMI1.4b output
Supports 4K X 2K and 3D video formats over HDMI
Supports multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4: 4: 4, YCbCr4: 2: 2, 8/10 / 12bpc
Compliant with HDMI 1.4b specifications up to 3.0 Gbps
Supports 1080p deep color 10/12 bit up to 2.25 Gbps
Black colour
Size
Length: 58.6mm
Width: 22.5 mm
Height: 14.0 mm
Package contents
HDMI DP converter
Tekniske egenskaber
| Connection 1: | DisplayPort (DP) |
|---|---|
| Connection 2: | HDMI (HDMI-A) |
| Connection type connection 1: | plug |
| Connection type connection 2: | jack |
| Screened: | True |
| With terminal resistor: | True |
