Adapter LC/APC SM one piece, with internal Shutter
Adapter LC/APC Duplex OS2 green with shutter
Varenummer:
53343.32
EAN Nr.:
4049759225711

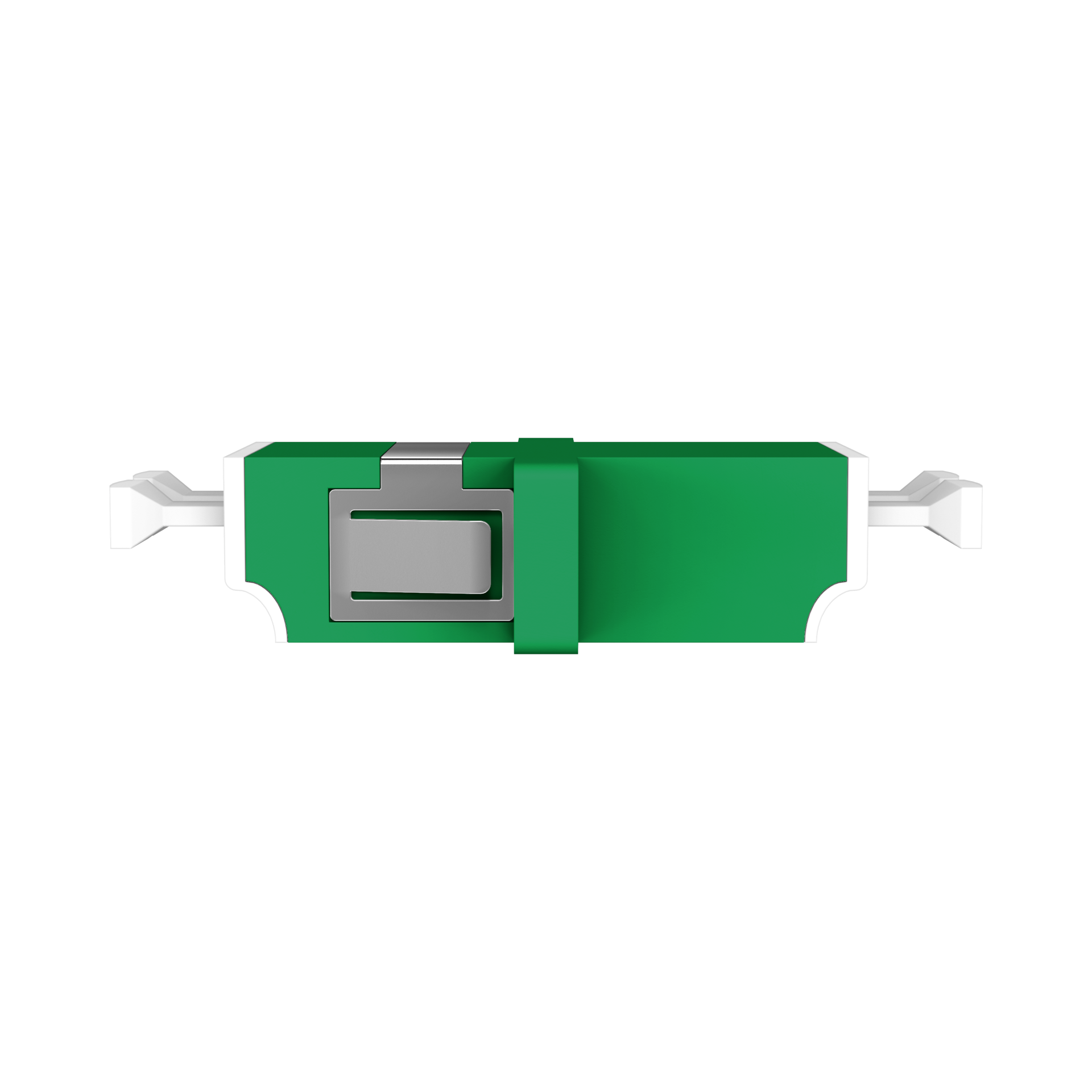

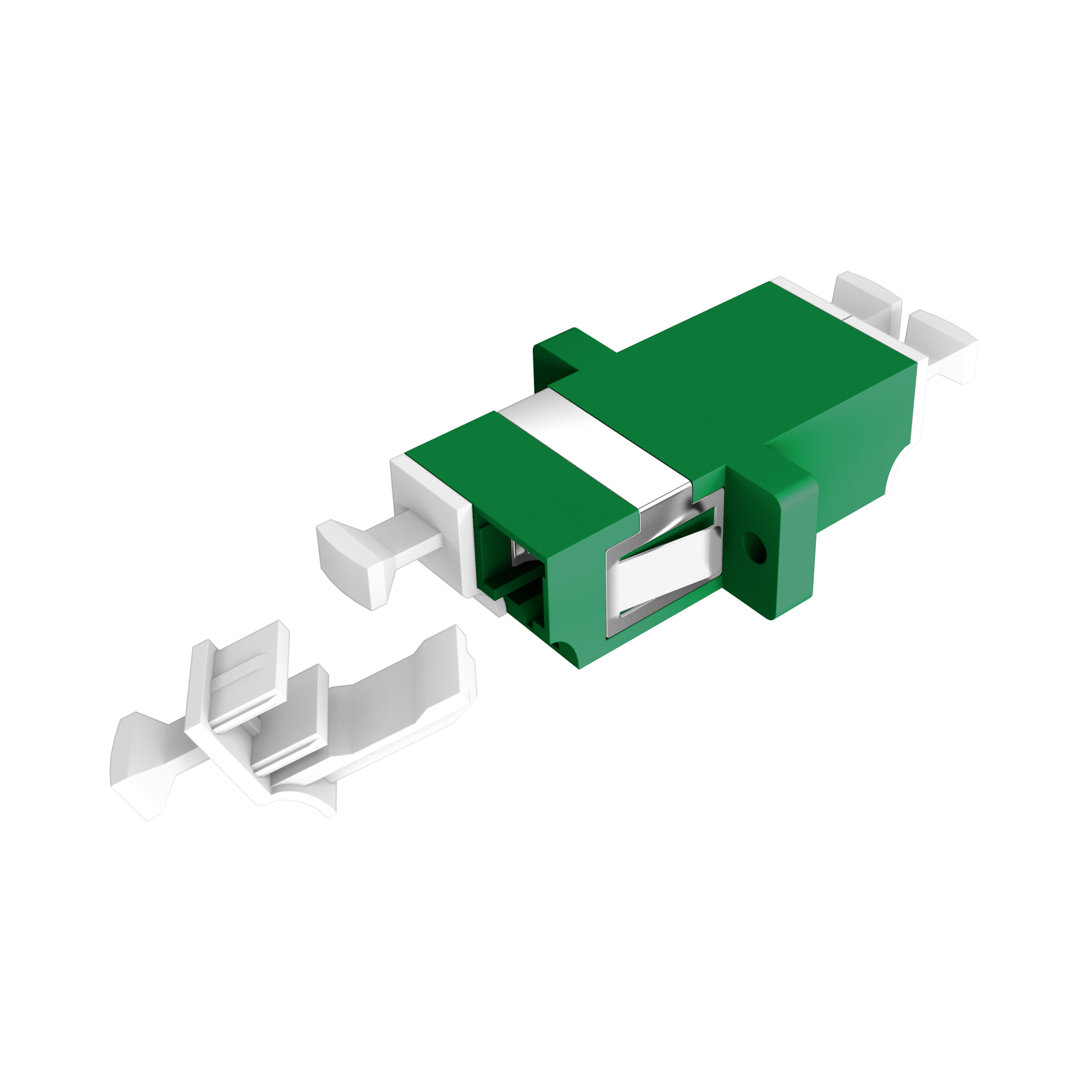

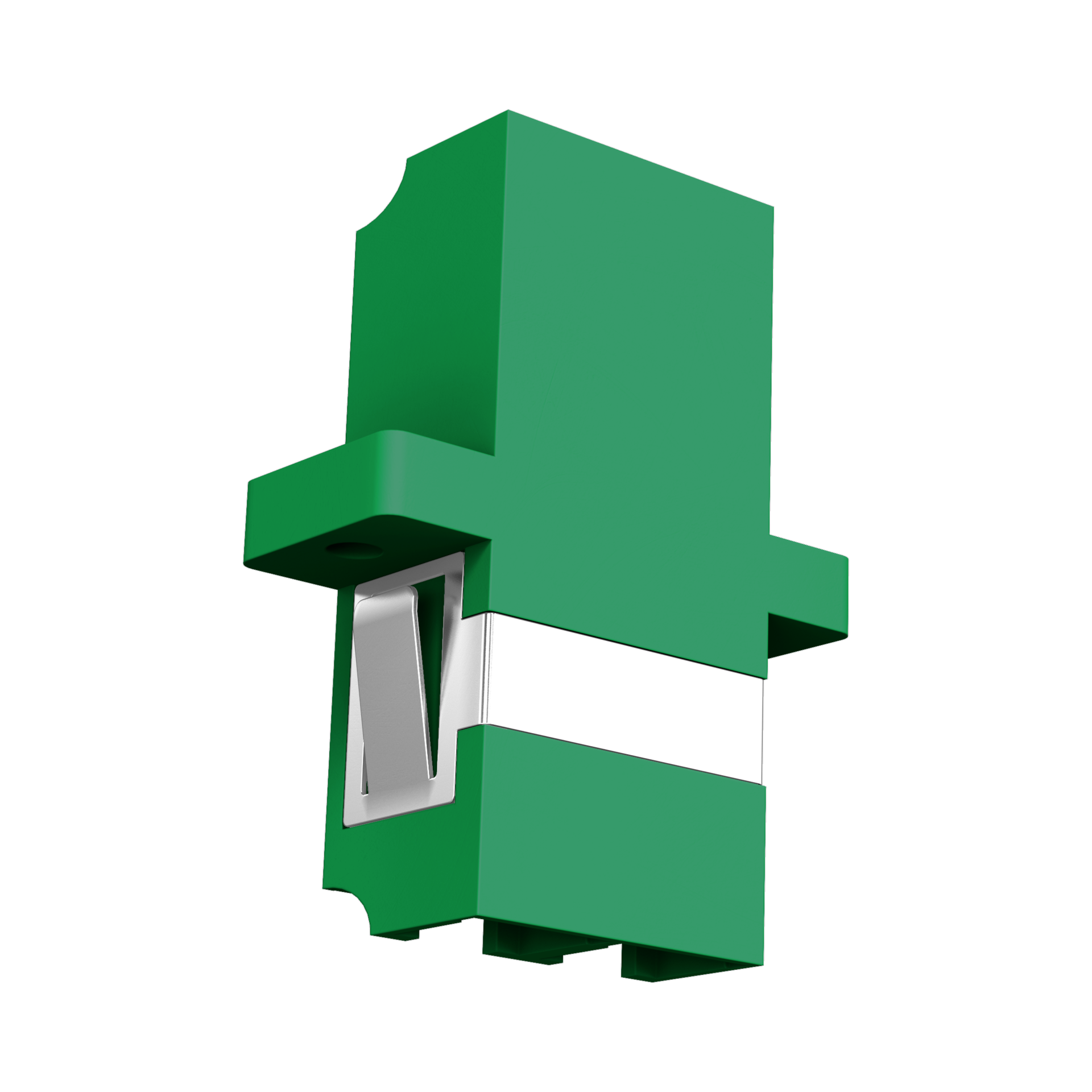

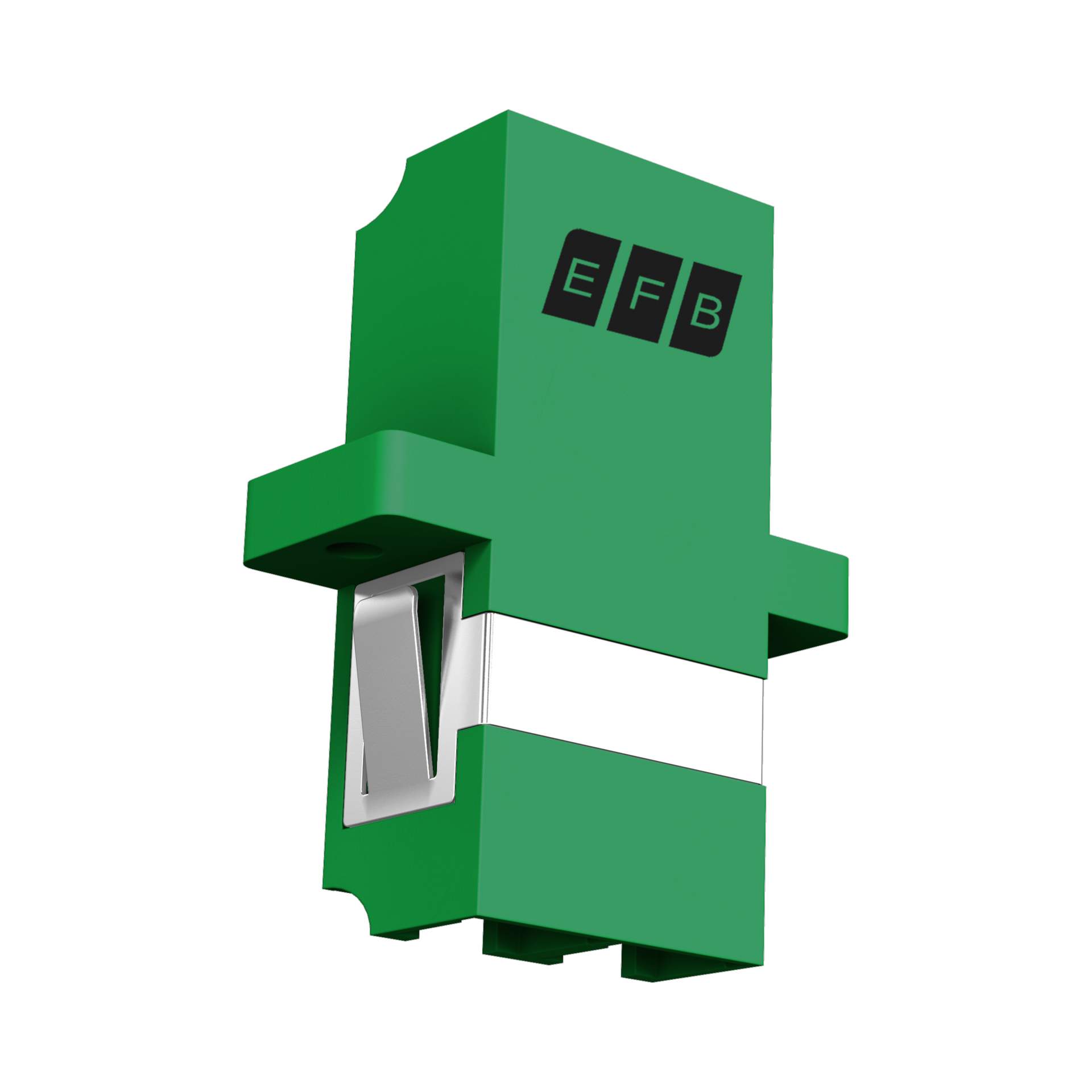

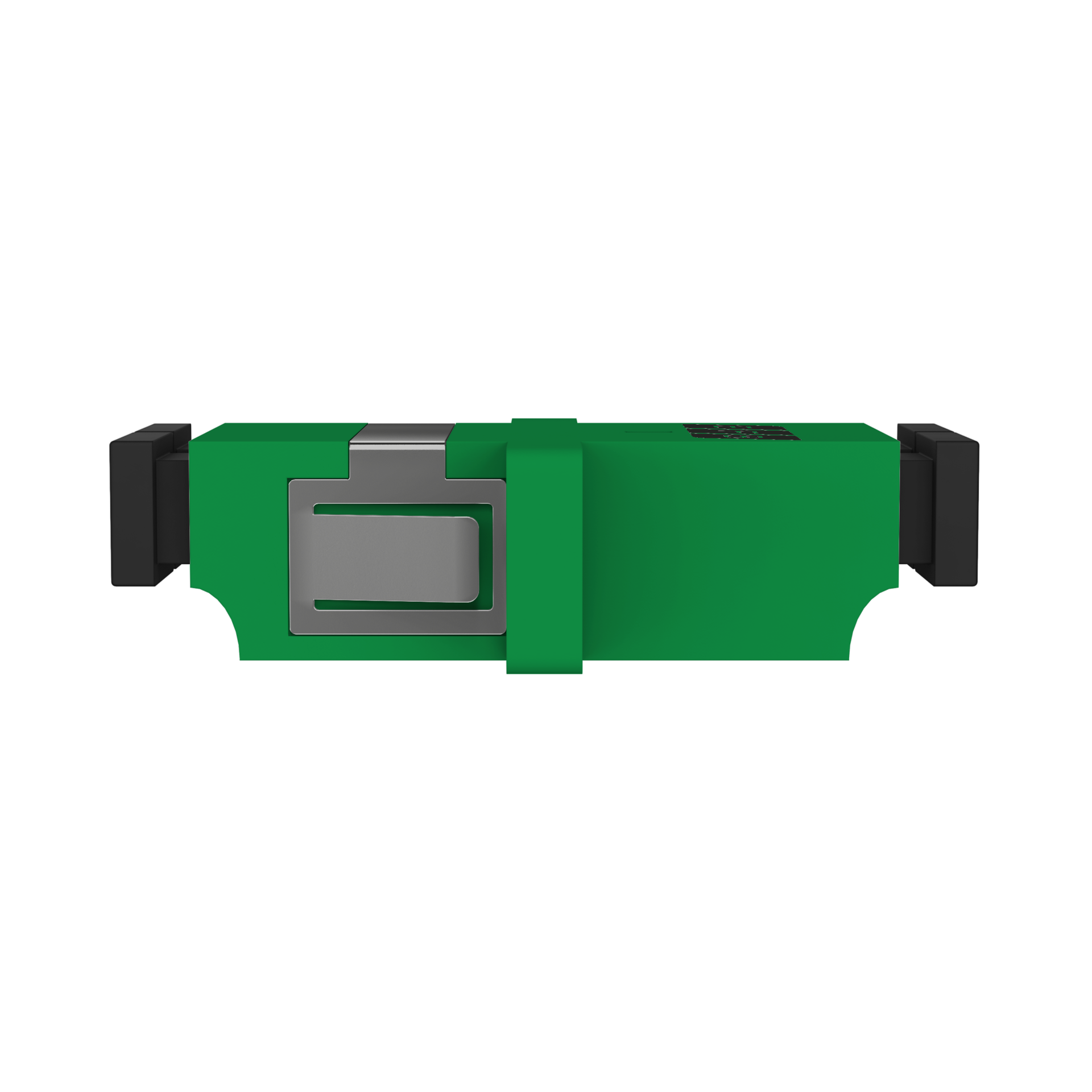

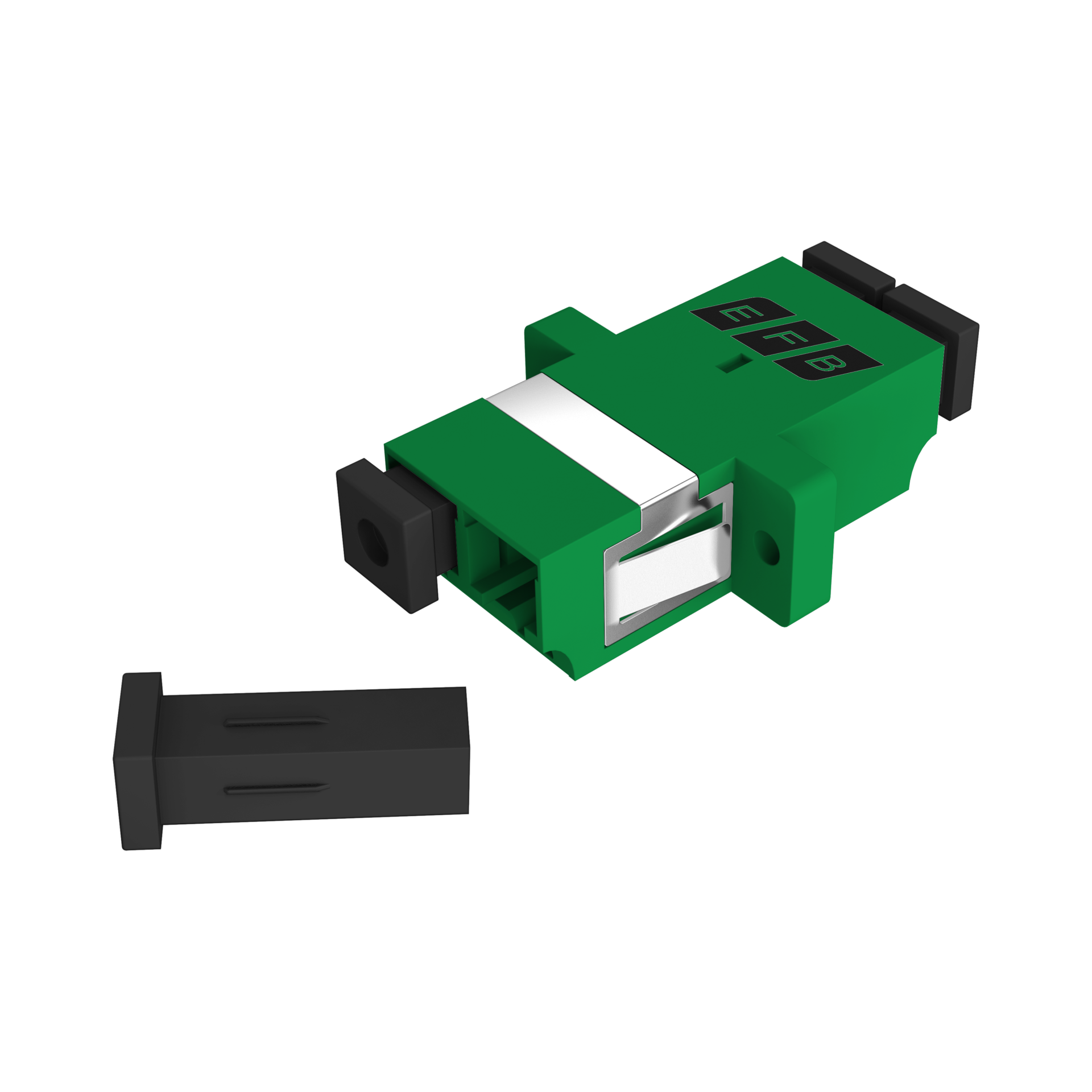

Produktinformation til Adapter LC/APC Duplex OS2 green with shutter
LC adapters in coloured plastic housing. Suitable for SC-Simplex cut-outs. The couplings are equipped with an internal laser shutter. Fastening options via clips, also via sheet metal or threaded screws these are available as accessories.
Tekniske egenskaber
| Accessories: | Self-Tapping Screw |
|---|---|
| Conform to Standard: | IEC61754-20 |
| Construction type: | SC-Simplex |
| Dust cover: | true |
| Height: | 9.5 mm |
| Internal Shutter: | True |
| Length: | 29.2 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating temperature: | -25 – 70 °C |
| Storage Temperature: | -40 – 85 °C |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of fastening: | Screw/snap in |
| Type of housing: | With flange |
| Width: | 22.0 mm |
