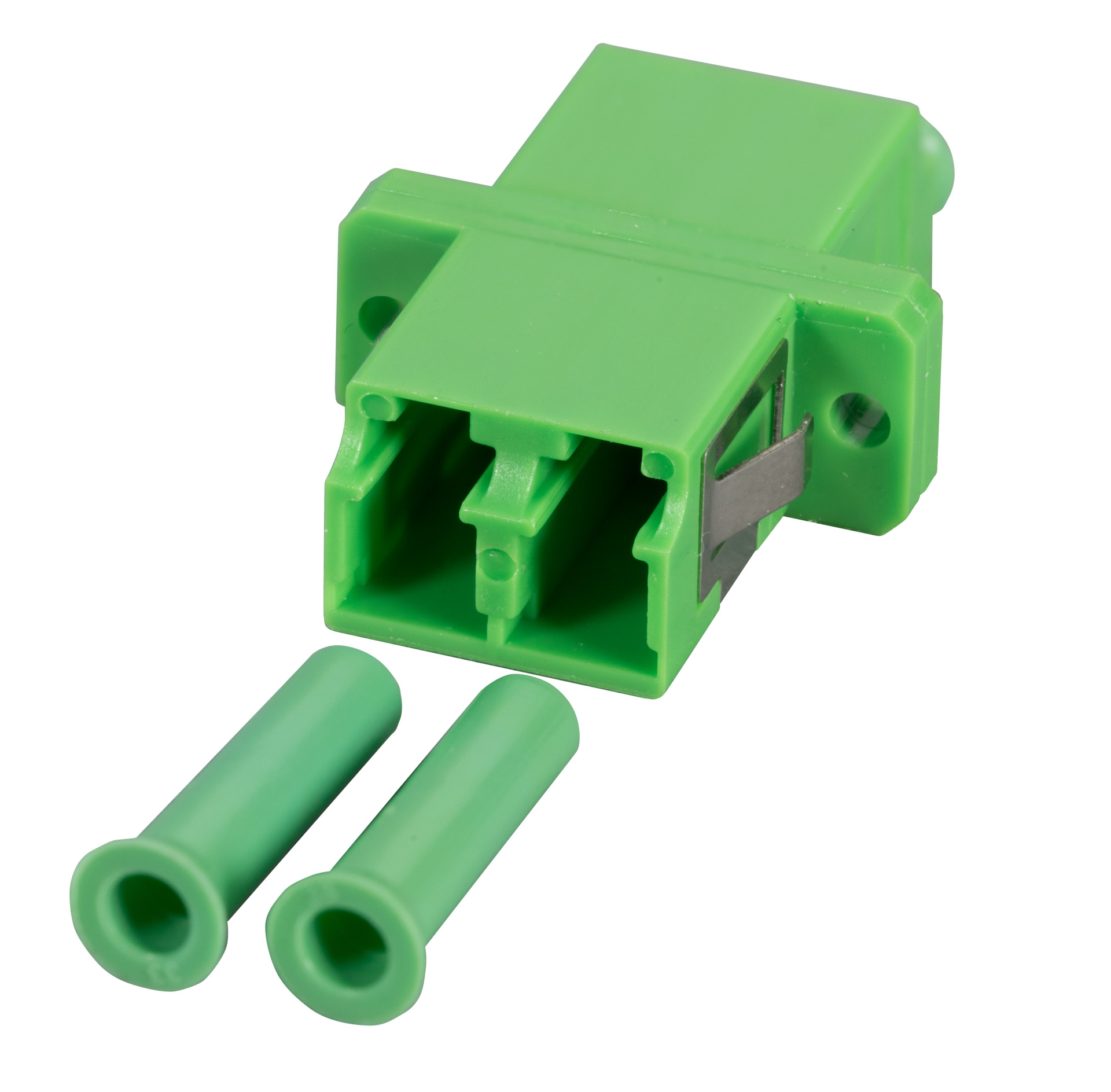

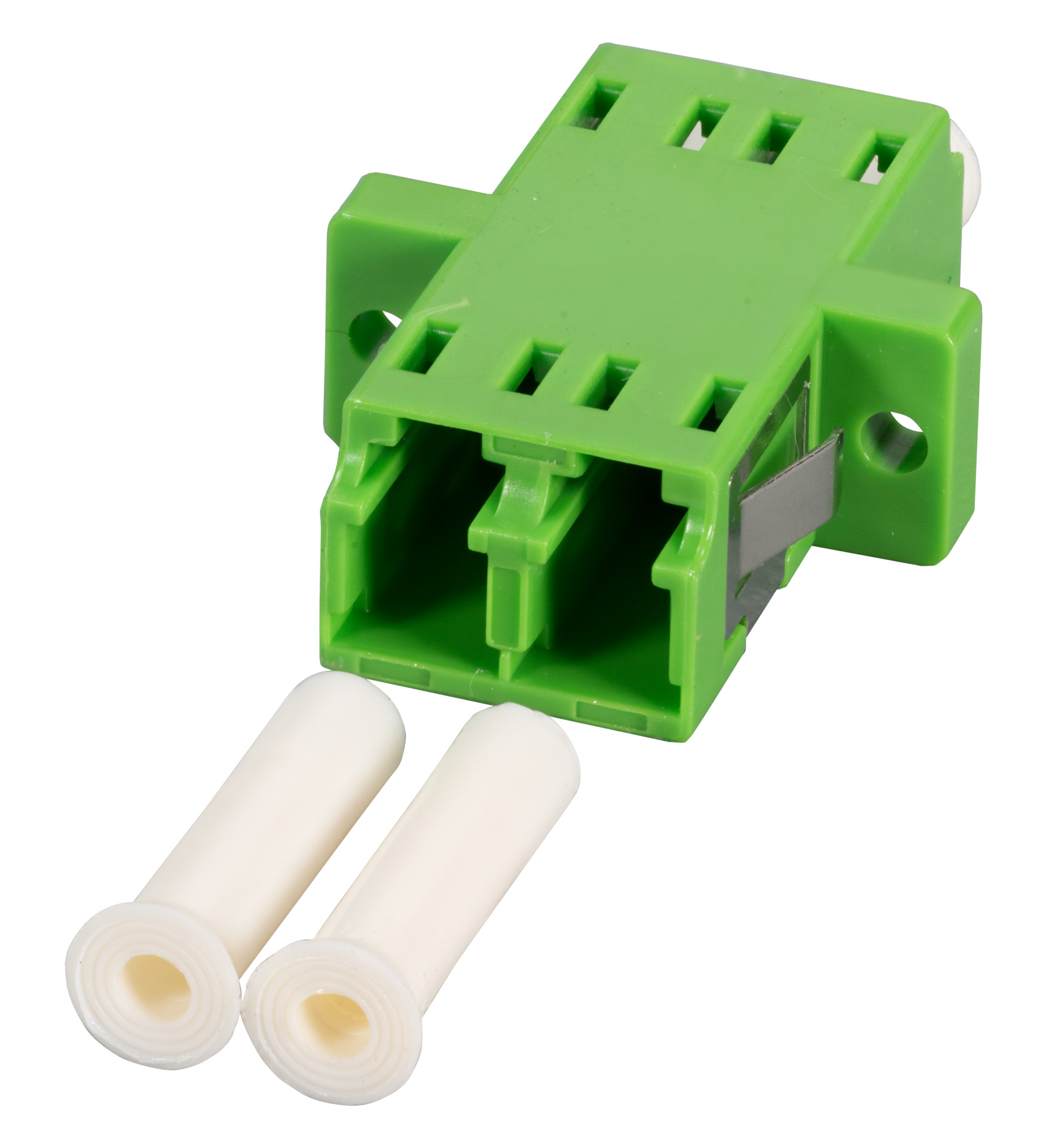

LC Duplex Adapter with Plastic Housing
Adapter LC Duplex OM5 one piece, lime green, ceramic sleeve, SC Simplex
Varenummer:
53334.1OM5
EAN Nr.:
4049759180218
Produktinformationen für Adapter LC Duplex OM5 one piece, lime green, ceramic sleeve, SC Simplex
LC Duplex Adapter with Plastic Housing. breakout SC-simplex. with snap-in fixing.
Technische Eigenschaften
| Accessories: | Self-Tapping Screw |
|---|---|
| Conform to Standard: | IEC61754-20 |
| Design: | SC-Simplex |
| Dust cover: | True |
| Height: | 9.3 mm |
| Insertion loss 1310nm: | - |
| Internal Shutter: | False |
| Length: | 29.2 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating Temperature: | -40 – 75 °C |
| Storage Temperature: | -40 – 85 °C |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of fastening: | Screw/snap in |
| Type of housing: | With flange |
| Width: | 22.0 mm |
Varianten
| Art. Nr. | Bezeichnung | Model | Suitable for type of fibre | Insertion loss 1310nm | Insertion loss 850nm | Colour | Category | |
|---|---|---|---|---|---|---|---|---|
| 53334.1OM5 | Adapter LC Duplex OM5 one piece, lime green, ceramic sleeve, SC Simplex | LC/PC | Multi mode | - | < 0.15 dB | lime green | OM5 | |
| 53334.1 | Adapter LC Duplex OM4 one piece, erica violet, ceramic sleeve, SC Simplex | LC/PC | Multi mode | - | < 0.15 dB | erica-violet | OM4 | |
| 53357.31 | Adapter LC Duplex OM3 one piece, aqua, ceramic sleeve, SC Simplex | LC/PC | Multi mode | - | < 0.15 dB | aqua | OM3 | |
| 53348.32 | Adapter LC Duplex OM1/2 one piece, beige, ceramic sleeve, SC Simplex | LC/PC | Multi mode | - | < 0.15 dB | beige | OM2 | |
| 53350.31 | Adapter LC Duplex SM one piece, blue, ceramic sleeve, SC Simplex | LC/PC | Single mode | < 0.15 dB | - | blue | OS2 | |
| 53343.31 | Adapter LC/APC Duplex SM one piece, green, ceramic sleeve, SC Simplex | LC/APC | Single mode | < 0.15 dB | - | green | OS2 |
