Adapter LC Quad OM4 erica violet

Produktinformation til Adapter LC Quad OM4 erica violet

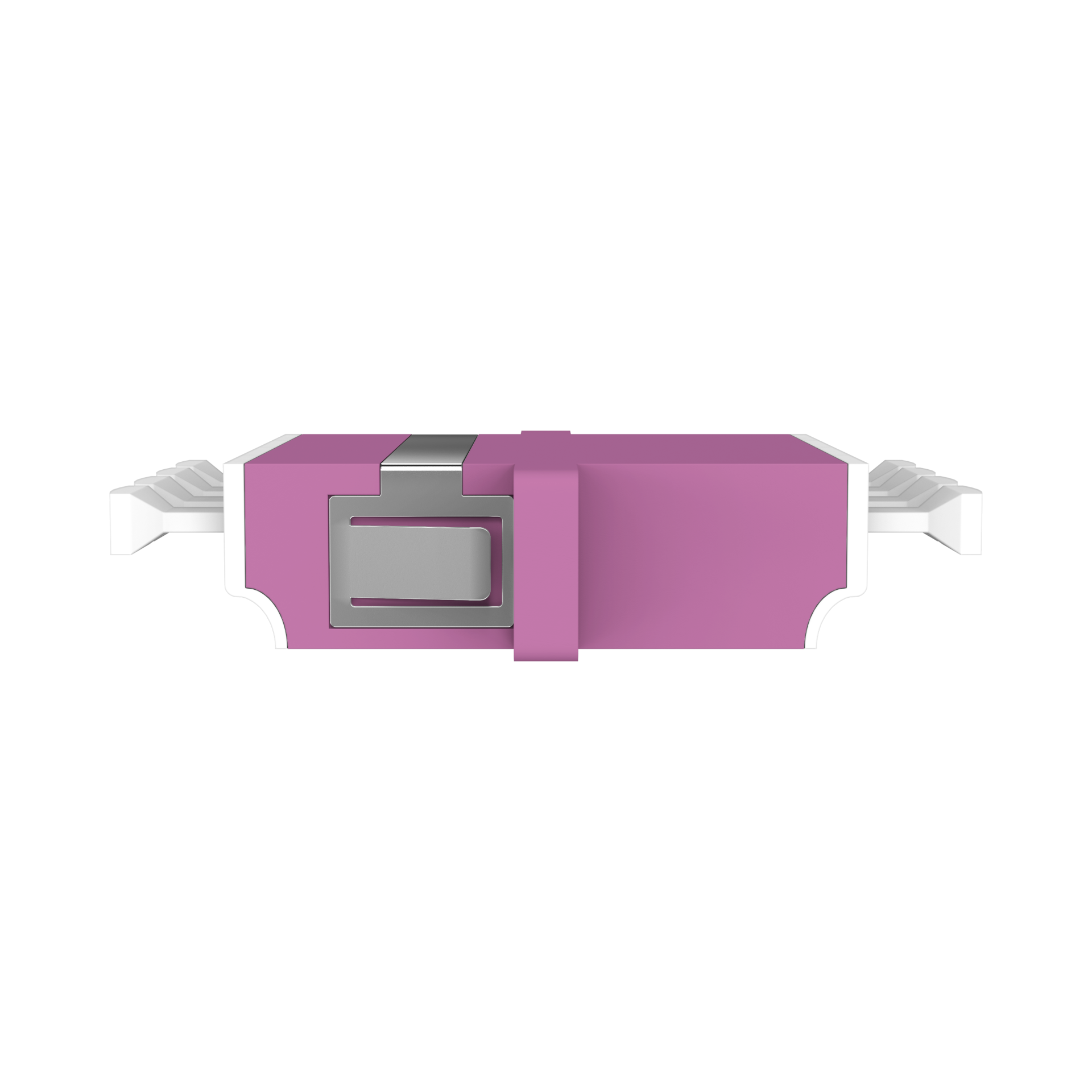

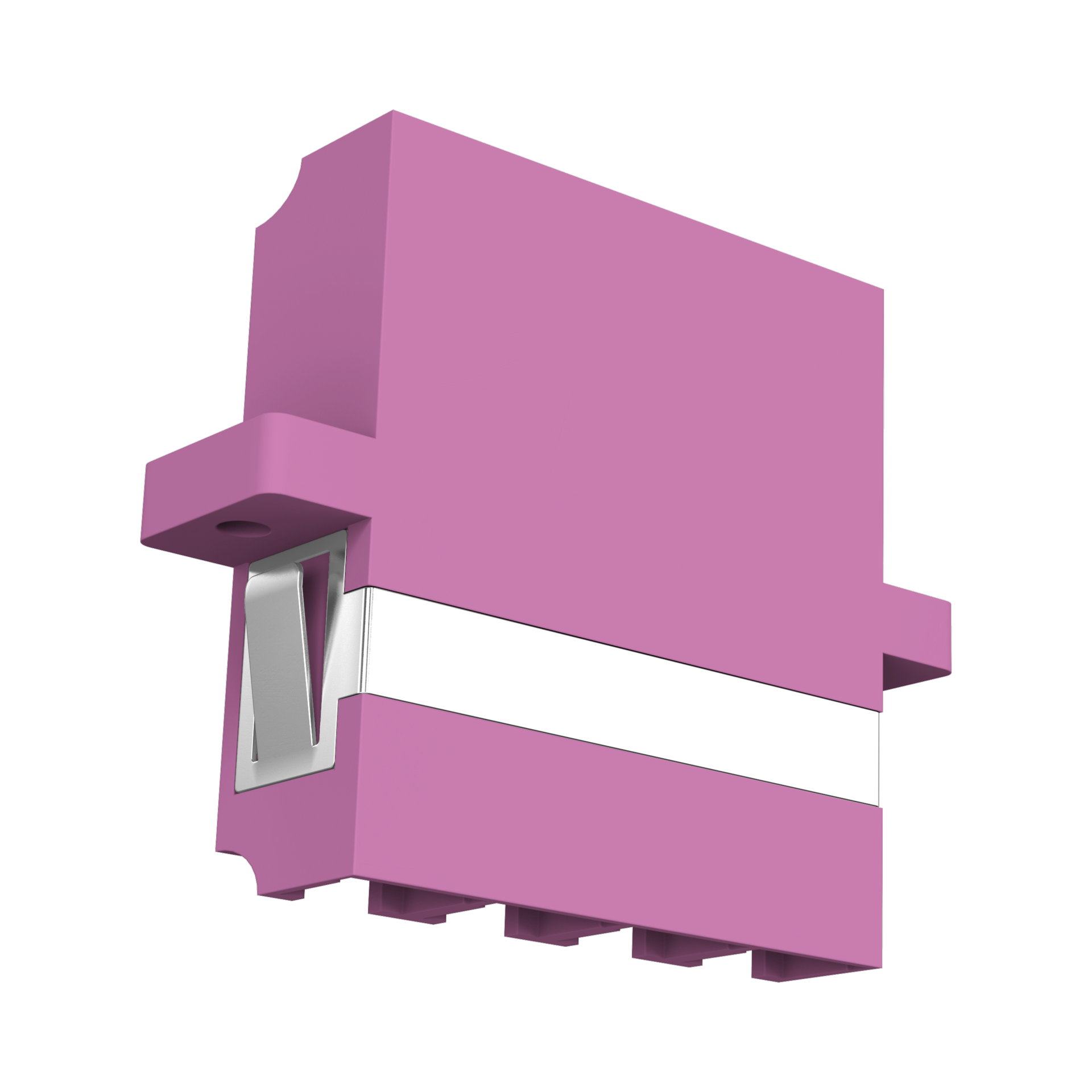

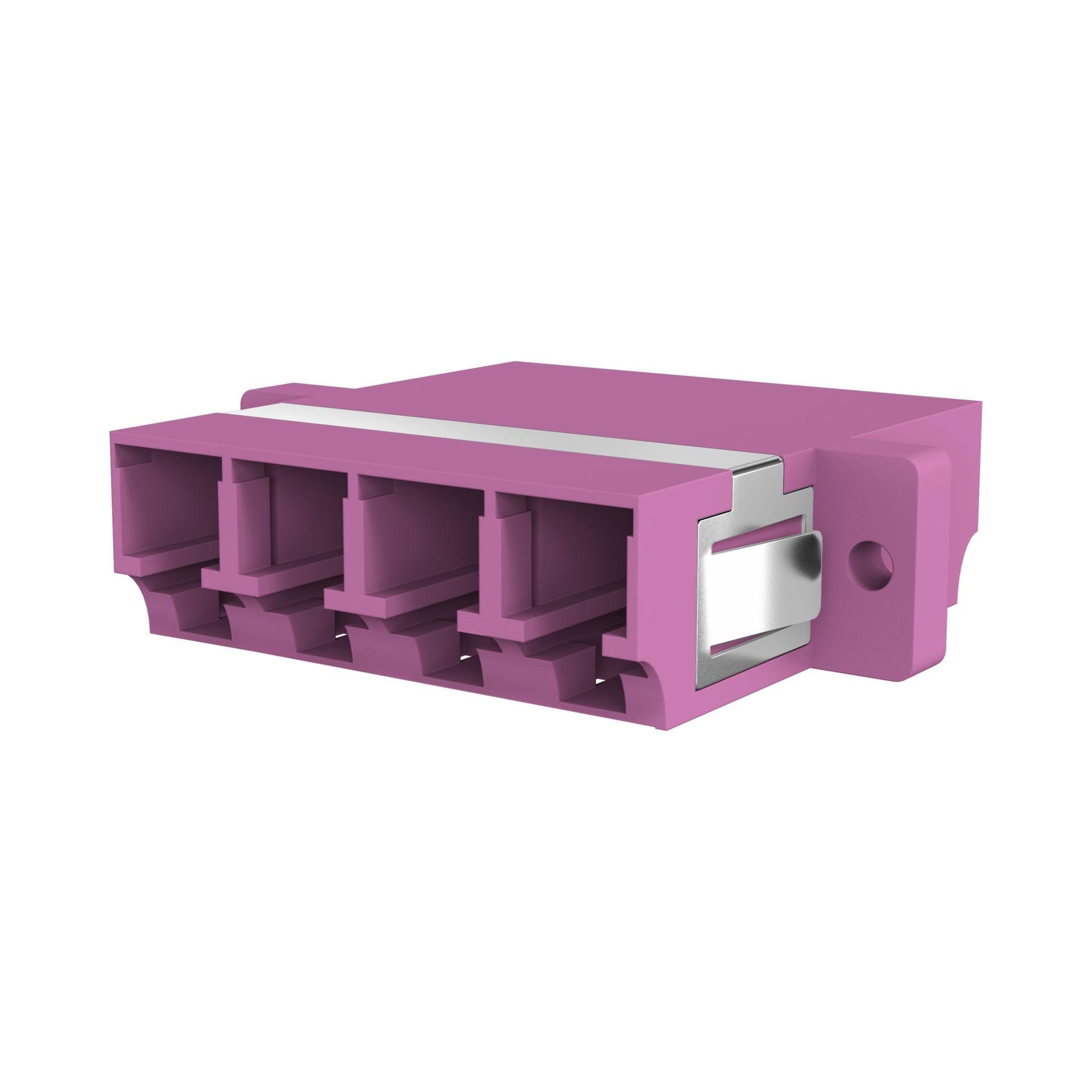

The precision-engineered LC-Quad Connector from EFB-Elektronik connects LC-Quad connectors in multimode installations and is designed for OM4 category applications. The plastic housing with ceramic sleeve is designed for reliable and stable integration in the installation environment.

• LC Quad Connectors on Both Sides – Enable precise connection of compatible fibre links in multimode installations.
• Designed for OM4 multimode – Supports applications with high-bandwidth and long-range transmission technology.

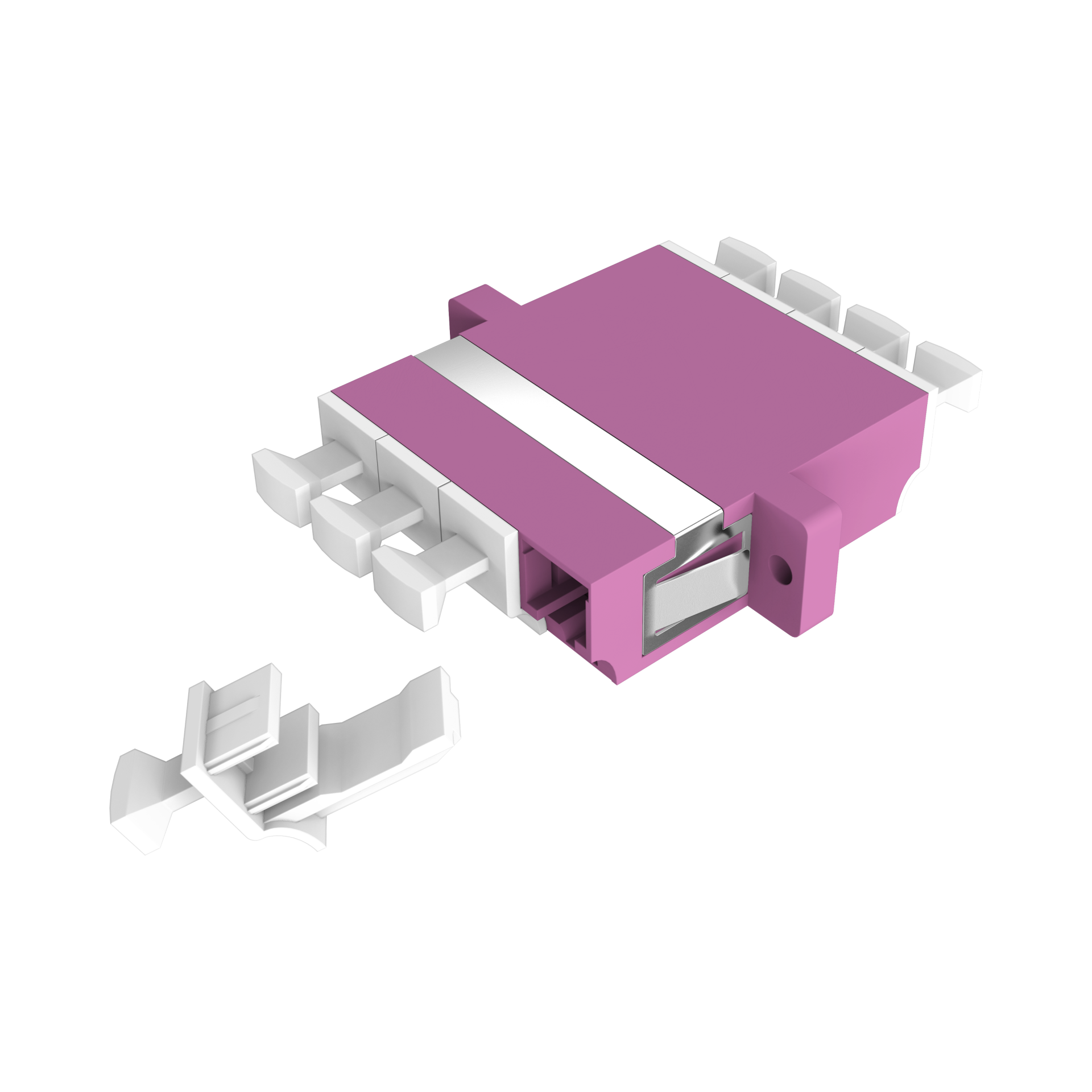

• Plastic housing with flange, ceramic sleeve and dust cap – Ensures a robust design and facilitates visual assignment due to the heather-violet colour with white dust protection paint.

The LC Quad coupling is designed for a secure and precise plug-in connection. The latch lock and screw or snap-in fastening allow for easy integration into matching front panels and housings. The flanged housing and dust cap increase practicality, while the ceramic sleeve supports clean connection guidance.

Technical details
• Brand: EFB-Elektronik
• Finish: LC
• Connector type Connector 1: LC-Quad
• Connector type Connector 2: LC-Quad
• Category: OM4
• Suitable for fibre type: Multimode
• Design: SC duplex
• Colour: heather-violet
• Colour dust cover: white
• Sleeve material: ceramic
• Housing material: plastic
• Housing design: Flanged
• Locking type: Latching Lock
• Mounting type: Screw, Snap-in
• Dust cap: Yes
• Scope of delivery: 1 coupling, 2 screws
• Accessories: Self-tapping screw
Accessories: Self-Tapping Screw
Colour Dust Cover: White
Conform to Standard: IEC61754-20
Construction type: SC-Duplex
Dust cover: True

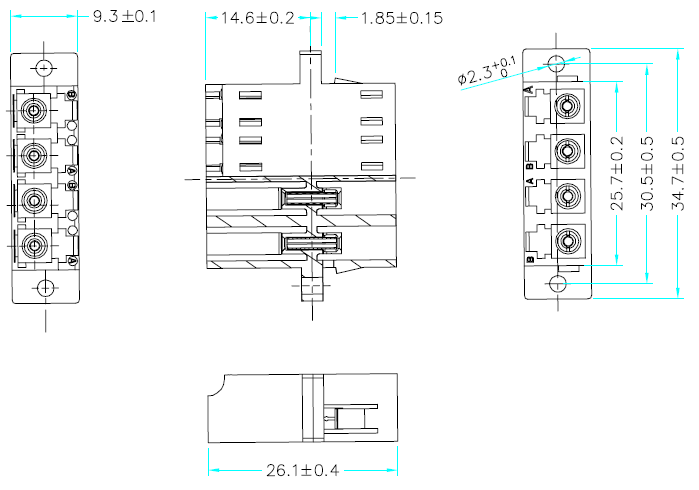

Height: 9.3 mm
Internal Shutter: False
Length: 29.2 mm
Material housing: Plastic
Material sleeve: Ceramics
Operating temperature: -40 – 75 °C
Packaging: Polybag
Scope of deliveryLieferumfang: 1 coupling, 2 screws
Storage Temperature: -40 – 85 °C
Type of connector connection 1: LC-quad
Type of connector connection 2: LC-quad
Type of fastening: Screw/snap in
Type of housing: With flange
Type of locking: Latching mechanism
Width: 34.8 mm

Tekniske egenskaber

Accessories: Self-Tapping Screw
Colour Dust Cover: White
Conform to Standard: IEC61754-20
Construction type: SC-Duplex
Dust cover: True
Height: 9.3 mm
Internal Shutter: False
Length: 29.2 mm
Material housing: Plastic
Material sleeve: Ceramics
Operating temperature: -40 – 75 °C
Packaging: Polybag
Scope of deliveryLieferumfang: 1 coupling, 2 screws
Storage Temperature: -40 – 85 °C
Type of connector connection 1: LC-quad
Type of connector connection 2: LC-quad
Type of fastening: Screw/snap in
Type of housing: With flange
Type of locking: Latching mechanism
Width: 34.8 mm

Produktinformation til Adapter LC Quad OM4 erica violet

The precision-engineered LC-Quad Connector from EFB-Elektronik connects LC-Quad connectors in multimode installations and is designed for OM4 category applications. The plastic housing with ceramic sleeve is designed for reliable and stable integration in the installation environment.

• LC Quad Connectors on Both Sides – Enable precise connection of compatible fibre links in multimode installations.
• Designed for OM4 multimode – Supports applications with high-bandwidth and long-range transmission technology.
• Plastic housing with flange, ceramic sleeve and dust cap – Ensures a robust design and facilitates visual assignment due to the heather-violet colour with white dust protection paint.

The LC Quad coupling is designed for a secure and precise plug-in connection. The latch lock and screw or snap-in fastening allow for easy integration into matching front panels and housings. The flanged housing and dust cap increase practicality, while the ceramic sleeve supports clean connection guidance.

Technical details
• Brand: EFB-Elektronik
• Finish: LC
• Connector type Connector 1: LC-Quad
• Connector type Connector 2: LC-Quad
• Category: OM4
• Suitable for fibre type: Multimode
• Design: SC duplex
• Colour: heather-violet
• Colour dust cover: white
• Sleeve material: ceramic
• Housing material: plastic
• Housing design: Flanged
• Locking type: Latching Lock
• Mounting type: Screw, Snap-in
• Dust cap: Yes
• Scope of delivery: 1 coupling, 2 screws
• Accessories: Self-tapping screw
Accessories: Self-Tapping Screw
Colour Dust Cover: White
Conform to Standard: IEC61754-20
Construction type: SC-Duplex
Dust cover: True
Height: 9.3 mm
Internal Shutter: False
Length: 29.2 mm
Material housing: Plastic
Material sleeve: Ceramics
Operating temperature: -40 – 75 °C
Packaging: Polybag
Scope of deliveryLieferumfang: 1 coupling, 2 screws
Storage Temperature: -40 – 85 °C
Type of connector connection 1: LC-quad
Type of connector connection 2: LC-quad
Type of fastening: Screw/snap in
Type of housing: With flange
Type of locking: Latching mechanism
Width: 34.8 mm

Accessories: Self-Tapping Screw
Colour Dust Cover: White
Conform to Standard: IEC61754-20
Construction type: SC-Duplex
Dust cover: True
Height: 9.3 mm
Internal Shutter: False
Length: 29.2 mm
Material housing: Plastic
Material sleeve: Ceramics
Operating temperature: -40 – 75 °C
Packaging: Polybag
Scope of deliveryLieferumfang: 1 coupling, 2 screws
Storage Temperature: -40 – 85 °C
Type of connector connection 1: LC-quad
Type of connector connection 2: LC-quad
Type of fastening: Screw/snap in
Type of housing: With flange
Type of locking: Latching mechanism
Width: 34.8 mm
