Adapter - Mini DisplayPort to HDMI/VGA
Adapter - Mini DisplayPort to HDMI/VGA
Varenummer:
IADAP-MDP-VGAH12
EAN Nr.:
8051128102079
Produktinformation til Adapter - Mini DisplayPort to HDMI/VGA

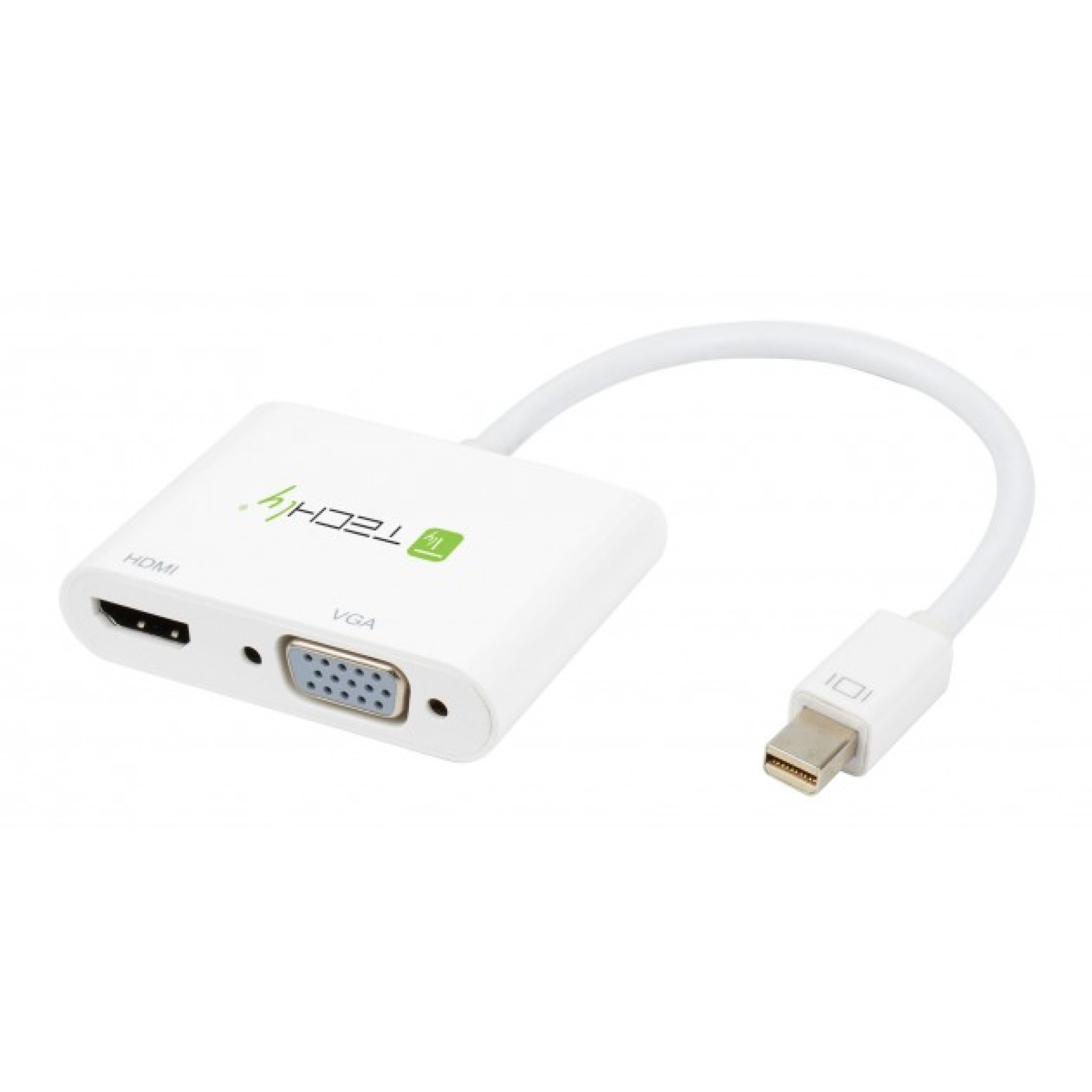

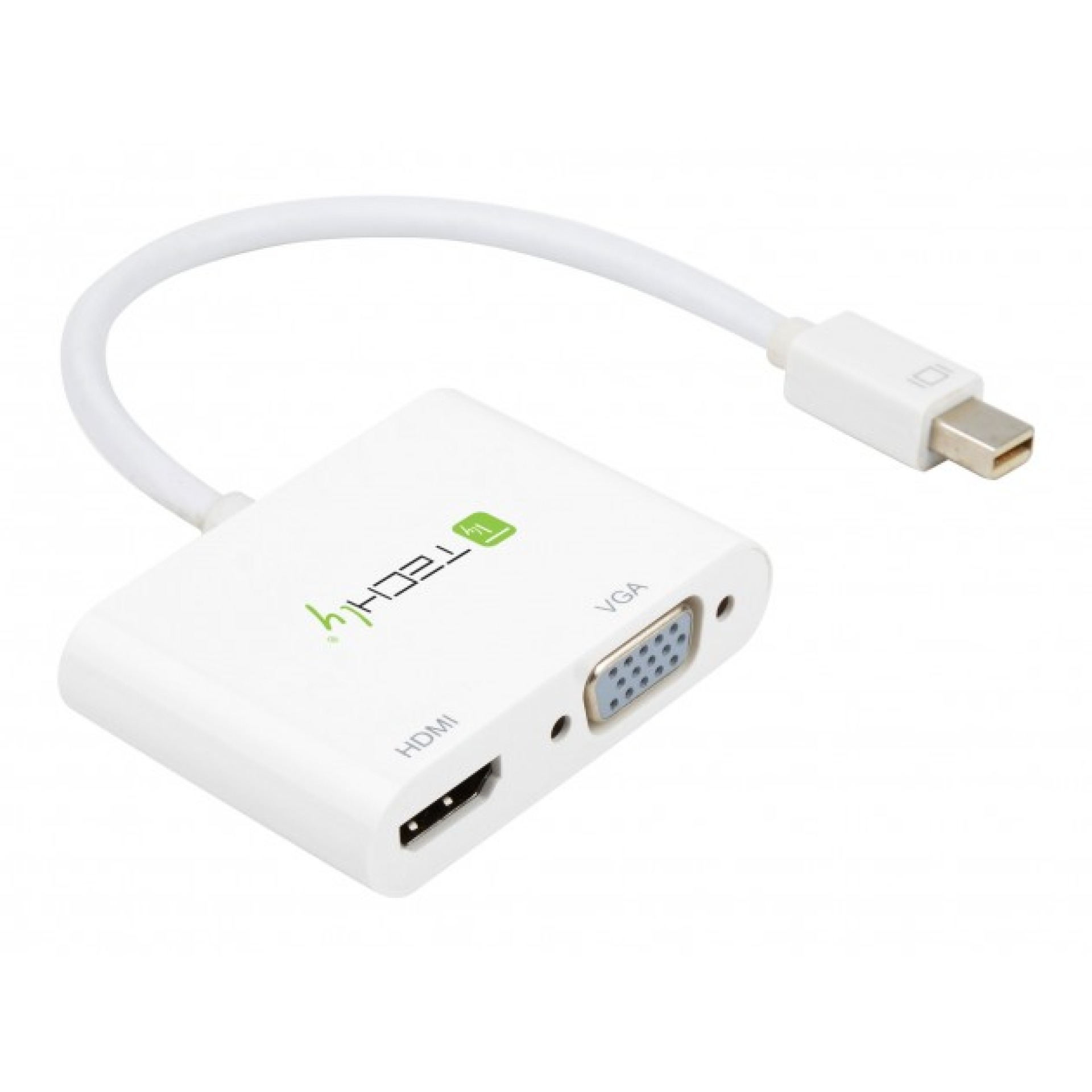

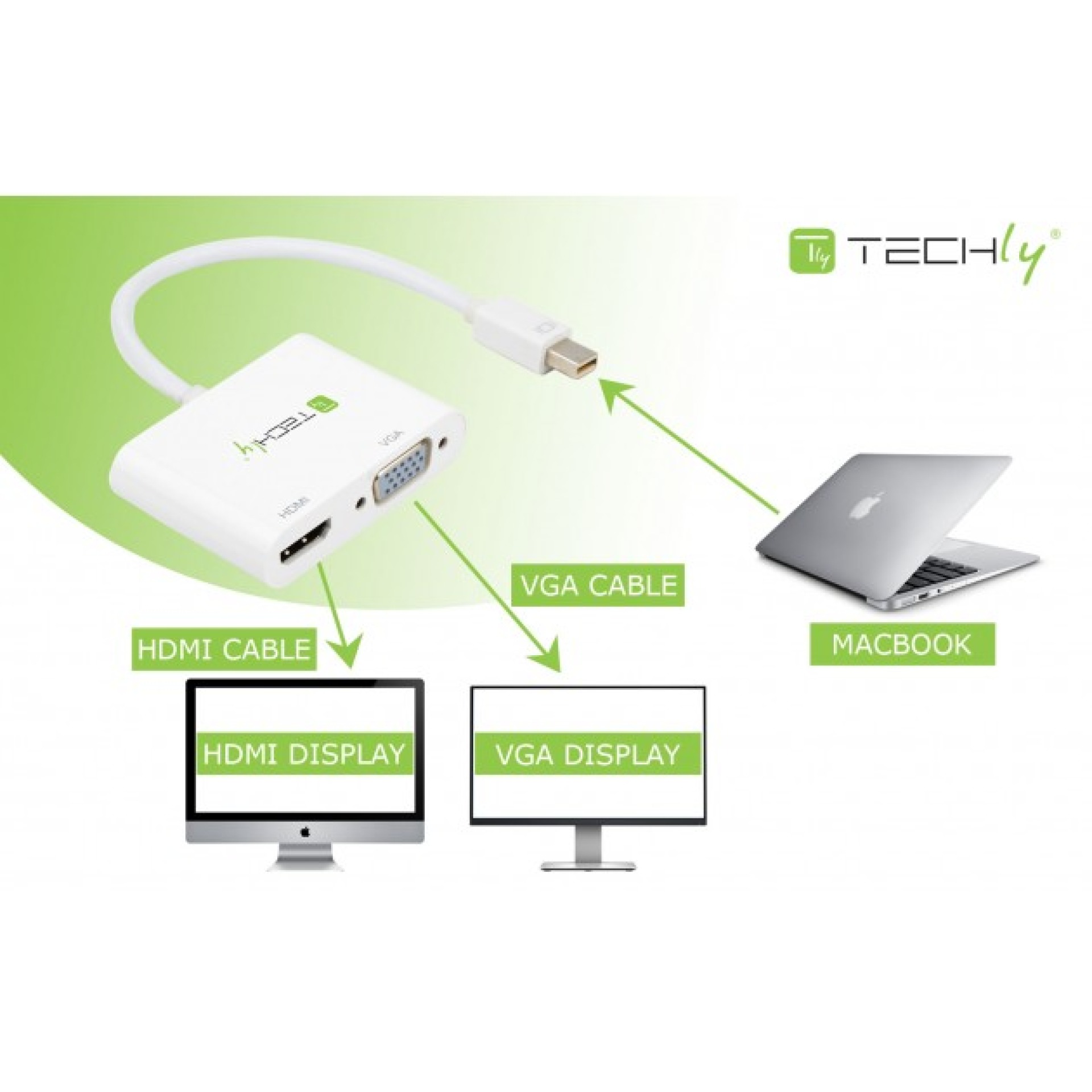

IADAP-MDP-VGAH12 is an Adapter from Mini DisplayPort to HDMI and VGA. It allows you to transmit signals from a Mini DisplayPort display (Macbook Pro, Macbook Air etc.) to a high definition HDMI or VGA display (TV set, projector etc.). With this product, you can watch videos or slideshows on a big screen. If both of the outputs are connected, then only one output can receive the input signal whereas the HDMI output is prior to the VGA output.
Features Adapter from Mini DisplayPort to HDMI/VGA Compliant with Mini DisplayPort 1.2 Supports HDMI resolution up to 4Kx2K @ 30Hz Supports VGA resolution up to 1920x1200 @ 60Hz Support of 3D format and compliant with lower versions Supports HDCP and EDID pass-through from PC source to display Color: White
Technical specifications Input Connector: Mini DisplayPort Male Output Connector: HDMI Female (HDMI V1.4) and VGA Female (Max. resolution 1920x1200) HDMI resolution: up to 4Kx2K @ 30Hz VGA resolution: up to 1920x1200 @ 60Hz Compliant with DP1.2 specification and downward compatible with lower versions Support of power automatic management
Connections 1x Input: Mini DisplayPort Male 1x Output: HDMI Female (HDMI V1.4) 1x Output: VGA Female (Max. resolution 1920x1200)
Power Mini DP Cable provides power for the product Current consumption of connecting the TV or monitor directly:
- HDMI output: <400mA
- VGA output: <400mA
- NO output device: <20mA
Dimensions Length: 60 mm Width: 42 mm Height: 14 mm Cable length: 150 mm
Environmental characteristics Operating Temperature: 0 °C to +45 °C Operating Humidity: 10 % to 85 % RH (no condensation) Storage Temperature: -10 °C to +70 °C Storage Humidity: 5 % to 90 % RH (no condensation)

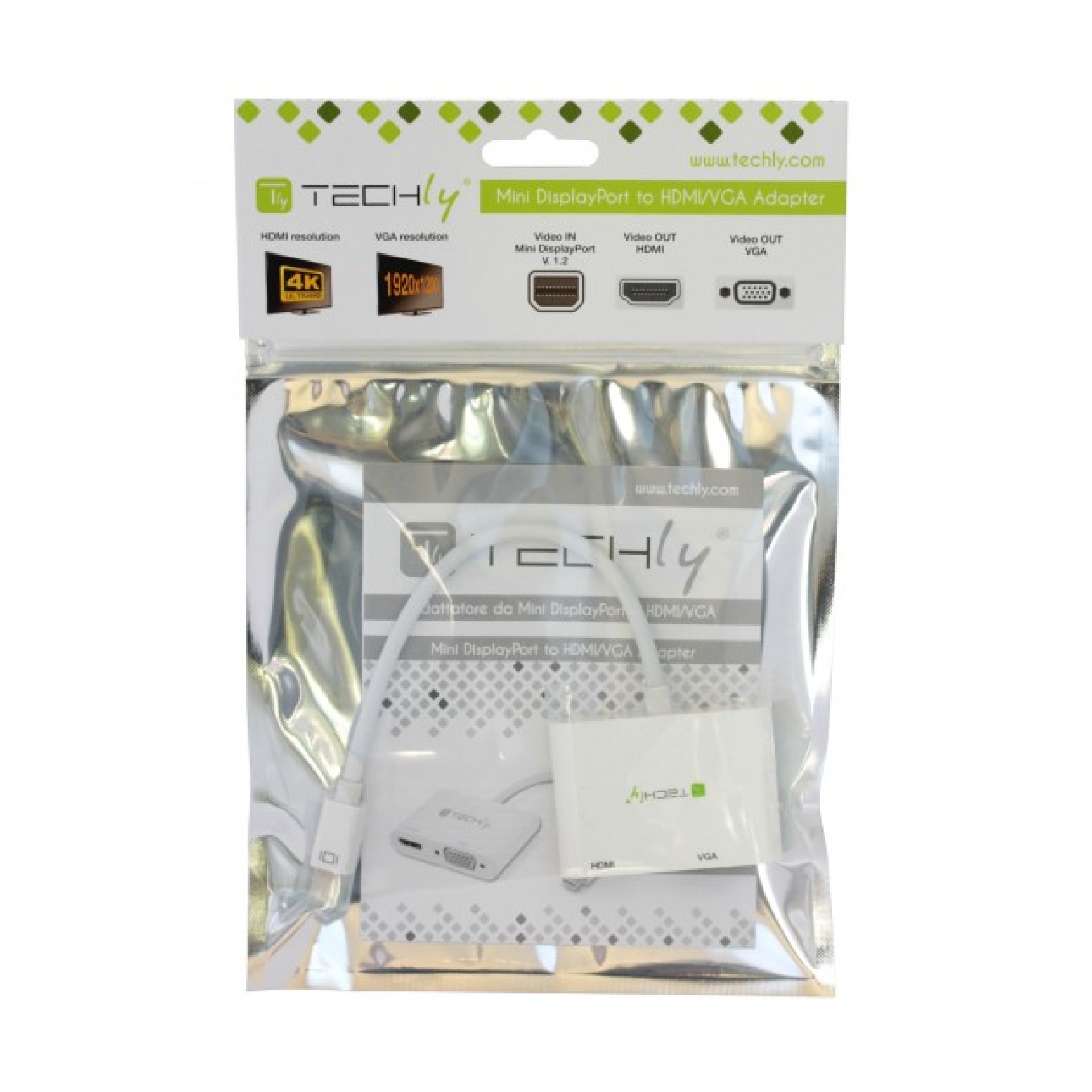

Package Contents 1x Adapter Mini DisplayPort to HDMI/VGA 1x User‘s manual
Features
Technical specifications
Connections
Power
- HDMI output: <400mA
- VGA output: <400mA
- NO output device: <20mA
Dimensions
Environmental characteristics
Package Contents
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
