Additional Receiver for IDATA-EXTIP-373
Additional Receiver for IDATA-EXTIP-373
Varenummer:
IDATA-EXTIP-373R
EAN Nr.:
8057685306011
Produktinformation til Additional Receiver for IDATA-EXTIP-373
Receiver unit for IDATA-EXTIP-373
Spare for original unit or as an additional unit if the IDATA-EXTIP-373 is used as a splitter

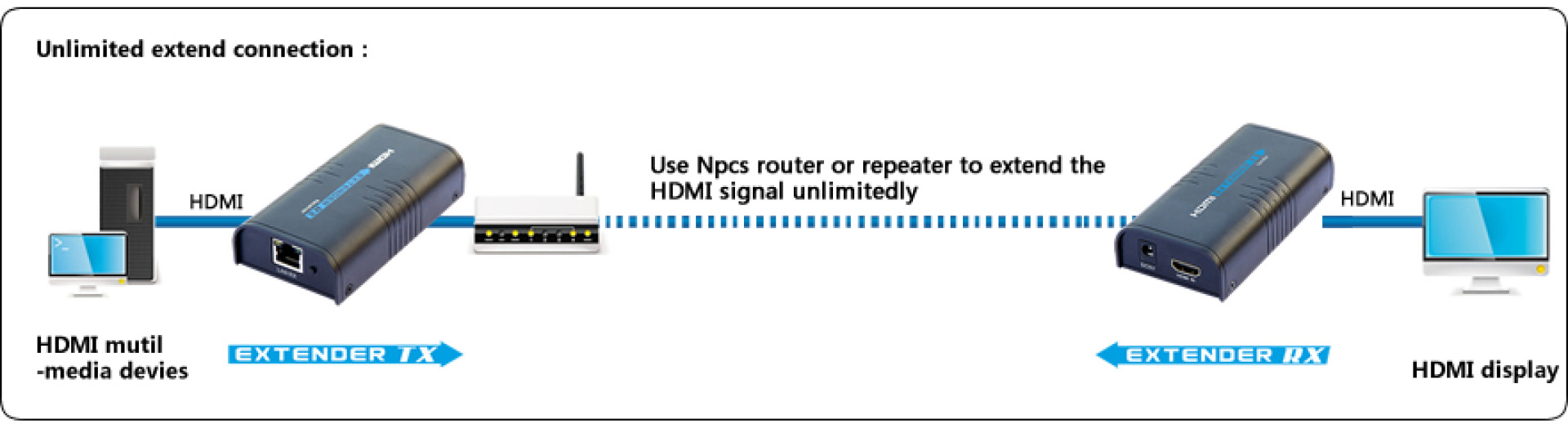

Through a router or a repeater with a cascade connection, the HDMI signal can be extended indefinitely. The IDATA EXTIP-373, also allows to carry out a function as a splitter through the use of a gigabit switch. The signal can be split up to 253 unit/displays. Supports all HDMI specifications including full HD 1080p, Deep Color, Lip Sync and CEC; also supports all popular audio formats including high-resolution multichannel Dolby Digital Plus, LPCM 7.1, Dolby TrueHD and DTS Master Audio.
SpecificationSupports HDCP1.2 Resolution HDMI input: 480i @ 60Hz 480p @ 60Hz, 576i @ 50Hz 576p @ 50Hz 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz; Resolution HDMI output: 480p @ 60Hz 576p @ 50Hz 720p @ 50 / 60Hz, 1080p @ 50 / 60Hz Color Format Video Support: 24bit / 30bit Deep color / Deep color 36bit supported audio format: DTS-HD / Dolby True-HD / LPCM7.1 / DTS / Dolby-AC3 / DSD Max Transmission Speed: 10.2Gbps TMDS signal: 0.5-1.5Vp-p (TMDS) DDC Signal: 5Vp-p (TTL) Cable length input: ≤5m (High Speed HDMI Cable AWG26) Length of output cable: ≤5m (High Speed HDMI Cable AWG26) Connector Type: RJ45 Interface: Cat5e / 6 twisted pair Transmission distance: up to 120m Cat6 cable (Cat5e up to 100m) Wiring Standard: TIA / EIA568 B Power supply: DC5V Power consumption: <3.6W Operating temperature: 0-55 ℃ Storage temperature: -20 - 70 ℃ (non-condensing) Dimensions (WxDxH): 5.7 x 10.6 x 2.6 cm
Package ContentsReceiver x 1 Power adapter x 1 Instruction Manual
Spare for original unit or as an additional unit if the IDATA-EXTIP-373 is used as a splitter
Through a router or a repeater with a cascade connection, the HDMI signal can be extended indefinitely. The IDATA EXTIP-373, also allows to carry out a function as a splitter through the use of a gigabit switch. The signal can be split up to 253 unit/displays. Supports all HDMI specifications including full HD 1080p, Deep Color, Lip Sync and CEC; also supports all popular audio formats including high-resolution multichannel Dolby Digital Plus, LPCM 7.1, Dolby TrueHD and DTS Master Audio.
Specification
Package Contents
Tekniske egenskaber
| Video norm: | Colour PAL |
|---|
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
