Installation Cable Cat.5e UTP LSZH, Class Dca

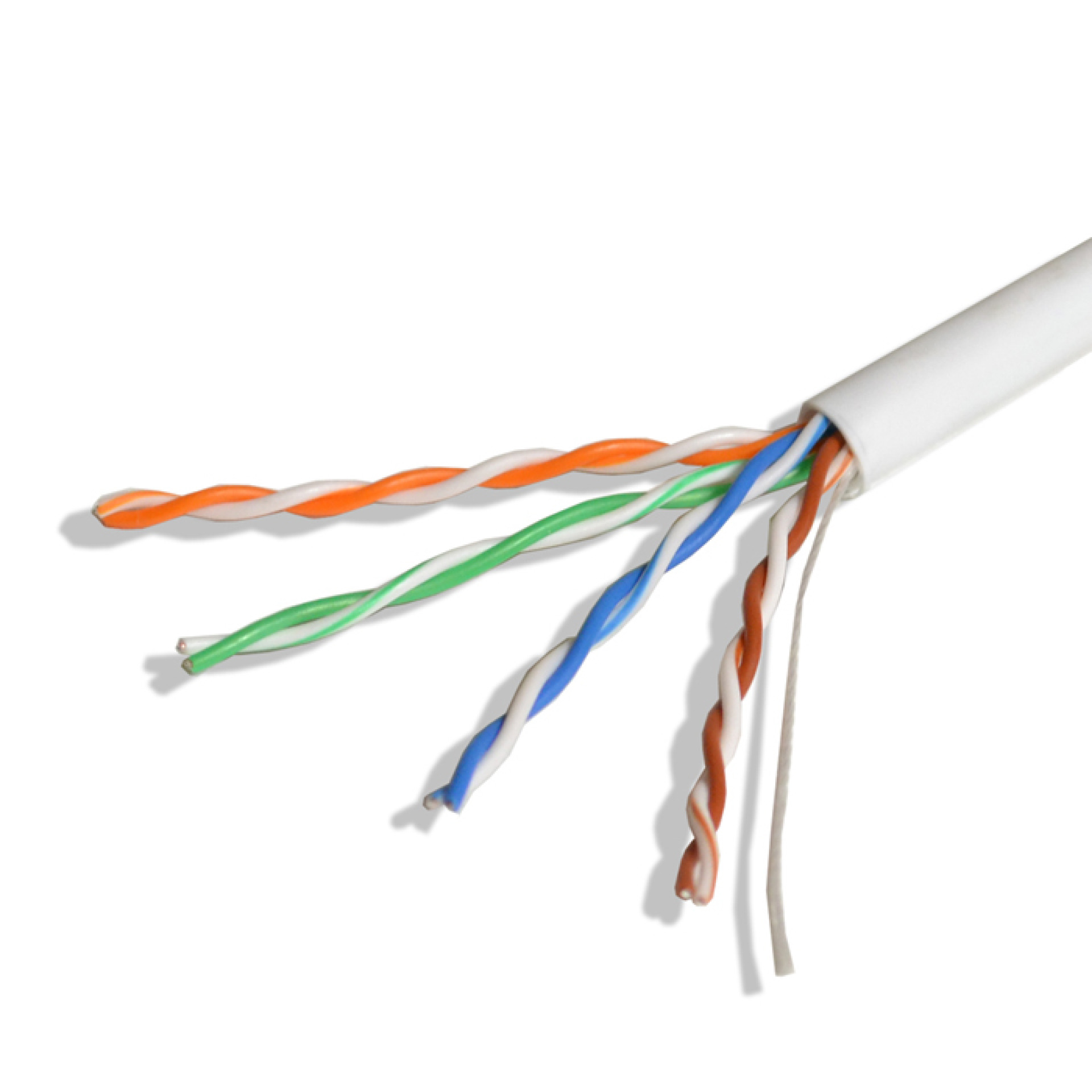

CABLE CAT.5e U/UTP (4X2XAWG24) LSZH white, 305 Mtr Box
Varenummer:
DK-ICD5EUW.305-V1
EAN Nr.:
5705721137565
Produktinformation til CABLE CAT.5e U/UTP (4X2XAWG24) LSZH white, 305 Mtr Box
InfraLan datacable duplex 4x2 Twisted pairs in accordance to ISO/IEC 11801, EN-50173 & TIA568-C.2
Fullfill the EN50575 Class Dca S2,D2,A1
Fullfill the EN50575 Class Dca S2,D2,A1
Tekniske egenskaber
| (Halogenfree): | acc. EN 60754-1/2 |
|---|---|
| AWG-size: | 24 |
| Bending radius (dynamic): | 8 x OD |
| Bending radius (static): | 4 x OD |
| Cabling standards: | EN 50173-1 |
| Category: | 5E |
| Colour outher sheath: | White |
| Conductor category: | Class 1 = solid |
| Conductor material: | Cu, blank |
| Core identification: | Colour |
| Diameter conductor: | 0.87 mm |
| Euro class: | Dca |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Jacket Material: | LSZH |
| Low smoke: | acc. EN 61034 |
| NVP value: | 69 % |
| Nominal cross section conductor: | 0.49 mm² |
| Operating temperature, fix: | -30 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Separation class acc. EN50174-2: | B |
| Stranding element: | Pairs |
| Transfer impedance at 100MHz: | 100 |
| UV resistance: | no |
Varianten
| Art. Nr. | Bezeichnung | Number of cores | Colour outer sheath | Length | RAL colour | Type | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|---|
| DK-ICD5EUW.305-V1 | CABLE CAT.5e U/UTP (4X2XAWG24) LSZH white, 305 Mtr Box | 8 | white | 305 m | RAL9003 | simplex | 5.0 mm | |
| DK-ICD5EUW.500-V1 | CABLE CAT.5e U/UTP (4X2XAWG24) LSZH white, 500 Mtr Drum | 8 | white | 500 m | RAL9003 | simplex | 5.0 mm |
