Installation Cable Cat.5e UTP PE Outdoor
EFB-Elektronik GmbH

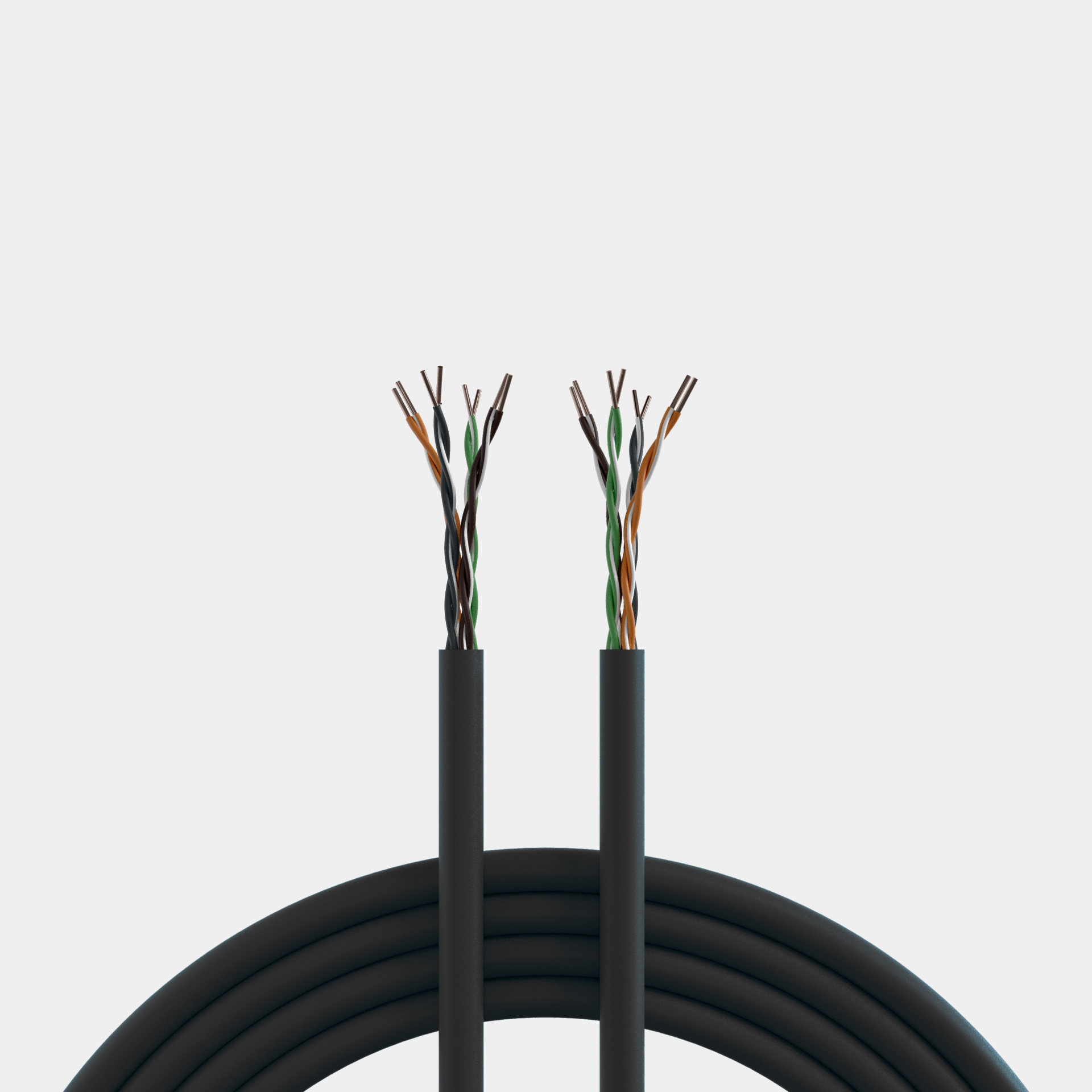

CABLE CAT.5e U/UTP 4X2XAWG24 PE black, 305 Mtr Box, Class F
Varenummer:
DK-IC5EUPEB.305
EAN nr.:
5705721127061
Produktinformation til CABLE CAT.5e U/UTP 4X2XAWG24 PE black, 305 Mtr Box, Class F

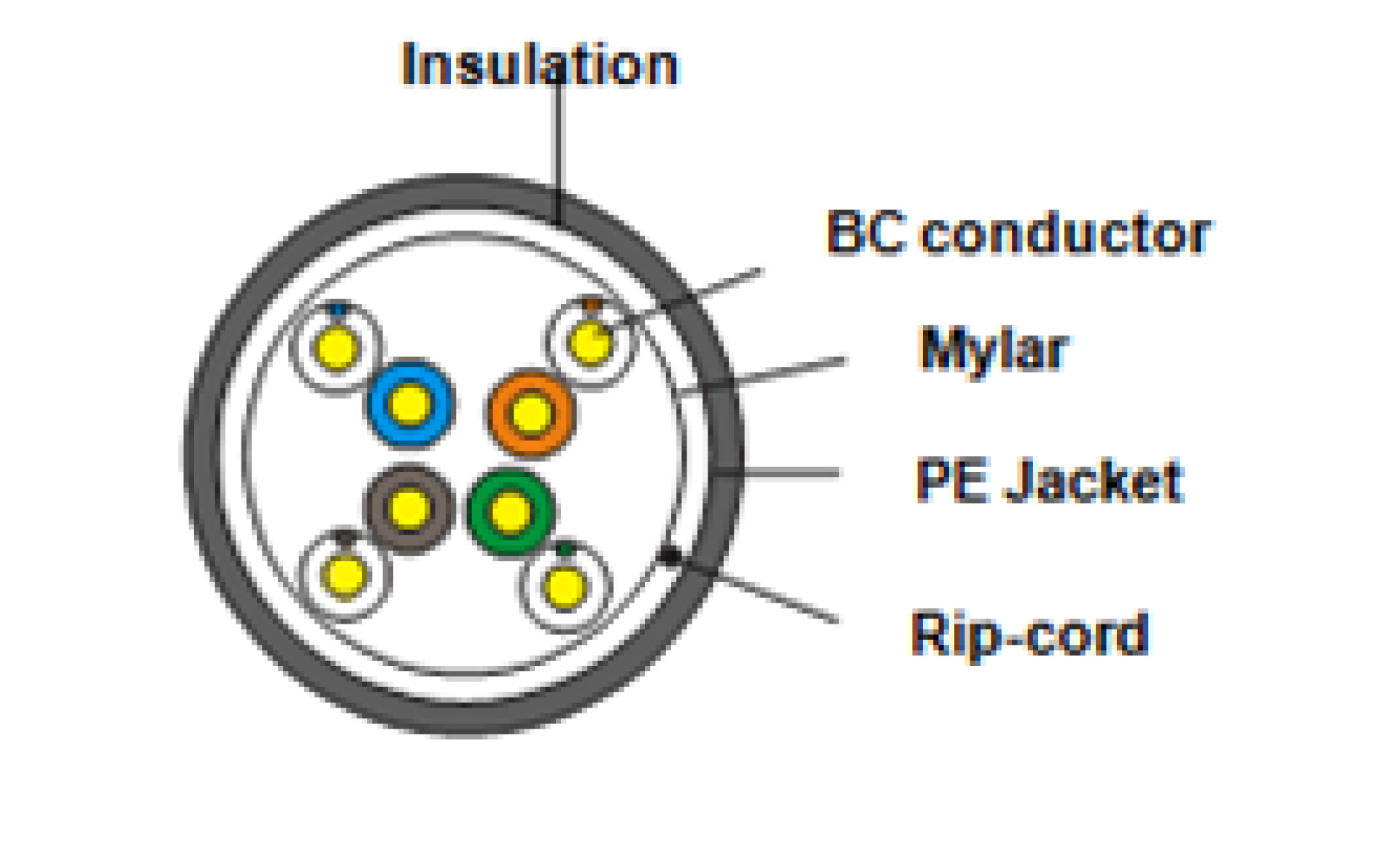

Datacable 4 x Twisted pairs in accordance to ISO/IEC 11801, EN-50173 & TIA568-C.2
This cable is a PE jacket for outdoor installation and for installaling in conduits in ground
This cable is a PE jacket for outdoor installation and for installaling in conduits in ground
| AWG-size: | 24 |
|---|---|
| Category: | 5E |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | colour |
| Core insulation: | Solid PE (HD-PE) |
| Diameter conductor: | 0.49 |
| Material outer sheath: | Polyethylene (PE) |
| NVP value: | 69% |
| Operating temperature, fix: | -10 – 60 |
| Operating temperature, flexible: | 0 – 50 |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| UV resistant: | yes |
Tekniske egenskaber
| AWG-size: | 24 |
|---|---|
| Category: | 5E |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | colour |
| Core insulation: | Solid PE (HD-PE) |
| Diameter conductor: | 0.49 |
| Material outer sheath: | Polyethylene (PE) |
| NVP value: | 69% |
| Operating temperature, fix: | -10 – 60 |
| Operating temperature, flexible: | 0 – 50 |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| UV resistant: | yes |
Produktinformation til CABLE CAT.5e U/UTP 4X2XAWG24 PE black, 305 Mtr Box, Class F
Datacable 4 x Twisted pairs in accordance to ISO/IEC 11801, EN-50173 & TIA568-C.2
This cable is a PE jacket for outdoor installation and for installaling in conduits in ground
This cable is a PE jacket for outdoor installation and for installaling in conduits in ground
| AWG-size: | 24 |
|---|---|
| Category: | 5E |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | colour |
| Core insulation: | Solid PE (HD-PE) |
| Diameter conductor: | 0.49 |
| Material outer sheath: | Polyethylene (PE) |
| NVP value: | 69% |
| Operating temperature, fix: | -10 – 60 |
| Operating temperature, flexible: | 0 – 50 |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| UV resistant: | yes |
| AWG-size: | 24 |
|---|---|
| Category: | 5E |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | colour |
| Core insulation: | Solid PE (HD-PE) |
| Diameter conductor: | 0.49 |
| Material outer sheath: | Polyethylene (PE) |
| NVP value: | 69% |
| Operating temperature, fix: | -10 – 60 |
| Operating temperature, flexible: | 0 – 50 |
| Screen over stranding: | None |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
| UV resistant: | yes |
