Installation Cable Cat.7 S/FTP LSZH, Class Dca

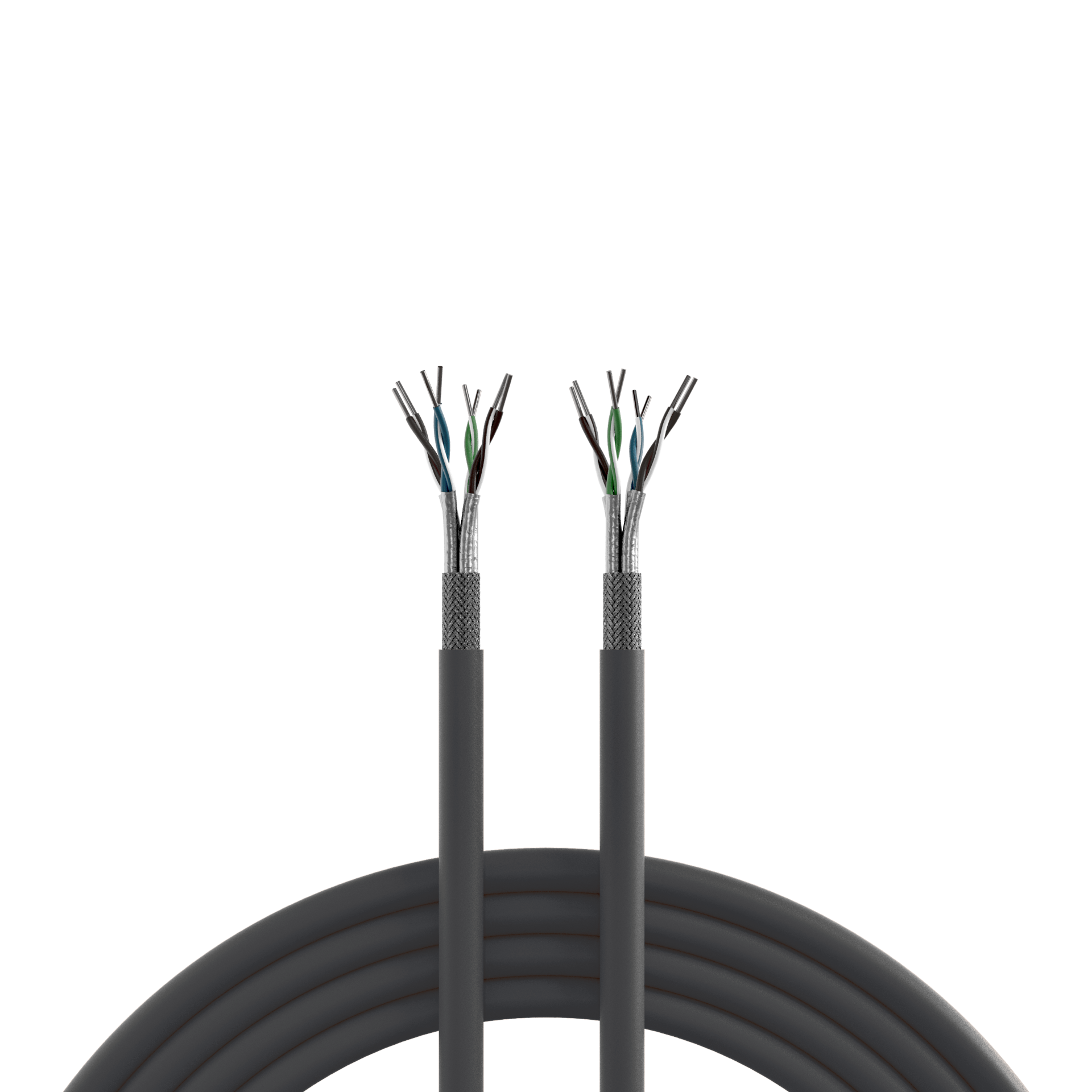

CABLE CAT.7 S/FTP (4X2XAWG23) LSZH black, 500 Mtr Drum
Varenummer:
DK-ICIO7SFTP.500
Produktinformation til CABLE CAT.7 S/FTP (4X2XAWG23) LSZH black, 500 Mtr Drum
InfraLan Datacable Cat.7 1000Mhz shielded cable with Cu braid and pairwise alufoil shield, jacket with Low smoke, Halogenfree compound (LSZH)
For indoor and outdoor installations, and ideal for IP CCTV Applications.
The cable is UV resistance and all weather applications, but is not suitable for direct buriel.
For indoor and outdoor installations, and ideal for IP CCTV Applications.
The cable is UV resistance and all weather applications, but is not suitable for direct buriel.
Tekniske egenskaber
| AWG-size: | 23 |
|---|---|
| Conductor category: | Class 1 = solid |
| Diameter conductor: | 0.56 |
| Euro class: | Dca |
| Halogen free (acc. EN 50267-2-2): | True |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Low smoke (acc. EN 61034-2): | True |
| NVP value: | 76 |
| Nominal cross section conductor: | 23 |
| Operating temperature, fix: | -20 – 75 |
| Operating temperature, flexible: | 0 – 50 |
| Separation class acc. EN50174-2: | D |
