CABLE CAT6 U/UTP 4X2XAWG23 LSZH WHITE
CABLE CAT6 U/UTP 4X2XAWG23 LSZH Class Dca
Varenummer:
DK-ICD6UW.305-V1
Produktinformation für CABLE CAT6 U/UTP 4X2XAWG23 LSZH Class Dca
InfraLan datacable 4 x Twisted pairs in accordance to ISO/IEC 11801, EN-50173 & TIA568-C.2
This cable fullfill the requirement in accordance to EN50575, Class Dca S2,D2,A1
This cable fullfill the requirement in accordance to EN50575, Class Dca S2,D2,A1
Tekniske egenskaber
| AWG-size: | 23 |
|---|---|
| Bending radius (dynamic): | 8 x OD |
| Bending radius (static): | 4 x OD |

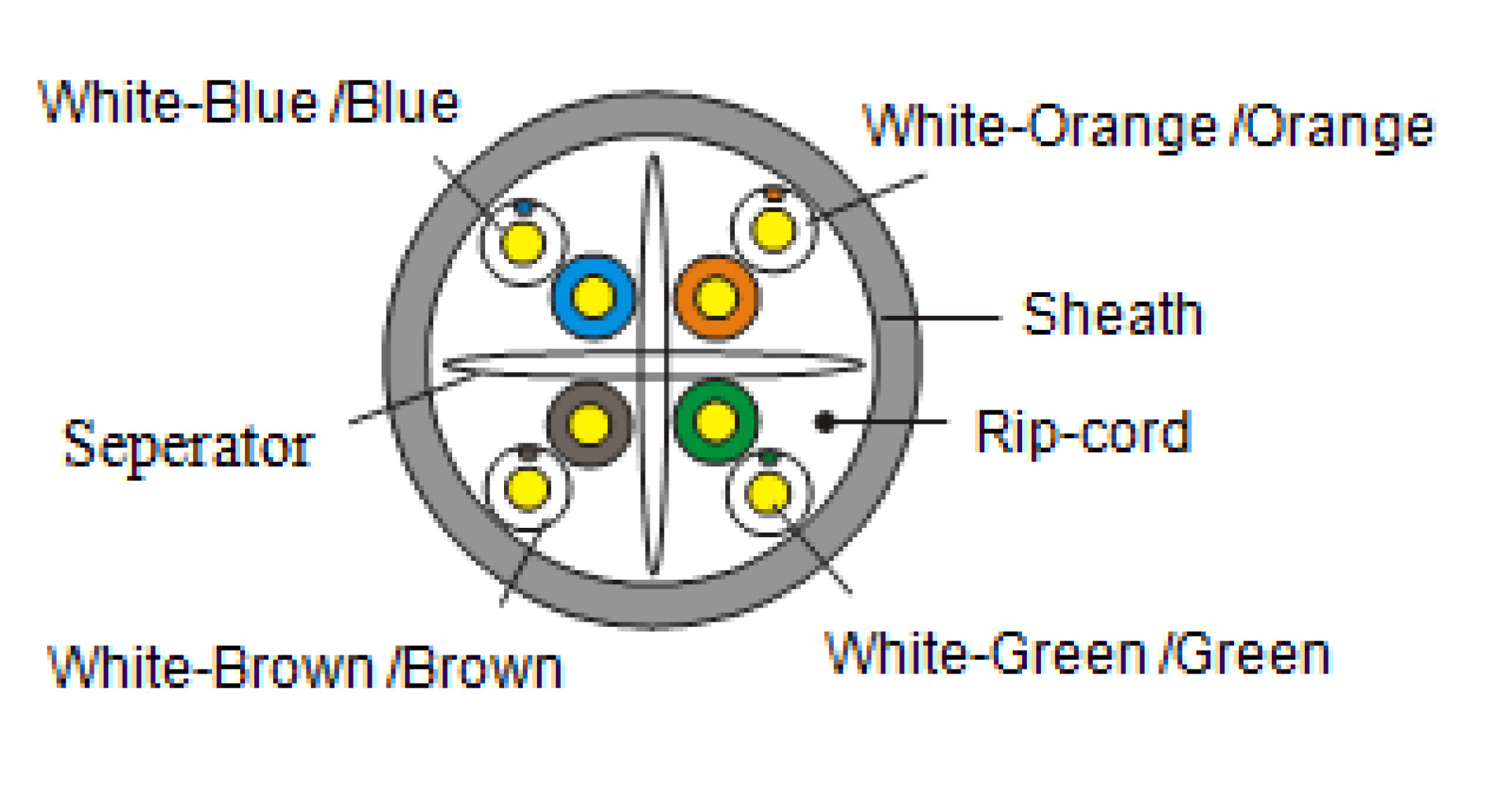

| Cable Construction: | U/UTP |
| Category: | 6 |
| Colour outher sheath: | White |
| Conductor category: | solid |
| Conductor material: | CU, bare |
| Core identification: | colour |
| Core insulation: | HDPE |
| Diameter conductor: | 0.55 |
| Euro class: | Dca |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Jacket material: | LSZH |
| Low smoke (acc. EN 61034-2): | True |
| Max. Freuqency: | 250 MHz |
| NVP value: | 70 |
| Nominal cross section conductor: | 23 |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Screen over stranding: | without |
| Screen over stranding element: | without |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| UV resistance: | no |
Varianter
| Art. Nej. | Betegnelse | Number of cores | RAL colour | Type | Outer diameter approx. | |
|---|---|---|---|---|---|---|
| DK-ICD6UW.305-V1 | CABLE CAT6 U/UTP 4X2XAWG23 LSZH Class Dca | 8 | RAL9003 | simplex | 5,6 | |
| DK-ICD6UW.500-V1 | CABLE CAT6 U/UTP 4X2XAWG23 LSZH Class Dca | 8 | RAL9003 | simplex | 5,6 |
