Installation Cable Cat.6A U/UTP LSZH, Class Dca

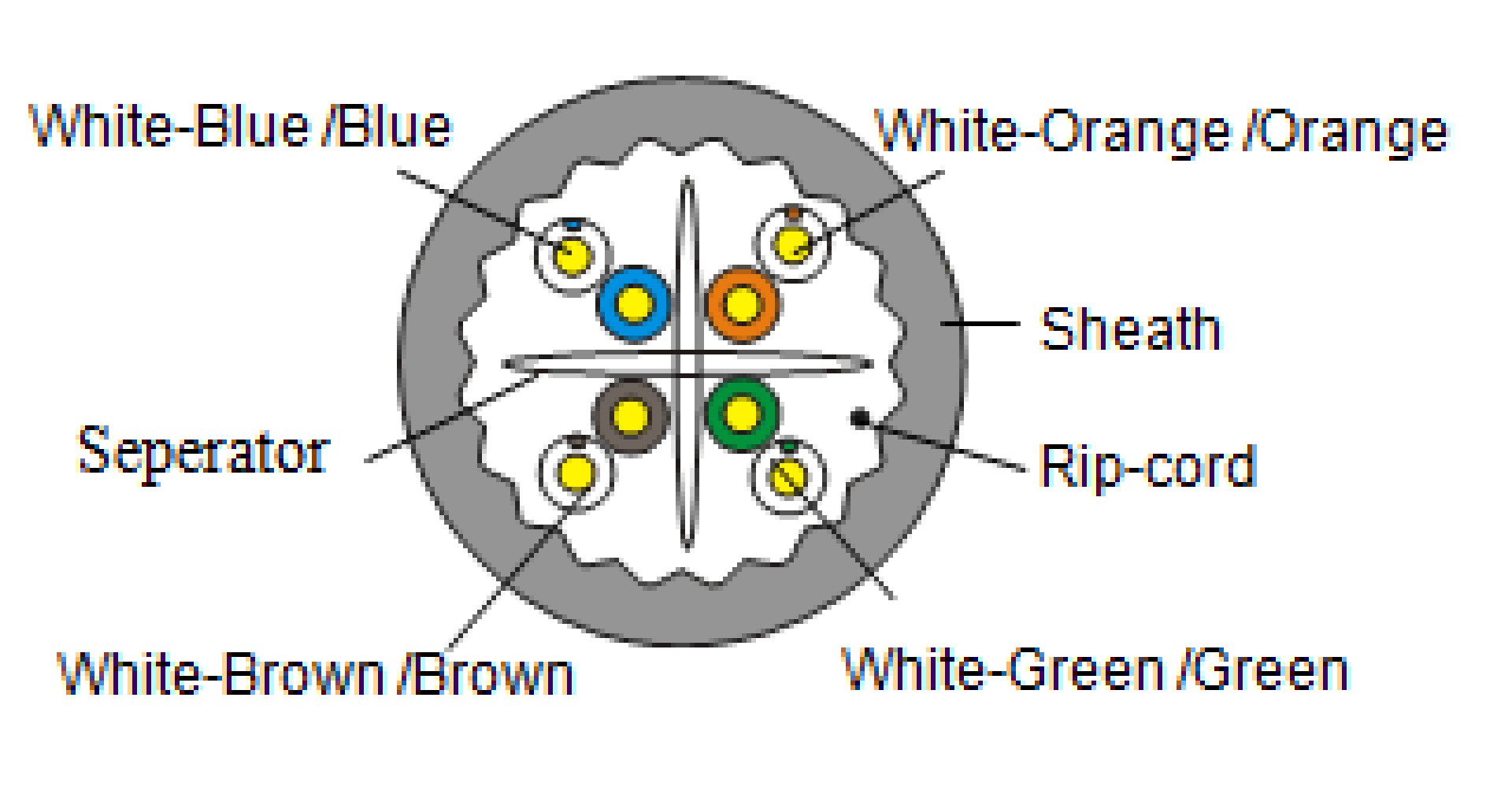

CABLE CAT.6A U/UTP (4X2XAWG23) LSZH white, 500 Mtr Drum
Varenummer:
DK-ICD6AUW.500-V1
EAN Nr.:
5705721137503
Produktinformation til CABLE CAT.6A U/UTP (4X2XAWG23) LSZH white, 500 Mtr Drum
InfraLan datacable 4 x Twisted pairs in accordance to ISO/IEC 11801, EN-50173 & TIA568-C.2.
This cable fullfill the requirement in accordance to EN50575, Class Dca
This cable fullfill the requirement in accordance to EN50575, Class Dca
Tekniske egenskaber
| AWG-size: | 23 |
|---|---|
| Category: | 6A |
| Conductor category: | solid |
| Conductor material: | CU, bare |
| Core identification: | colour |
| Core insulation: | HDPE |
| Diameter conductor: | 0.565 |
| Halogen free (acc. EN 50267-2-2): | True |
| Jacket material: | LSZH |
| Low smoke (acc. EN 61034-2): | True |
| NVP value: | 69 |
| Nominal cross section conductor: | 23 |
| Operating temperature, fix: | -30 – 60 |
| Operating temperature, flexible: | 0 – 50 |
| Screen over stranding: | without |
| Screen over stranding element: | without |
| Stranding element: | Pairs |
Varianten
| Art. Nr. | Bezeichnung | RAL colour | Type | Number of cores | Colour outer sheath | Length | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|---|
| DK-ICD6AUW.305-V1 | CABLE CAT.6A U/UTP (4X2XAWG23) LSZH white, 305 Mtr Box | RAL9010 | simplex | 8 | white | 305 m | 7.3 mm | |
| DK-ICD6AUW.500-V1 | CABLE CAT.6A U/UTP (4X2XAWG23) LSZH white, 500 Mtr Drum | RAL9010 | simplex | 8 | white | 500 m | 7.3 mm |
