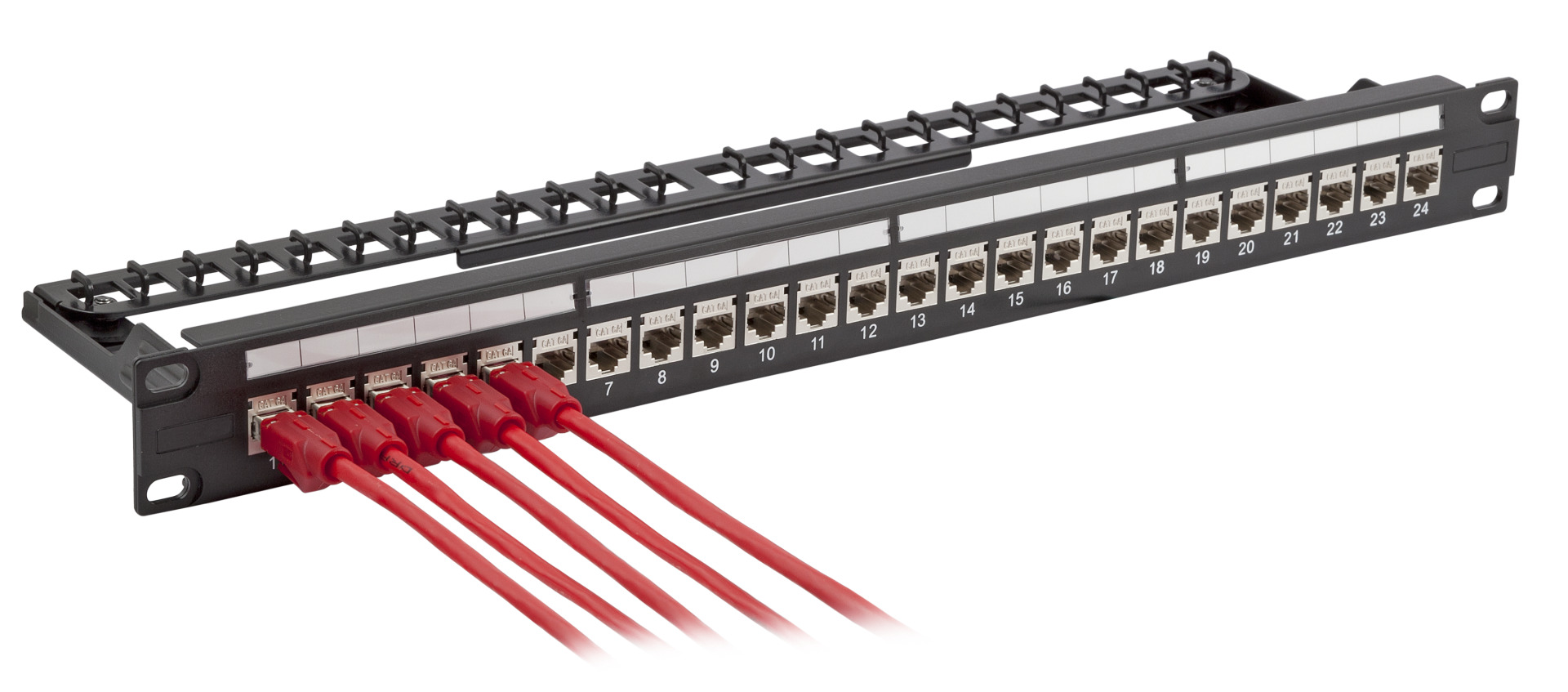

Cat.6A Patchpanel with assembled Adapter
CAT.6A 24-Port Patch-Panel 19" 1U armed with mounting-adapter
Varenummer:
37598.1
EAN Nr.:
4049759095451
Produktinformation til CAT.6A 24-Port Patch-Panel 19" 1U armed with mounting-adapter
• Mounting-Adapter: Cat.6A Snap-In 10 Gbit RJ45 jack/RJ45 jack (37521.1)
• Incl. Cable management
• Strain relief via cable tie
• Incl. Cable management
• Strain relief via cable tie
Tekniske egenskaber
| Category: | 6A (TIA) |
|---|---|
| Colour code: | acc. TIA/EIA 568A/B |
| Connection type: | Keystone |
| Contact Resistance: | < 20 mΩ |
| Contact coating: | 50 µ" gold plated |
| Current capacity: | 1.5 A |
| Depth: | 125.0 mm |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Electrical strength: | 125 V AC RMS |
| Height: | 44.5 mm |
| Housing material Panel: | Steel |
| Housing material of RJ45 jacks: | PBT |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles RJ45 jack: | 750 |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| POE Standard: | POE |
| POE Standard: | POE+ |
| Screened: | True |
| Suitable for number of connectors: | 24 |
| Tape width: | 500 MHz |
| Temperature Range (Operation): | -10 – 60 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission: | 10 Gbit |
| Type of connector: | RJ45 8(8) |
| Width: | 483.0 mm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
