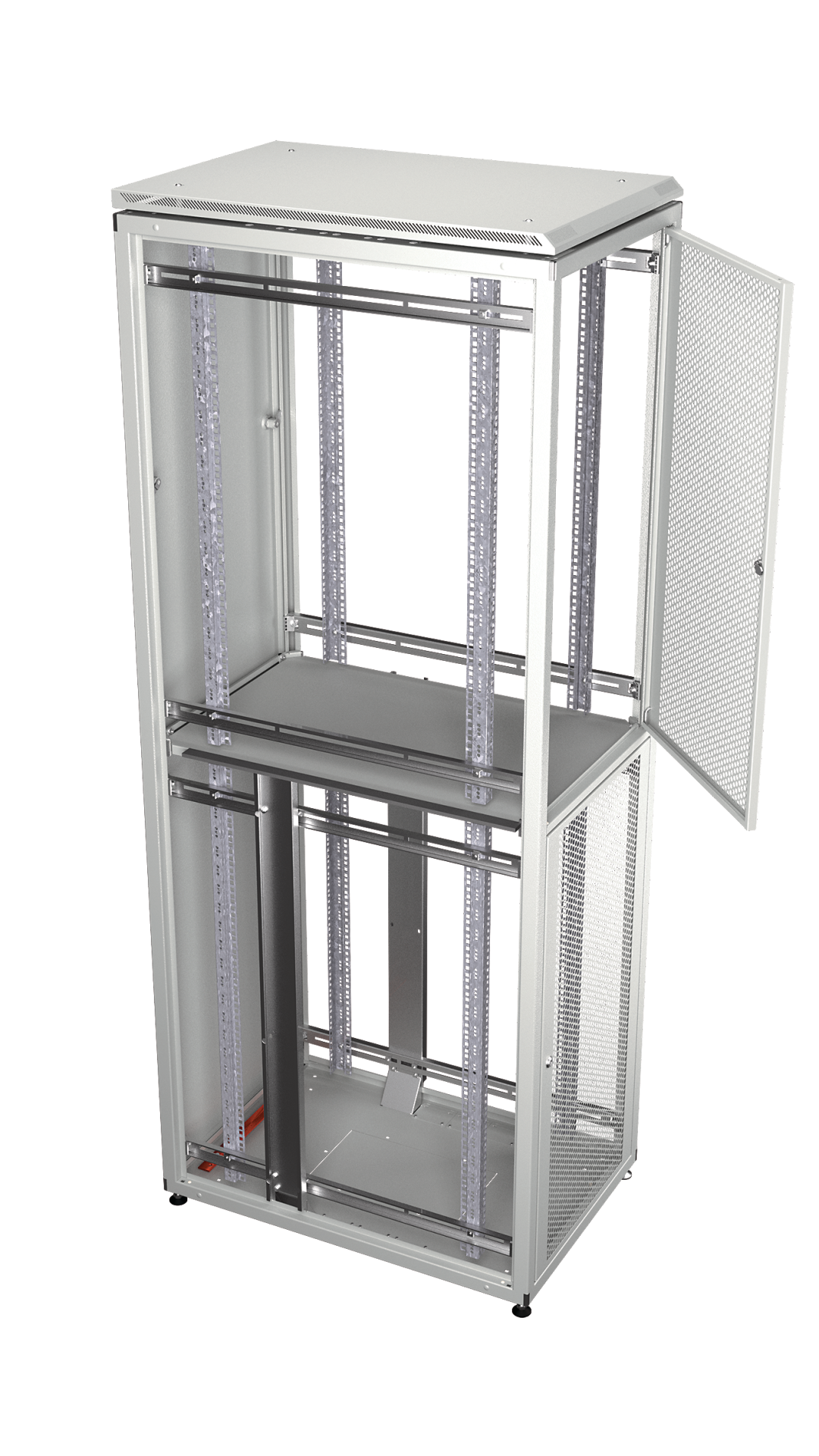

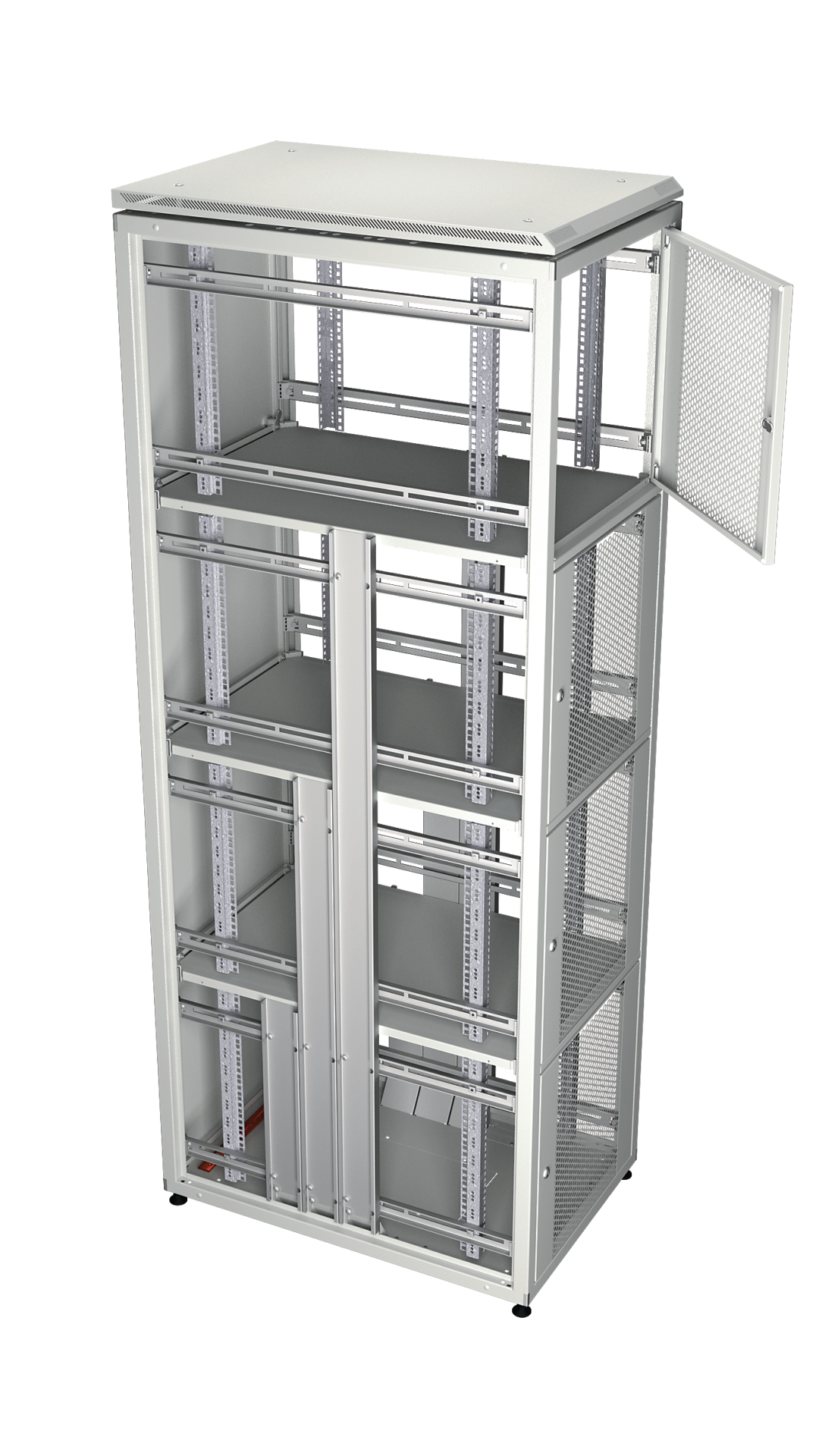

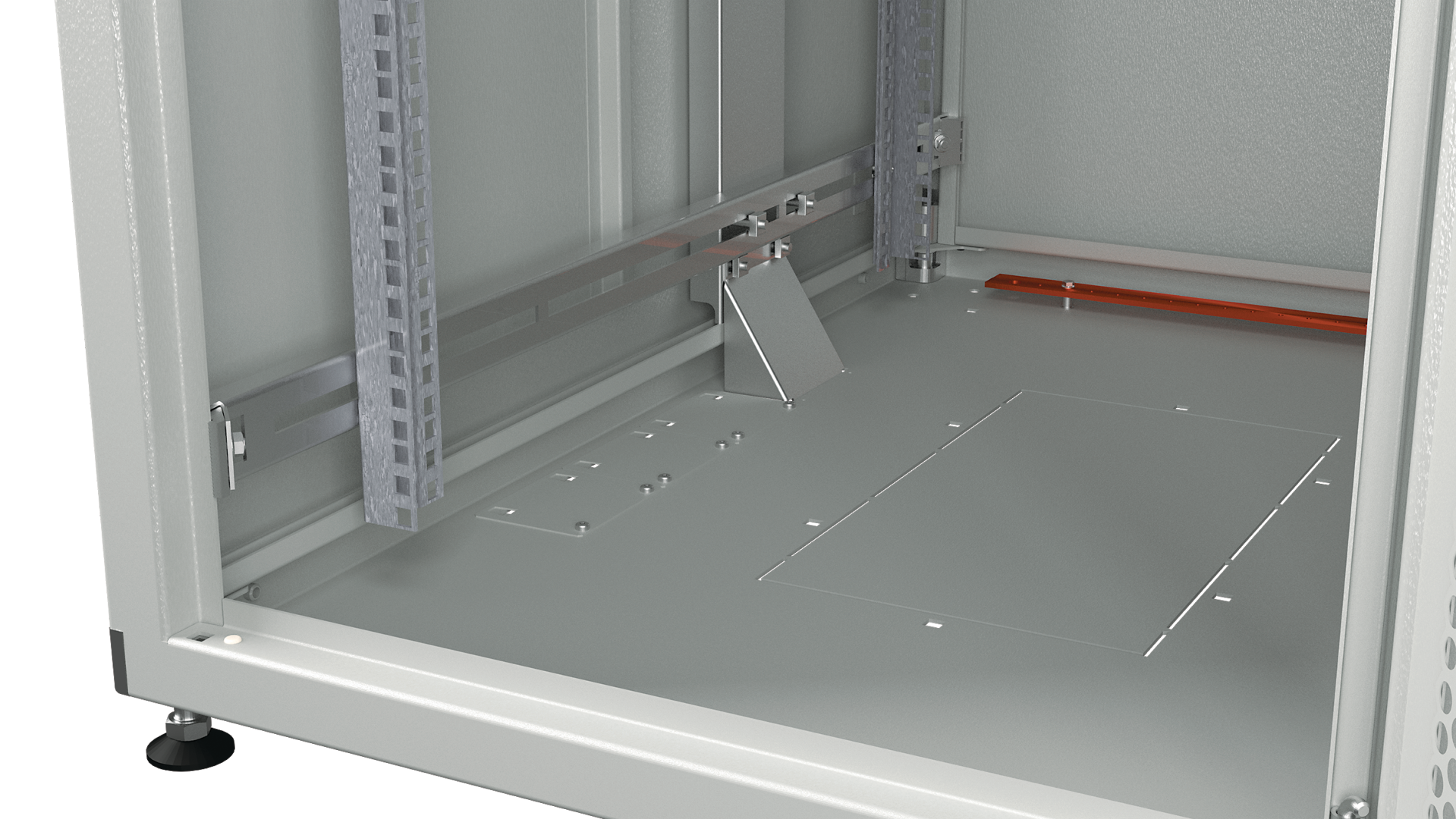

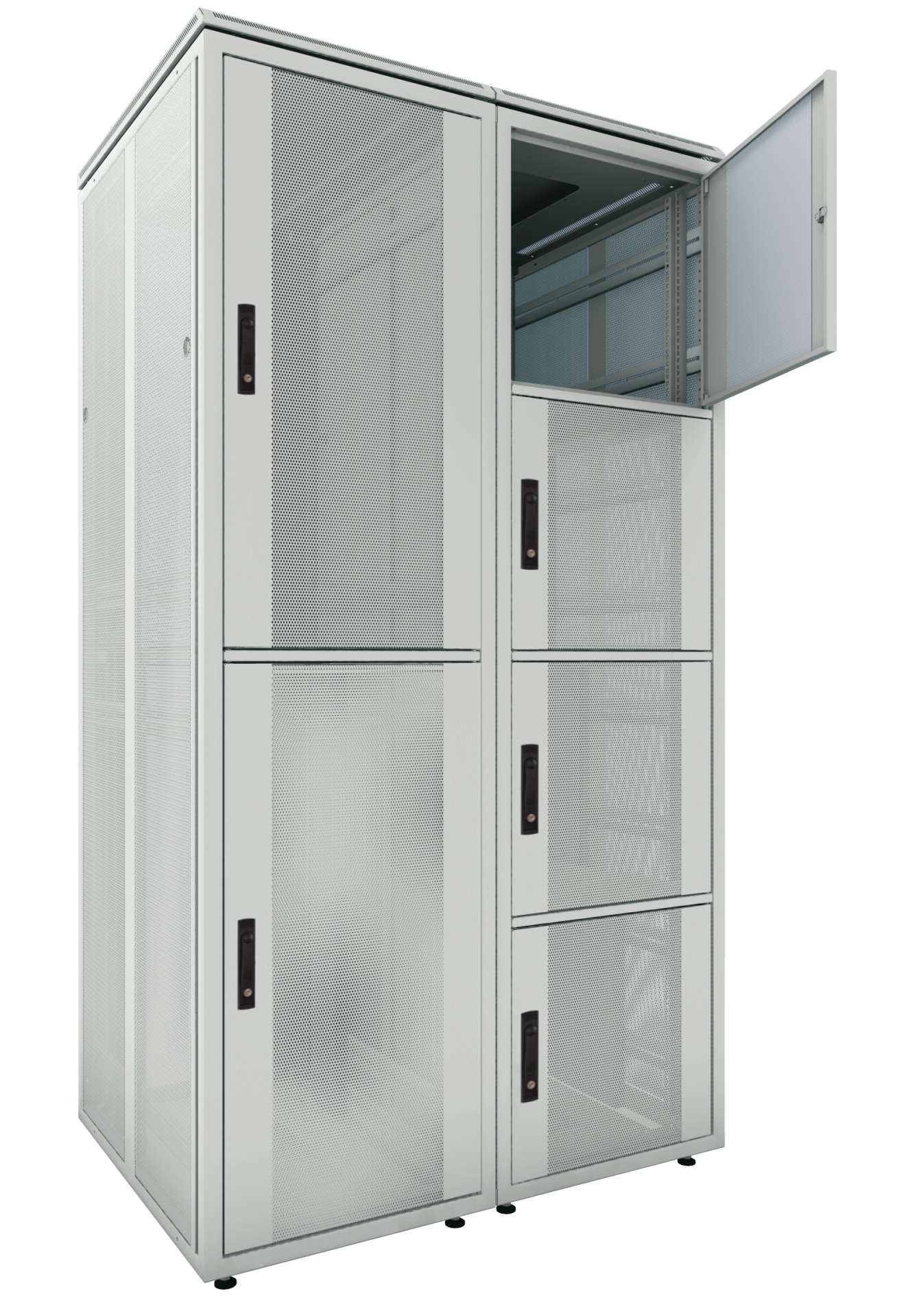

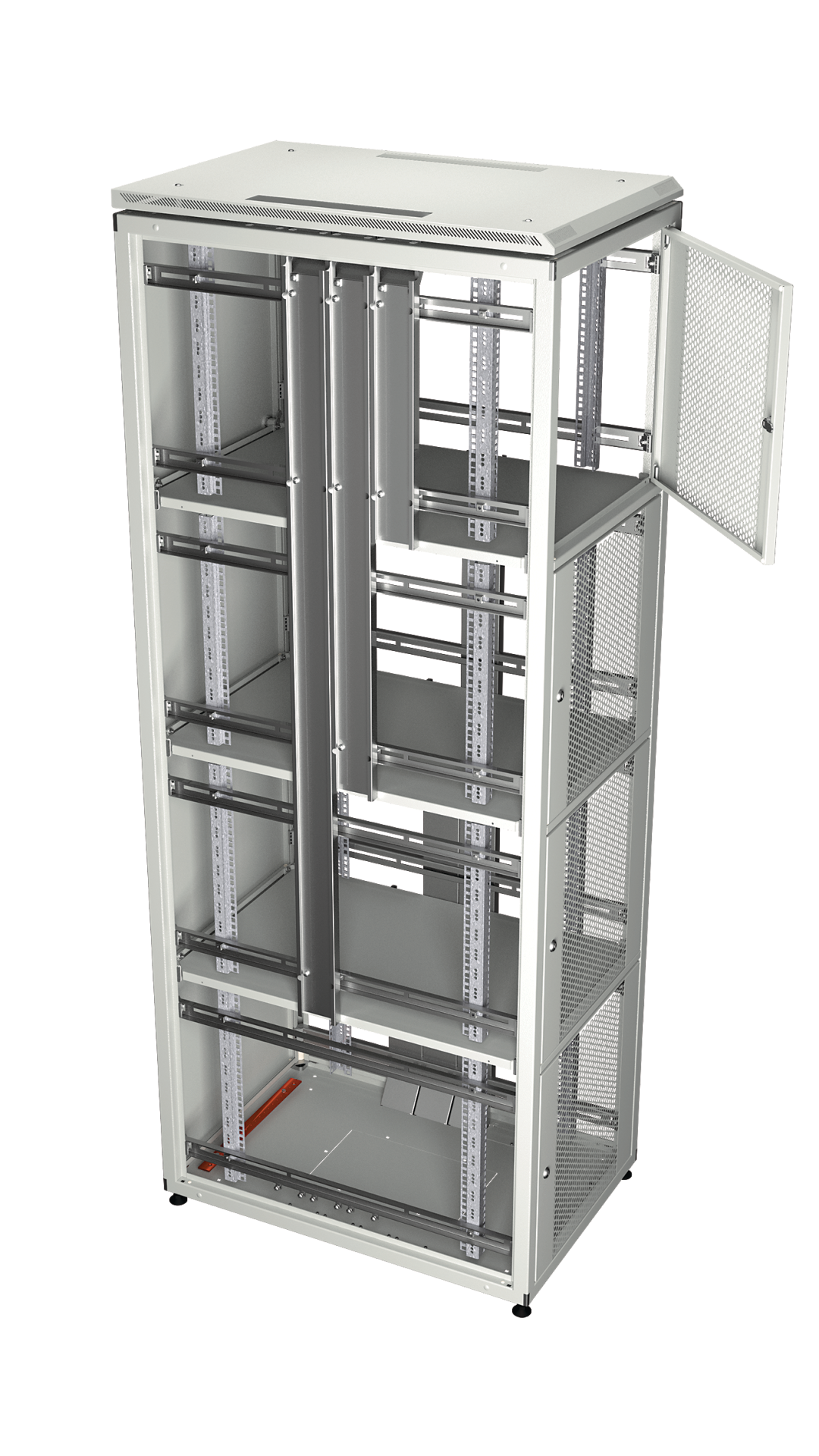

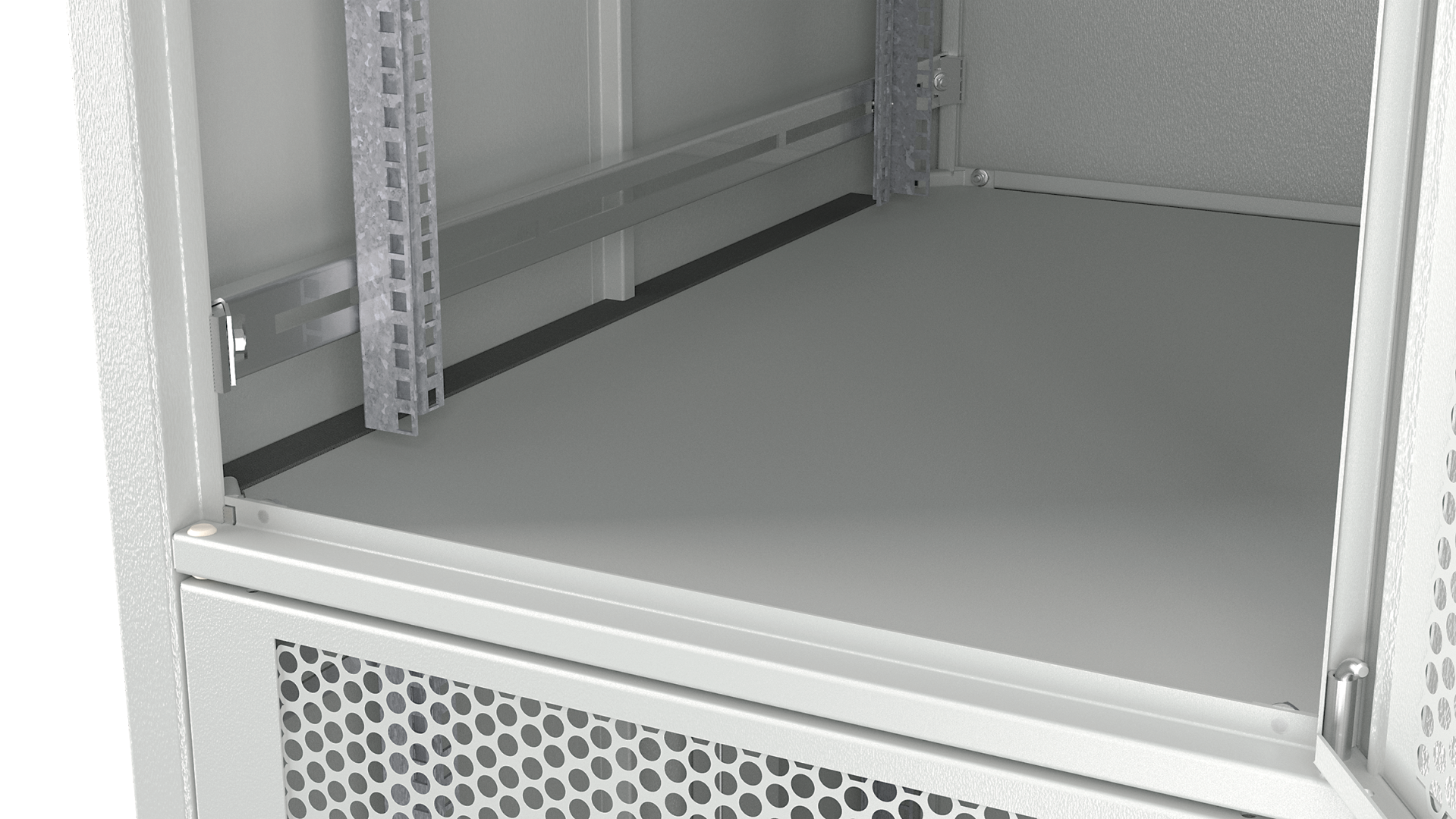

19'' Co-Location Racks PRO 800 x 1000 mm, F+R 1-Part
Co-Location Rack PRO, 3 x 13U, 800x1000 mm, F+R 1-Part Perforated, RAL9005
Varenummer:
PRO-CL3-4280TS.P1
EAN Nr.:
4049759263423
Produktinformation til Co-Location Rack PRO, 3 x 13U, 800x1000 mm, F+R 1-Part Perforated, RAL9005
19" network cabinet according to DIN 41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated
1, 2, 3 or 4 boxes for individual access
Every box with independent cable ducts left and right for cable entry from top or bottom
Inside front and rear 4 x 19" profiles per box (2 front, 2 rear), galvanised, step-less depth-adjustable
Numbering of height units at the profiles
Front- and rear doors steel, perforated, 1-part
Doors with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop left and right-sided possible
Detachable side walls with 2 x latch locking (lock equal to door lock)
Side walls optional available perforated
Cabinets stackable side-by-side with and without side wall via baying set PRO-ANR01
Roof and bottom with covered cutouts for cable entry (left/right) and for accommodation of fan unit PRO-LFD02BT.xx
Intermediate bottoms sealed to side walls
Internal earthing of all cabinet parts
Max. load 600 kg
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x set of captive nuts (PU 20 pcs.), 4 x Leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated
1, 2, 3 or 4 boxes for individual access
Every box with independent cable ducts left and right for cable entry from top or bottom
Inside front and rear 4 x 19" profiles per box (2 front, 2 rear), galvanised, step-less depth-adjustable
Numbering of height units at the profiles
Front- and rear doors steel, perforated, 1-part
Doors with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop left and right-sided possible
Detachable side walls with 2 x latch locking (lock equal to door lock)
Side walls optional available perforated
Cabinets stackable side-by-side with and without side wall via baying set PRO-ANR01
Roof and bottom with covered cutouts for cable entry (left/right) and for accommodation of fan unit PRO-LFD02BT.xx
Intermediate bottoms sealed to side walls
Internal earthing of all cabinet parts
Max. load 600 kg
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x set of captive nuts (PU 20 pcs.), 4 x Leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Cabinet Series: | PRO |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Surface finishing: | Powder coating |
| Type of back door: | Steel perforated 1-part |
| Type of front door: | Steel perforated 1-part |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | False |
