Coaxial Cable RG174, 50 Ohm

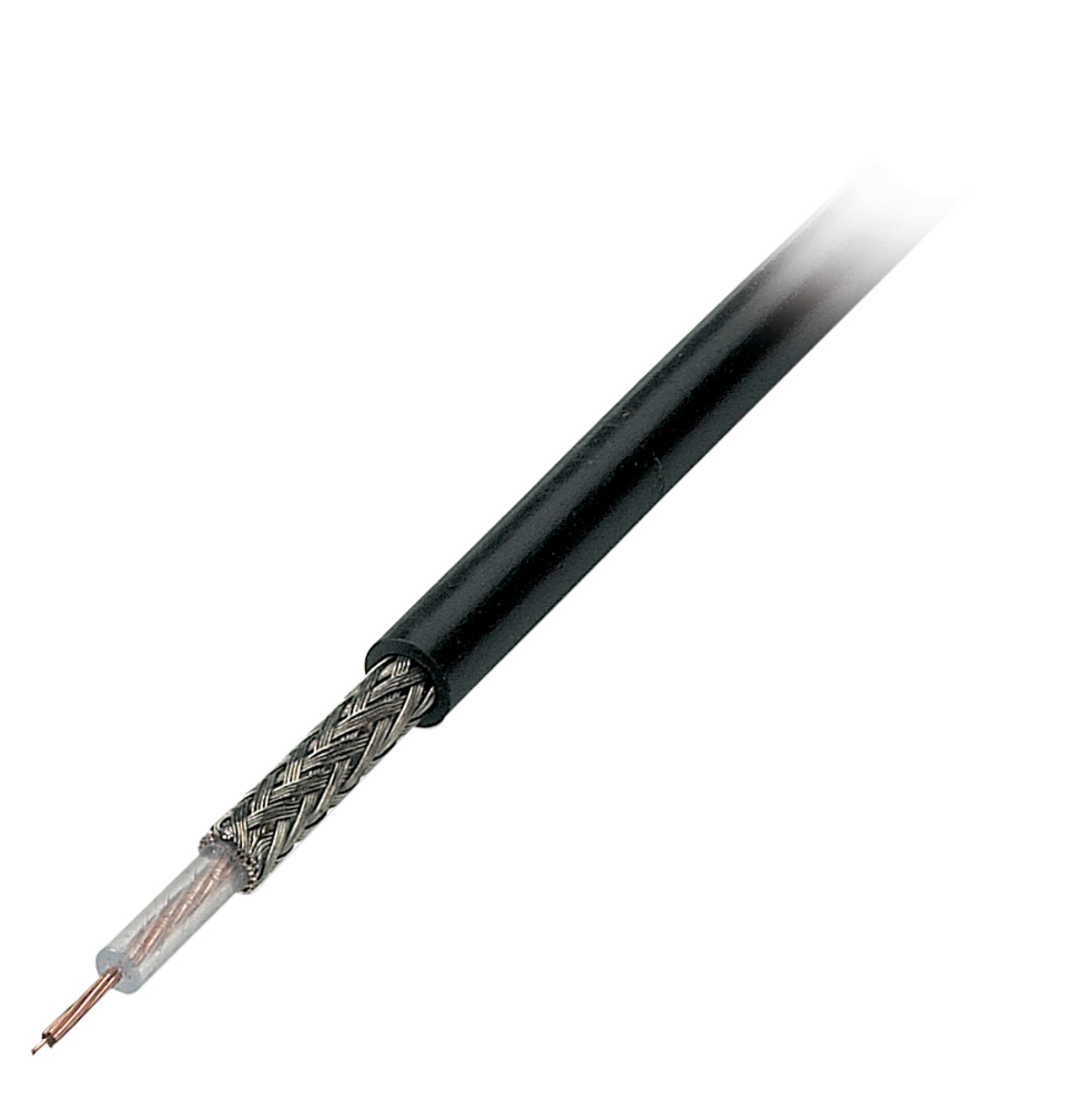

Coax Cable RG174 U, 50 Ohm black, 100m
Varenummer:
91074.100
EAN Nr.:
4049759073985
Produktinformation til Coax Cable RG174 U, 50 Ohm black, 100m
Flexible Coaxial cable with small diameter for high frequent measured data and signals defined characteristic impedance and tight production tolerances in 50 Ohm.

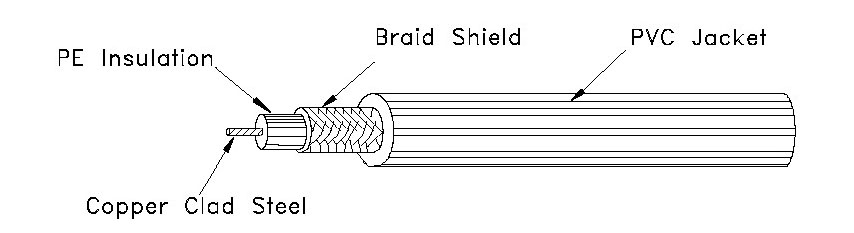

Tekniske egenskaber
| Armouring: | False |
|---|---|
| Colour outer sheath: | black |
| Diameter inner conductor: | 7/0.16 mm |
| Diameter outer conductor: | 0.12 mm |
| Dielectric: | Fully-PE |
| Halogen free (acc. EN 50267-2-2): | False |
| Inner conductor category: | Class 2 = stranded |
| Inner conductor material: | Fe-CU |
| Jacket Material: | PVC |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | -20 – 75 °C |
| Outer conductor material: | CU, tinned |
| Type of outer conductor: | braiding |
