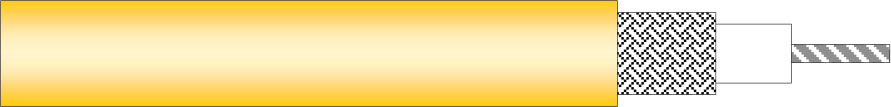

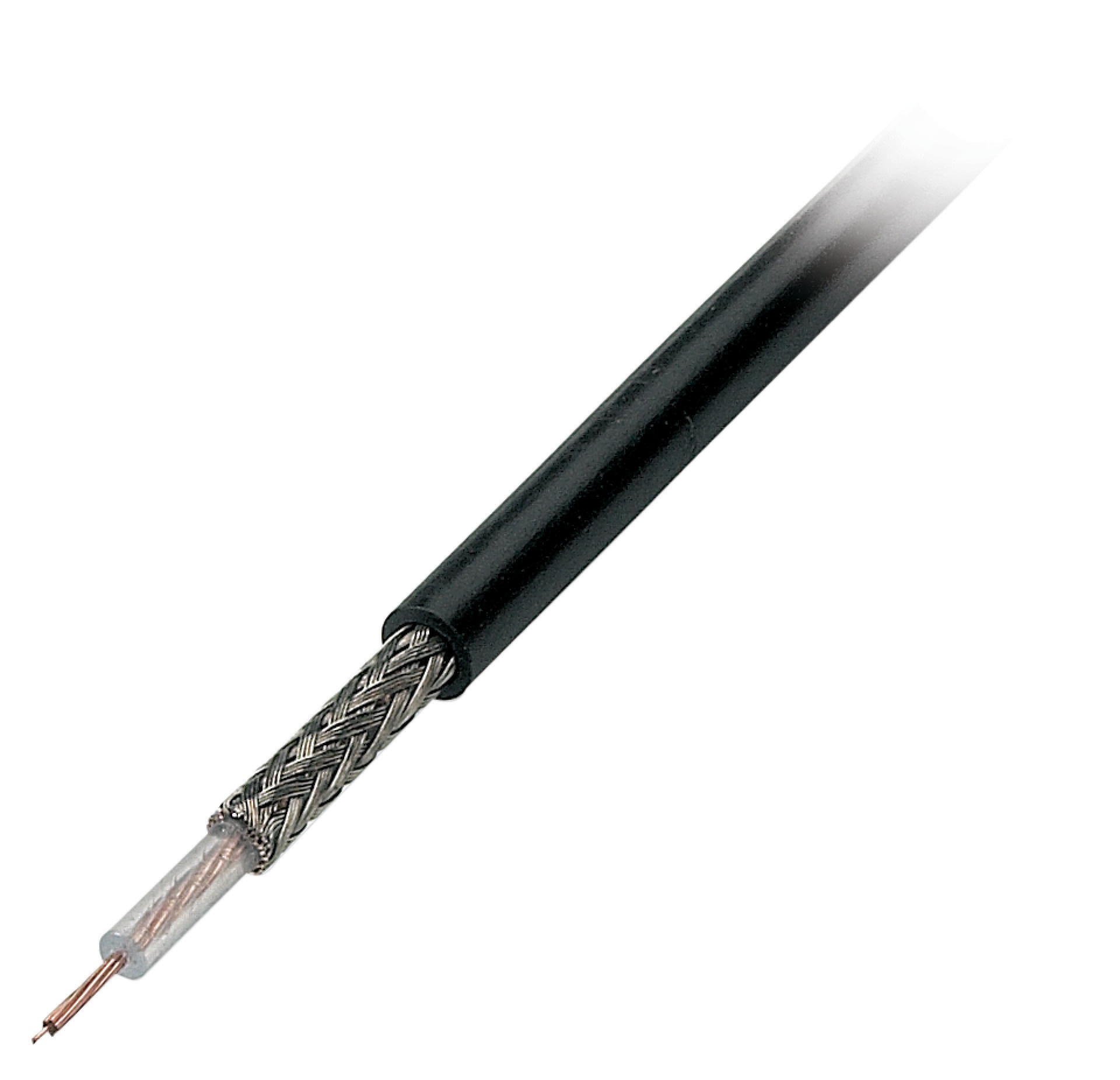

Coaxial Cable RG179, PTFE, 75 Ohm
Coax Cable RG179B/U, 75 Ohm PTFE insulation
Varenummer:
91079.1
EAN Nr.:
9999999019890
Produktinformationen für Coax Cable RG179B/U, 75 Ohm PTFE insulation
Application in commercial electronics and high-frequency technology.
Cable according to MIL-C-17F and MIL-C-17G. 75 Ohm type
Cable according to MIL-C-17F and MIL-C-17G. 75 Ohm type
Technische Eigenschaften
| Armouring: | False |
|---|---|
| Colour outer sheath: | brown |
| Diameter inner conductor: | 7/0.102 mm |
| Diameter outer conductor: | - mm |
| Dielectric: | Fully-PE |
| Halogen free (acc. EN 50267-2-2): | False |
| Inner conductor category: | Class 2 = stranded |
| Inner conductor material: | CCS, silver-coated |
| Jacket material: | PTFE |
| Operating temperature, fix: | -70 – 200 °C |
| Operating temperature, flexible: | -70 – 200 °C |
| Outer conductor material: | CU, tinned |
| Type of outer conductor: | braiding |
