Coaxial Cable RG59 B/U, 75 Ohm

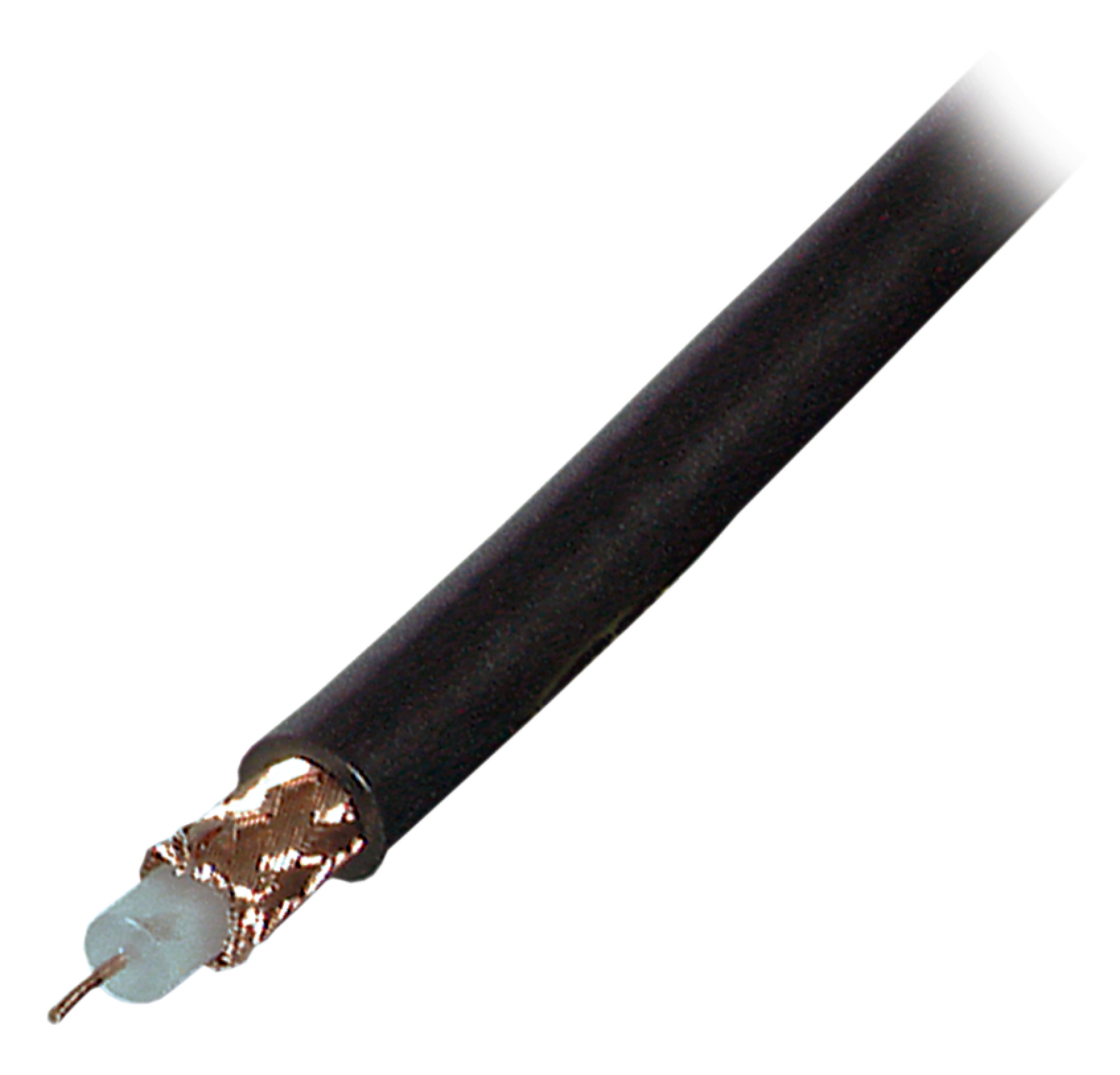

Coax Cable RG58 B/U, 75 Ohm black, MIL C17, 100m ring
Varenummer:
91059.100
EAN Nr.:
4049759073978
Produktinformation til Coax Cable RG58 B/U, 75 Ohm black, MIL C17, 100m ring
Coaxial cable for high frequent measured data and signals defined characteristic impedance and tight production tolerances in 75 Ohm.
Tekniske egenskaber
| Armouring: | False |
|---|---|
| Colour outer sheath: | black |
| Diameter inner conductor: | 0.58 mm |
| Diameter outer conductor: | 0.15 mm |
| Dielectric: | Fully-PE |
| Halogen free (acc. EN 50267-2-2): | False |
| Inner conductor category: | Kl.1 = single wire |
| Inner conductor material: | Fe-CU |
| Jacket Material: | PVC |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | -20 – 75 °C |
| Outer conductor material: | CU, tinned |
| Type of outer conductor: | braiding |
